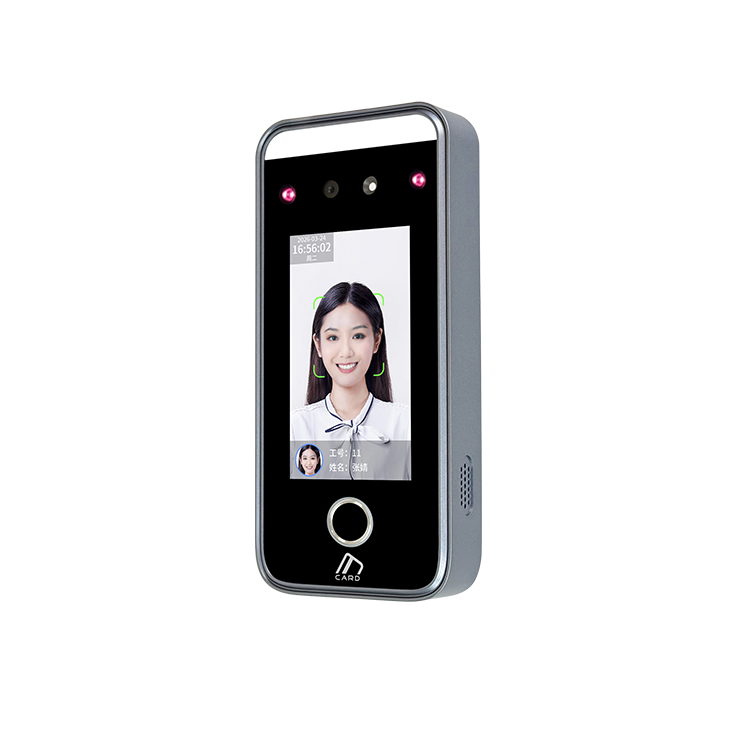

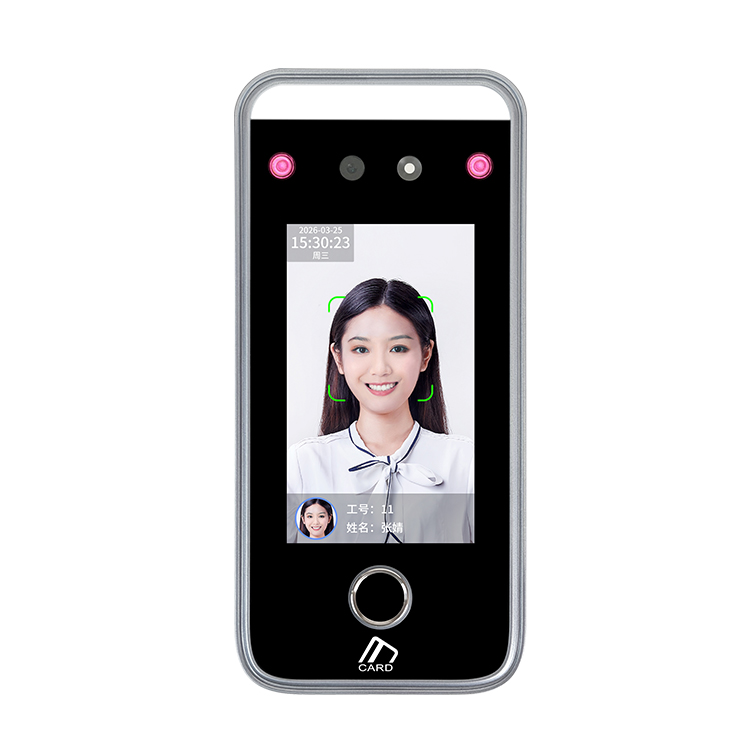

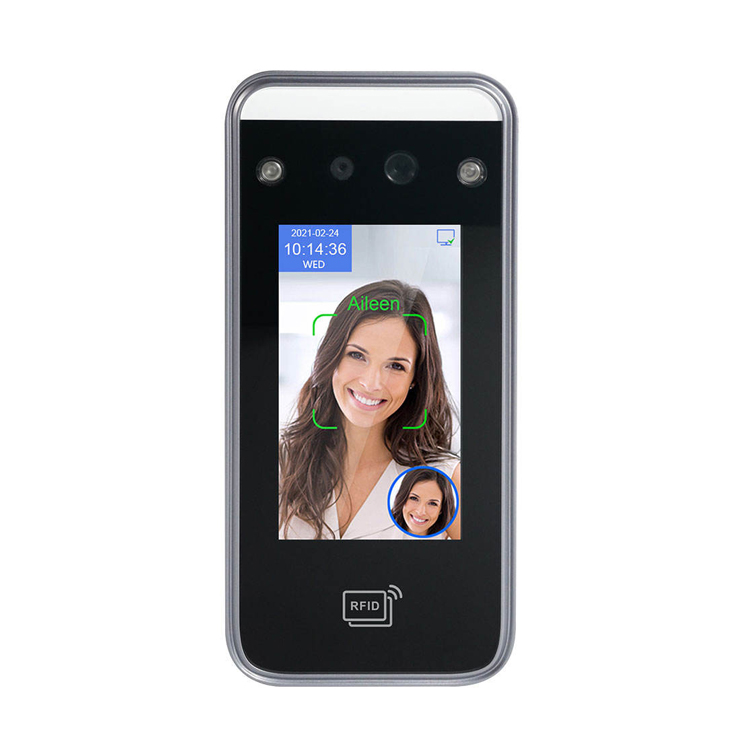

AI06F
Main Functions
- Multi-Authentication: Supports Face, Fingerprint, RFID Card, PIN for secure access.
- High-Capacity Recognition: Handles up to 5000(maximum 50,000) face records efficiently.
- Long-Distance Detection: Accurate at distances from 0.5 to 3 meters.
- Cloud-Based Solution: Offers cloud integration for remote management.
- User-Friendly Interface: 4.3-inch touchscreen for easy interaction.
Short Description
AI06F is a high-performance and highly reliable facial recognition terminal powered by deep learning algorithms, delivering fast recognition and high accuracy. It supports 1:1 and 1:N facial and fingerprint recognition, along with built-in card recognition. With its high cost-effectiveness, low power consumption, and excellent stability, AI07F is an advanced multimodal facial and fingerprint access control and time attendance terminal.

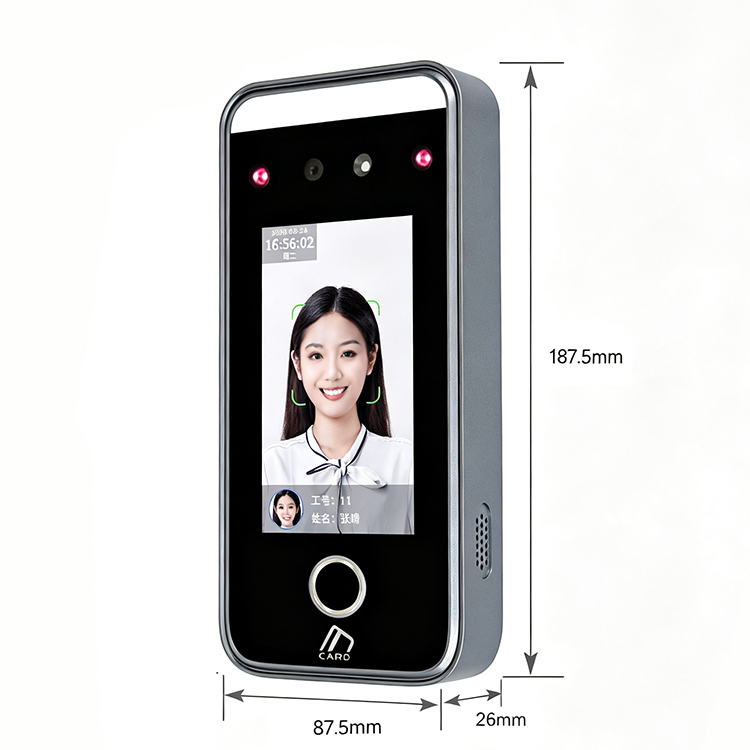

product Details And Dimensions
All the details and dimensions can be customized according to your project site

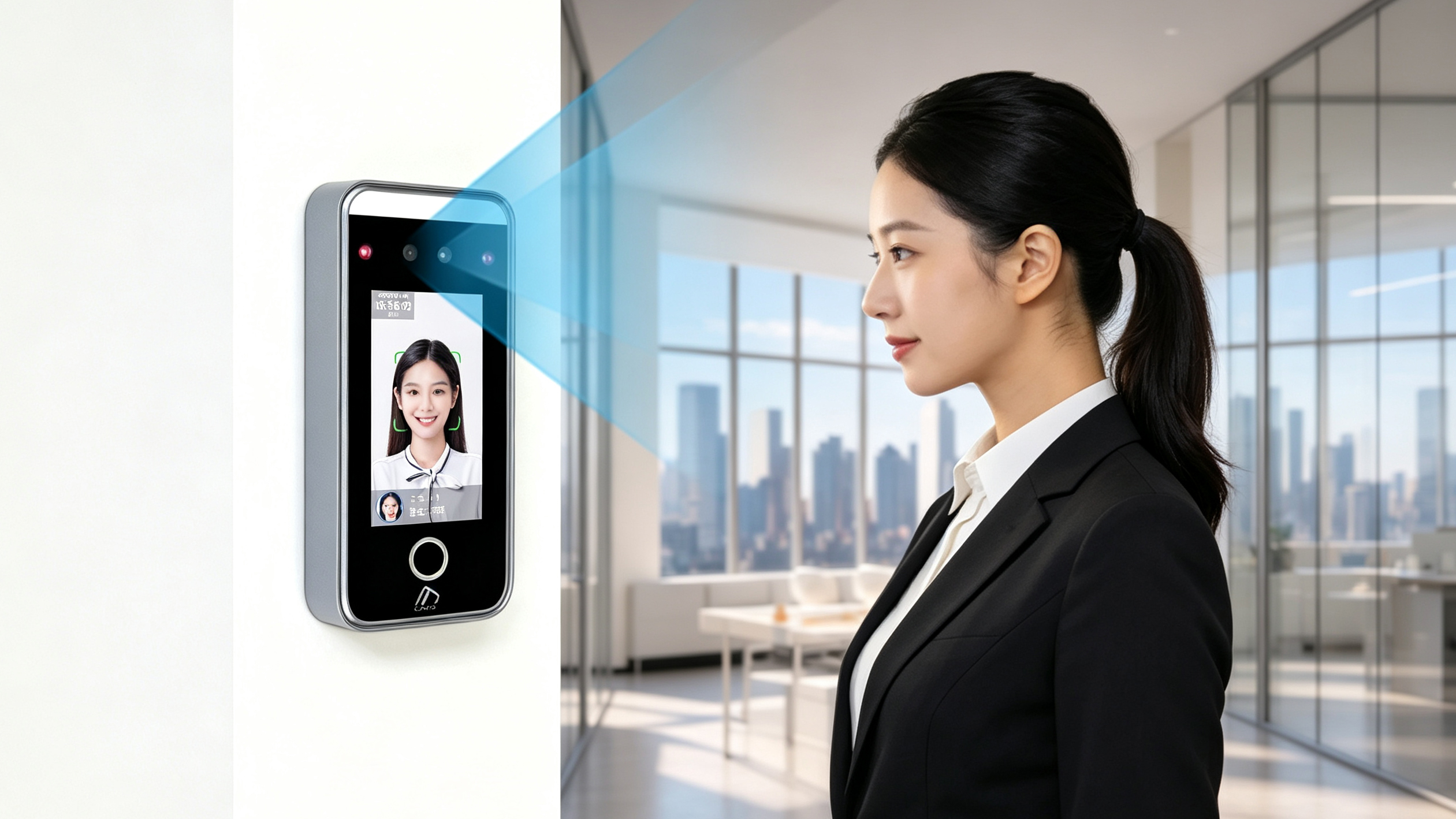

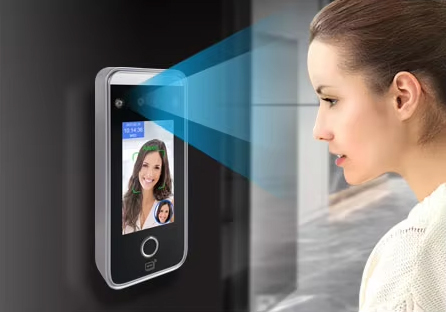

Face Recognition

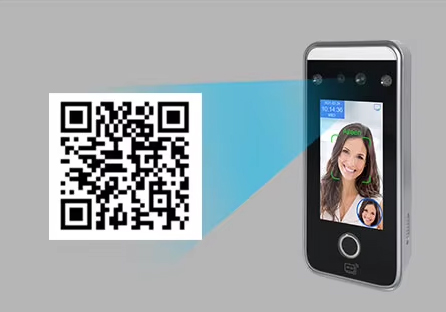

QR Code Reading

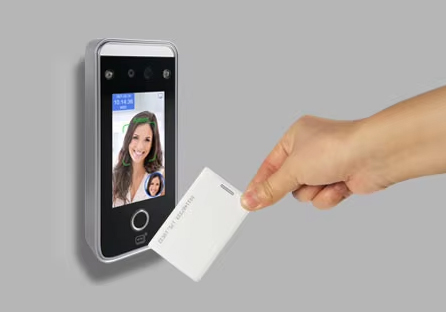

RFID Card
Product Parameters
|
Screen |
4.3 Inch, ,Capacitive Touch Screen |
|
Keypad |
Touch keypad |
|
Operation system |
LINUX 3.10 |
|
CPU,NPU |
0.8G Single-core ARM Cortex-A7,1.0T |
|
RAM |
256MB DDR3 |
|
ROM |
eMMC Flash 4GB |
|
Binocular camera |
100W Colorful WDR+100W infrared live camera |
|
Logs capacity |
500000 |
|
Face Registration |
Local operation: Enroll face with machine, import user photo with U disk
Software operation: Import user photo to software, capture user
photo with camera |
|
Verification |
Dynamic face recognition, password, ID Card(IC card optional) |
|
Face capacity |
5000 |
|
Fingerprint Capacity |
10000 |
|
Card Capacity |
15000 ，ID Card Standard,IC Card Optional |
|
Password Capacity |
15000 |
|
Face Recognition Accuracy |
99.70% |
|
Recognition Speed |
≤0.2s, support single user/multi user(at most 5 users) recognition at same time |
|
Recognition Distance |
0.5~2.5 meters (0.5~1.5 meters with live face recognition on) |
|
Prevent Photo |
Dual camera anti-counterfeiting, prevent recognition with photo/video |
|
Principle of Identification |
Face algorithm technology of multi-task cascaded convolutional
neural network based on video stream for dynamic face detection,
tracking and recognition |
|
WDR |
Wide dynamic range, support accurate face recognition under
Strong light, dark light and backlight |
|

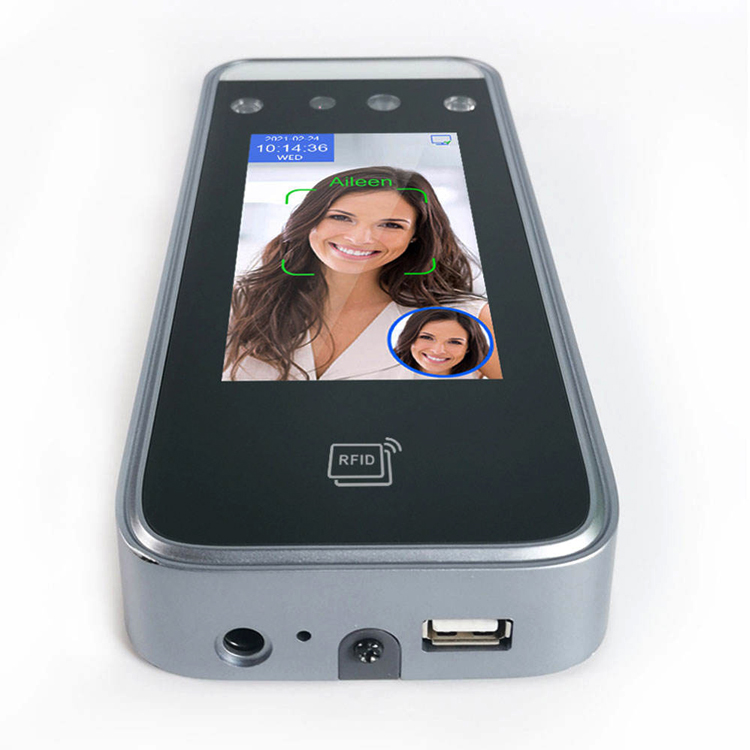

USB |
USB2.0 x 1 ，Support U disk import/export data |
|
Power supply |
DC12V interface x 1 |
|
Speaker Interface |
Reserved for extended Speaker Interface |
|
Network Communication |
TCP/IP, Support C/S LAN communication, Wifi (optional) |
|
Free Attendance software |
Support exporting excel attendance report with U disk |
|
Shift |
Support shift setting and importing shift schedule with U disk |
|
Management Software |
Support shift setting and importing shift schedule with U disk |
|
Access Control Function |
Door unclosed alarm,forced door opening alarm,alarm linkage and output,one set of door opening signals,one set of alarm
signals,time permission contorl ,connect external access control reader,Weigand 26/34 output input |
|
Environmental adaptability |
Working temperature: -15C~+45°C (storage temperature -40C~+65°C)，
Working humidity: 20% ~90% (storage humidity 20%~90+2%)，
Dark enviroment: LEDSoft light automatic fll light (Automatic
control according to ambient light)
Ambient light adaptation range: 0-50000Lux |
|
Muti language |
Support 20 national languages and voices including English,
Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian,
Japanese,Korean, etc |
|
Broadcase and ring |
Support display name, voice broadcase name, builtin bell ring |
|
Automatic fill light |
Support infrared fill light, the white fll light automatically lights up
when face is captured in dark light |
|
Working Current |
stand-by current: 310mA , Working current: 520mA |
|
QR Code Scanner |
Support |
|
Working Voltage |
DC12V，2A |
|
Installation Way |
Standard: Wall mount, desktop stand; Optional: bracket for turnstile,
floor stand |
|
Machine Dimension |
187x87.5x26mm |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
