AI07F
Main Functions
- Large user capacity for 1000 faces, 20000 fingerprints. It can be upgraded to 50000 faces and 100,000 fingerprints
- Multiple recognition method: face, fingerprint, palm vein, RFID card, QR code, PIN
- Fast recognition in 0.2 seconds Recognition distance of 0.5-2.5 meters for flexible adaptation
- Dual-camera dynamic anti-counterfeiting to prevent photo/video fraud Support for mask-wearing recognition, adaptable to various scenarios
- Support QR code scanner WDR wide dynamic range for clear recognition in strong light/darkness/backlight
- 5-inch touch screen for convenient operation
- Supports TCP/IP and wireless WiFi network.
- Adapted to 20 languages for multinational enterprises or multilingual teams.
- Cloud-Based Software: Accessible web interface for real time monitoring.
- Support selecting attendance statuses such as IN, OUT, Break in, Break out, etc
- Supports simultaneous recognition of 5 individuals’ face
Short Description
AI07F is a high-performance and highly reliable facial recognition terminal powered by deep learning algorithms, delivering fast recognition and high accuracy. It supports 1:1 and 1:N facial and fingerprint recognition, along with built-in card recognition. With its high cost-effectiveness, low power consumption, and excellent stability, AI07F is an advanced multimodal facial and fingerprint access control and time attendance terminal.

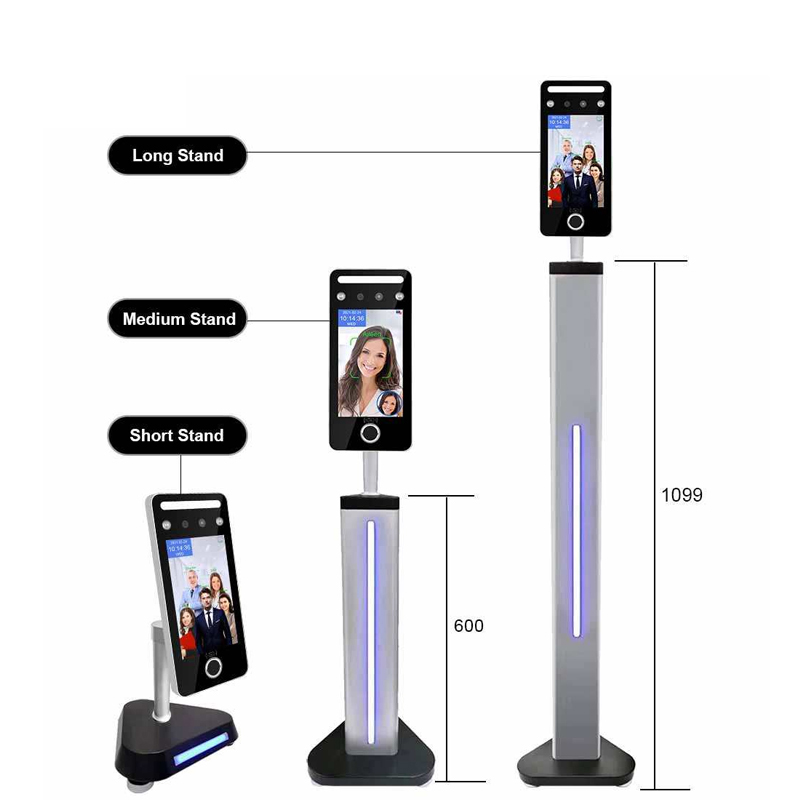

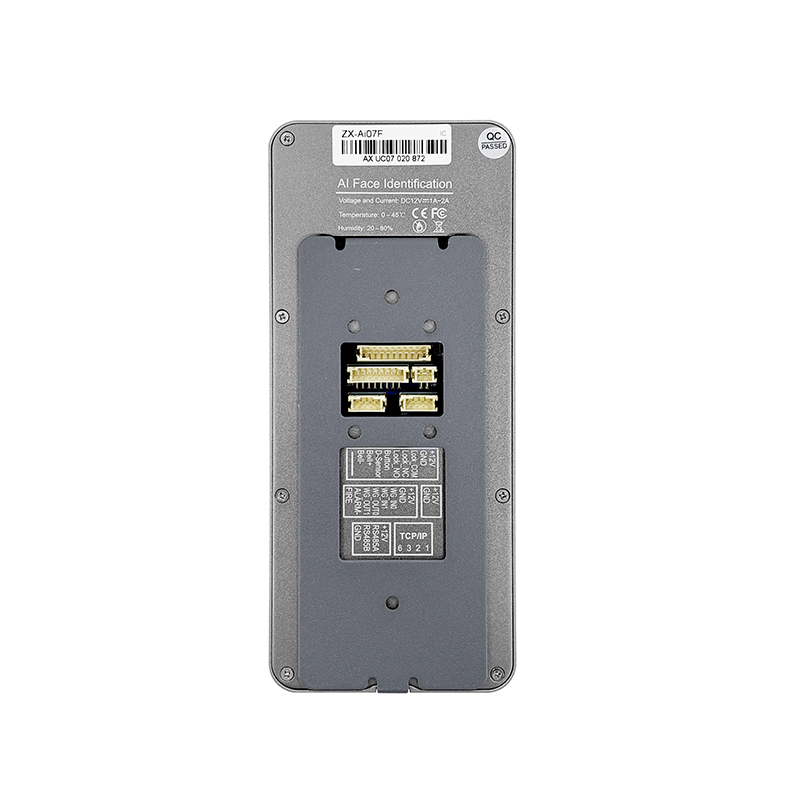

product Details And Dimensions
All the details and dimensions can be customized according to your project site

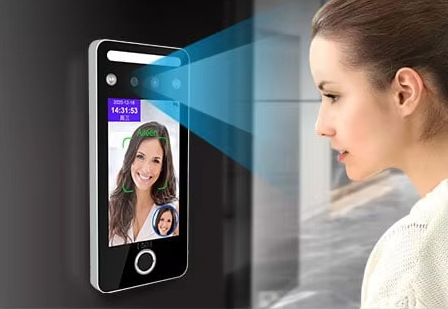

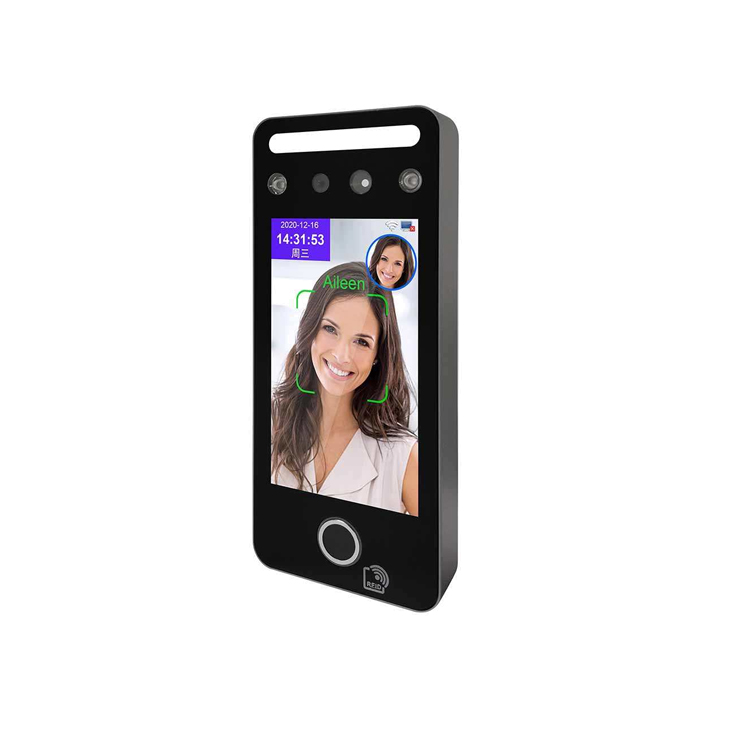

Face Recognition

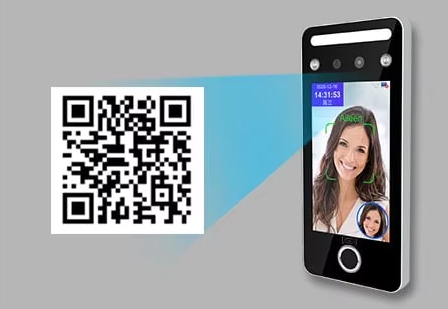

QR Code Reading

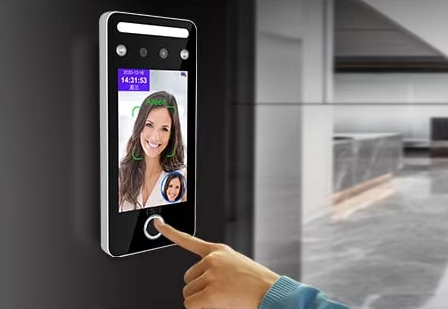

Fingerprint
Product Parameters
| Specifications | ||
| Model | AI07F | |
| Hardware | CPU | 1.2G Dual-Core ARM Cortex-A7 |
| NPU | 600G (0.6T) | |
| RAM | 256M DDR3L | |
| ROM | 4G EMMC | |
| Camera | Real Sensor 1/2.9 inch FOV 75° 2MP pixel high-definition color camera WDR wide dynamic Sensor 1/5 inch FOV 75° 2MP pixel infrared live camera | |
| Fill Light | LED Fill Light and Dual Infrared Fill Light (Automatic control according to ambient light) | |
| Display | 5.0 Inch IPS Touch Screen, HD 720*1280 | |
| Communication port | TCP/IP, USB-Type A(Support U disk), Wifi, RS485 | |

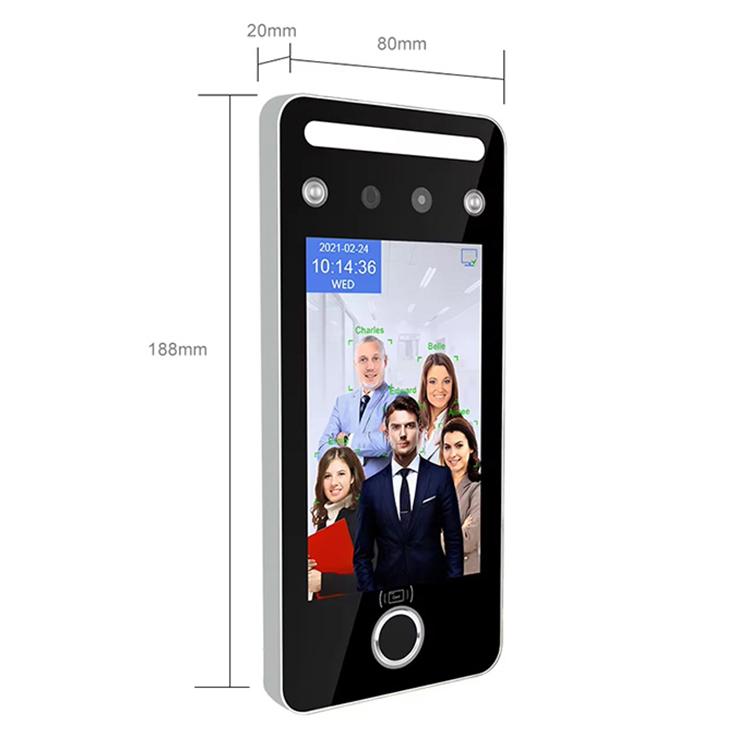

| Product Size | 188mm*80mm*20mm | |
| Power | DC 12V, 2A | |
| Working Temperature | 0~45 ℃ | |
| Working Environment | Under normal light, strong light, dark environment, backlight | |
| Material | Aluminum alloy case | |
| Firmware Specs | OS | Linux 3.0 |
| Language | English, Spanish, Arabic, Thai, Russian, Portuguese, French, Farsi, Vietnamese, Japanese, Turkish, and customizable | |
| Verify Method | Face Recognition, Fingerprint, ID Card(IC optional), Password or combination | |
| QR Code Scanner | Support(Scan by camera) | |
| Face/Card/Password Capacity | 5,000(50,000 optional) | |
| Fingerprint Capacity | 10,000(100,000 optional) | |
| Logs Capacity | 500,000 | |
| Face Recognition Speed | <0.2S | |
| Face Recognition Distance | 0.5~2.5 meters(adjustable) | |
| Live Face Detection | Reject Photo and Video | |

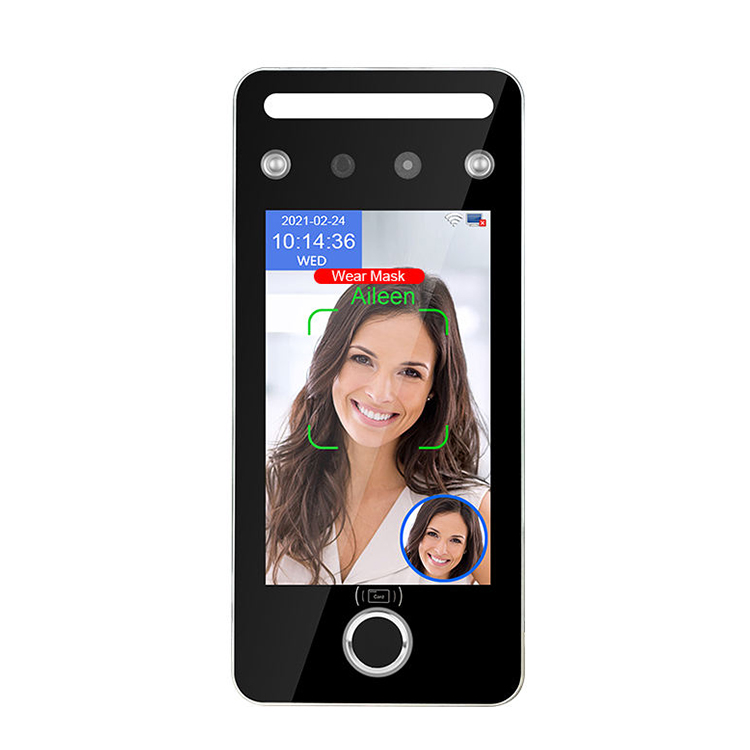

| Mask Detection | Support mask detection and face recognition with wearing mask | |
| Access Control Interface | Relay output | One set |
| Alarm output | One set | |
| Fire Input | One set | |
| Door sensor | Support | |
| Wiegand | One set WG 26/34 Input/Output | |
| Exit button | Support | |
| Door Bell | Support | |
| Tamper Alarm | Support | |
| Anti-pass back | Support | |
| Interlock | Support | |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
