AI08EV
Main Functions
- 2MP Binocular Camera: WDR imaging delivers clear images in strong, low-light, and backlight conditions. Supports liveness detection and anti-spoofing.
- 8″ IPS HD Touchscreen: 800 × 1280 resolution.
- Fast Face Recognition: Recognition in <0.2s, with live portrait capture and storage.
- ID/IC Card Support: Supports dual-frequency ID and IC cards.
- Multiple Authentication: Supports face, palm vein, card, password, and face + card verification.
- TTS Voice Broadcast: Supports Chinese/English voice prompts and name announcements, including non-standard English names.
- 20-Language Support: Supports voice prompts in 20 languages.
- Flexible Keyboard: Switchable 26-key / 9-key input.
- Multiple Enrollment Methods: Supports on-device registration, USB photo import, and backend software registration.
- Dual Report Export: Export data via USB, desktop software, or cloud platform.
- Professional Access Control: Supports relay output, exit button, door sensor, WG I/O, touch doorbell, alarm output, and anti-passback.
Short Description
AI08EV is designed with an AI-accelerated CPU, powered by deep learning algorithms and running on the Linux operating system, delivering fast recognition speed and high accuracy.

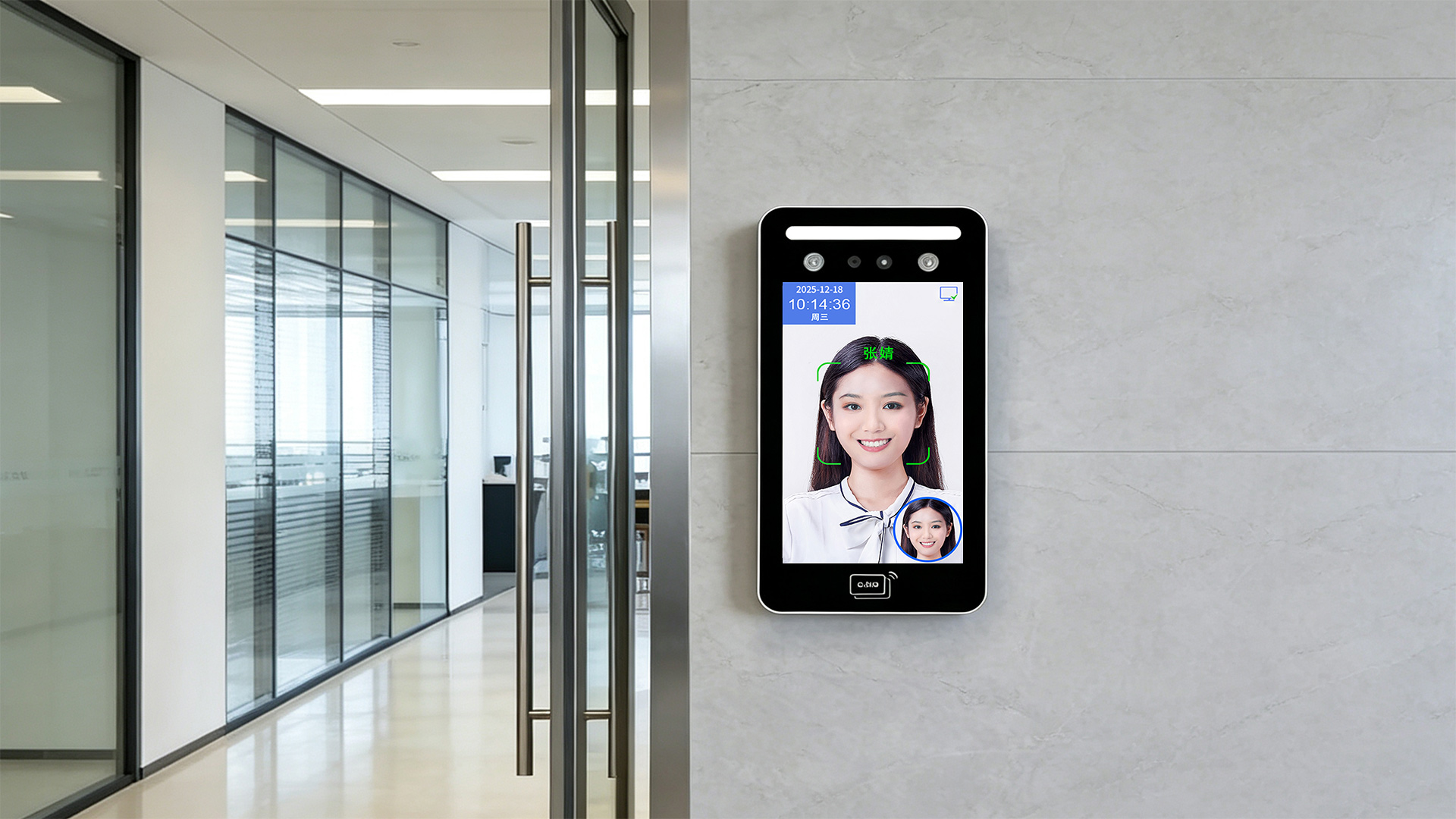

Suitable for use as access control and time attendance devices in government agencies, smart buildings, office towers, high-end residential communities, colleges and universities, enterprises and public institutions, industrial and mining enterprises, and other premises.

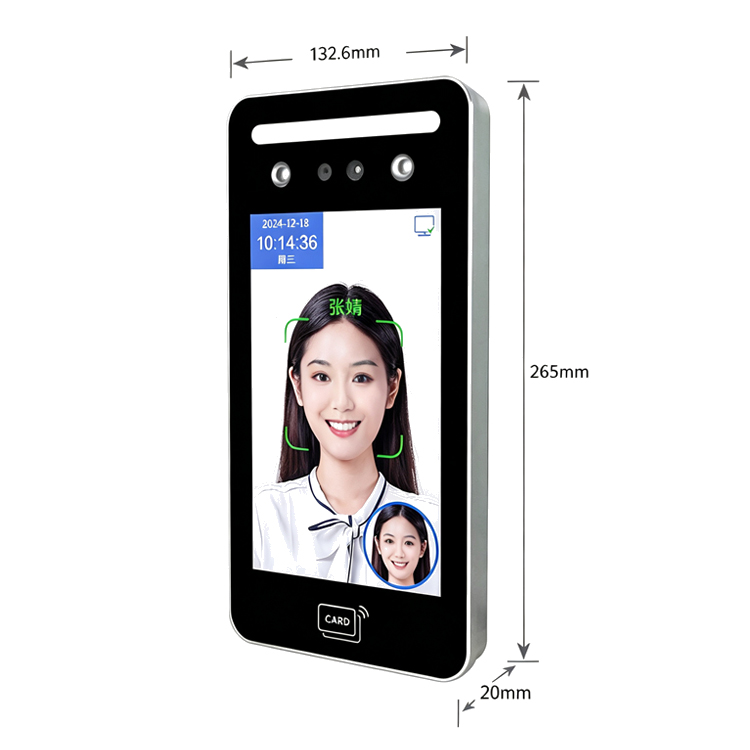

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Appearance | |
| Manufacturing Process | Precision CNC Machining |
| Housing Material | Aluminum Alloy |
| Hardware Parameters | |
| CPU | 1.2GHz Dual-Core ARM Cortex-A7 |
| NPU | 0.8 TOPS |
| RAM | 256MB DDR |
| ROM | 4GB eMMC |
| Camera & Fill Light | 2MP Color + 2MP IR HD Camera; Dual IR High-Power Fill Lights |
| Display | 8-inch Touchscreen, Resolution 800×1280 |
| Communication Interface | TCP/IP, USB Type-A Port; Wireless Wi-Fi (Optional) |
| FRR (False Rejection Rate) | ≤ 0.1% |
| FAR (False Acceptance Rate) | ≤ 0.001% |
| Power Supply | DC 12V, 2A |
| Operating Temperature | -15°C to 60°C |
| Dimensions | 256mm×133mm×20mm |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
