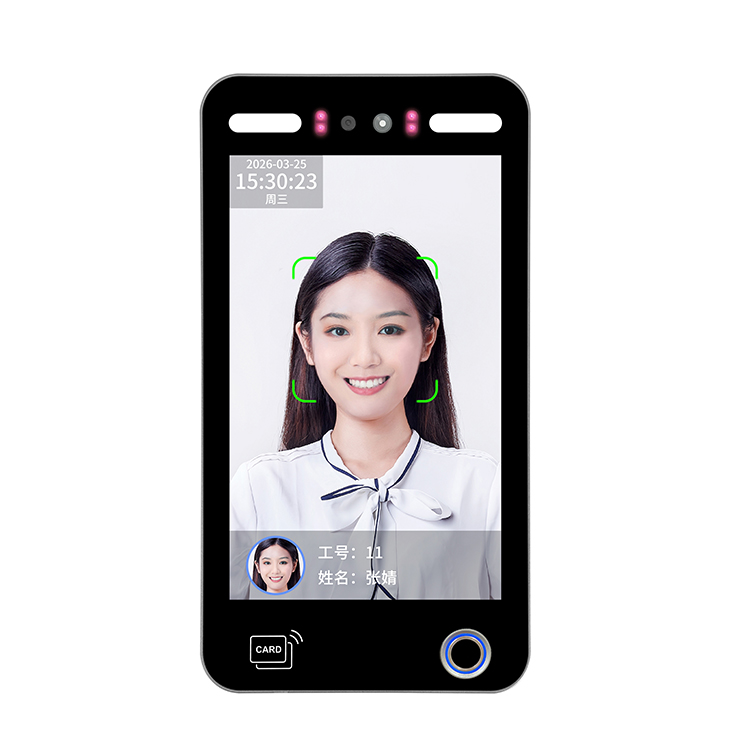

AI10EFV
Main Functions
- 2 MP binocular recognition cameras with WDR. Clear imaging in strong light, low light and backlight; face recognition accuracy up to 99.7%.
- Dynamic binocular liveness detection to reject spoofed faces and photographs.
- 10.1-inch IPS HD touch screen with 800 × 1280 resolution.
- Face recognition time of less than 0.2 seconds; supports on-site snapshot capture when recognition succeeds.
- Dual-frequency ID / IC card reading.
- Flexible authentication combinations: face, palm vein, fingerprint, card and password; supports combinations such as card + face.
- TTS intelligent voice prompts. Announces the user name in Chinese or English after successful recognition, including non-standard English names.
- Supports voice prompts in up to 20 languages, including Chinese and English; supports Chinese, English, Korean and Persian input.
- Freely switchable 26-key and 9-key keypad input.
- Supports local face enrollment, photo enrollment from a USB flash drive, and photo enrollment through back-end software.
- Dual-mode report export: access data reports via USB flash drive, desktop software and cloud-platform statistics.
- Professional access-control features including time-zone access, group/combination access and user validity dates.
Short Description
The Ai10EFV is a multimodal recognition terminal for face‑fingerprint access control and attendance. It is equipped with an AI‑accelerated CPU, runs on the Linux operating system and adopts deep‑learning algorithms to deliver fast recognition and high accuracy. It supports 1:1 and 1:N modes for face comparison and fingerprint recognition, with built‑in card‑swipe recognition. Featuring cost‑effectiveness, low power consumption and high stability.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Item | Specification |
| Model | AI10EFV |
| Manufacturing Process | Precision machining |
| Housing Material | Aluminum alloy |
| CPU | 1.2 GHz dual-core ARM Cortex-A7 |
| NPU | 0.8 TOPS computing power |
| RAM | 256 MB DDR |
| ROM | 4 GB eMMC |
| Camera and Fill Lights | 2 MP color camera + 2 MP infrared HD camera; dual high-power infrared fill lights |
| Display | 10.1-inch IPS touch screen; 800 × 1280 resolution |
| Communication | TCP/IP, USB Type-A port (USB flash drive function), optional Wi-Fi |
| False Rejection Rate | ≤ 0.1% |
| False Acceptance Rate | ≤ 0.001% |
| Power Supply | DC 12 V, 2 A |
| Operating Temperature | -15°C to +60°C |

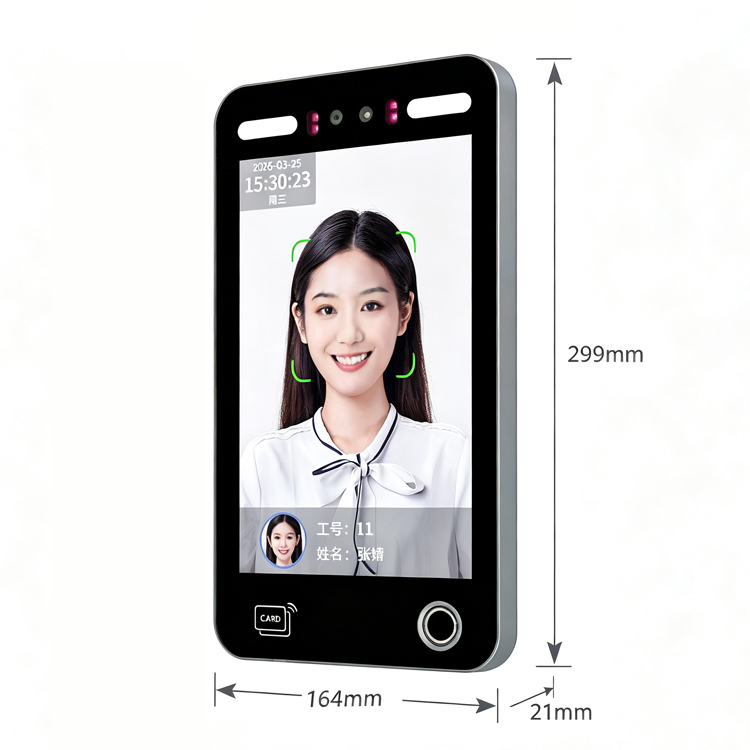

| Dimensions | 299 × 164 × 21 mm |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
