AK-P829 LCD
Key Features:
- ICE V6.0 CNN Deep Learning Algorithm — Supports wider angle recognition, full-scenario plate detection
- 5MP HD Camera — Scene-adaptive ISP, handles backlit/frontlit scenes, enhanced low-light performance
- 18.5-inch Outdoor LCD Display — High-brightness, auto-brightness adjustment, energy efficient
- Dynamic QR Code Payment — Supports plateless vehicles for entry/exit via QR code scanning
- Bluetooth Debugging — Mobile phone Bluetooth applet setup, no computer or cable needed
- Special Plate Recognition — Supports electric vehicles, airport, agricultural, factory & non-standard plates
- One-Touch Remote Intercom — Handles abnormal events with remote calling (optional)
- Ad Display Support — Custom image and video advertising on screen
- Voice Playback — User-friendly, adjustable volume for different time periods
- Easy Installation — Just plug in network cable + power cord, ready to use
🔷 Short Description:

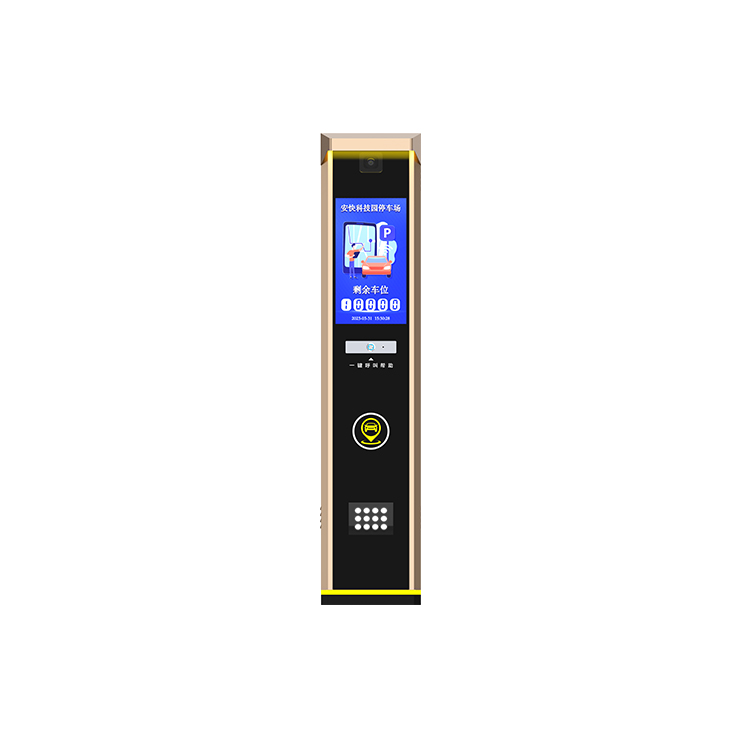

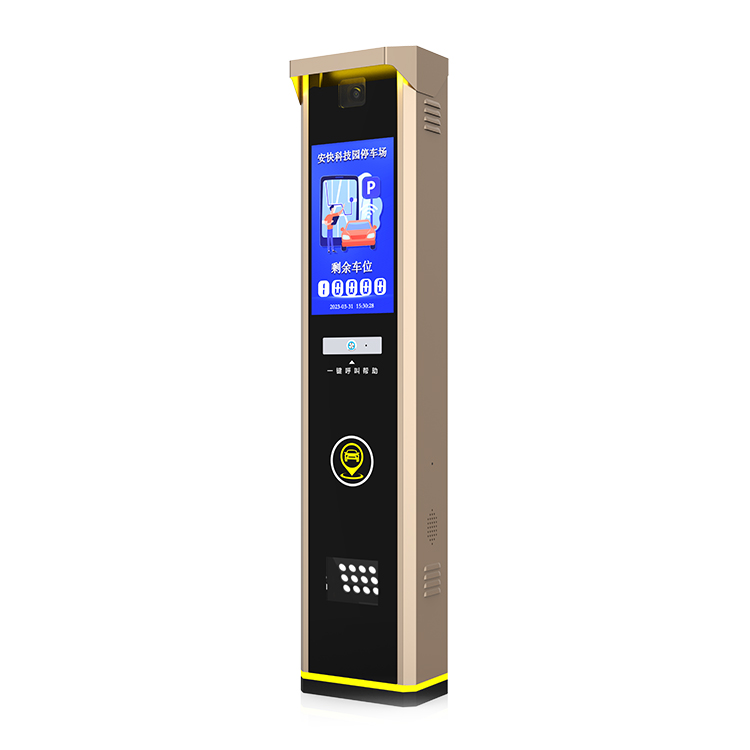

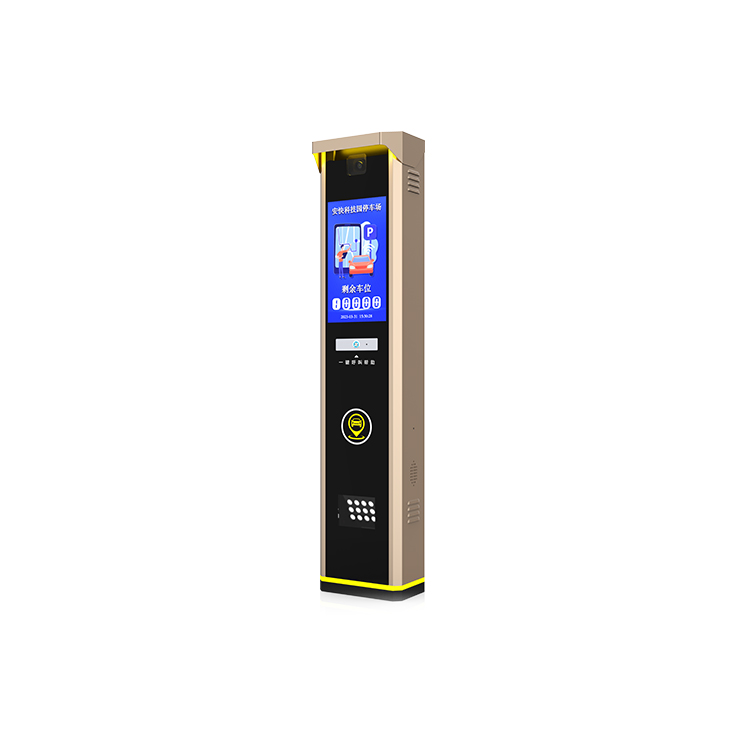

AK-P829 is an advanced all-in-one LCD License Plate Recognition machine by AnKuai, featuring a 5MP camera with ICE V6.0 CNN deep learning algorithm, 18.5-inch outdoor HD LCD display, QR code payment, and 99%+ recognition accuracy — designed for unattended smart parking management.

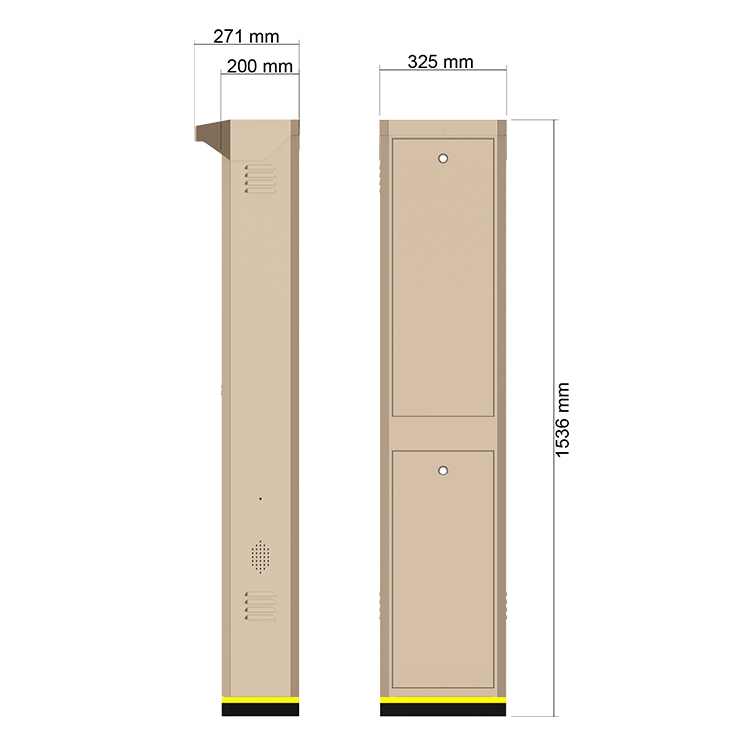

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameters:
Basic Parameters
| Parameter | Value |
|---|---|
| Working Voltage | AC 220V ±10% |
| Working Temperature | -20°C to +60°C |
| Relative Humidity | ≤95% (No condensation) |
| Rated Power | ≤100W |
| Memory | 1G RAM, 4G ROM |
| Communication | TCP/IP, RS485 |
| Display | 18.5-inch HD Outdoor LCD |
| Resolution | 1366 × 768 |
| IP Level | IP54 |
| Material | Cold Rolled Steel, Sheet Metal Spraying |
| Dimensions | 328 × 271 × 1536 mm |
Camera Parameters
| Parameter | Value |
|---|---|
| Power Supply | 12V / 8.4A |
| Recognition Rate | ≥99% (All-weather typical plate) |
| Vehicle Speed | 0–40 km/h |
| Recognition Angle | ≤45° |
| Optimal Recognition Distance | 3–6 meters |
| Trigger Mode | Loop coil or Video stream |
| Output Information | Vehicle image, plate image, plate number, color, type, passing time |
| License Plate Anti-Counterfeiting | Supported |
| Storage | MicroSD (TF) card, up to 32GB |
Fill Light Parameters
| Parameter | Value |
|---|---|
| Number of LED Chips | 12 pieces |
| Maximum Power | ≤10W |
| Fill Light Control | Light-sensitive auto control |
| Fill Light Distance | >50 LUX at 5 meters |
| Angle Adjustment | Supported |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
