AK48
Main Functions (Detail Advantages)
-
Equip the power supply & air breaker for each.
-
Equip the arm holder for stable using.
-
Routing specification in the housing for easy maintenance.
-
Color options: Black & Gold.
Short Description

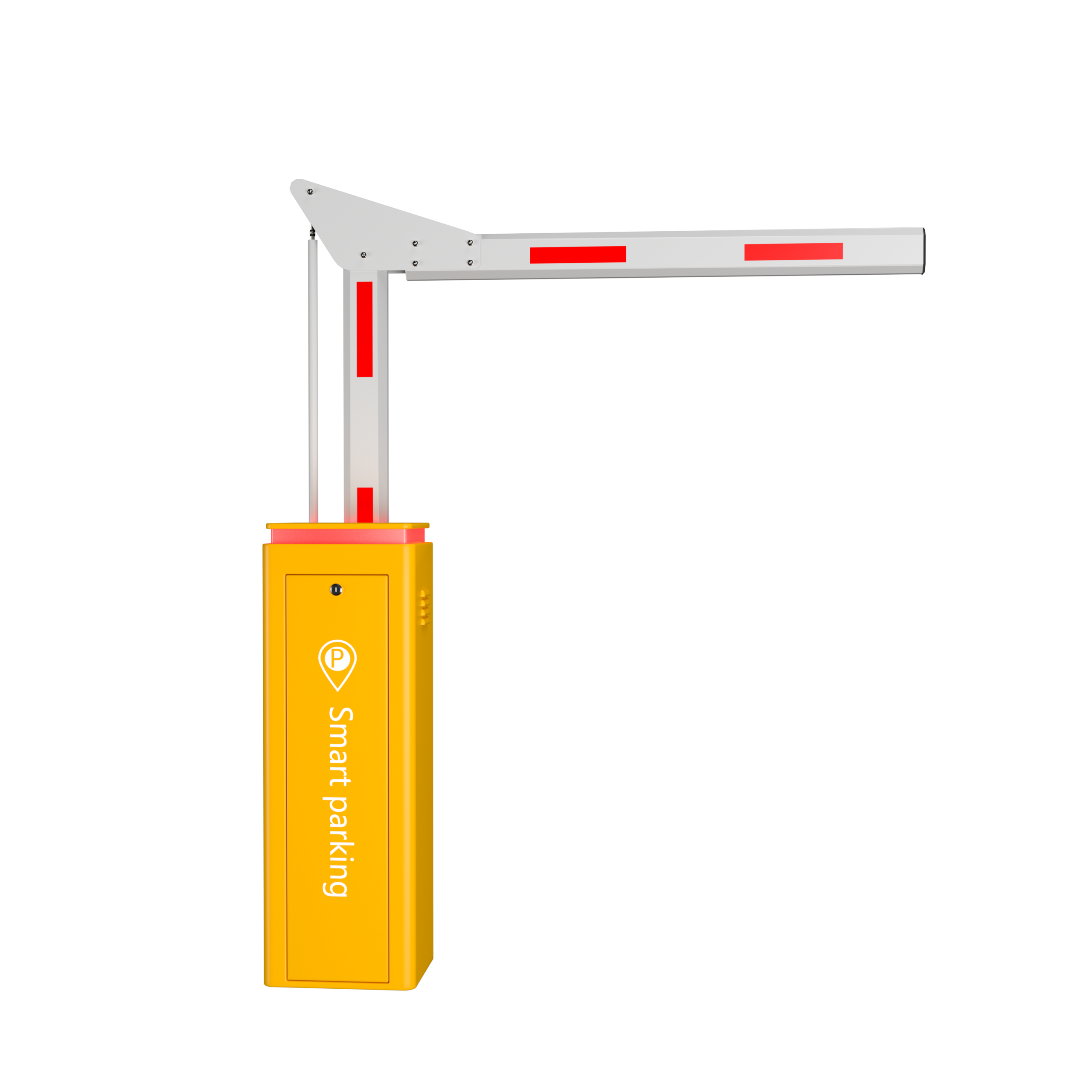

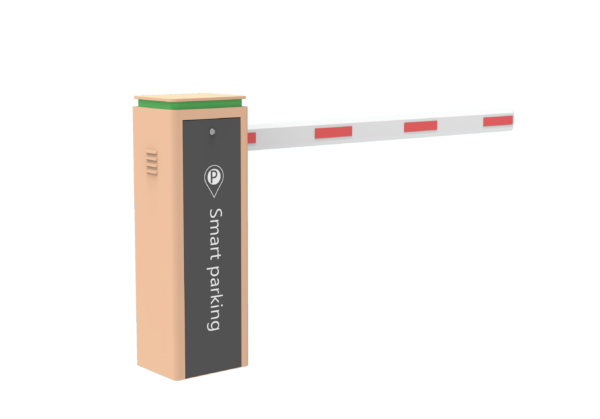

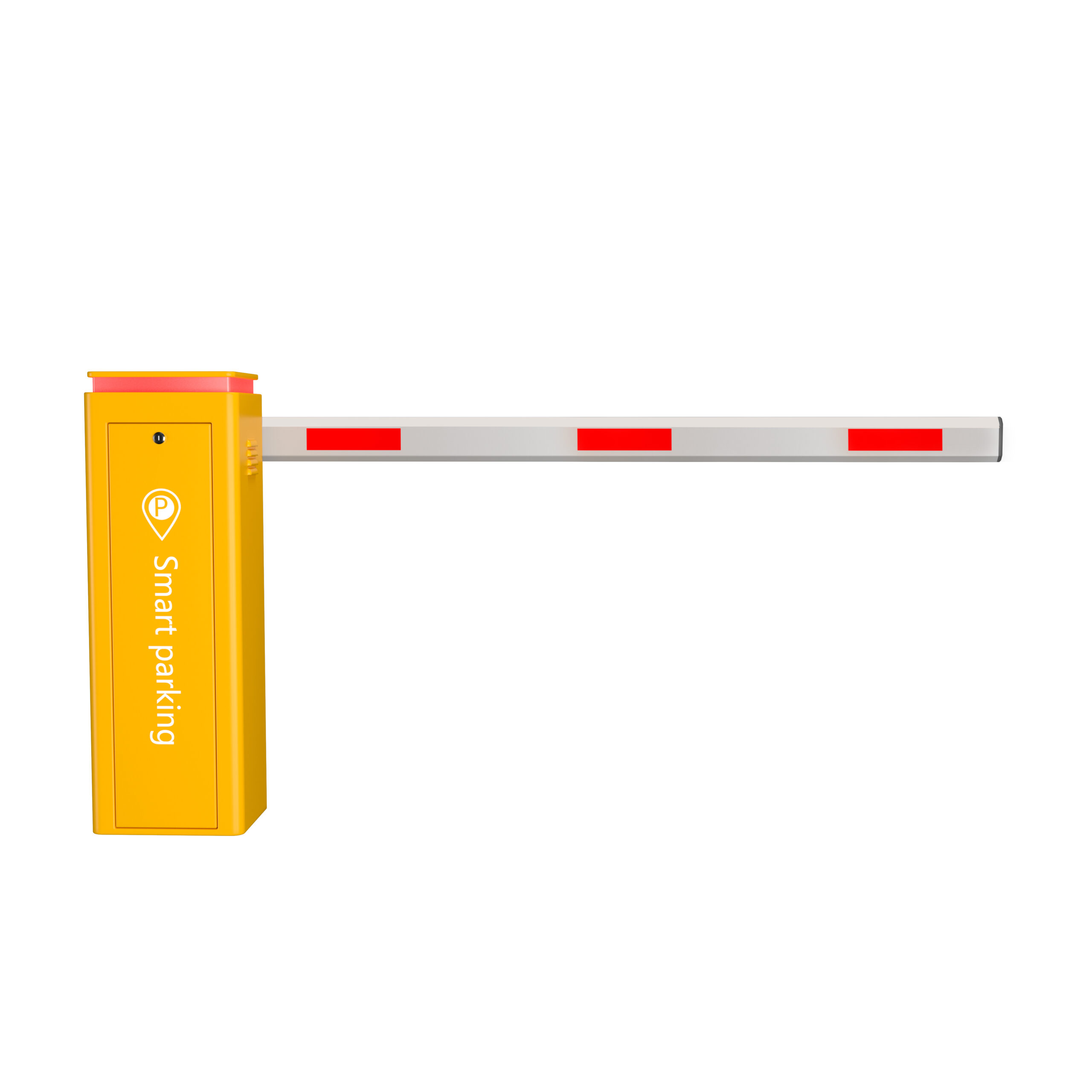

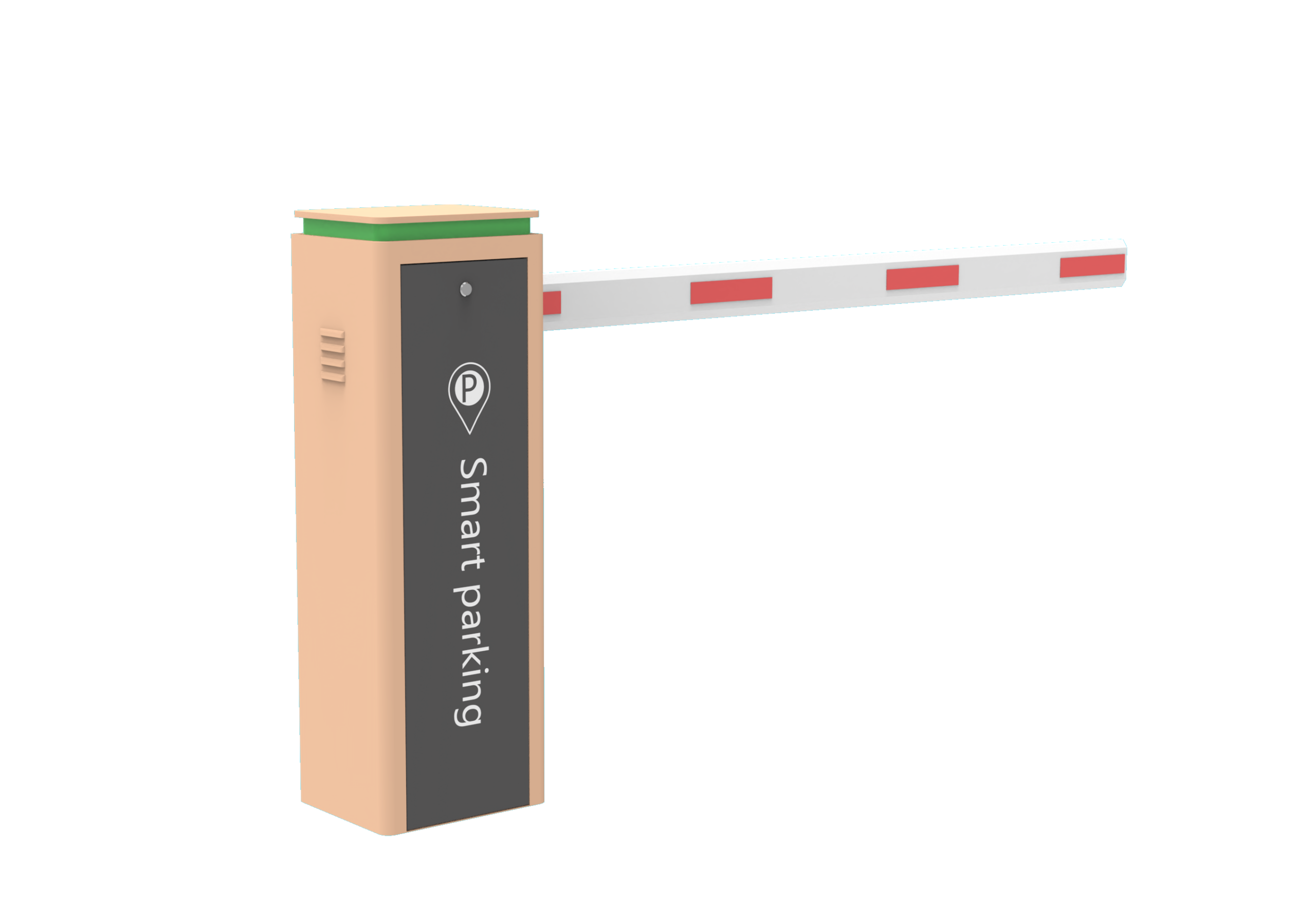

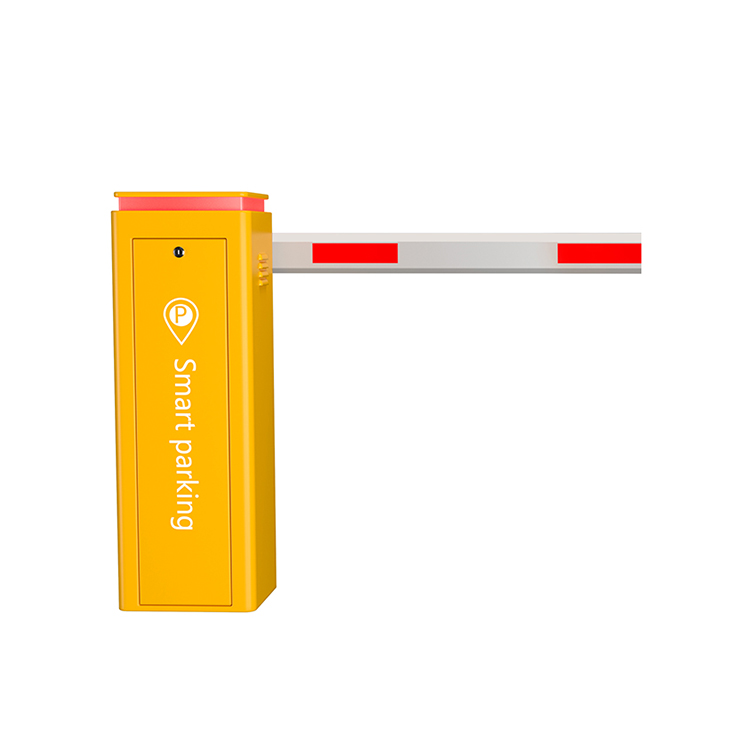

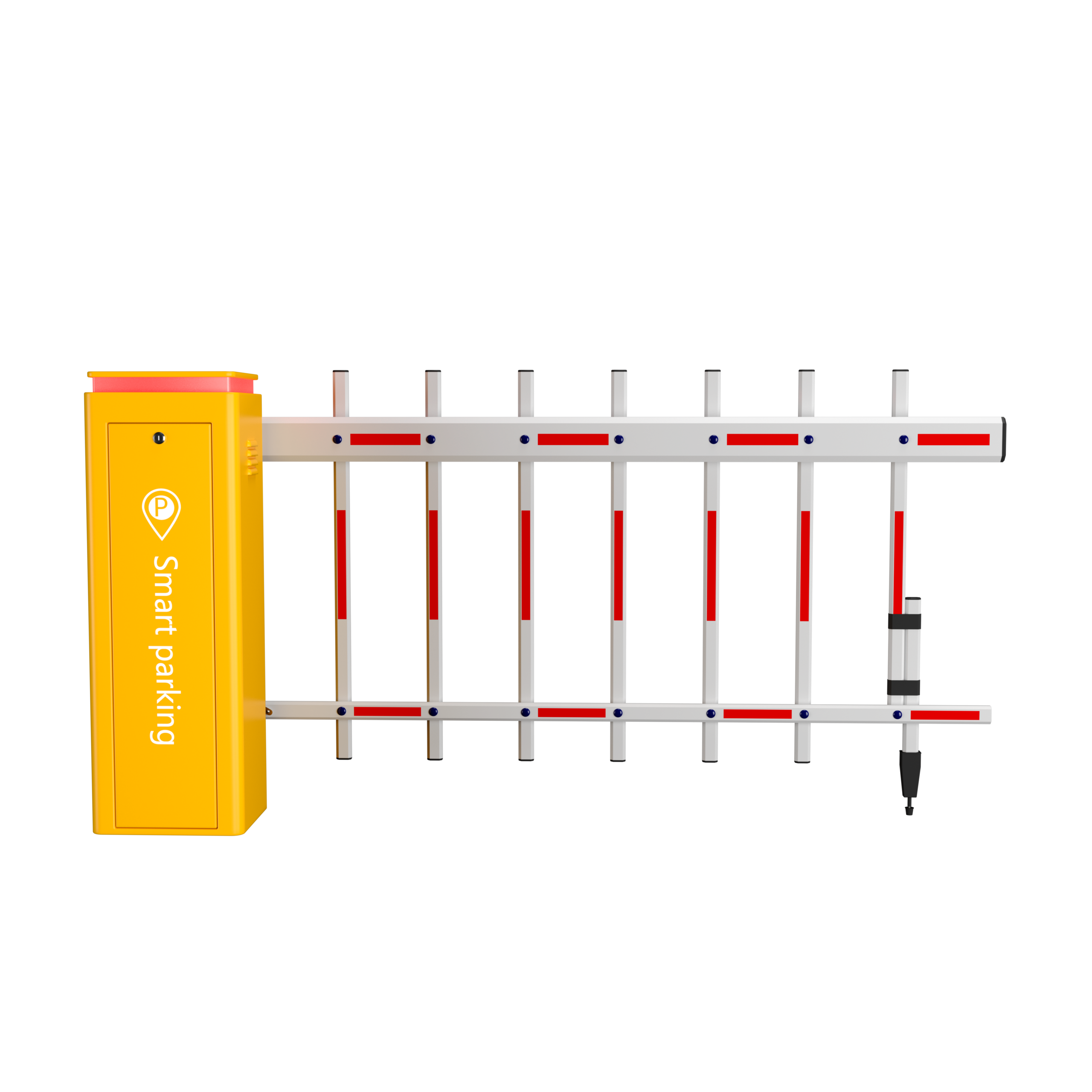

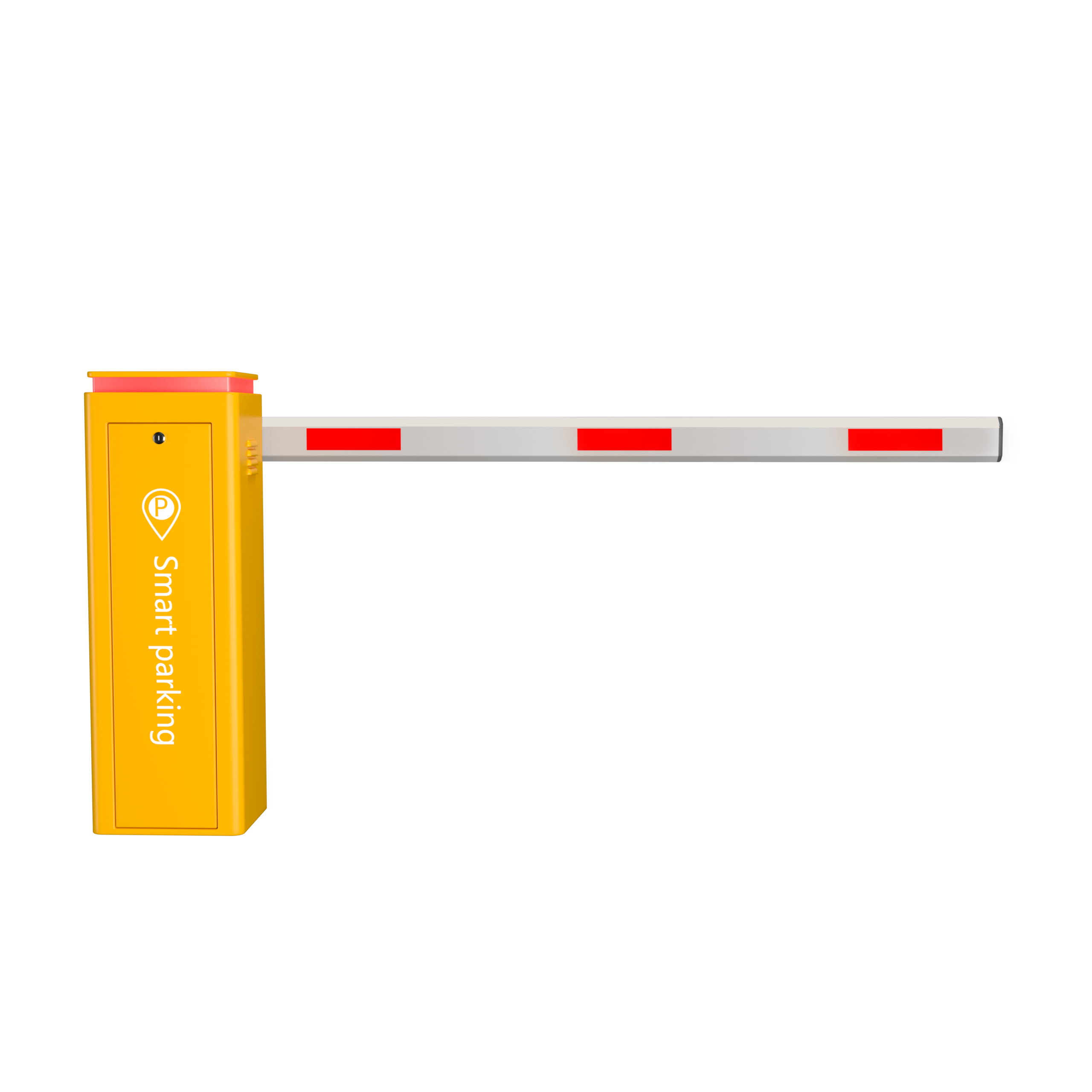

AK48 Series DC Brushless Barrier Gate is a heavy-duty access control solution designed for reliable and efficient vehicle entry management. Equipped with a DC24V brushless motor and precise steel gear reducer, it supports straight boom up to 6m and fence boom up to 4.5m. With wide operating temperature range (-40° to 80°C), 1.5mm thick housing, layering clamping installation, and 6062-T5 aluminum boom, the AK48 is ideal for parking lots, toll plazas, residential communities, factories, and other entry/exit applications requiring durability and long-lasting performance.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameters
| Parameter | Specification |
|---|---|
| Motor Power Consumption | 100W |
| Power Supply | AC110V/220V ±10% |
| Driver | DC24V Brushless motor |
| Reducer | Precise steel gear |
| Max Arm Length | Straight boom ≤6m, Fence boom ≤4.5m |
| Speed | Straight boom 1.5~6s, All boom types 3~6s |
| Working Temperature | -40° to 80°C |
| Insulation Grade | F |
| Housing Thickness | 1.5mm |
| Housing Dimension | 325 × 270 × 980 mm |
| Installation Method | Layering clamping |
| Boom Material | 6062-T5 Aluminum |
| Straight Boom Dimension | 45 × 100 mm |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
