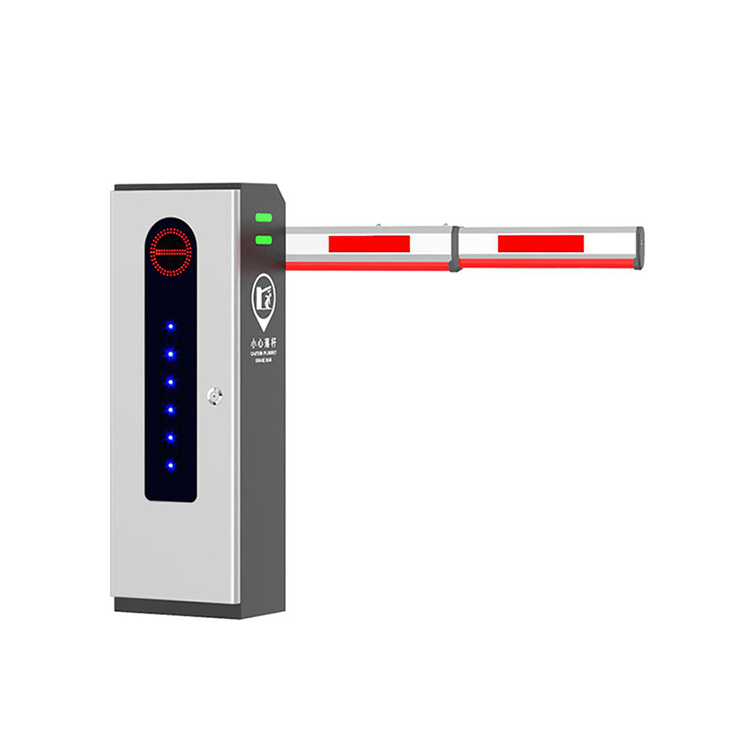

AKD117
AK-D117 Barrier Gate - Features:
- 90W turbine worm transmission deceleration induction motor — saves energy and prevents overheating.
- Fan-cooled motor — can work 24 hours continuously without stopping.
- Drive is steady, noise is lower, structure is compact and self-locking.
- Uses 2 springs — not easy to fracture, more durable.
- Integrative mold-made machine core — all parts more accurate, barrier gate much more stable.
- Accurate link mechanism — releases arm shake and motor load for smoother and longer working life.
- Weight (without boom): 50 kgs, Drive: Torque motor.
- Maximum Remote-Control Distance: ≤40m.
- Advanced automatic parking barrier gate with 24V BLDC motor.
- Power supply: AC110-220V ±10%, Frequency: 50/60Hz.
- Motor power consumption: 100W, Max arm length: ≤6M.
- Speed: 1.8-3s (open) / 3-6s (close).
- Supports Straight, Telescopic, Folding, and Fence boom types.
- Protection grade IP54 — dust and water resistant.
- High durability — MCBF: 5 Million cycles.
- Wide working temperature: -30°C to 80°C, Humidity: ≤90%.
- Remote control range up to 30 meters.
- Housing dimension: 355×249×1035mm, Height from ground: 890mm.
- Radar pole height options: 480 / 600 / 720mm.
- Ideal for parking lots, toll gates, offices, and gated communities.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameter |
Value |
|---|---|
| Power supply | AC110-220V±10% |
| Driver | 24V BLDC motor |
| Motor power consumption | 100W |
| Max arm length | 6M |
| Speed | 1.8-3s / 3-6s |
| Height from the ground | 890mm |
| Housing dimension | 355 x 249 x 1035mm |
| Working temperature | -30° to 80° |
| Weight | 41kg |
| Frequency | 50/60Hz |
| Remote-control distance | ≤30m |
| Protection grade | IP54 |
| MCBF | 5 million |
| Boom Type | Length | Open Time | Close Time |
|---|---|---|---|

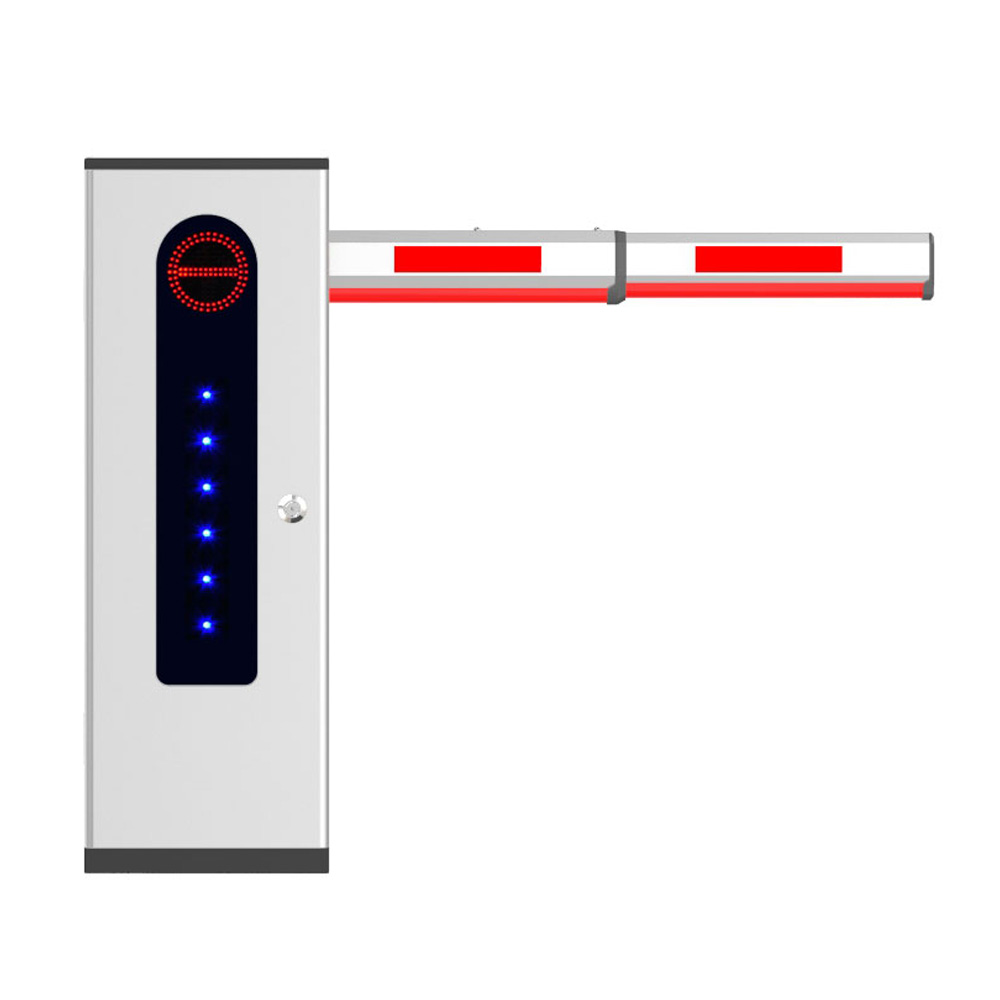

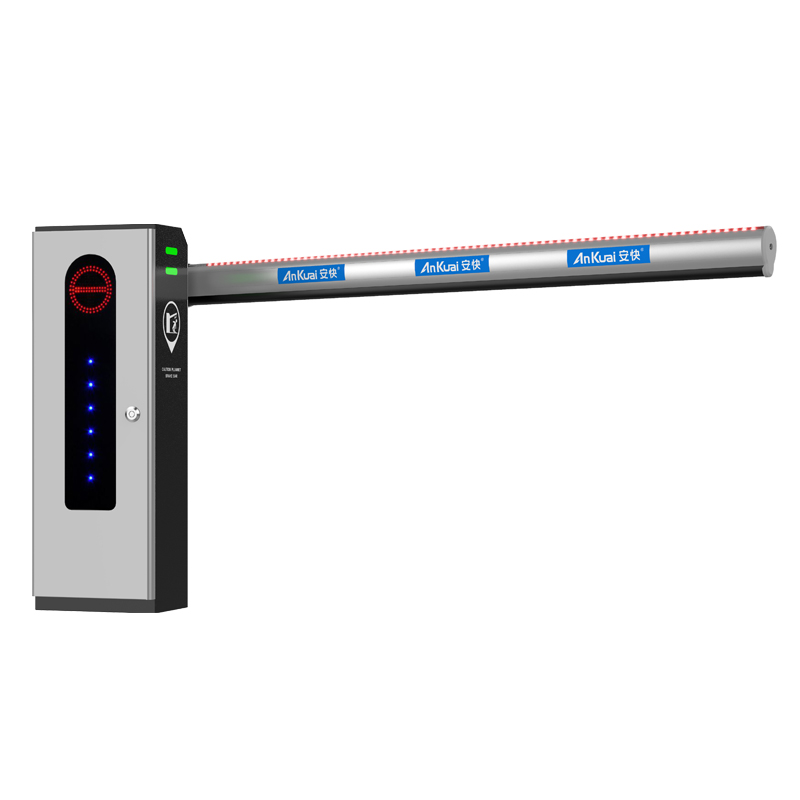

| Straight boom / Telescopic boom | ≤3m | 1.8s | 2s |
| Straight boom / Telescopic boom | ≤4.5m | 3s | 3.5s |
| Straight boom / Telescopic boom | ≤6m | 5s | 6s |

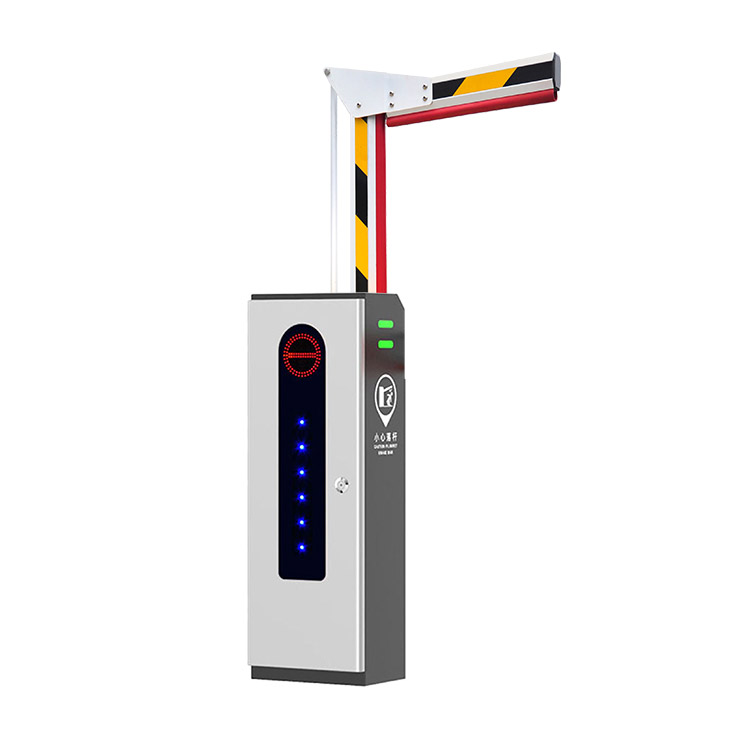

| Folding Boom | ≤4.5m | 3s | 4s |
| Folding Boom | ≤6m | 5s | 6s |
| Fence boom | ≤5m | 6s | 6.5s |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
