AKD118
Features (Main Functions)
-
Direction is adjustable.
-
Auto bounce back function: Built-in sensor can detect when arm hits obstacle.
-
Intelligent limit sensor: Limit sensor can check open & close position automatically. No need to adjust it by hand.
-
Position memory function: The motor can remember limit position, so it will move back to right position even when you turn motor handle to avoid motor stuck.
-
Lower working temperature: No thermal protection even when no fan is added to cool motor.
-
Longer working life: It can open and close 5 million times.
Short Description

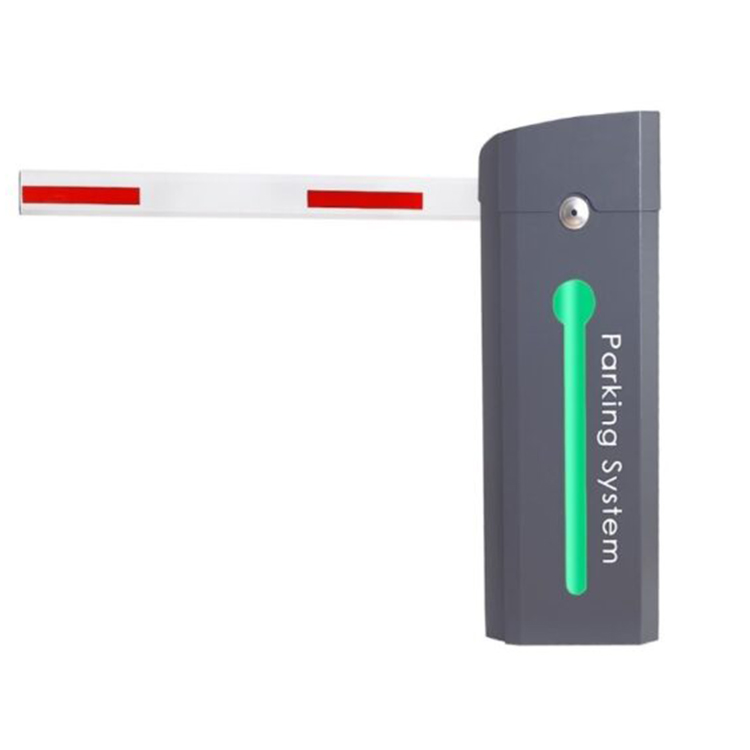

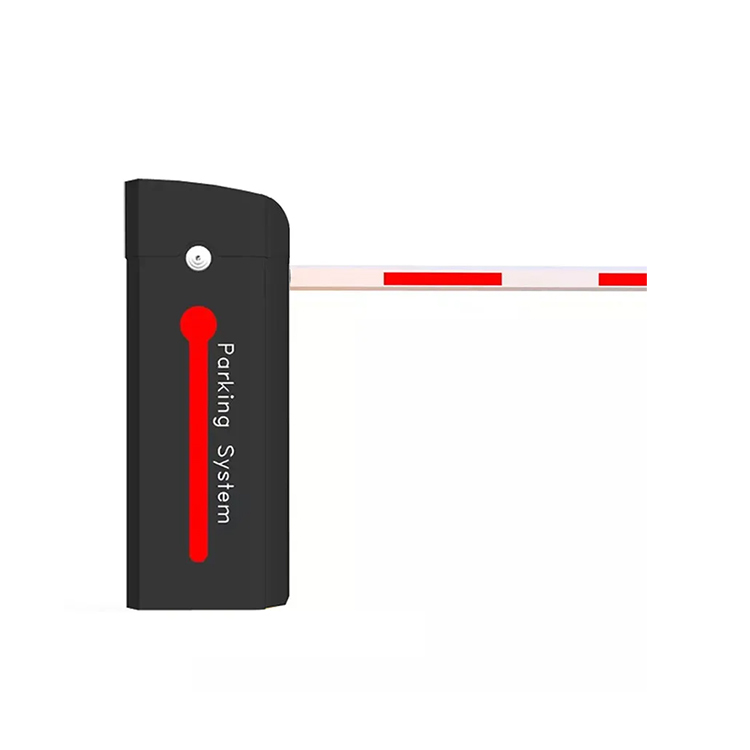

AK118 Series DC Brushless Barrier Gate is a high-performance parking and access control solution featuring a powerful brushless motor for smooth, quiet, and durable operation. It supports straight boom, folding boom, and fence boom options with boom lengths up to 6 meters. With auto bounce back on obstacle detection, intelligent limit sensor, position memory function, low-temperature operation, and remote control support, the AK47 is ideal for parking lots, toll plazas, residential communities, factories, and other entry/exit management applications requiring reliable and long-lasting barrier gate performance.

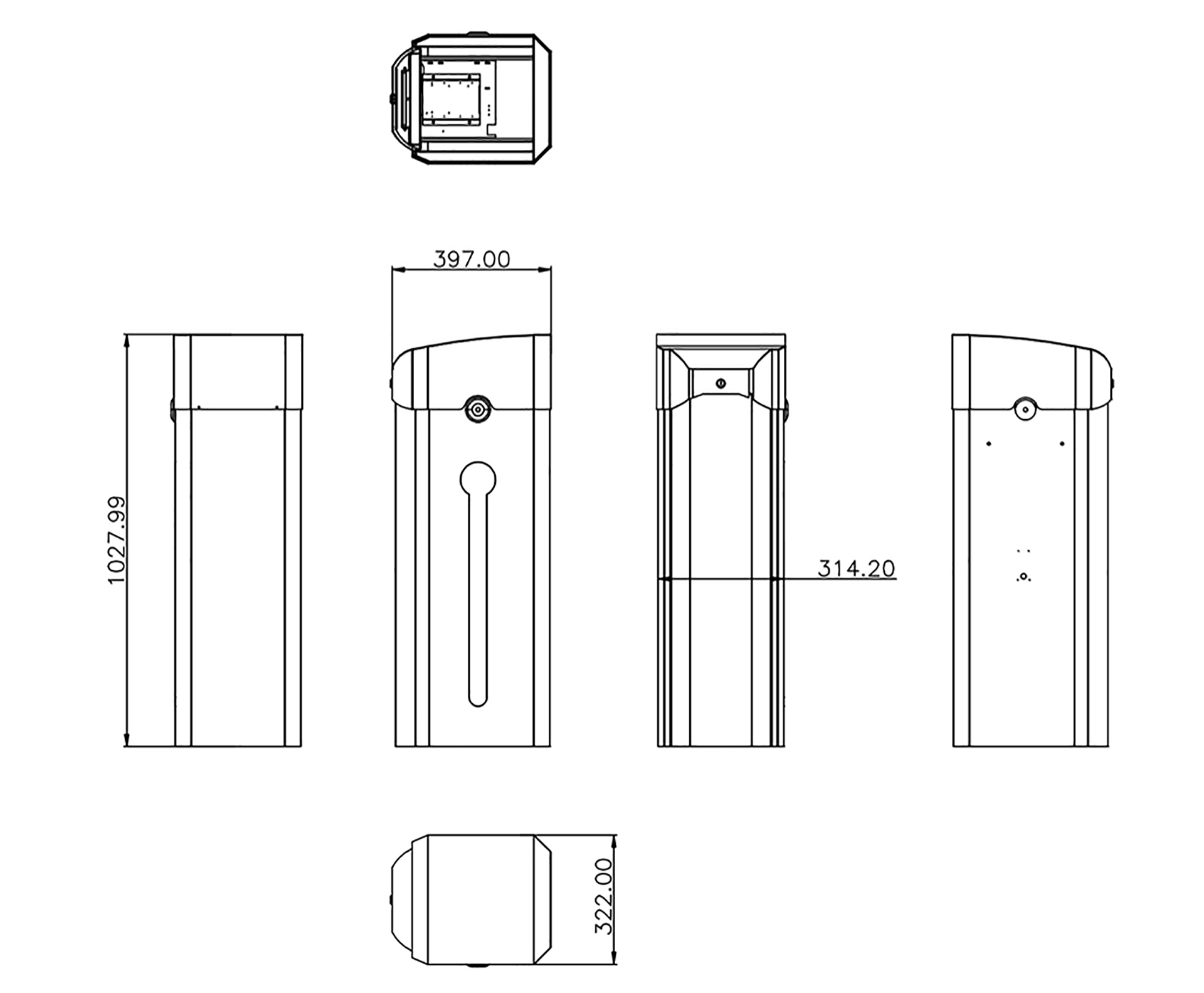

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Parameter | Value |
| Power supply | AC110~220V±10% |
| Driver | DC24V Servo motor |
| Motor power consumption | 100W |
| Max arm length | 3M |
| Speed | 0.6/0.9s |
| Height from the ground | 850mm |
| Housing dimension | 397*322*1028mm |
| Working temperature | -30° to 80° |
| Weight | 45kg |
| Frequency | 50/60Hz |
| Remote-control distance | ≤30m |
| Protection grade | IP54 |
| MCBF | 10 million |
| Boom Type | Length | Open Time | Close Time |
| Straight boom / Telescopic boom | ≤3m | 0.6s/0.9s | 1s |
| Straight boom / Telescopic boom | ≤4.5m | 3s | 4s |
| Straight boom / Telescopic boom | ≤6m | 5s | 6s |
| Folding Boom | ≤4.5m | 3s | 4s |
| Fence boom | ≤4.5m | 5s | 6s |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
