AKD158

Features

Direction is adjustable.
Auto bounce back function — built-in sensor can detect when arm hits obstacle.
Intelligent limited sensor — can check open & close position automatically. No need to adjust by hand.
Position memory function — the motor can remember limited position, so it will return to right position even when we turn motor handle to avoid motor stuck.
Lower working temperature — no thermal protection needed even without a fan to cool motor.
Longer working life — it can open and close 5 million times.

Short Description

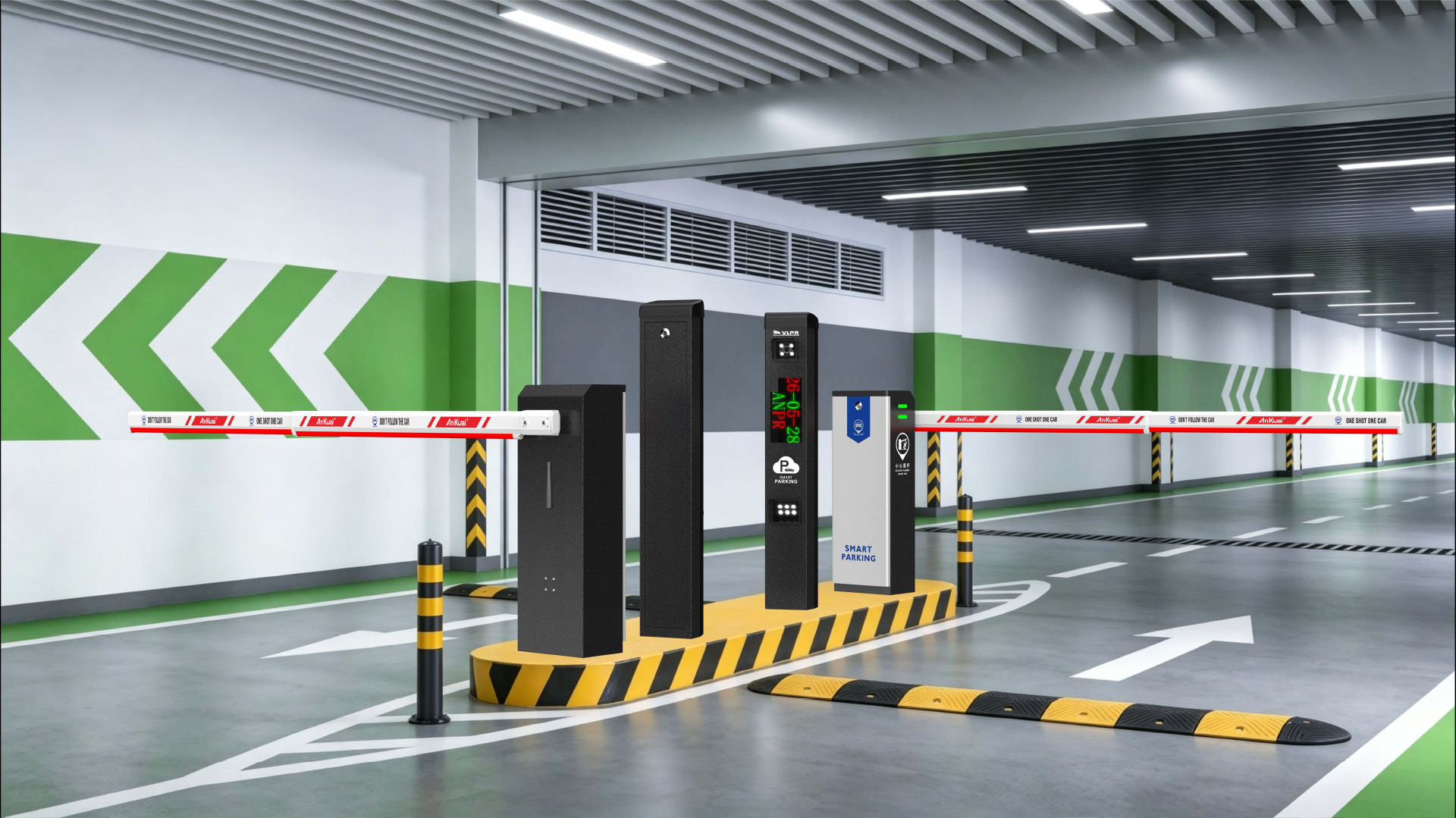

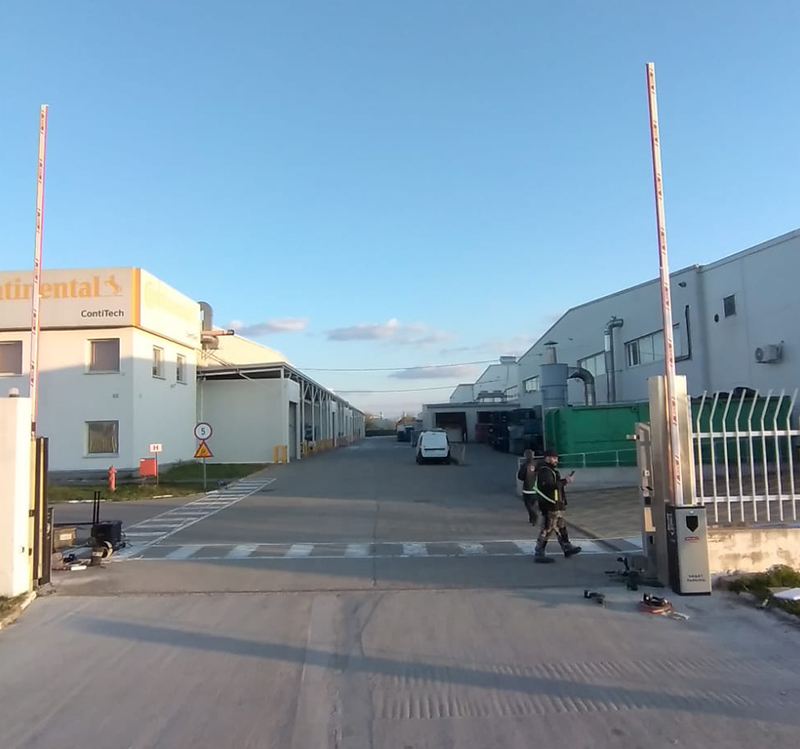

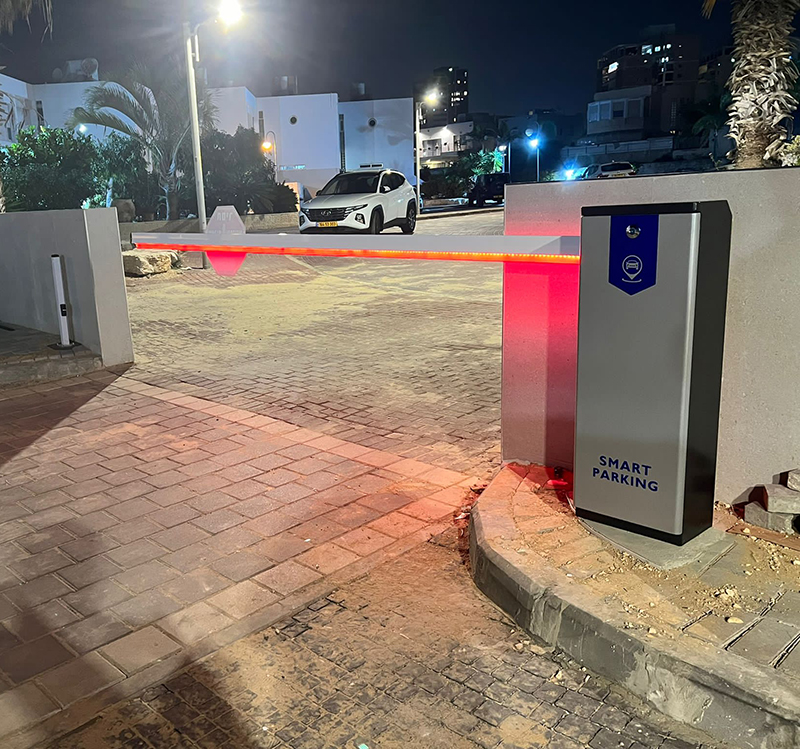

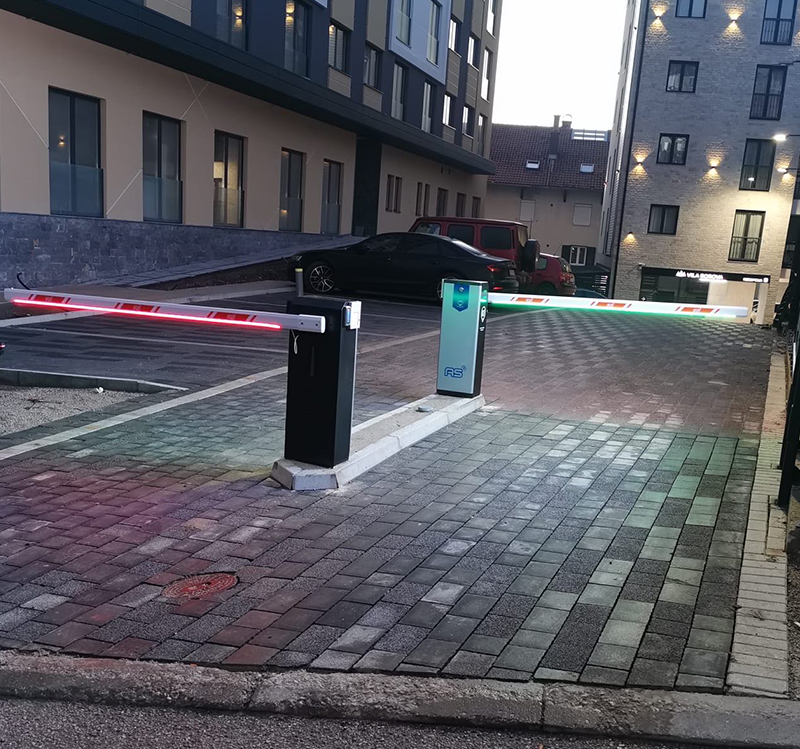

AKD158 Series DC Brushless Barrier Gate is a high-performance parking and access control solution featuring a powerful brushless motor for smooth, quiet, and durable operation. It supports straight boom, folding boom, and fence boom options with boom lengths up to 6 meters. With auto bounce back on obstacle detection, intelligent limit sensor, position memory function, low-temperature operation, and remote control support, the AK47 is ideal for parking lots, toll plazas, residential communities, factories, and other entry/exit management applications requiring reliable and long-lasting barrier gate performance.

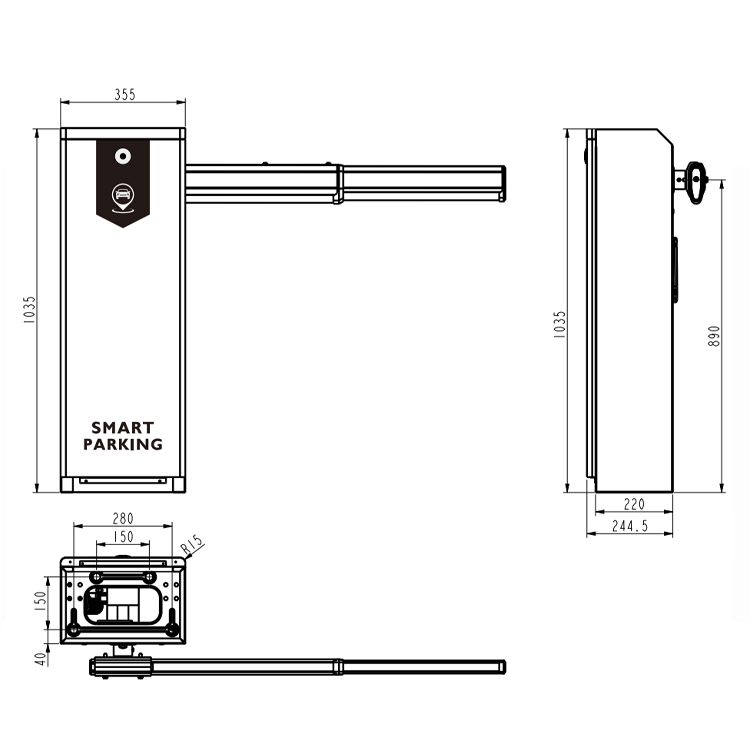

product Details And Dimensions

All the details and dimensions can be customized according to your project site

Made of high-strength aluminum alloy

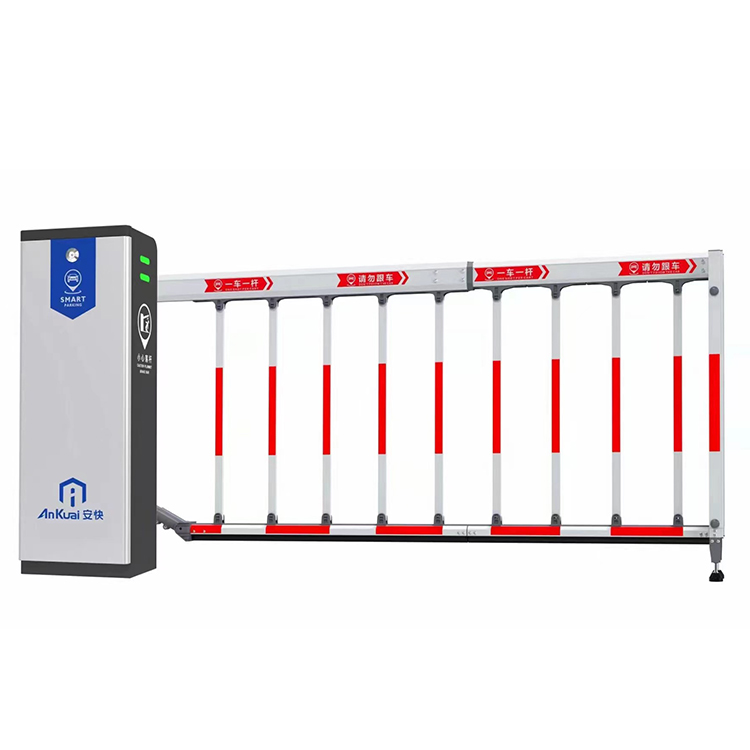

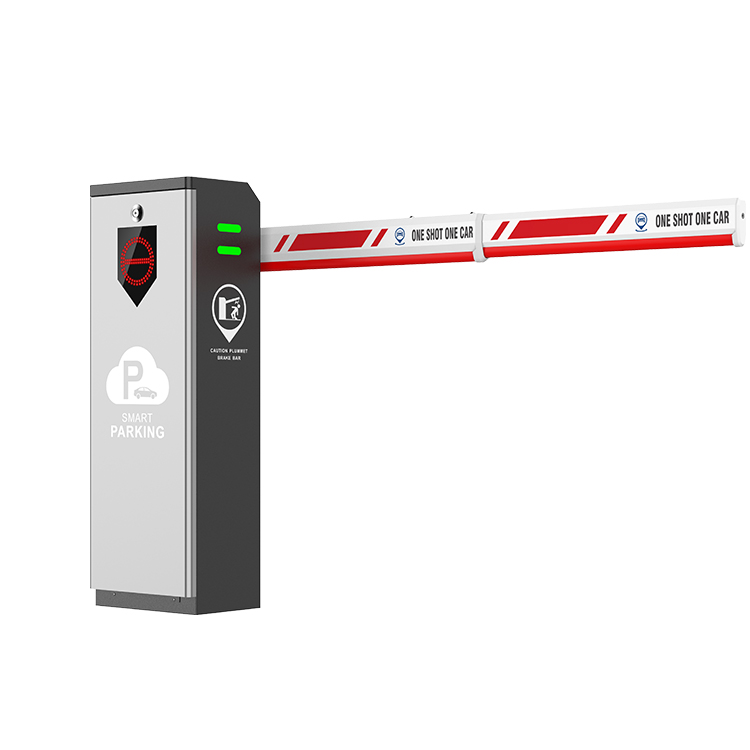

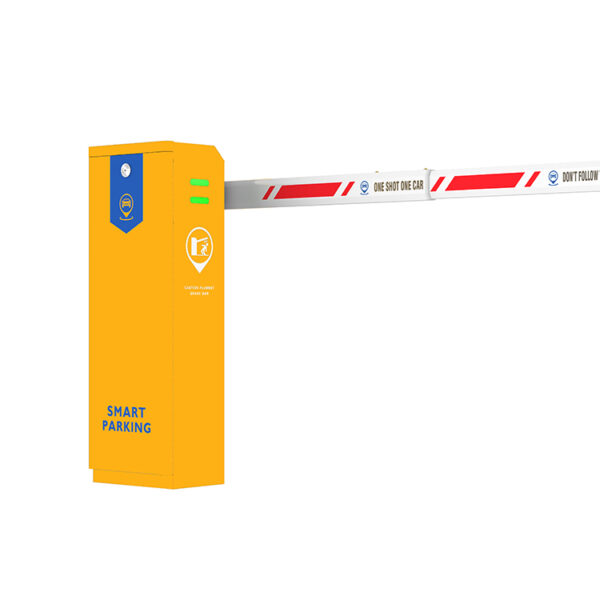

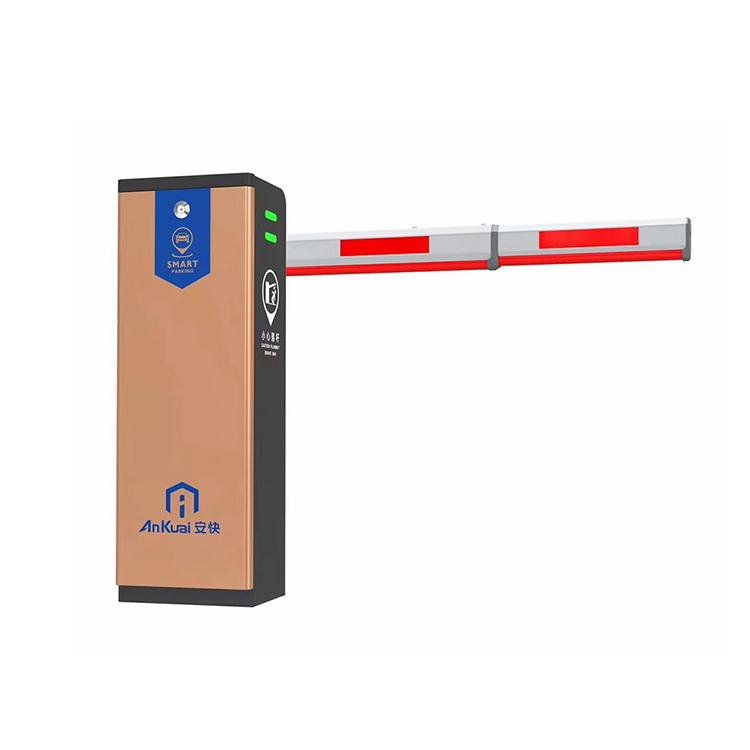

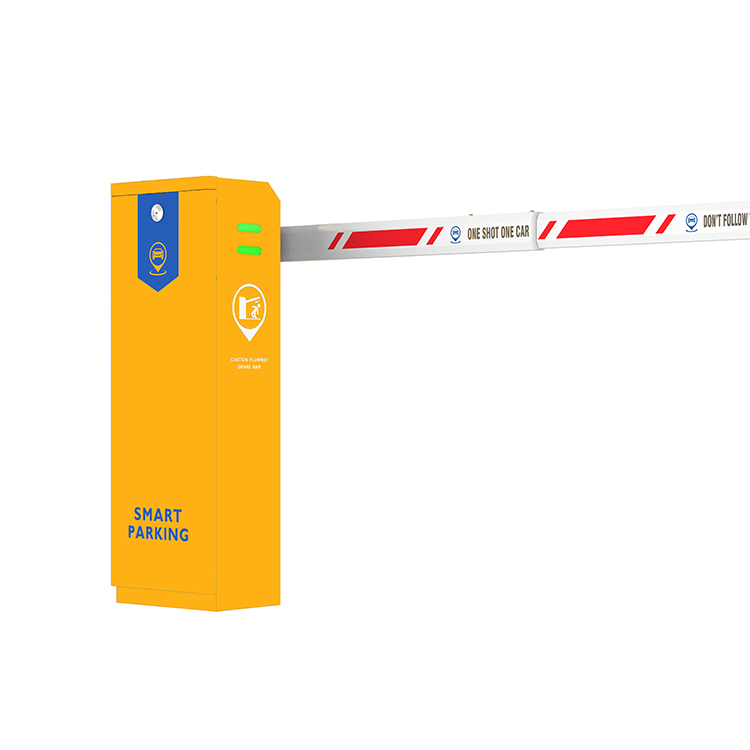

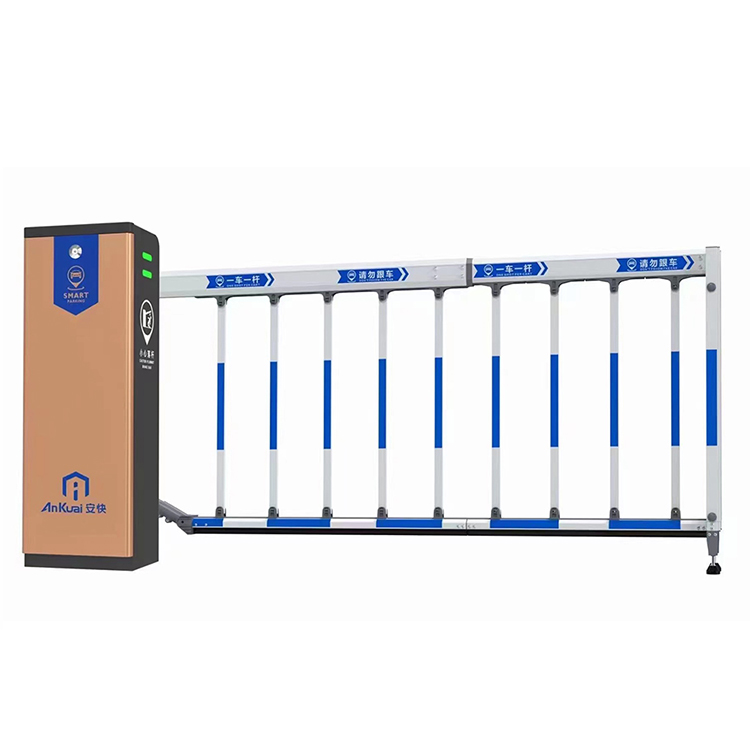

Multiple arm options including straight arm, folding arm and fence arm

Product Parameters

Technical Parameter	Value
Power supply	AC110-220V±10%
Driver	24V BLDC motor
Motor power consumption	60W
Max arm length	6M
Speed	1.8-3s / 3-6s
Height from the ground	890mm
Housing dimension	355 x 245 x 1035mm
Working temperature	-30° to 80°
Relative humidity	≤90%
Frequency	50/60Hz
Remote-control distance	≤30m
Protection grade	IP54
MCBF	5 million

Boom Type	Length	Max Open Time	Max Close Time
Straight boom / Telescopic boom	≤3m	1.8s	1.8s
Straight boom / Telescopic boom	≤4.5m	3s	3.5s
Straight boom / Telescopic boom	≤6m	5s	6s
Folding Boom	≤4.5m	3s	3.5s
Folding Boom	≤6m	5s	6s
Fence boom	≤5m	6s	6.5s
