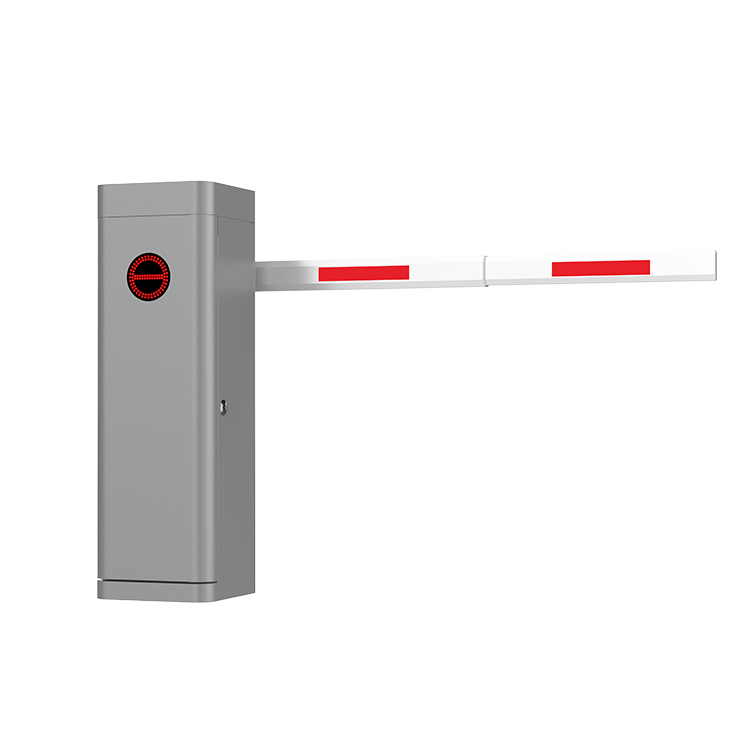

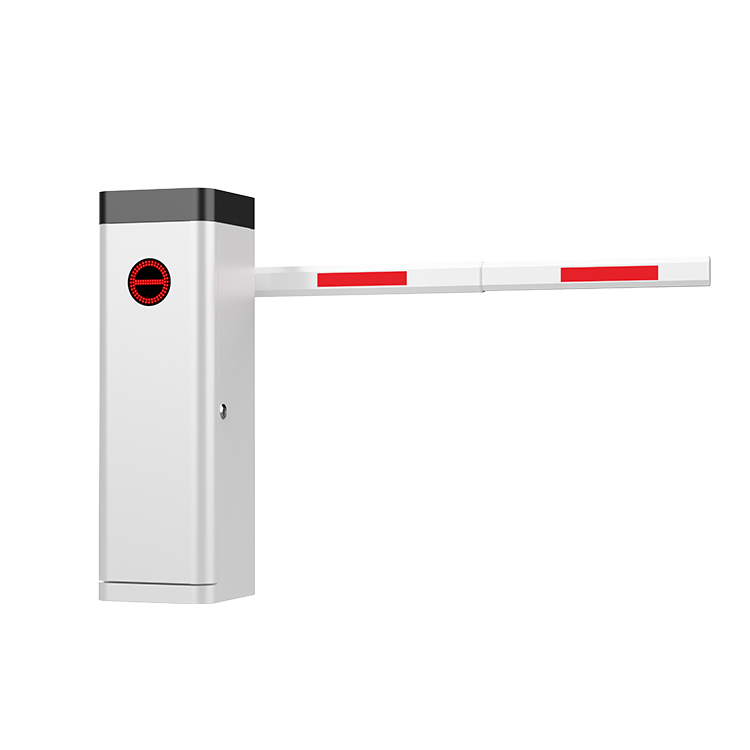

AKD166
- Advanced servo control system, high speed and stable operation.
- Low-power servo motor, maintenance-free, high durability and save energy.
- Zero speed constant torque output, avoid external force to lever the boom.
- No position sensor, accurate stop. A pair is also fully synchronized.
- No anti-shock rubber, no impact, no bounce, free adjustment.
- No clutch device. Boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).
- Highly reliable industrial-grade sports parts, surpass the industry quality.
- Motor cooling fan, solve the problem of heat-protection.
- Traffic light. Red and green traffic light can be added to further enhance safety.

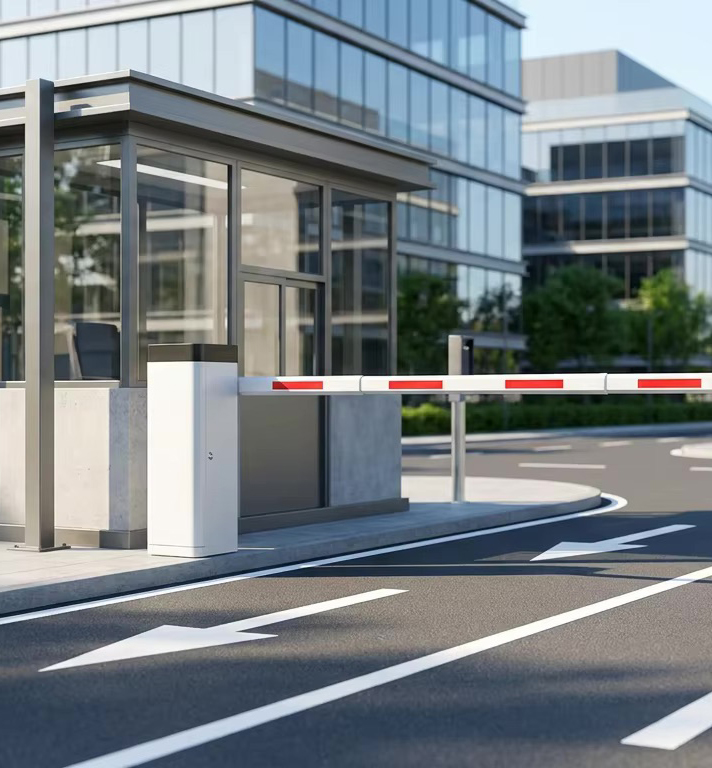

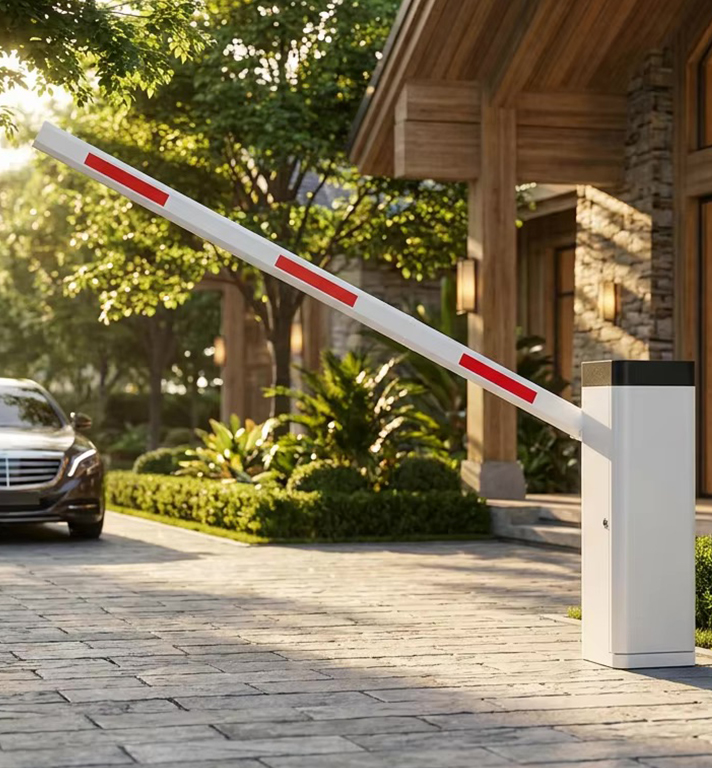

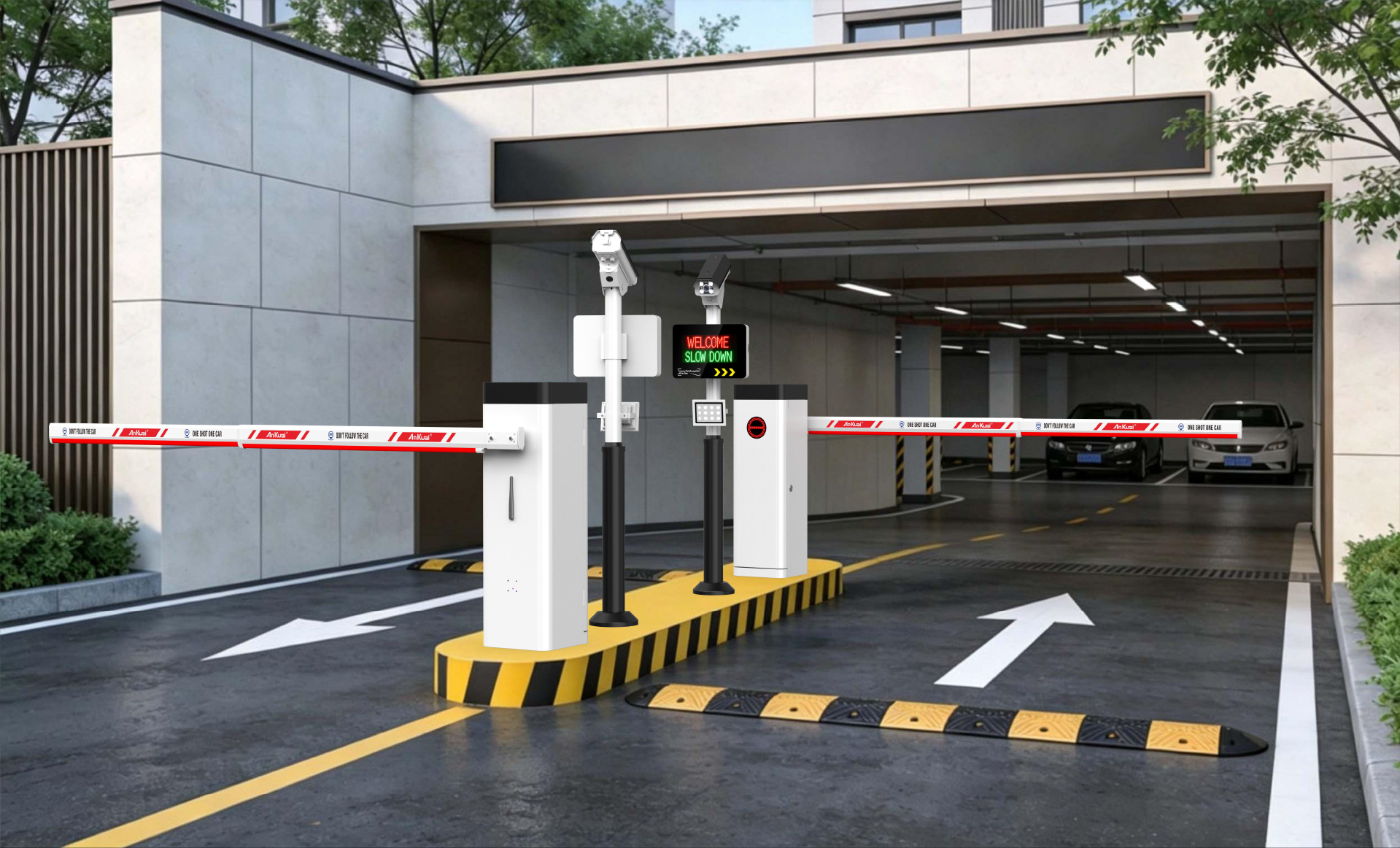

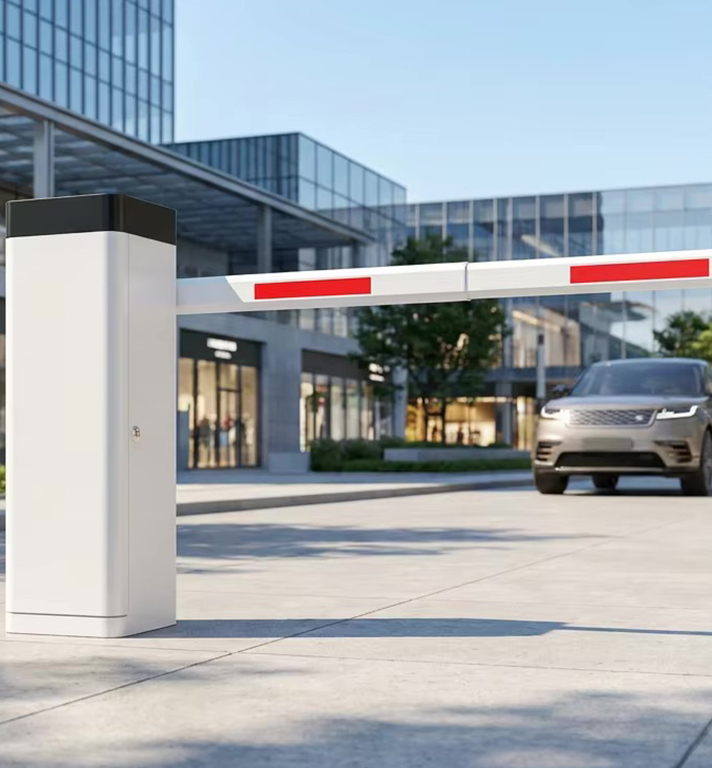

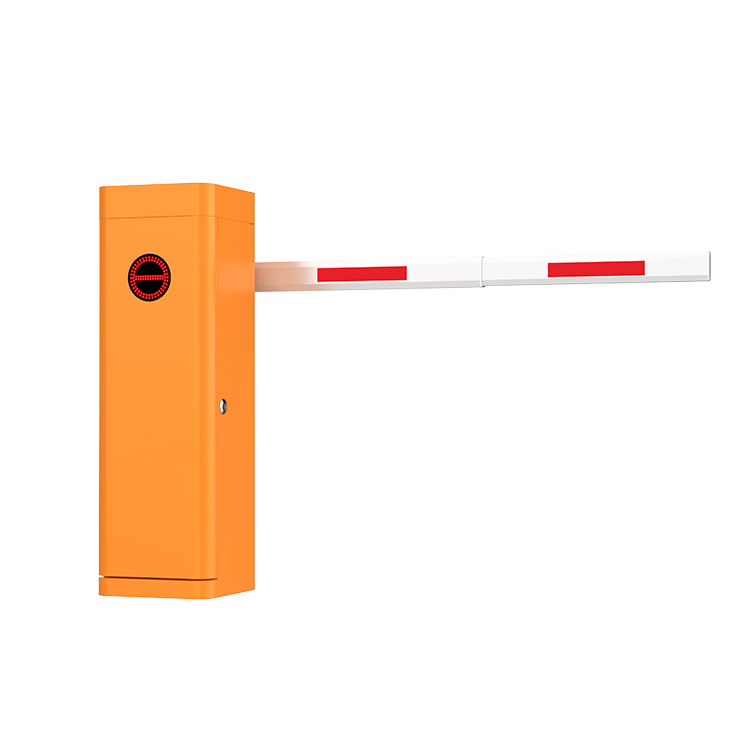

AnKuai AKD166 Automatic boom barrier for vehicle entry & exit management. Multiple barrier arms optional, built-in safety protection. Compatible with LPR system, remote control and access controllers, ideal for outdoor parking and factory gate security.

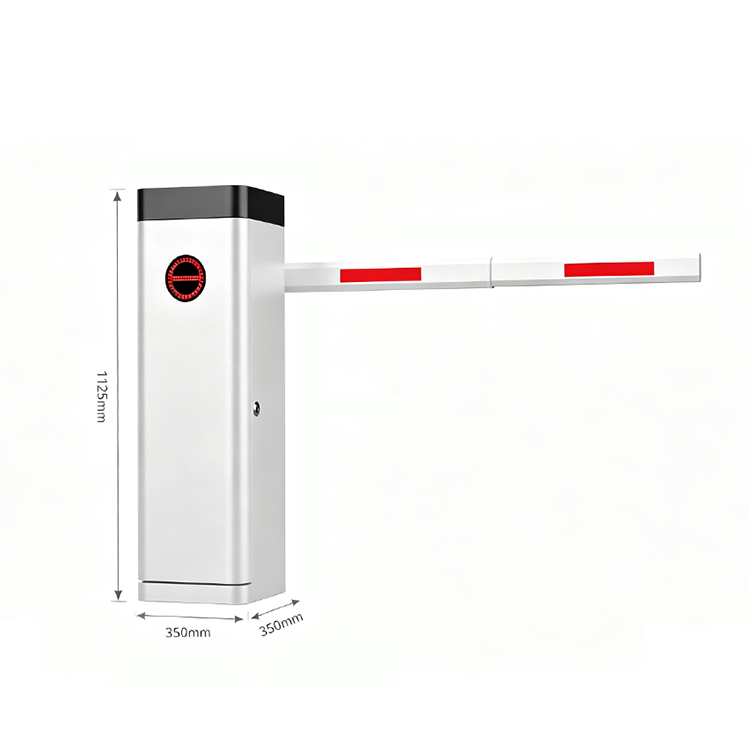

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Power supply | AC220V±10% |
| Driver | 24V BLDC Motor |
| Motor power consumption | 250W |
| Max arm length | 6M |
| Speed | 8s |
| Housing dimension | 560*650*1650mm |
| Boom height from ground | 1498mm |
| LED Light | DC12V |
| Remote-control distance | ≤30m |
| Protection grade | IP54 |
| Working Temperature | -30° to 80° |
| Cabinet Weight | 170kg |
| Boom weight | 69kg |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
