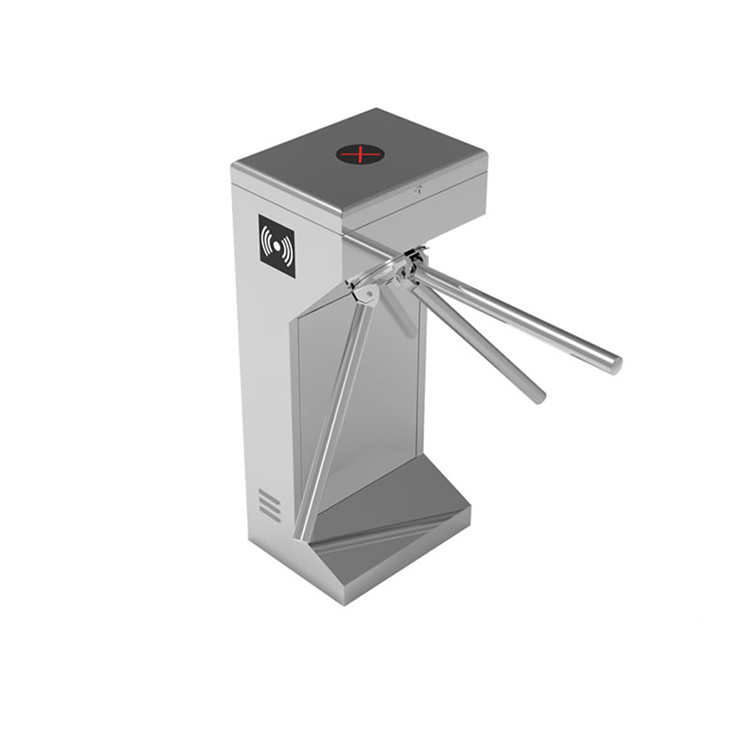

AKT301
Main Functions
- Auto-reposition function: after card read, passengers don’t pass within regulated time period, turnstile will be locked automatically
- Bi-direction passing or uni-direction
- When power off, arm will be dropped automatically
- Self-lock function: arm will be locked automatically after passenger passing
- LED passing arrow can show direction to indicate passenger to pass
- Standard interfaces are convenient for connection with different readers which can send relay signal
- RS485 interfaces can connect turnstile with computer directly (optional)
- Stable running with little noise
Short Description
The tripod turnstile is a reliable pedestrian access control solution designed for efficient and secure entrance management. Made of durable SUS304 stainless steel, it features anti-tailgating control, smooth operation, and long service life. It supports RFID cards, QR codes, facial recognition, and other access methods, making it ideal for offices, factories, schools, gyms, stations, and public facilities.

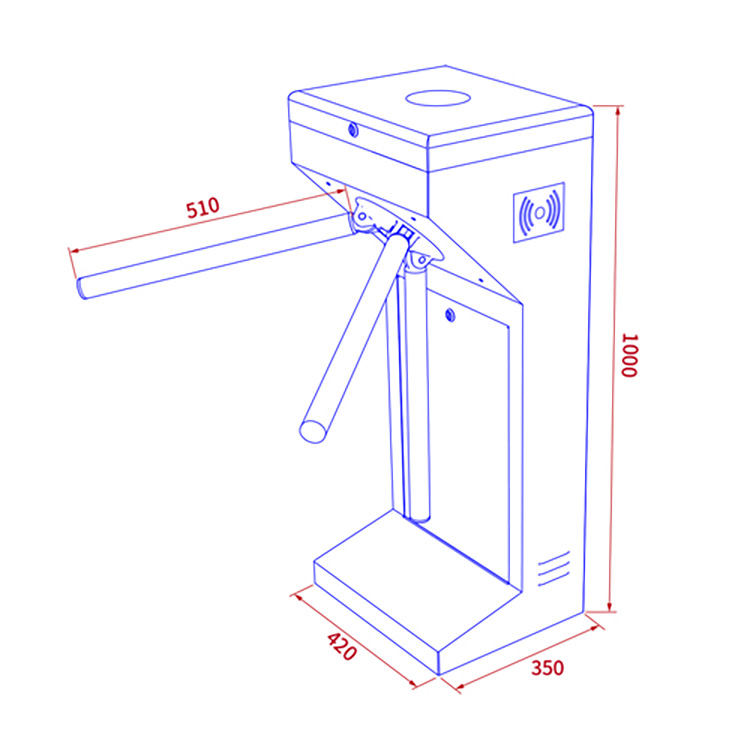

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Access Controllers
Access Controllers description

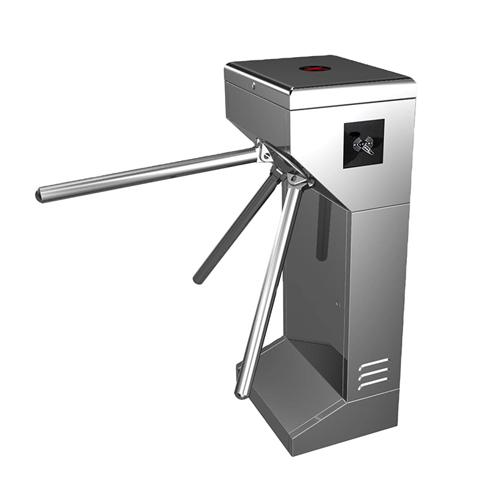

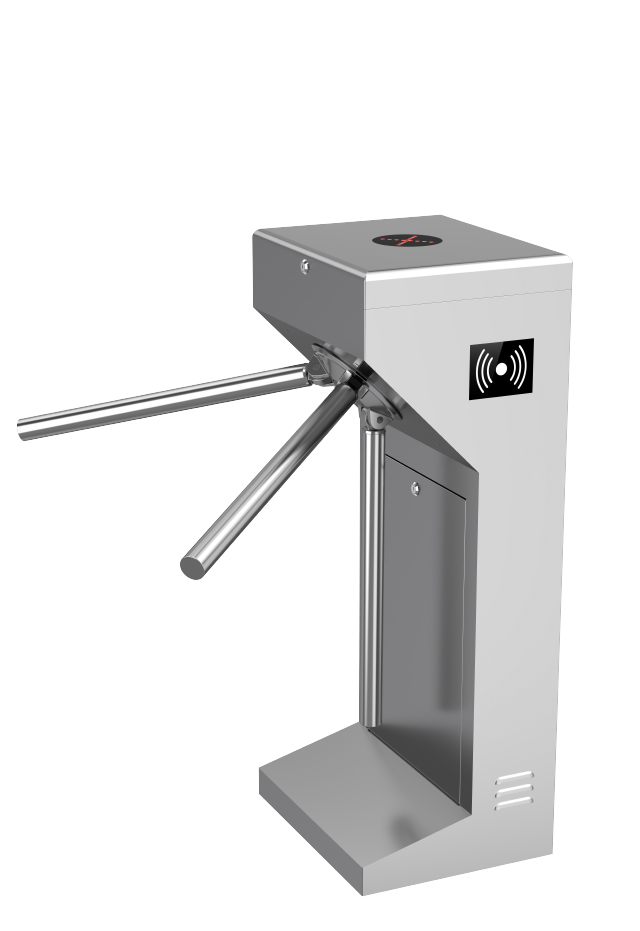

Card Solution

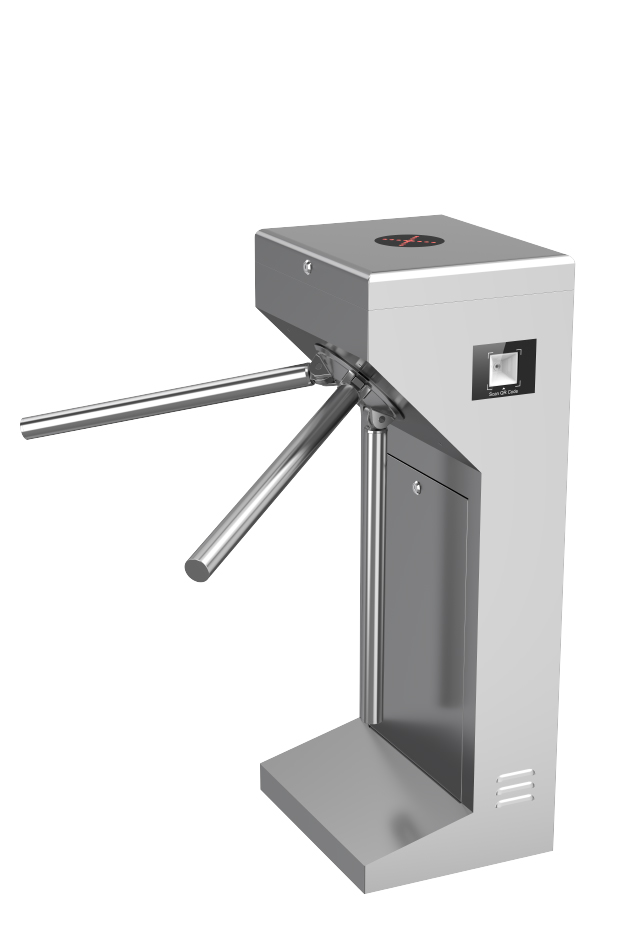

QR/Bar Code Solution

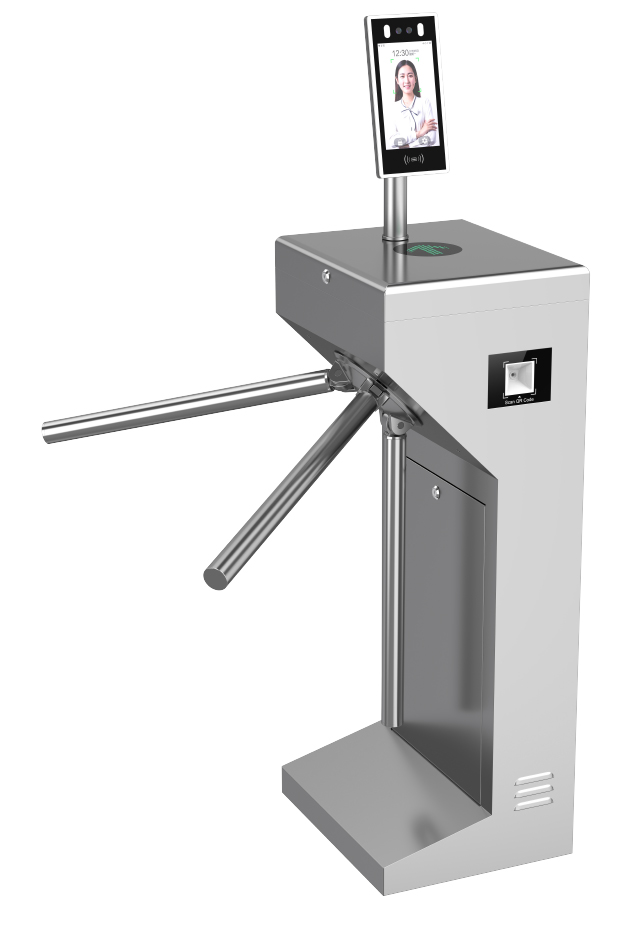

Biometric /QR Solution
Product Parameters
| Parameter | Value |
|---|---|
| Power supply | AC220V±10V, 50Hz / AC110V±10V, 60Hz |
| Operation | Semi automatic |
| Temperature | -15 to 60°C |
| Humidity | <95%, without concretion |
| Passage width | 600mm |
| Passing speed | 30 persons/min (normal open), 20 persons/min (normal close) |
| Arm open/close time | 2s |
| Input interface | +12V electrical signal or impulse signal, width >100ms, drive current >10mA |
| Communication interface | RS485 (distance: ≤1200m) |
| Working environment | Indoors or outdoors with shed |
| Arm turning | Uni-direction or bi-direction |
| Material | 304 stainless steel (standard) |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Videos And Gallery

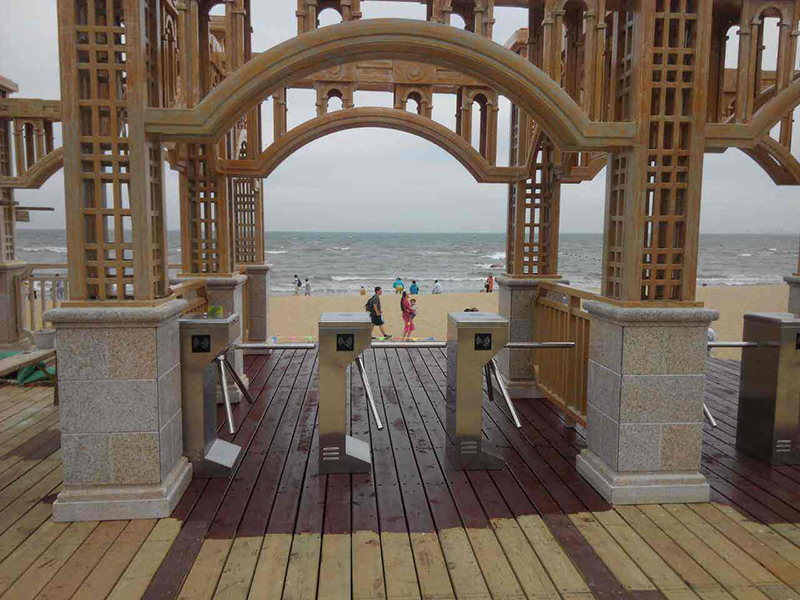

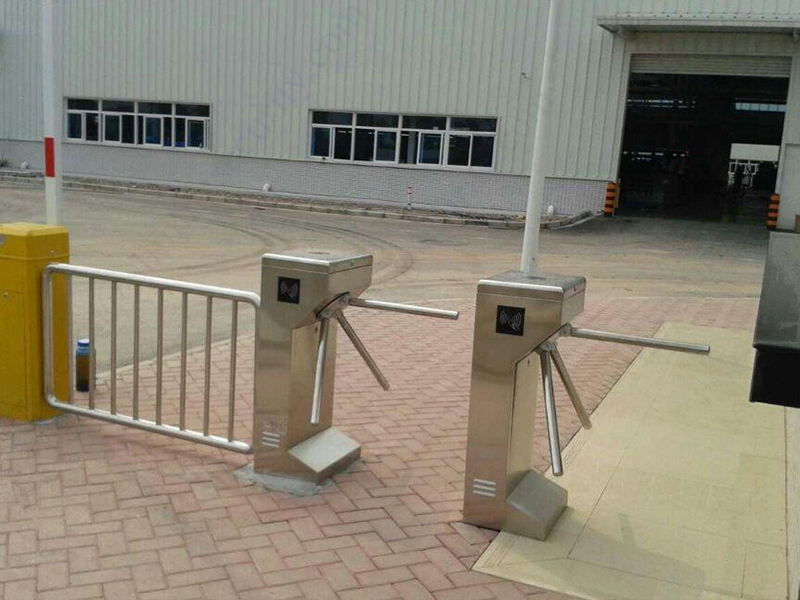

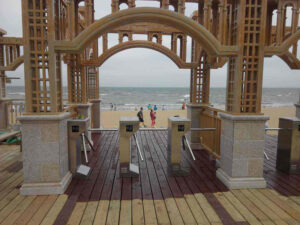

Client Gallery
