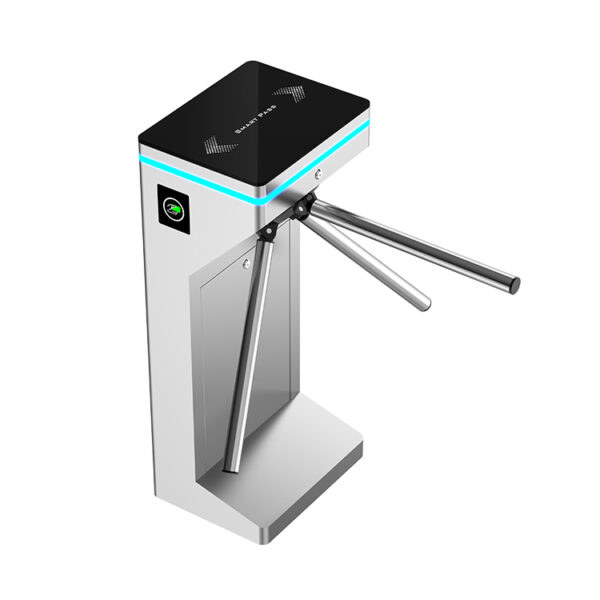

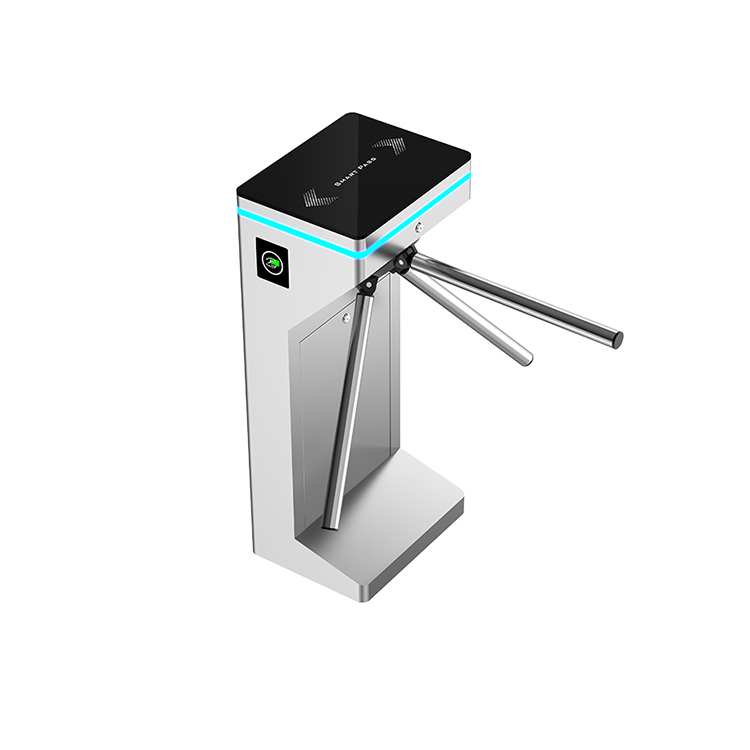

AKT301A

Main Functions

Through the built-in small button on the main control board, the device’s operational status can be controlled
Effectively implements a humanized passage status indication function for the tripod turnstile
To meet various passage requirements, it can be set as bi-directional card swipe or uni-directional card swipe with free passage mode
Auto-reset function: if passage is not completed within a specified time after card swiping, the turnstile will reset and lock again to cancel passage, defaulting to 5 seconds, adjustable as needed
Anti-collision function: the swing arm automatically locks if no open signal is received
After a power outage, the barrier arm automatically drops to maintain an open passage state, enabling gate opening during power failure
Multiple passage indication lights: green lights for passage allowed and red lights for passage denied

Short Description

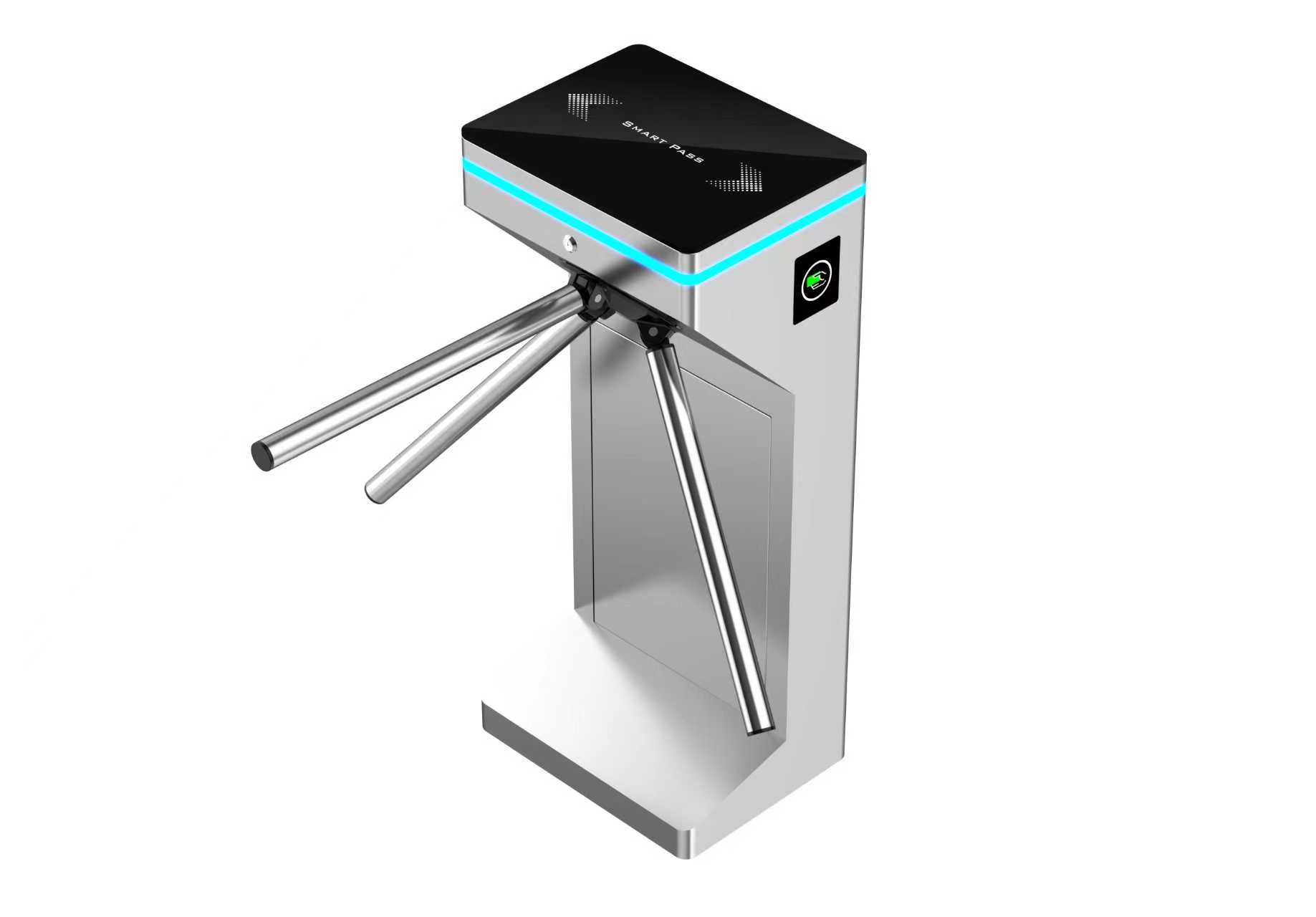

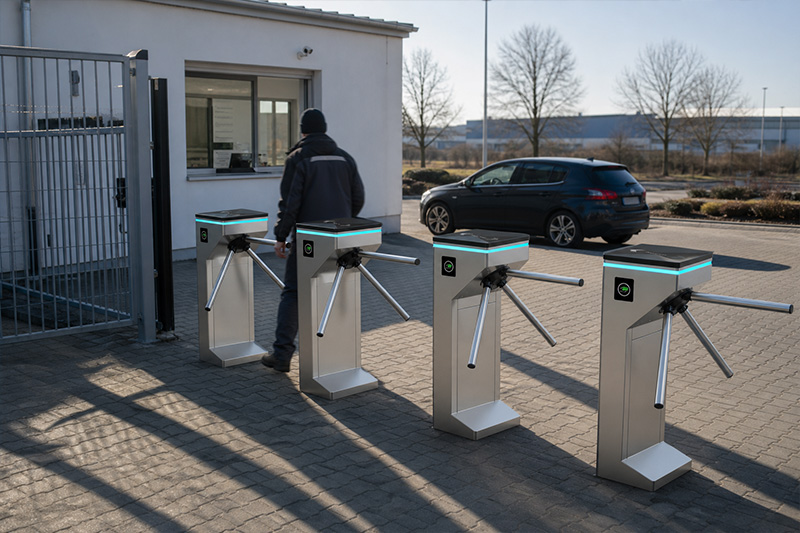

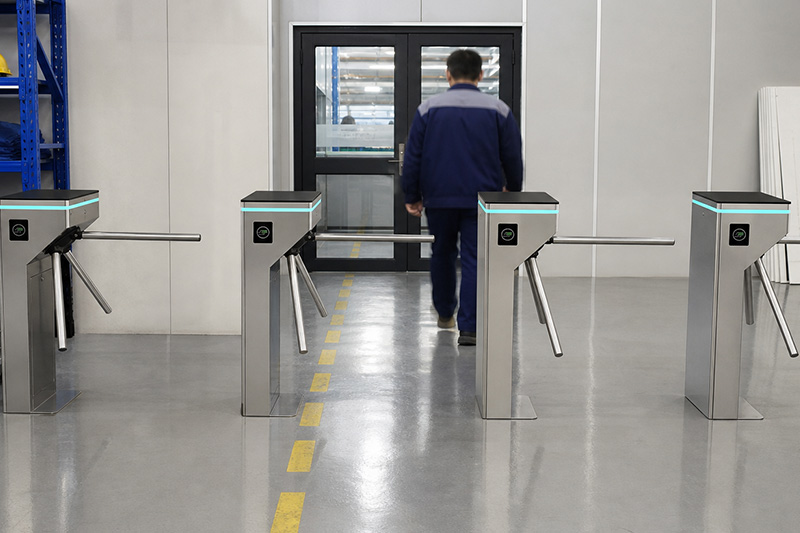

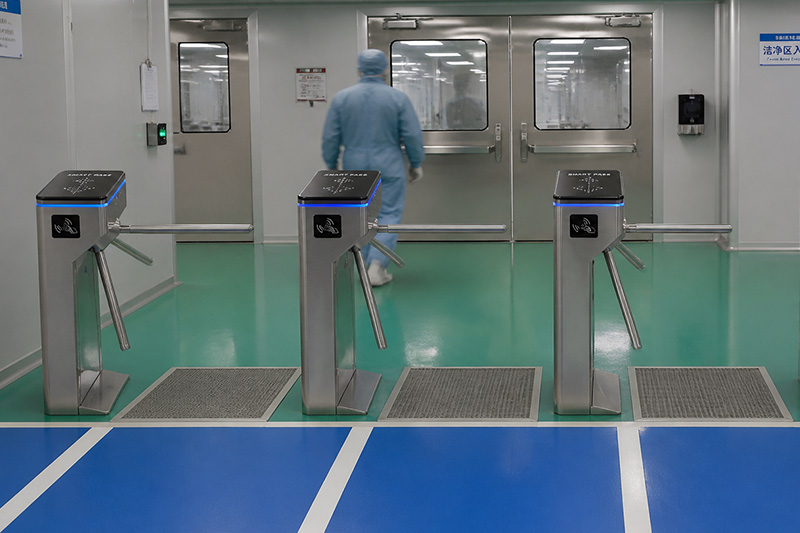

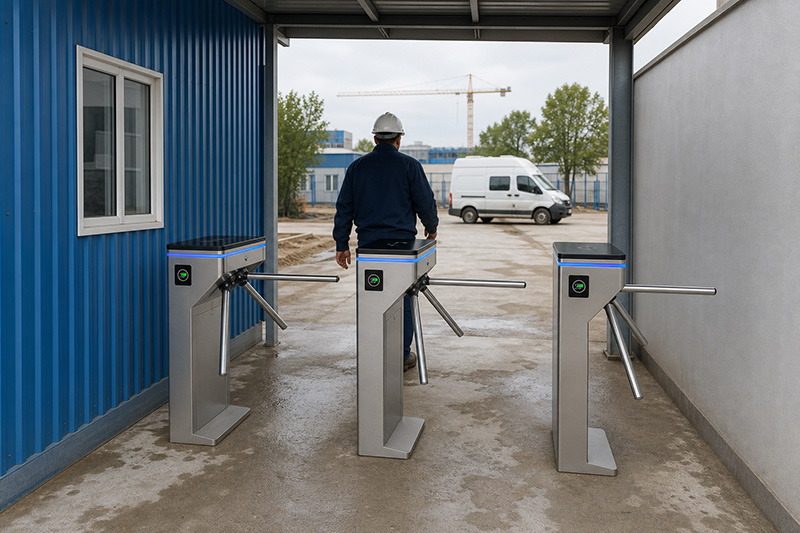

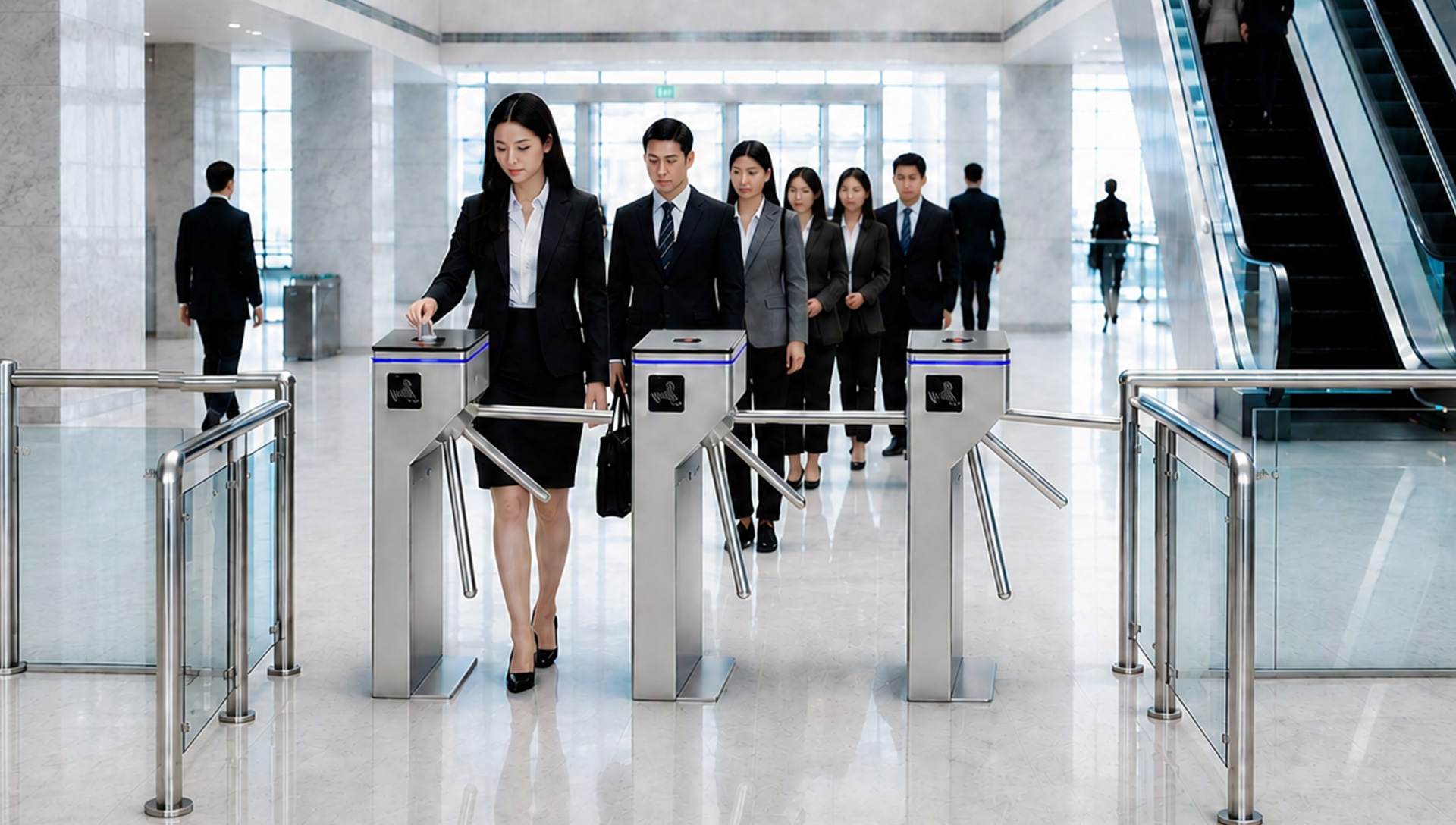

The tripod turnstile is a reliable pedestrian access control solution designed for efficient and secure entrance management. Made of durable SUS304 stainless steel, it features anti-tailgating control, smooth operation, and long service life. It supports RFID cards, QR codes, facial recognition, and other access methods, making it ideal for offices, factories, schools, gyms, stations, and public facilities.

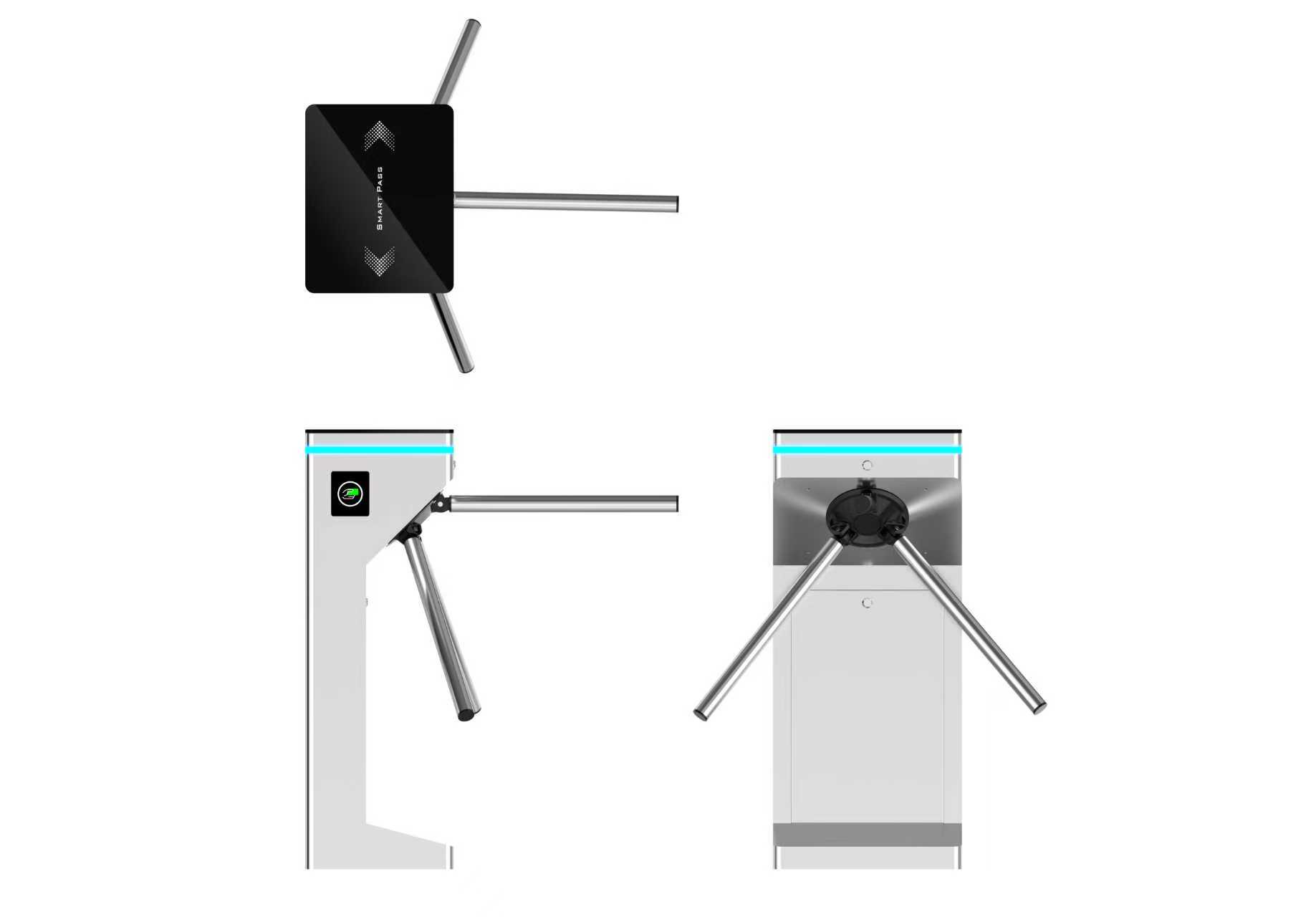

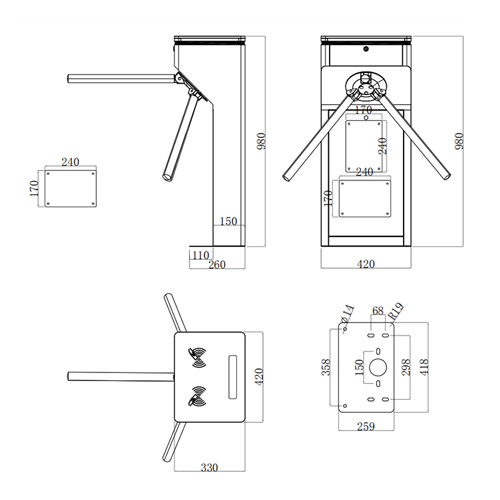

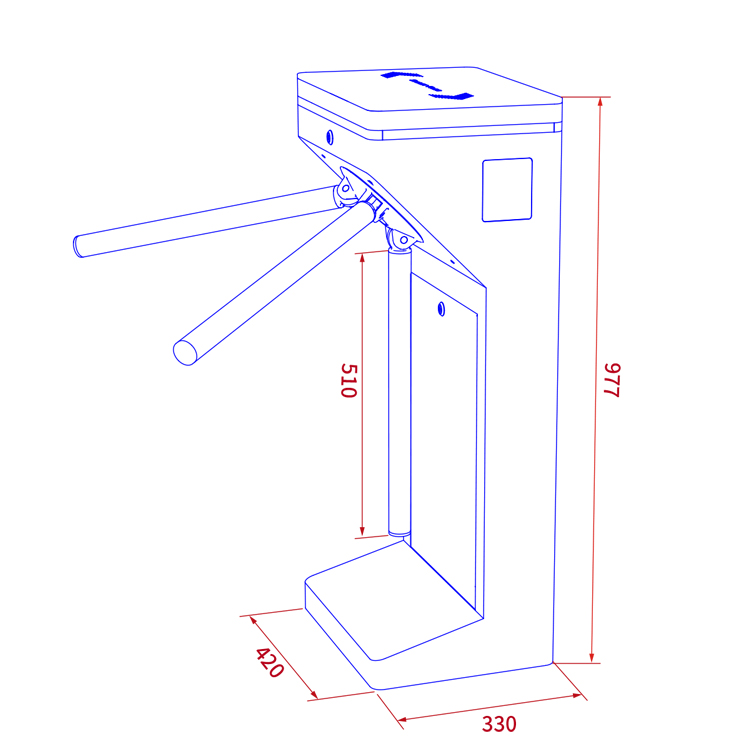

product Details And Dimensions

All the details and dimensions can be customized according to your project site

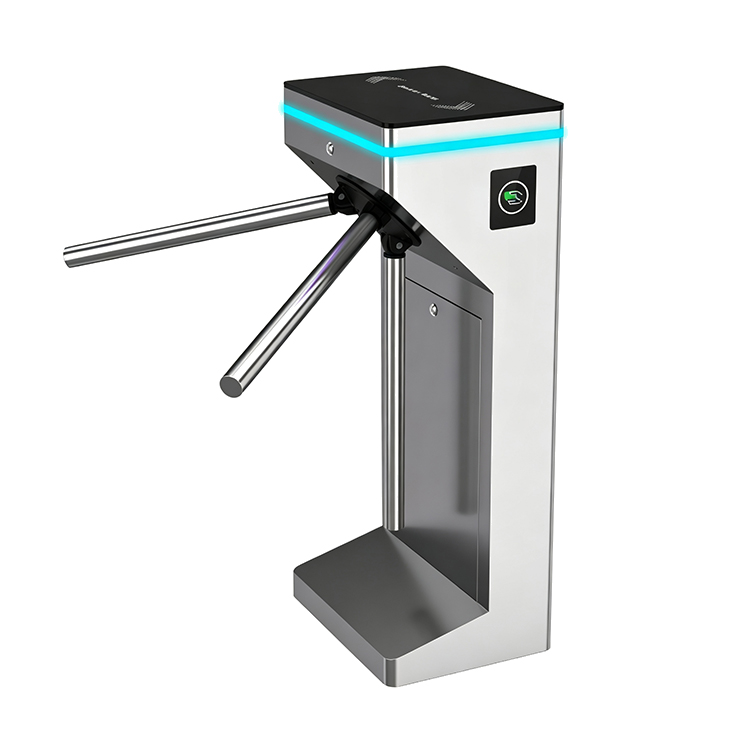

Material
304 stainless steel

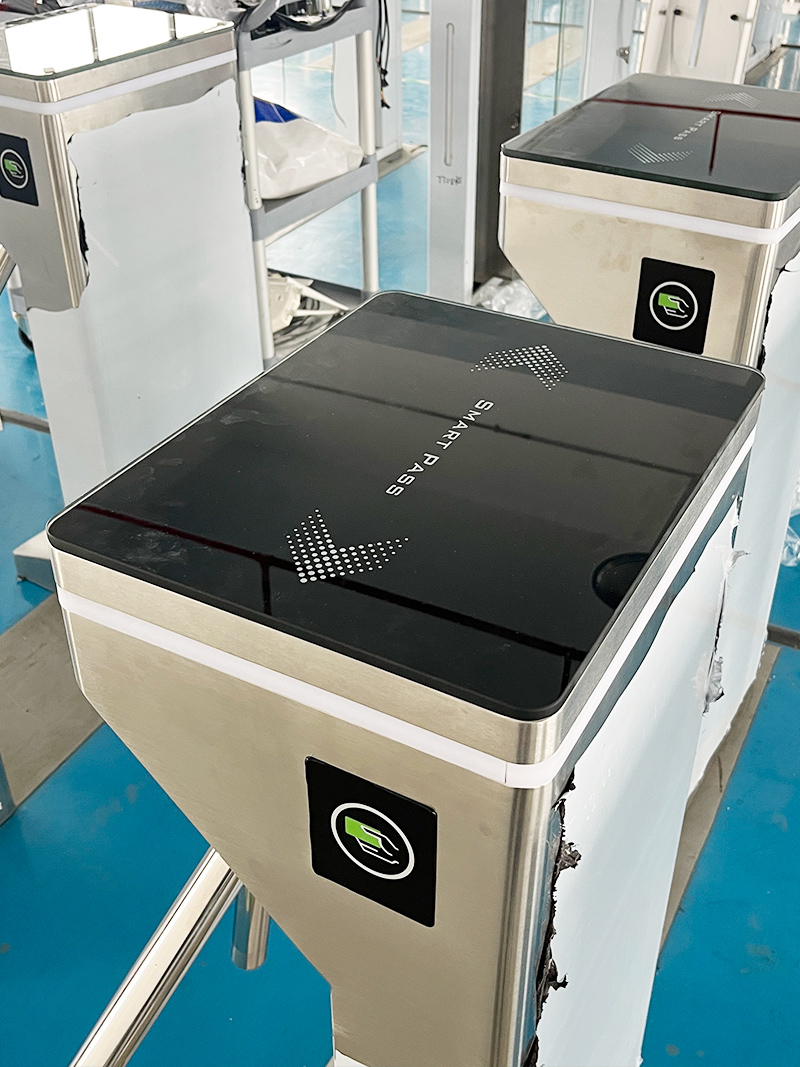

Black tempered filled glass panel
Indicator Light

RFID card reader
Card Induction Zone

Product Parameters

Parameter	Value
Power supply	AC110–220V / 50–60Hz
Motor power consumption	Semi-automatic control
Passage width	≤550mm
Arm length	≤500mm
Open/close time	1s
Passing speed	20~40 persons/min
Infrared	None
Dimension	150×260×980mm
Housing material	SUS304 stainless steel
Working temperature	-25° to 75°
Arm turning	Bi-direction
Working environment	Indoors or outdoors
Communication interface	RS485, TTL232
