Short Description

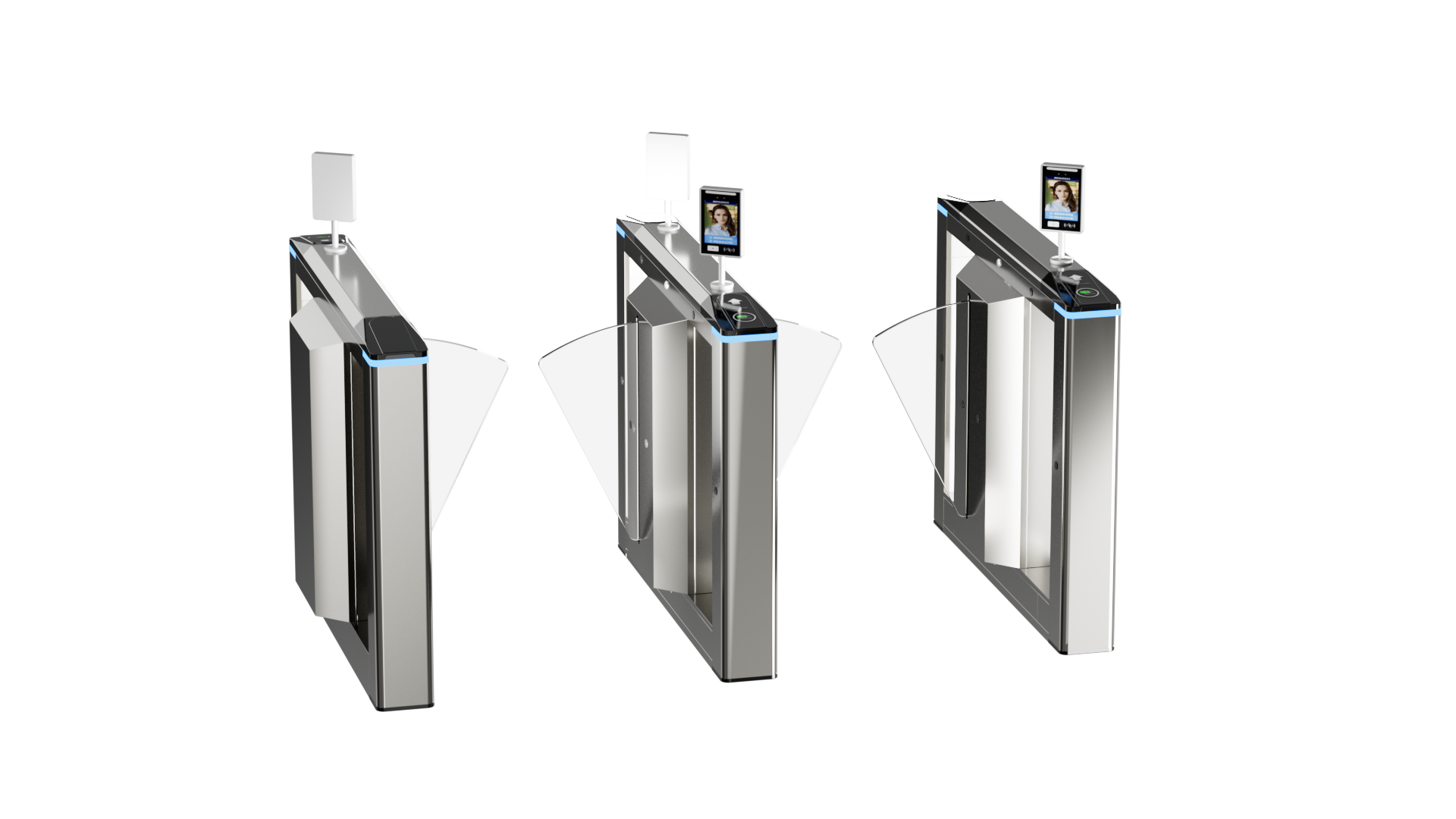

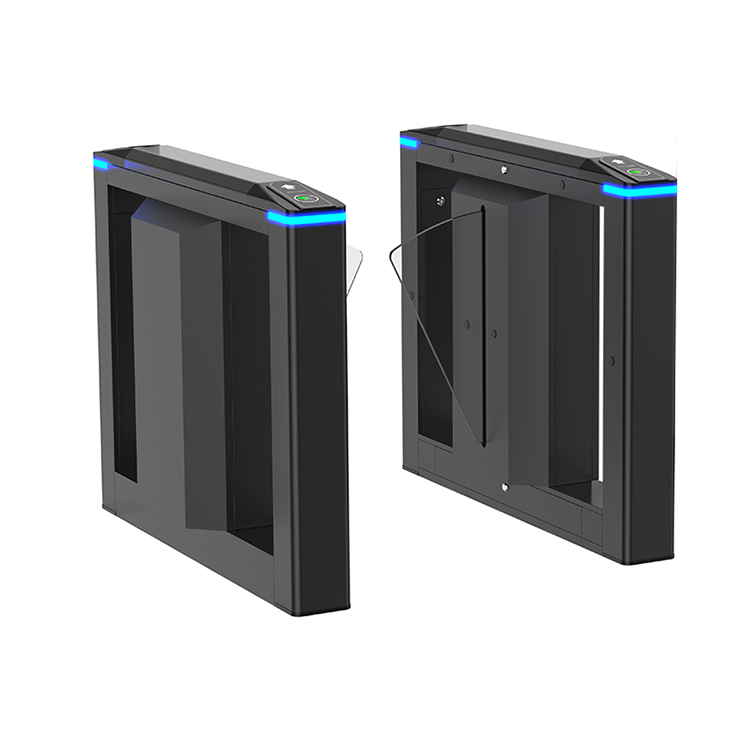

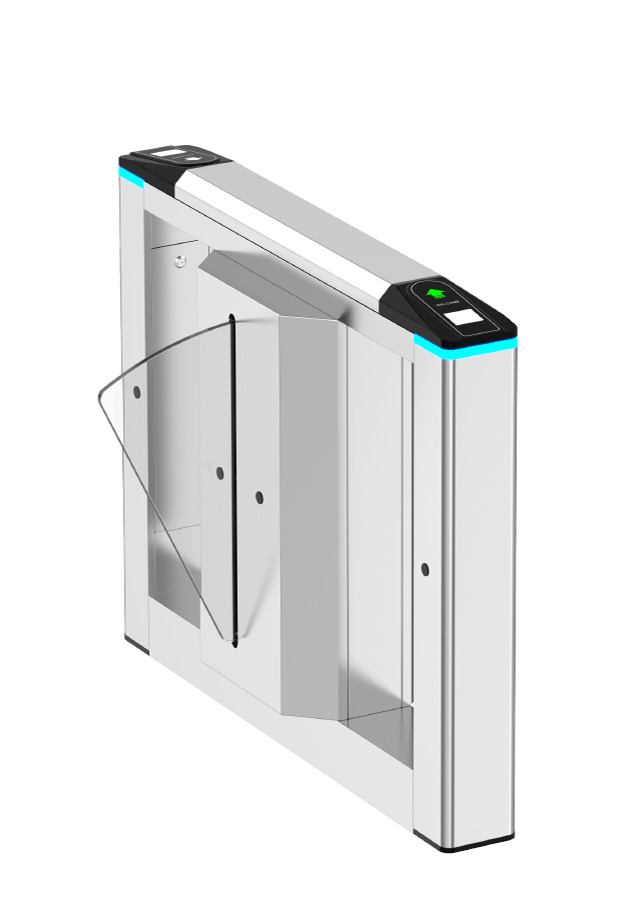

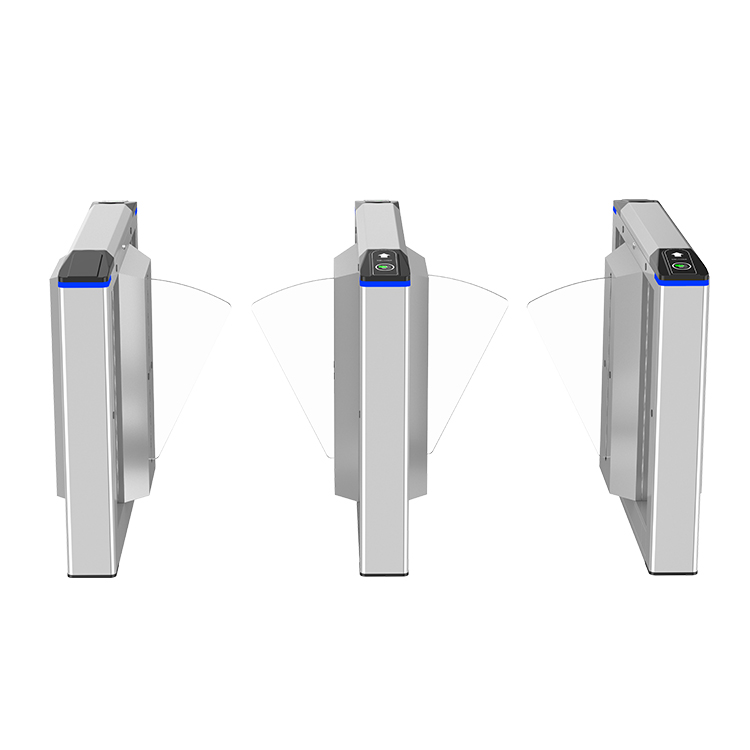

The AK313 Flap Turnstile is an intelligent pedestrian access control solution designed for fast, secure, and reliable entry management. Built with a robust 304 stainless steel housing and plexiglass flap barriers, it supports integration with RFID cards, IC cards, barcode systems, and other access control technologies. The system offers bi-directional passage control, automatic flap operation, self-diagnostic capabilities, anti-tailgating protection, and configurable closing delays. With its compact design, high throughput capacity, and low-noise performance, the AK313 is ideal for offices, commercial buildings, transportation hubs, educational institutions, and other high-traffic environments.

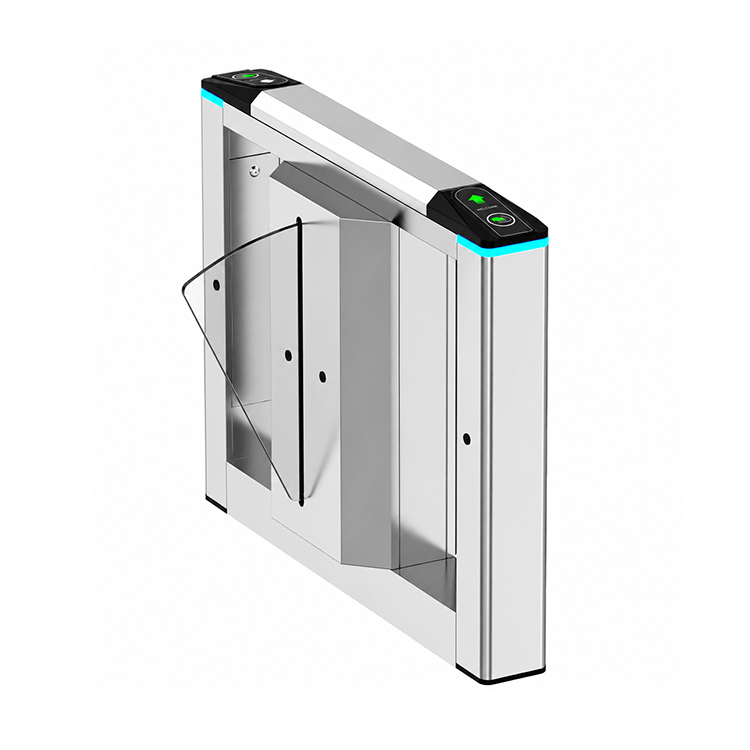

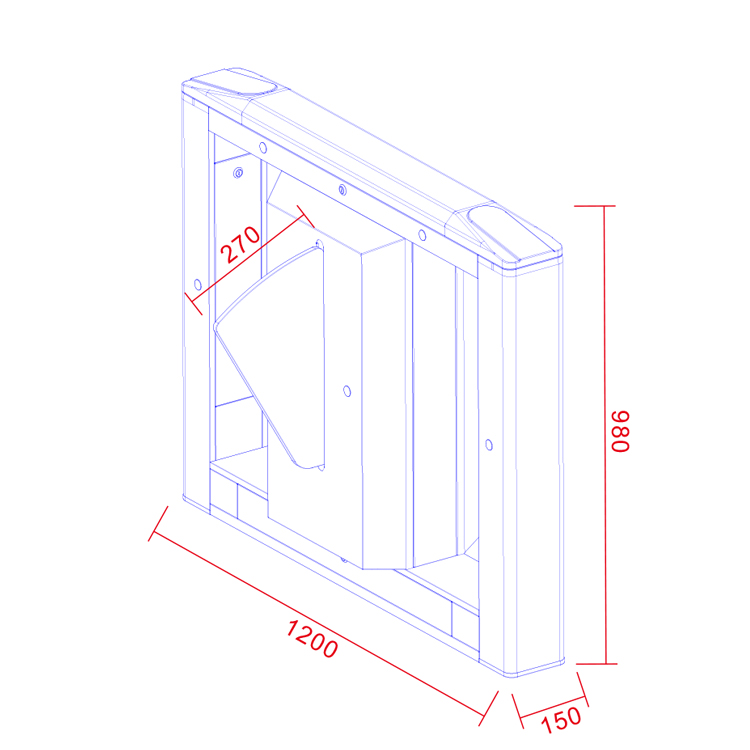

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Integrate Any Access Controllers

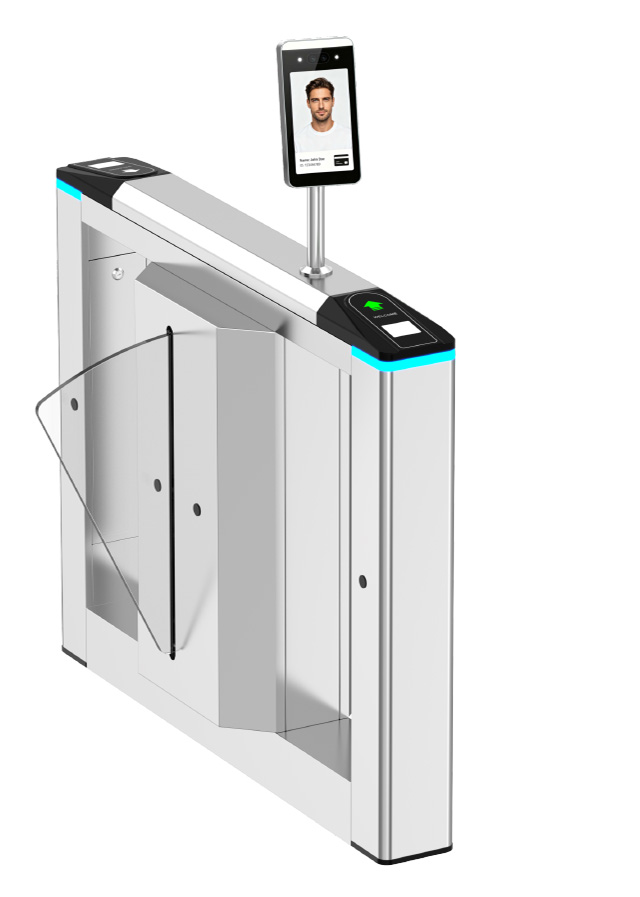

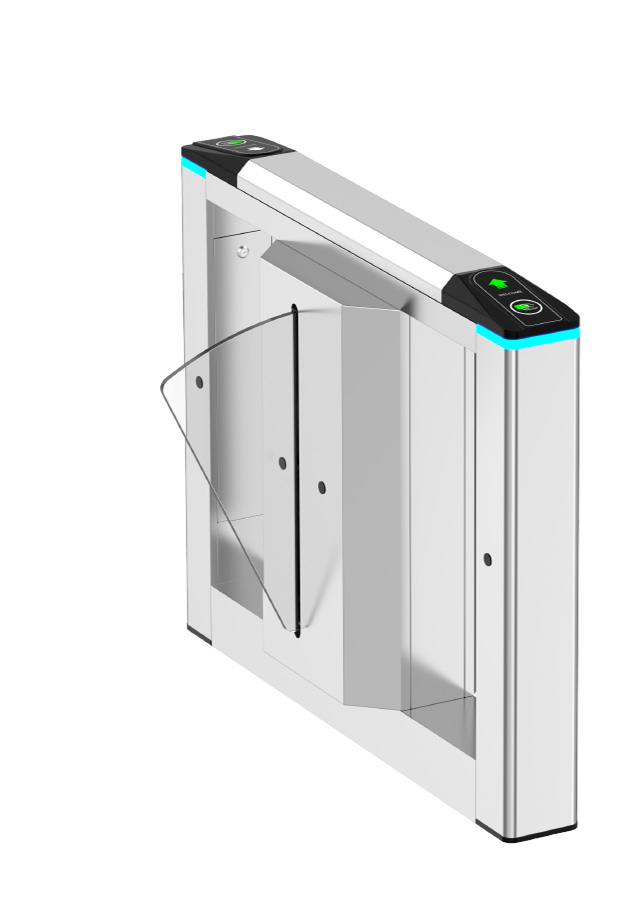

Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.
Product Parameters
Technical Parameters
| Parameter | Description |
|---|---|
| Power Supply | AC220V ±10V, 50Hz / AC110V ±10V, 60Hz |
| Power Consumption | 40W / 24V |
| Temperature | -20°C to 70°C |
| Humidity | <95%, without condensation |
| Passage Width | 600 mm |
| Passing Speed | 35–40 persons/min |
| Arm Open / Close Time | 1 second |
| Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
| Communication Interface | RS485 (Distance ≤1200m) |
| Material | Housing: 304 Stainless Steel; Arm: Plexiglass |
| Housing Dimension | 1200 × 300 × 980 mm |
| Arm Length | 268 mm |
| Working Environment | Indoor or outdoor locations with shed |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work

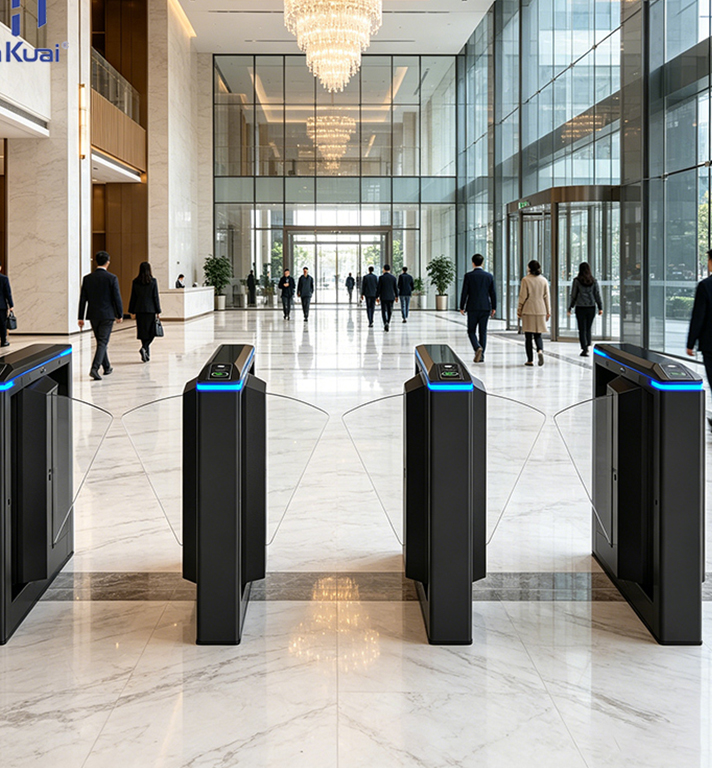

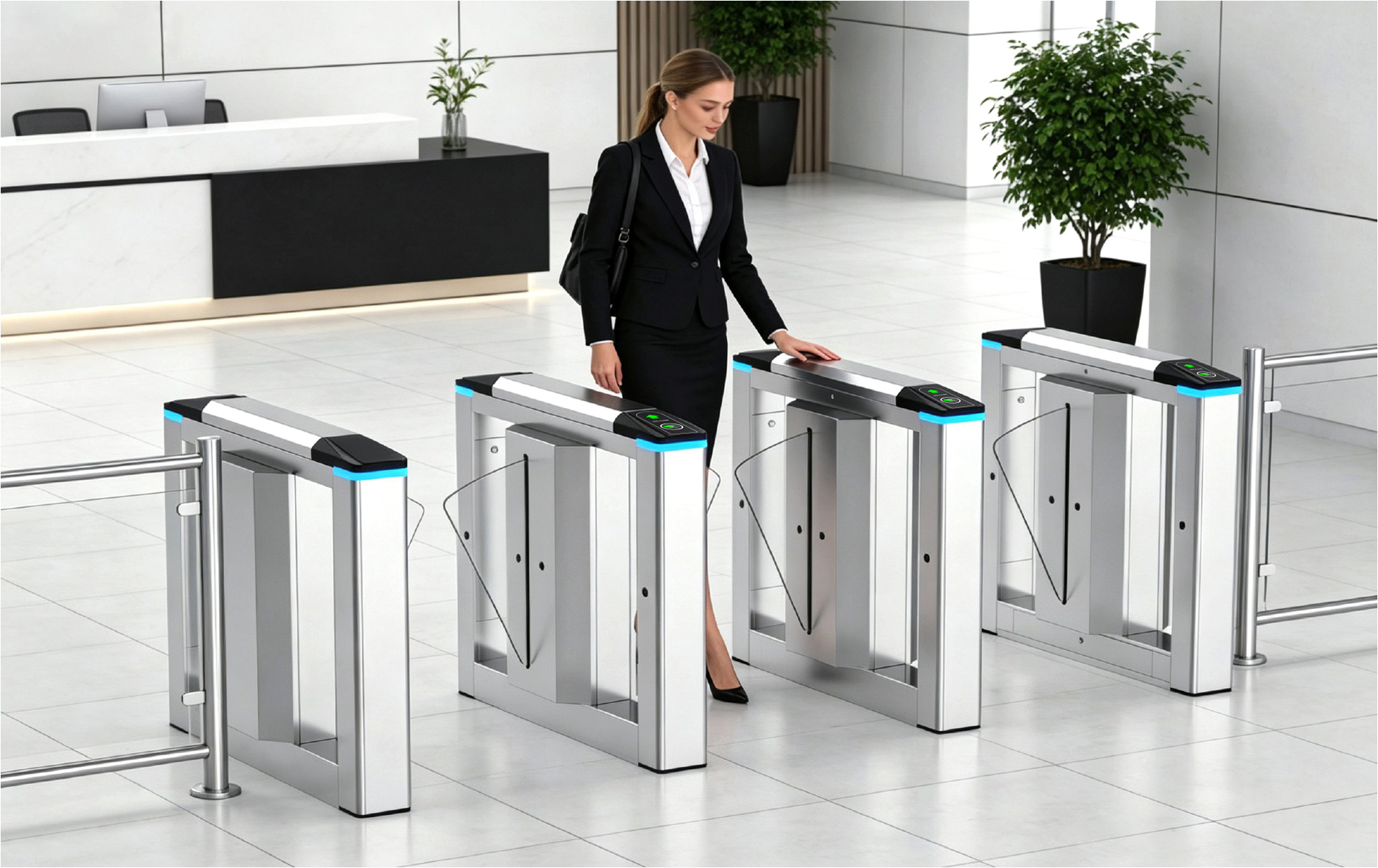

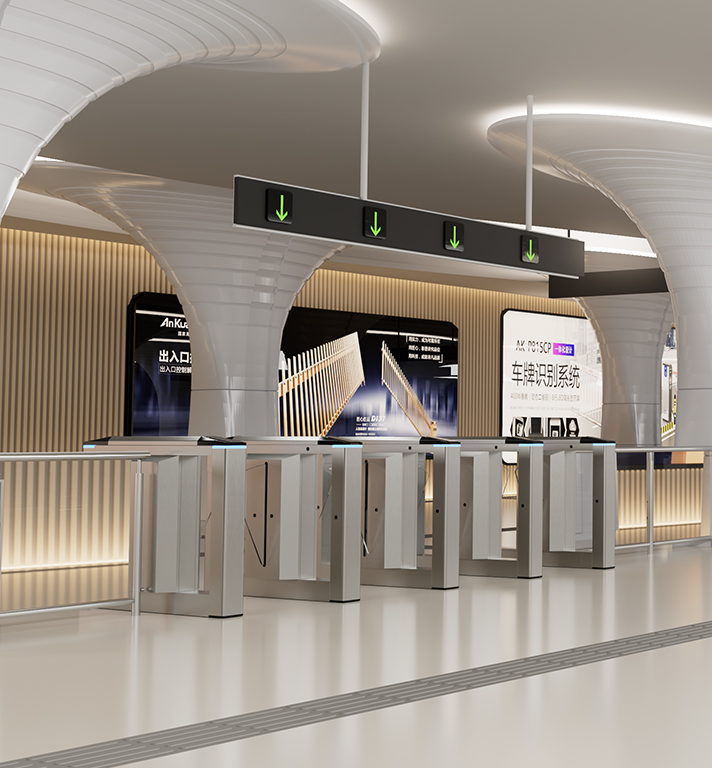

Clients Videos And Gallery
Client Gallery
Client Videos

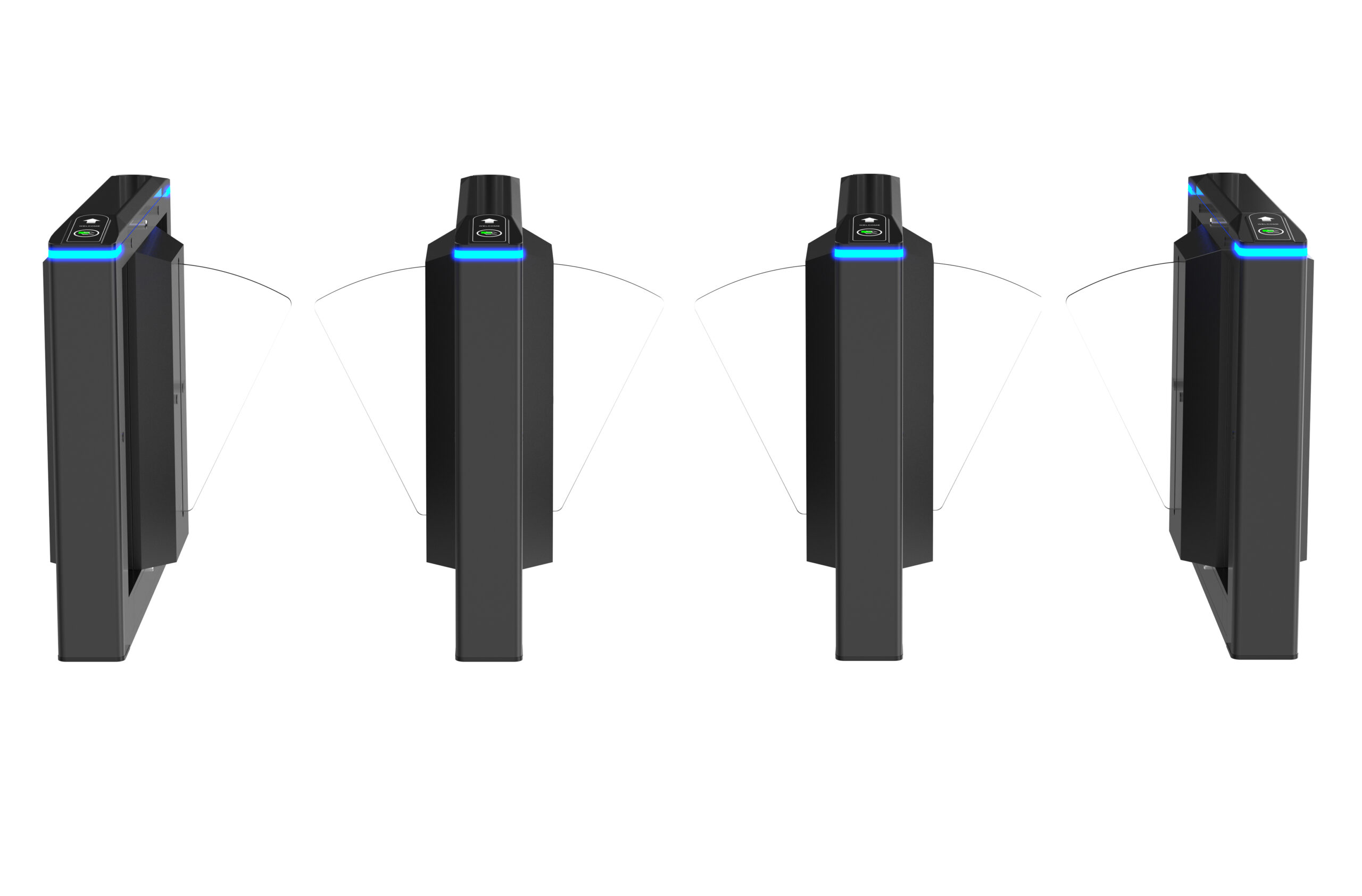

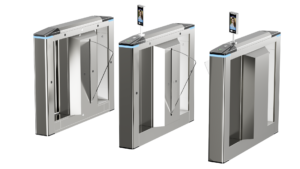

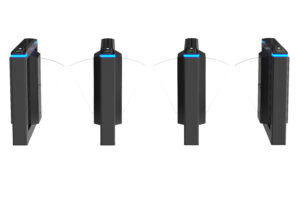

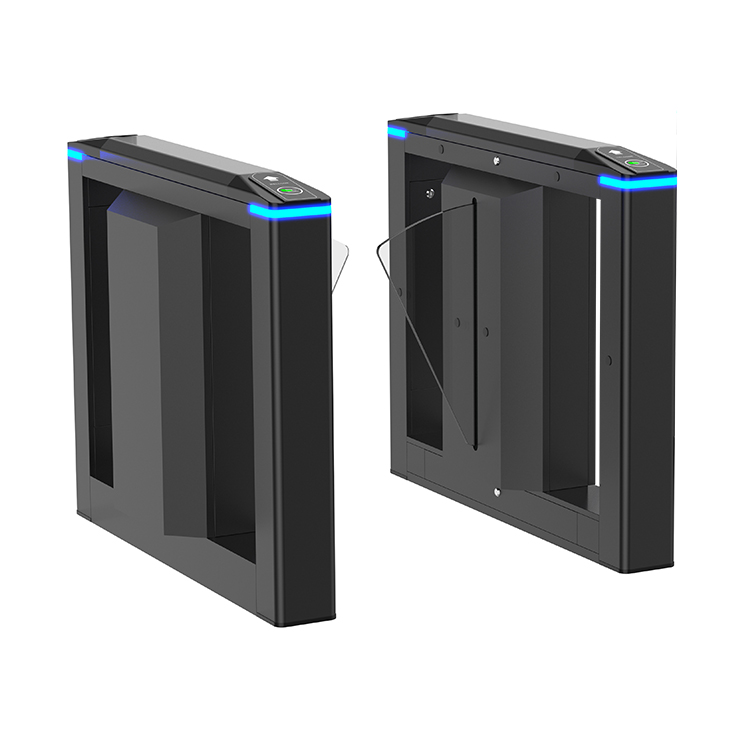

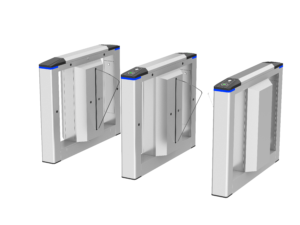

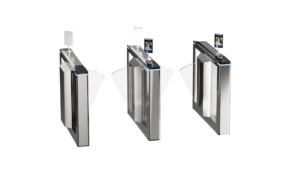

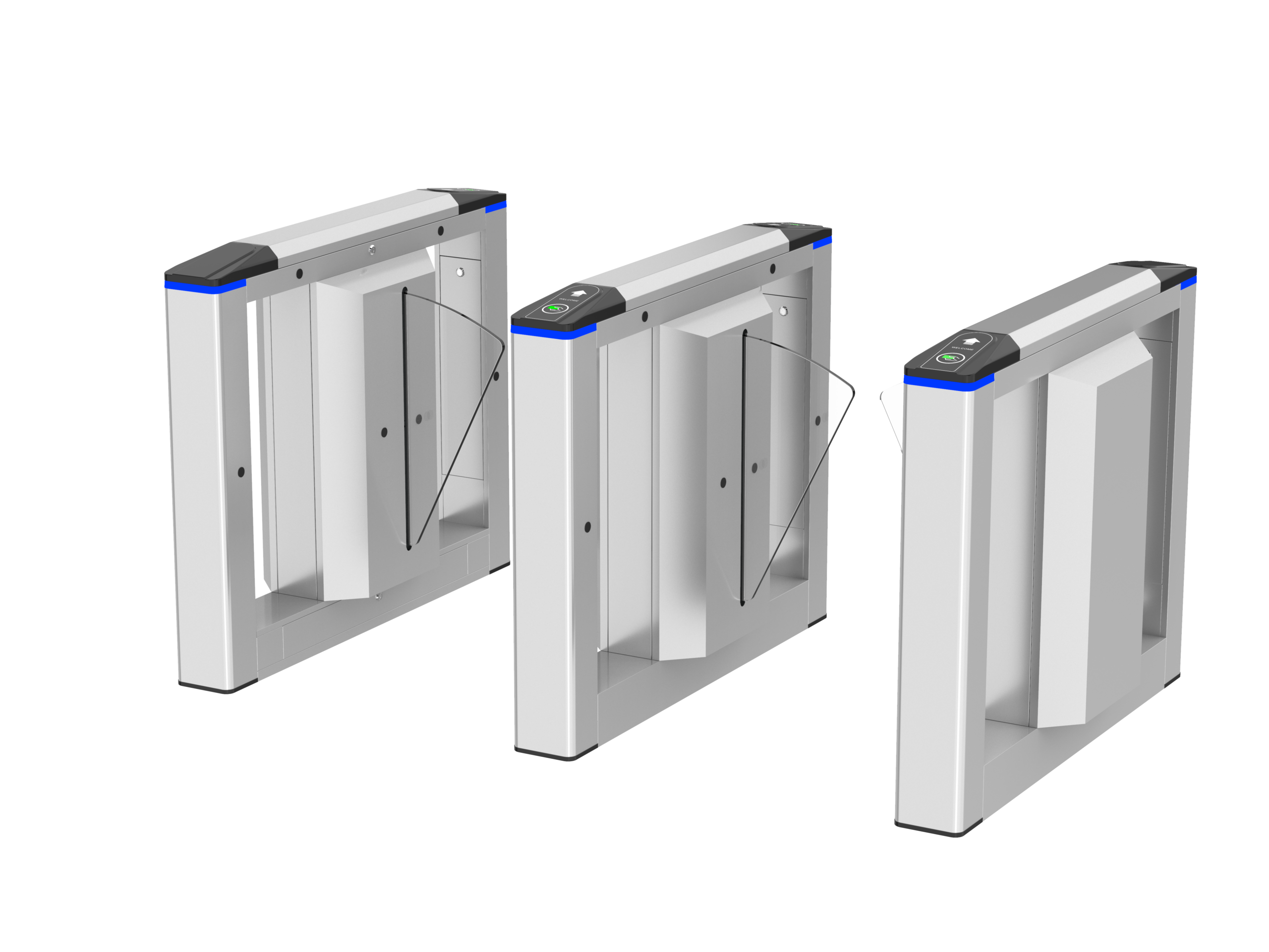

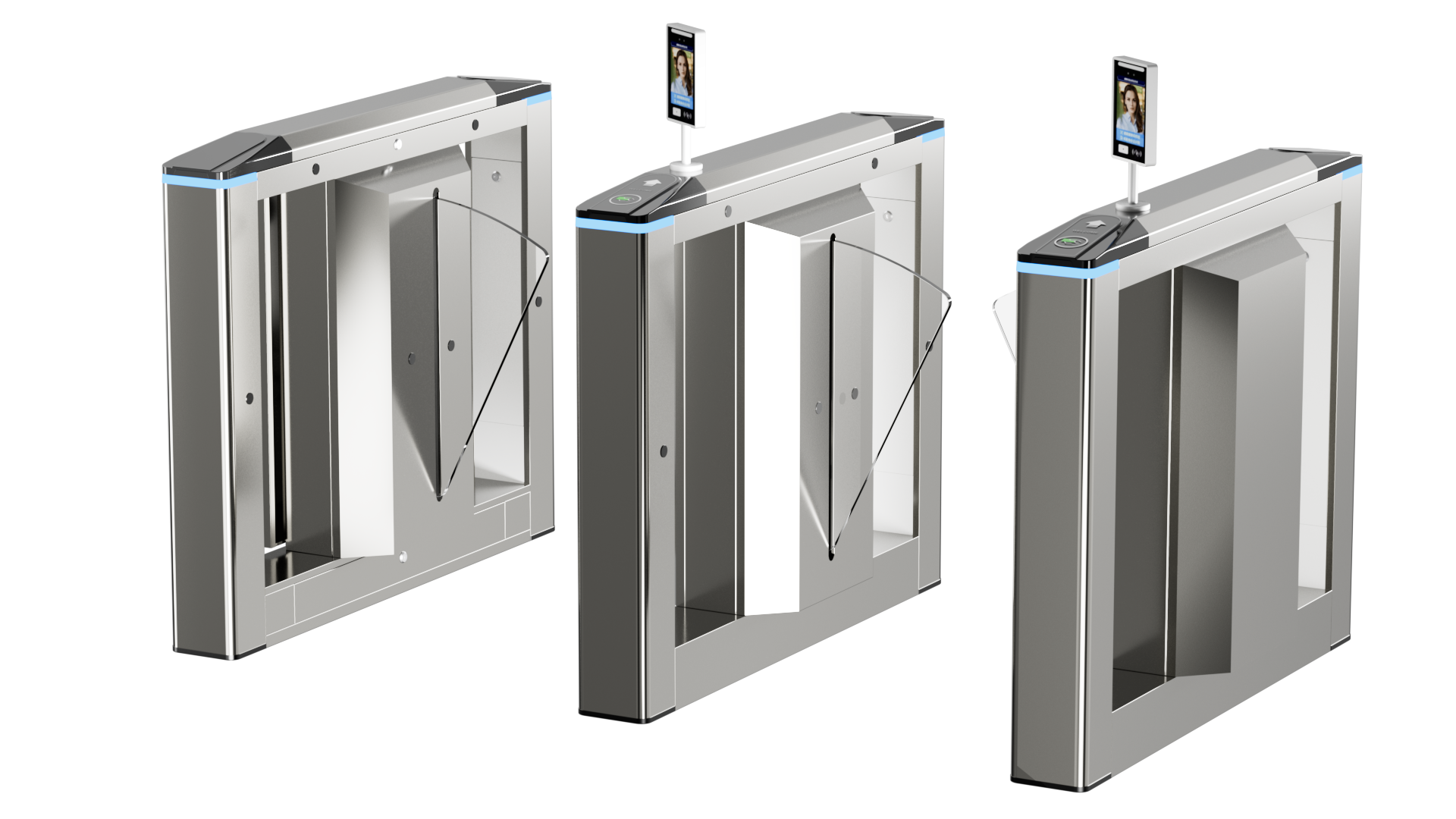

AKT313 Flap Barrier
