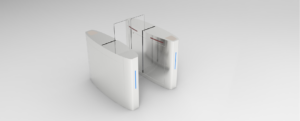

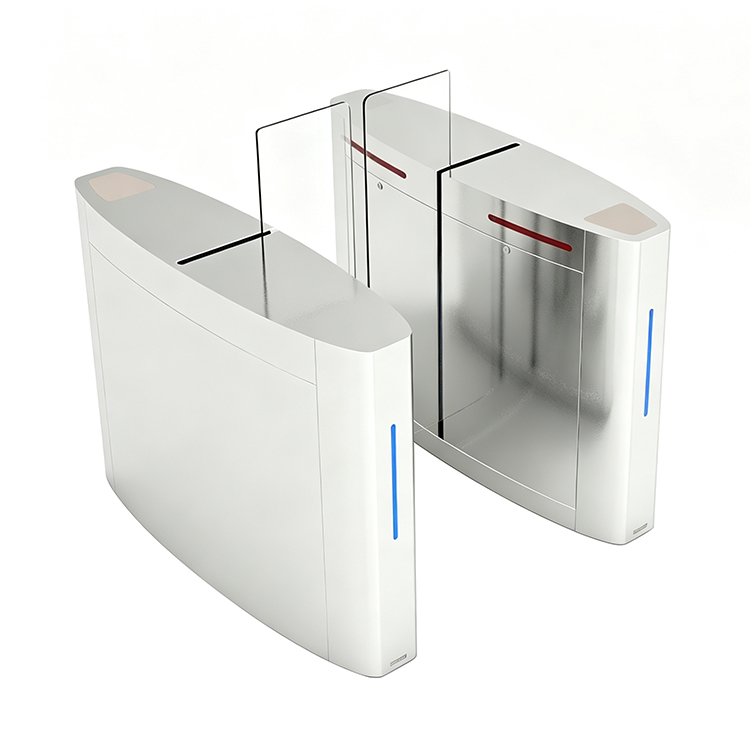

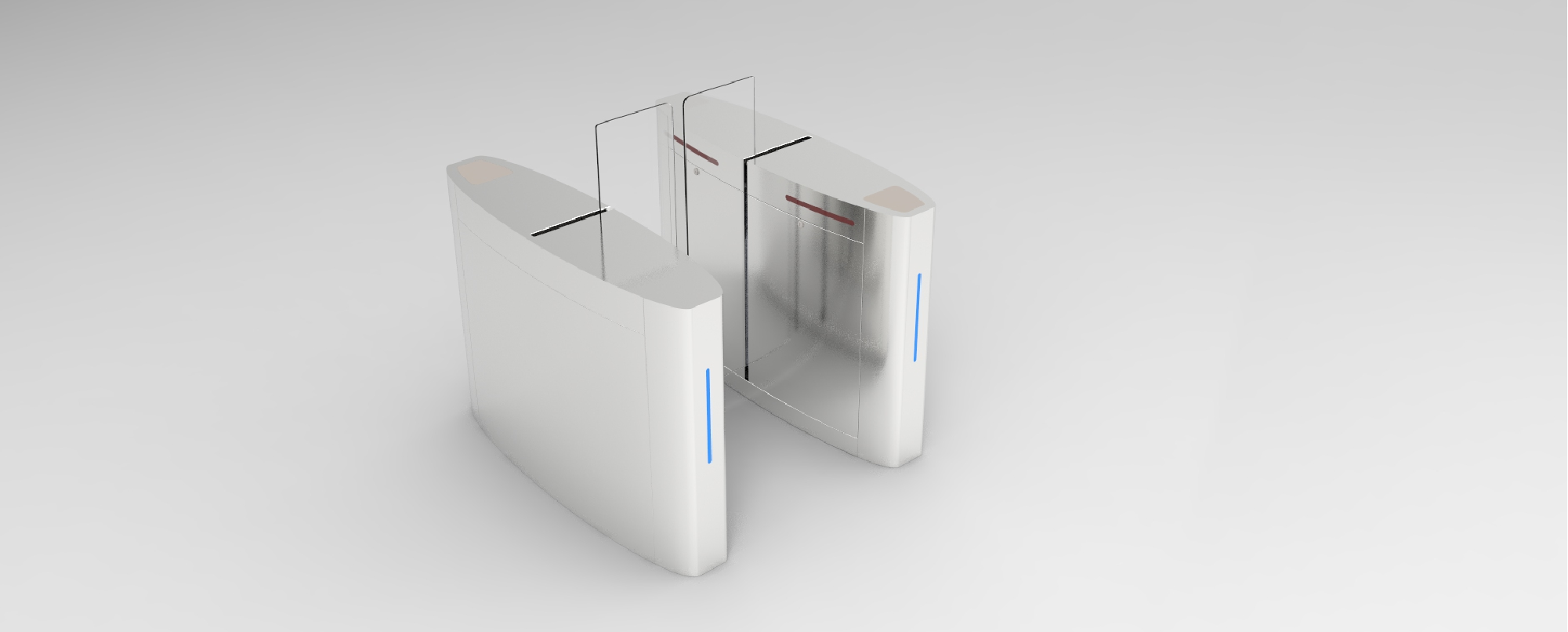

AKT316
Main Features
- Intelligent microprocessor-based control system for reliable operation.
- Supports RFID cards, IC cards, barcode readers, biometric devices, and other access control systems.
- Bi-directional pedestrian passage management.
- Real-time alarm monitoring and status indication.
- Anti-tailgating and unauthorized access prevention.
- Multiple safety protection mechanisms for pedestrians.
- Durable SUS304 stainless steel construction with corrosion resistance.
- Automatic gate opening during power failure for emergency evacuation.
- Built-in buzzer alarm and indicator light system.
- Suitable for high-security indoor environments and controlled access areas.
Short Description
The AKT316 Sliding Turnstile is a high-end pedestrian access control system designed for secure, intelligent, and efficient entry management in premium facilities. Combining advanced microprocessor control, safety protection mechanisms, real-time monitoring, and access control integration, it supports RFID cards, IC cards, barcode readers, biometric devices, and other identification technologies. Its robust stainless-steel construction, smooth sliding gate operation, anti-tailgating features, and emergency evacuation functionality make it ideal for corporate offices, government buildings, airports, metro stations, educational institutions, and other high-security environments.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameters
| Parameter | Description |
|---|---|
| Housing Material | SUS304 Stainless Steel (Thickness 1.5 mm) |
| Housing Size | 1400 × 350 × 1000 mm (L × W × H) |
| Power Supply | 220V ±10%, 50Hz |
| Output Voltage | DC24V |
| Working Current | 5A (Max. 10A) |
| Motor | DC Brushless, DC24V, 50W, 60K, 3000 rpm |
| Open Speed | 1.5 – 2.5 Seconds |
| Communication Interface | TTL232 |
| Input Interface | 2-way open signal, 1-way fire signal |
| Infrared Sensor | 4 pcs |
| Indicated Light | 3-way voltage control / high and low level control indicator light |
| Passing Speed | 25 persons/min |
| Alarm Output | 1-way alarm output / built-in buzzer alarm |
| Voice Interface | 1 way |
| Hardware Protection | Over-current protection, short-circuit protection, reverse connection protection |
| Working Temperature | -25°C to 75°C |
| Emergency Measures | Free passage in case of power failure |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
