AKT320

Main Functions

  1. Problem self-checking function.
  2. Arm turning: Bi-directional.
  3. When power is off, the arm opens automatically and remains held automatically when power is restored.
  4. After a valid card read and passenger passage, the arm can be set to close automatically after 1–60 seconds through the control panel.
  5. Auto-reposition function: After card reading, if the passenger does not pass within the specified time, the turnstile automatically cancels access. The delay time can be configured by administrators.
  6. Anti-rush function: If no open signal is received, the arm remains locked securely.
  7. Stable operation with low noise output.
Inquire Now

Short Description

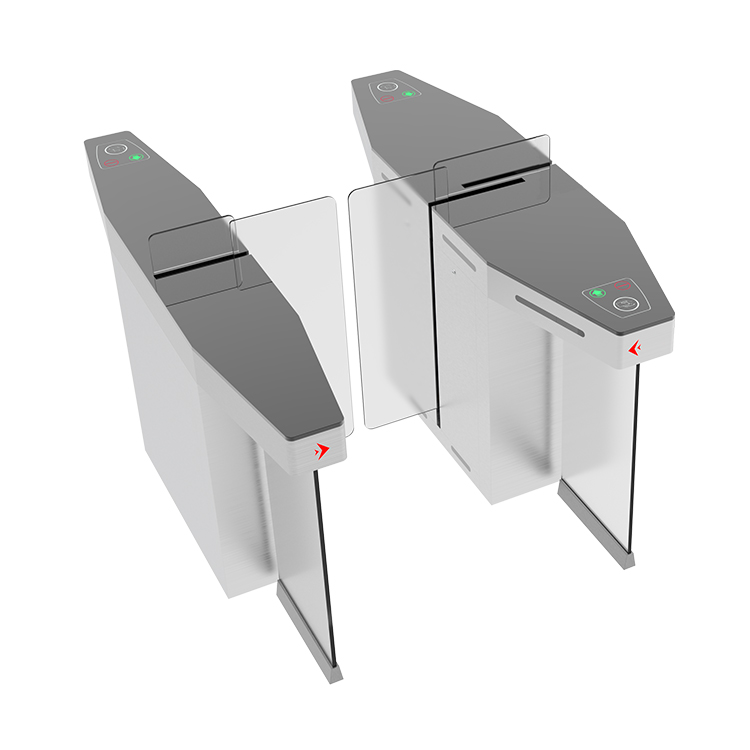

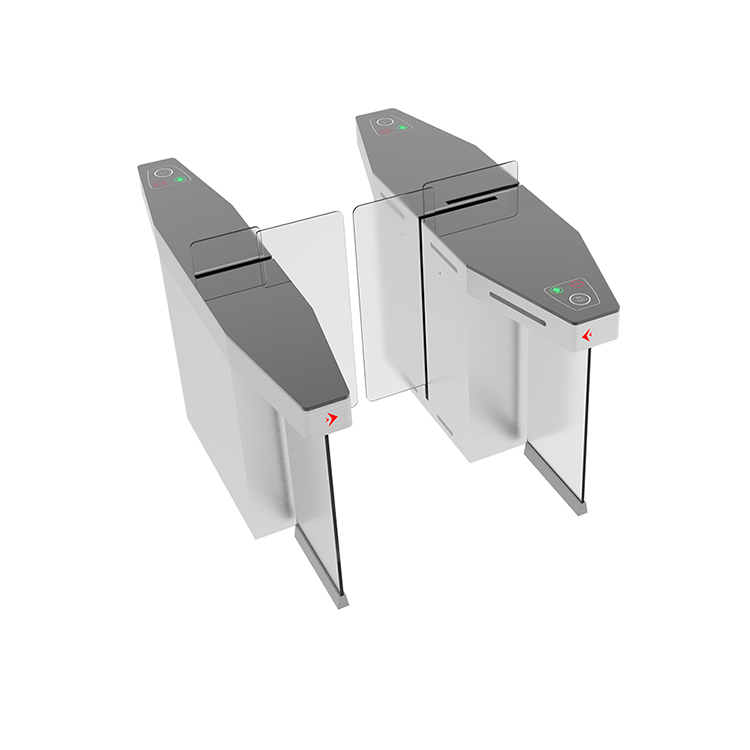

The AKT320 Swing turnstile has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, bar-code cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.

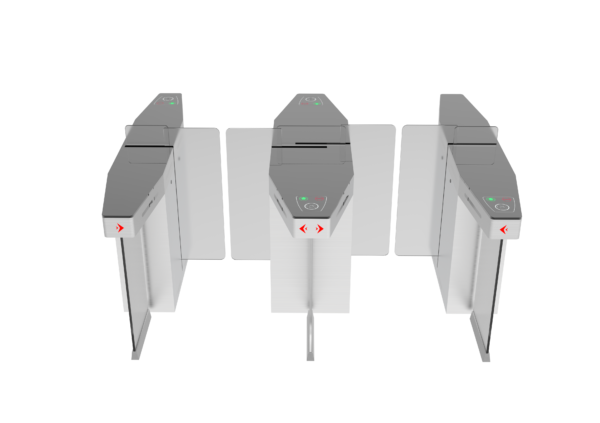

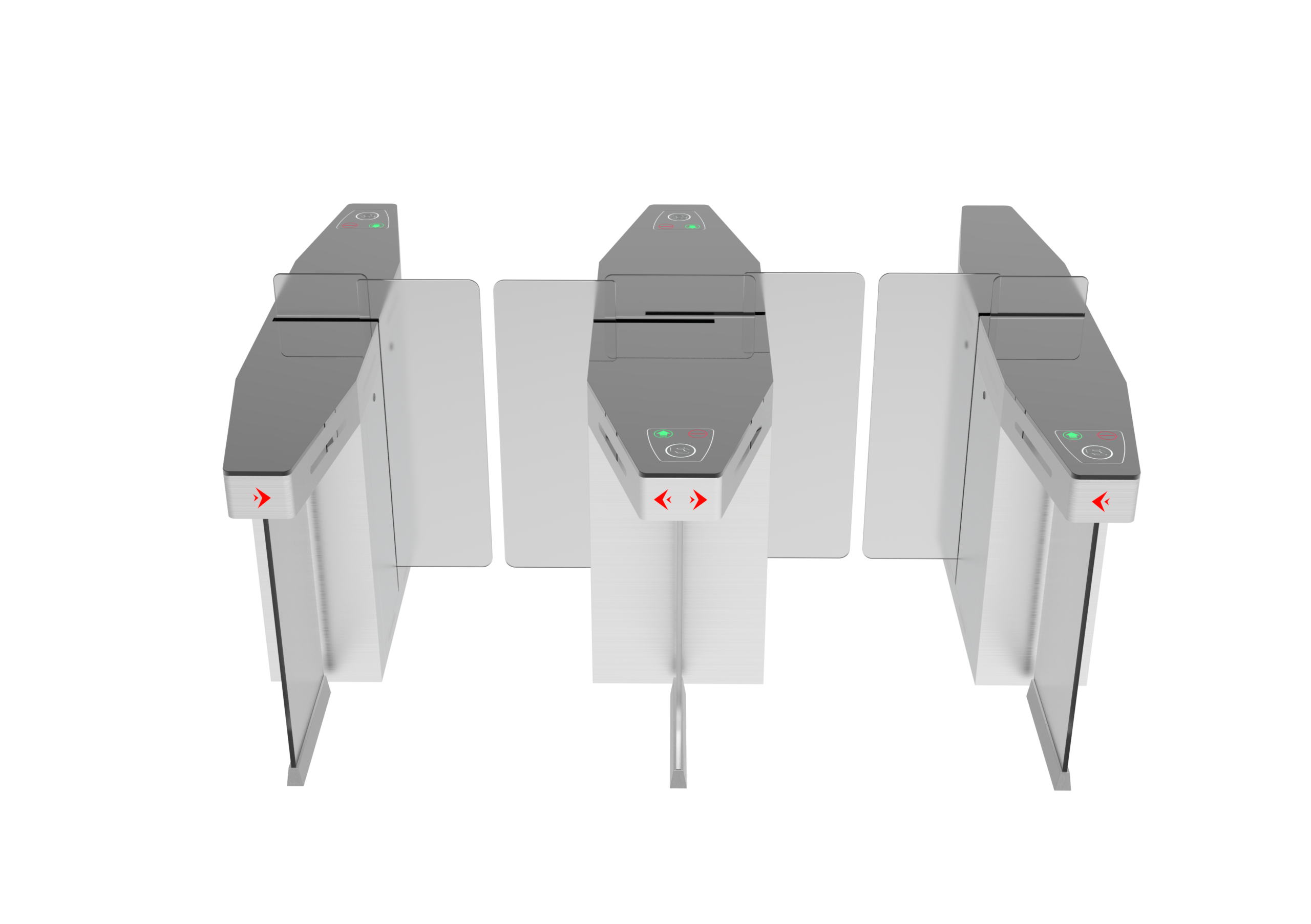

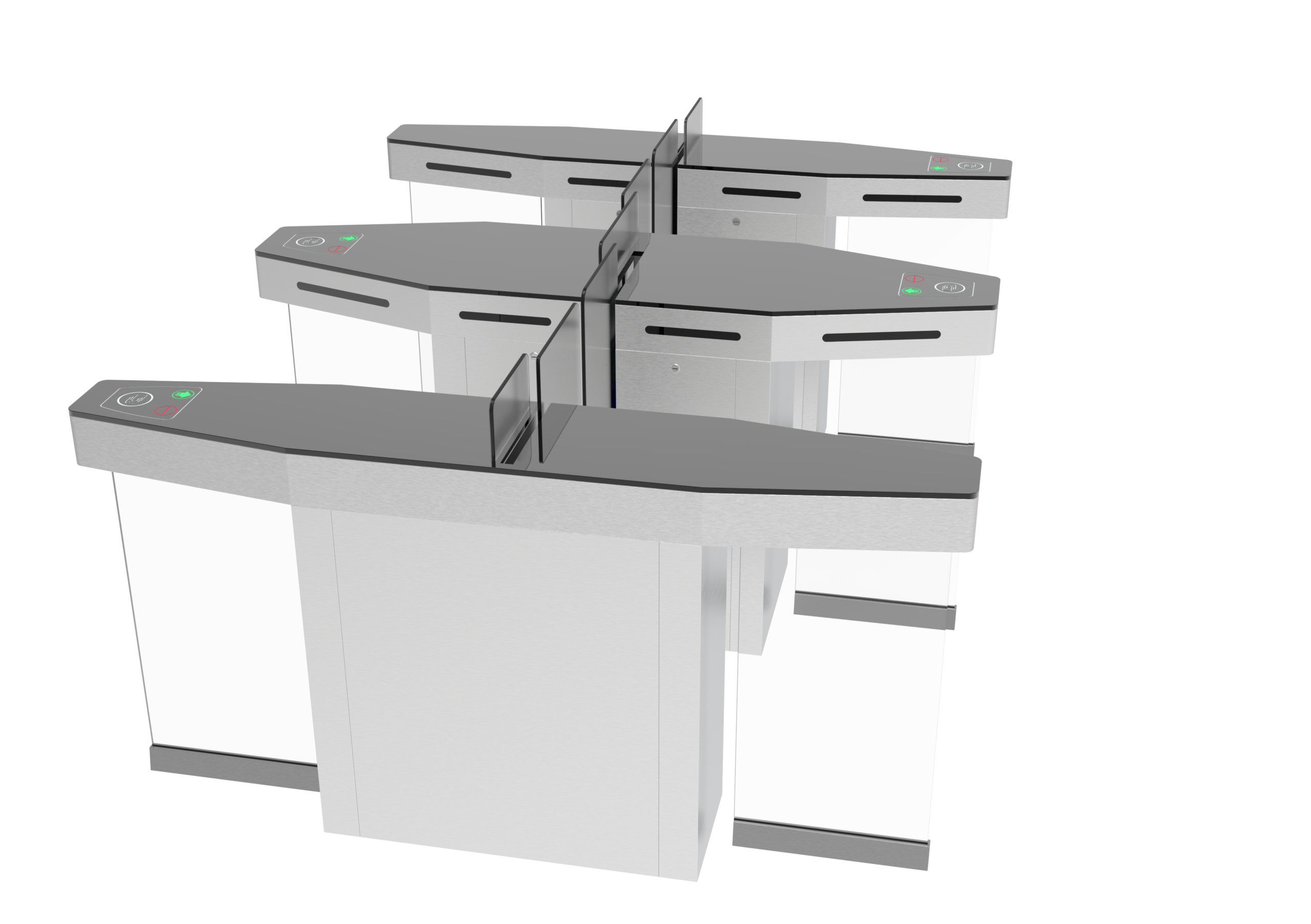

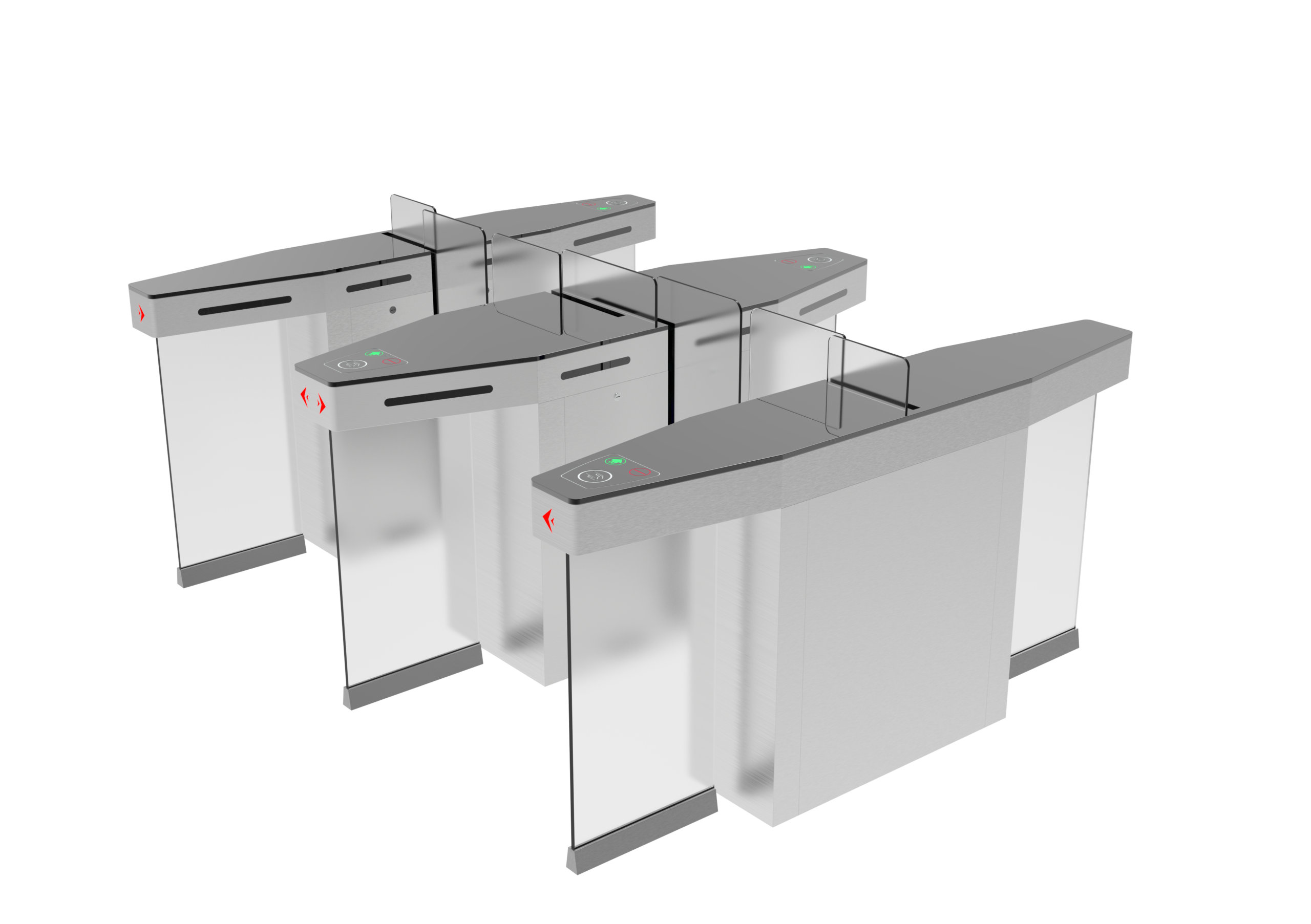

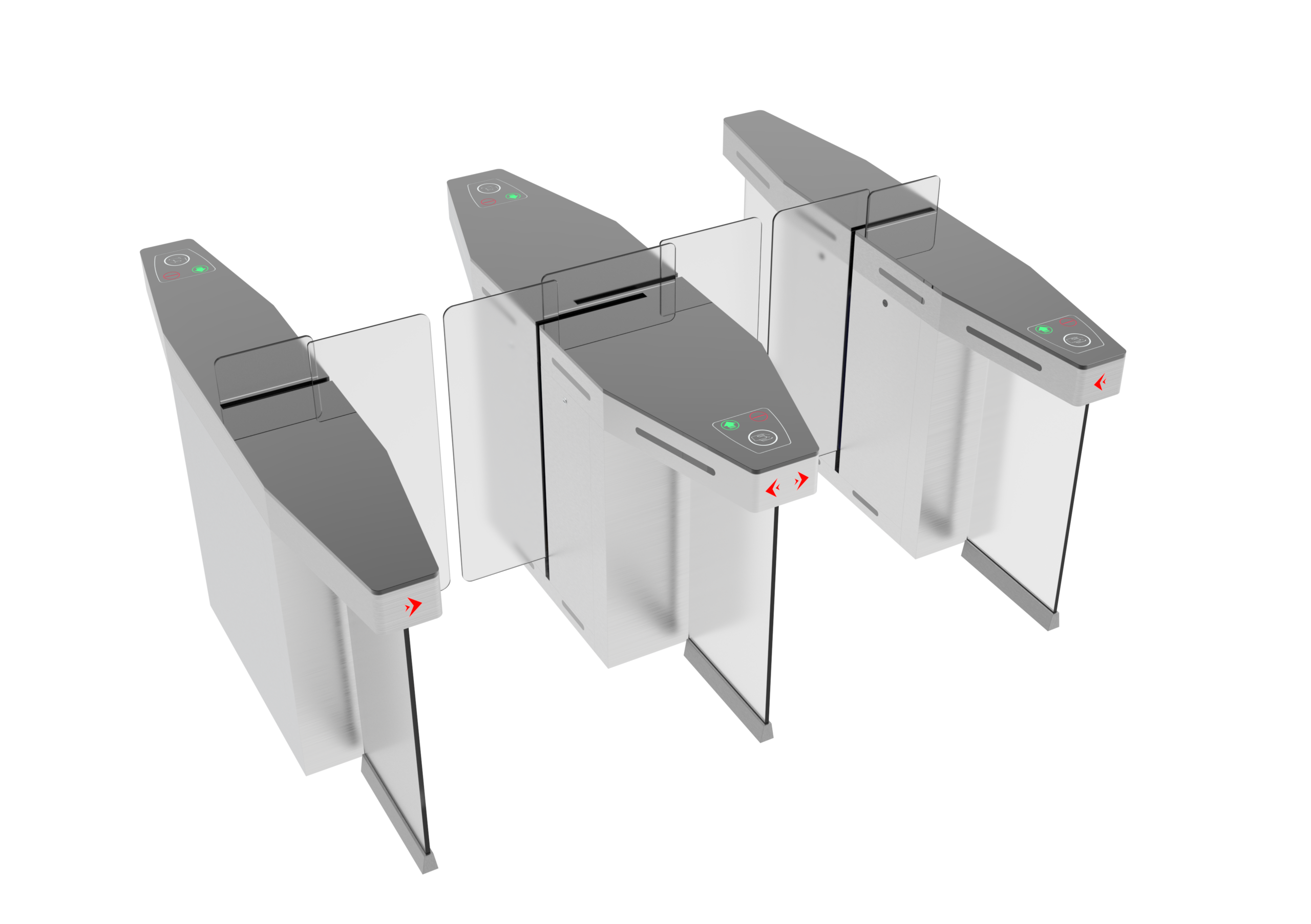

product Details And Dimensions

All the details and dimensions can be customized according to your project site

Interactive image with pins
Material
304 stainless steel
Arm Color
Transparent

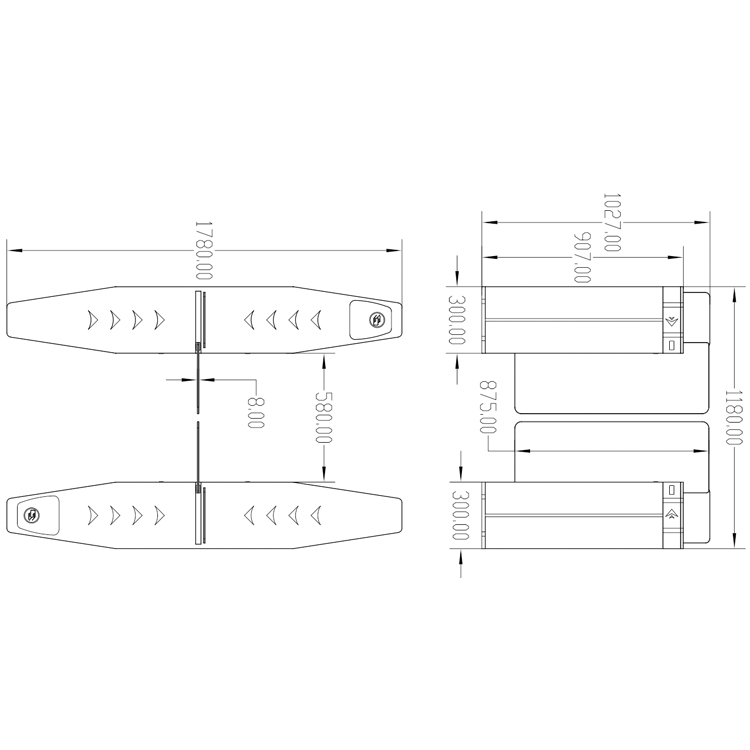

Product Dimension Image

Product Parameters

Parameter Description
Power Supply AC220V ±10V, 50Hz / AC110V ±10V, 60Hz
Power Consumption Servo Motor 98W / 24V
Temperature -15°C to 60°C
Humidity <95%, without condensation
Passage Width ≤ 550 mm
Passing Speed 30 persons/min (normal open), 20 persons/min (normal close)
Arm Open / Close Time 1 second
Input Interface +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
Communication Interface RS485 (Distance ≤1200m)
Dimension 1780 × 300 × 1027 mm
Arm Length ≤ 285 mm
Working Environment Indoor or outdoor locations with shed
Arm Turning Bi-directional

Easy Installing, NO Need Any Special Electrician Skills

Fix on ground, connect to power supply, it will work
