AKT322
Main Functions
- Problem-self-checking function.
- Arm Turning: Bi-direction.
- When power off, arm open automatically and power on again, arm will be held automatically.
- When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
- Auto-reposition function: After card read, passenger doesn’t pass within regulated time, turnstile will cancel order automatically. And the regulated time can be set by managers.
- Anti-rush function: if there is no open single, arm will be holding tightly.
- Stable running with little noise.
Short Description

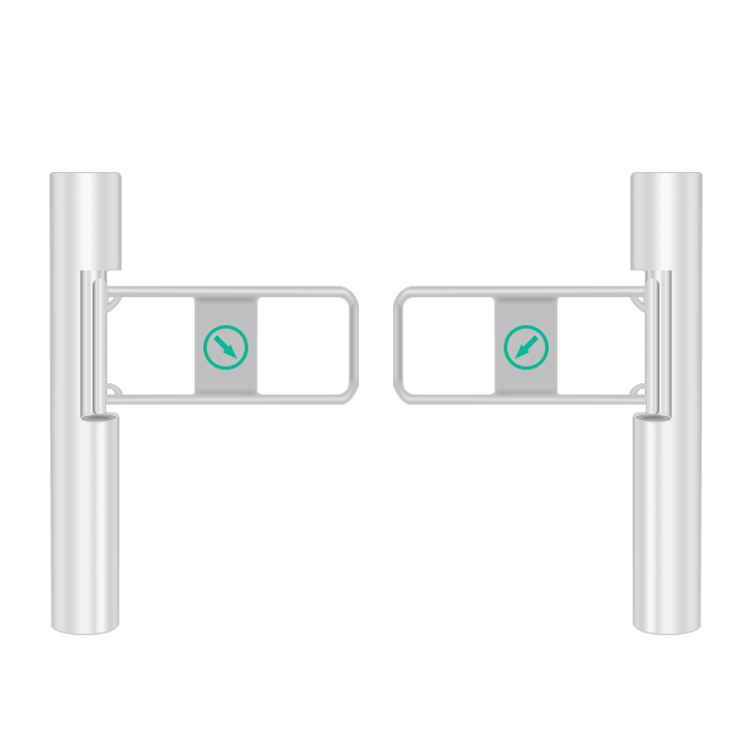

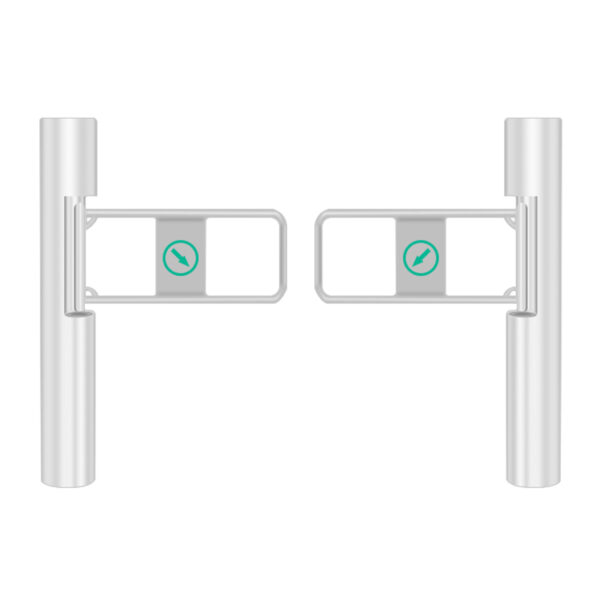

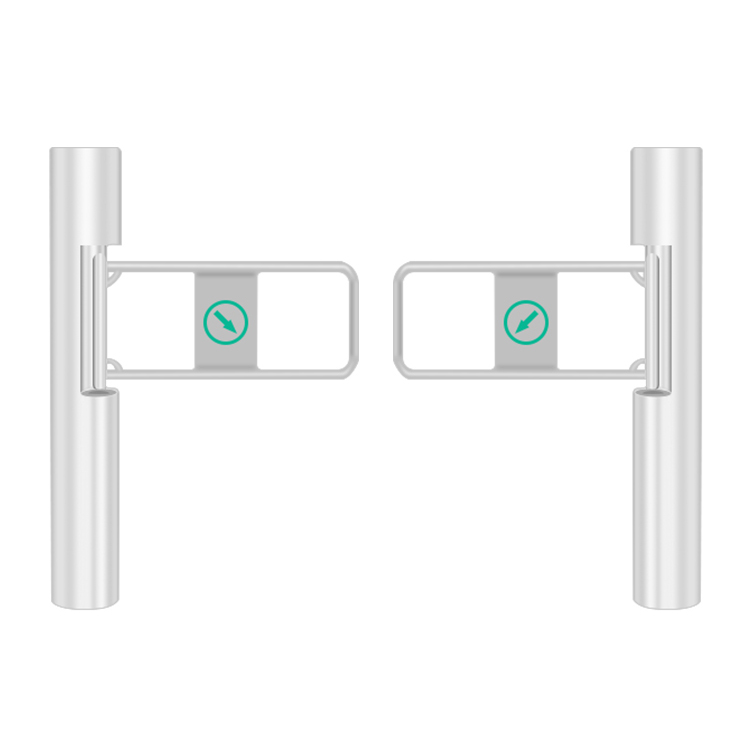

The AKT322 Supermarket swing turnstiles are designed for secure and efficient pedestrian access control. With a durable structure, smooth operation, and support for multiple access control methods, they provide fast and orderly passage. Ideal for supermarkets, shopping malls, retail stores, schools, offices, and other high-traffic areas.

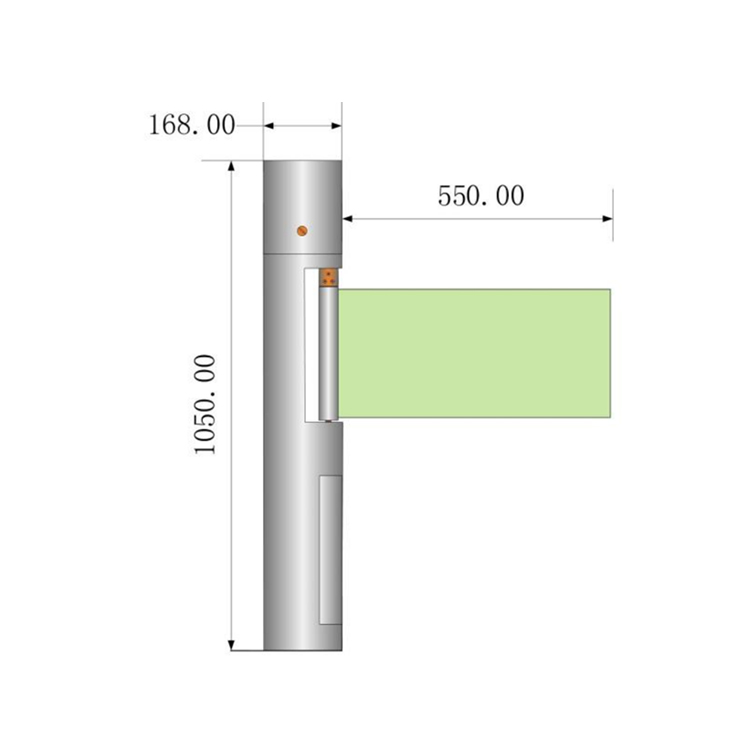

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Power Supply | AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz |
| Power Consumption | 100W/24V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | <=1200mm |
| Passing Speed | 30 persons/min (normal open), 20 persons/min (normal close) |
| Arm Open/Close Time | 2.5s |
| Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
| Communication Interface | RS485 (Distance<=1200m) |
| Dimension | 168*1050mm |
| Arm Length | <=700mm |
| Working Environment | Indoors or outdoors with shed |
| Arm Turning | Bi-direction |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
