AKT336
Main Functions
-
Auto-reposition function: After card read, if passengers don't pass within regulated time period, turnstile will be locked automatically.
-
Bi-direction passing or uni-direction.
-
When power off, arm will be locked automatically.
-
Self-lock function: Arm will be locked automatically after passenger passing.
-
4 arms are always closed with each turning 90 degrees.
-
Standard interfaces are convenient for connection with different readers which can send relay signal.
-
RS485 interfaces can connect turnstile with computer directly.
-
Stable running with little noise.
Short Description

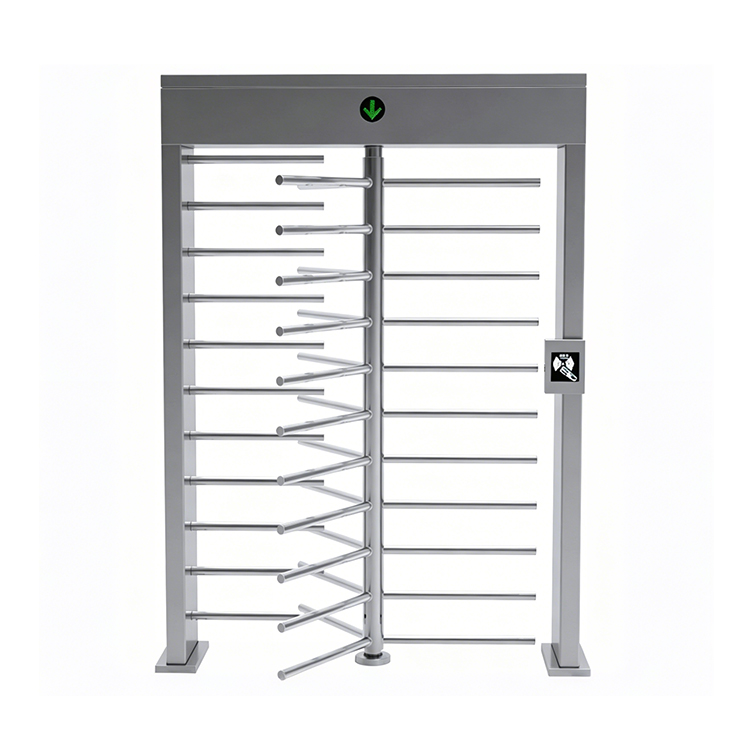

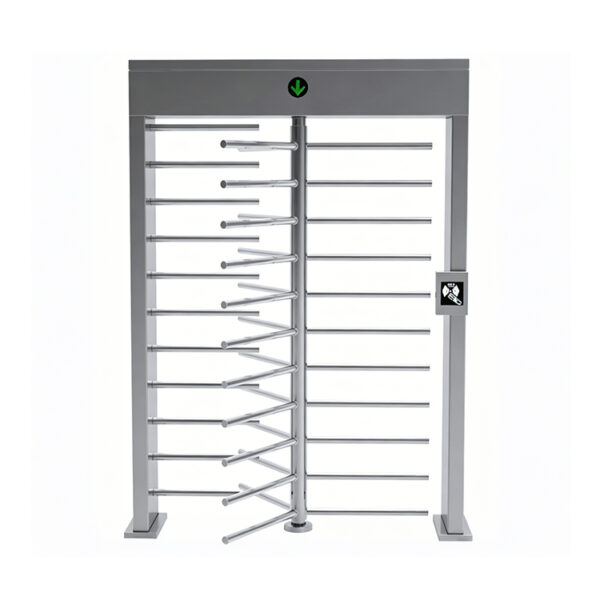

AKT336 Full Height Turnstile is a high-security access control solution designed for maximum perimeter protection. With its full-height design, it prevents climbing and crawling, making it ideal for high-security areas. It features standard electrical interfaces compatible with ID cards, IC cards, magnetic cards, barcode readers, and other relay signal devices. With uni-directional or bi-directional operation, RS485 computer connectivity, 4-arm 90-degree rotation mechanism, self-lock function after passing, and auto-repositioning, the AKT336 is perfect for factories, stadiums, prisons, power plants, government buildings, transport hubs, and other high-security environments requiring robust and reliable access control.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz |
| Power Consumption | 100W |
| Temperature | -15 to 60°C |
| Humidity | <95%, without condensation |
| Passage Width | 600mm |
| Passing Speed | 30 persons/min (normal open), 20 persons/min (normal close) |
| Arm Open/Close Time | 2s |
| Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
| Communication Interface | RS485 (Distance: <1200m) |
| Working Environment | Indoors or outdoors with shed |
| Arm Turning | Uni-direction or Bi-direction |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Videos And Gallery

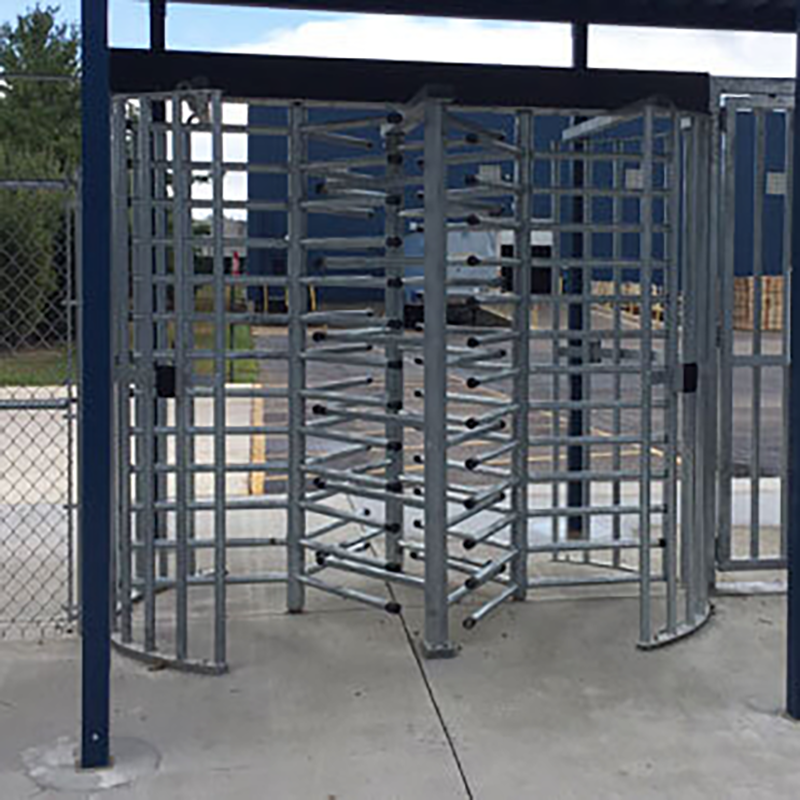

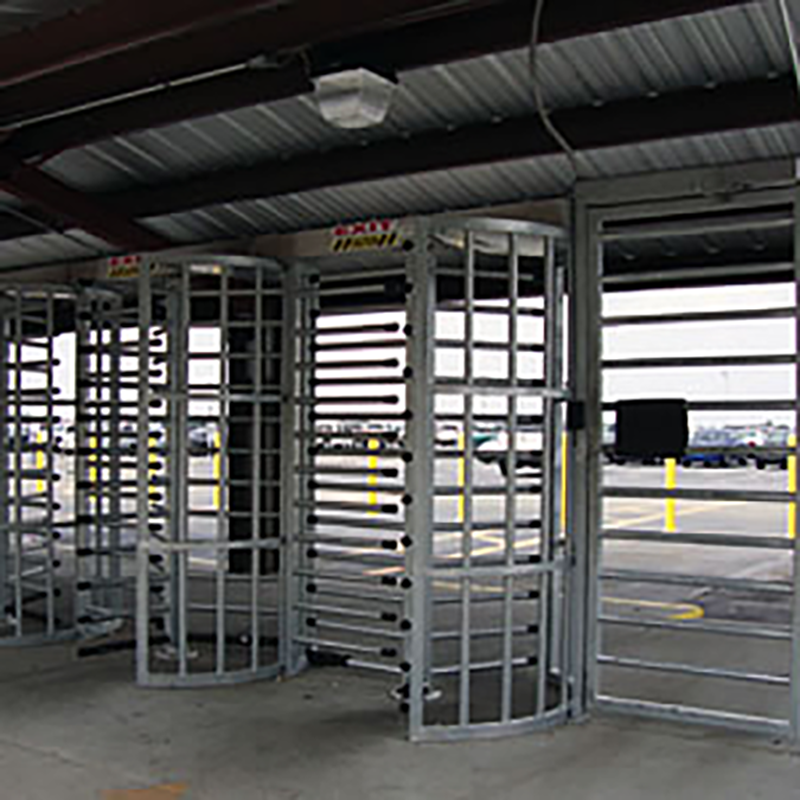

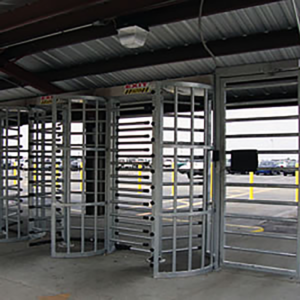

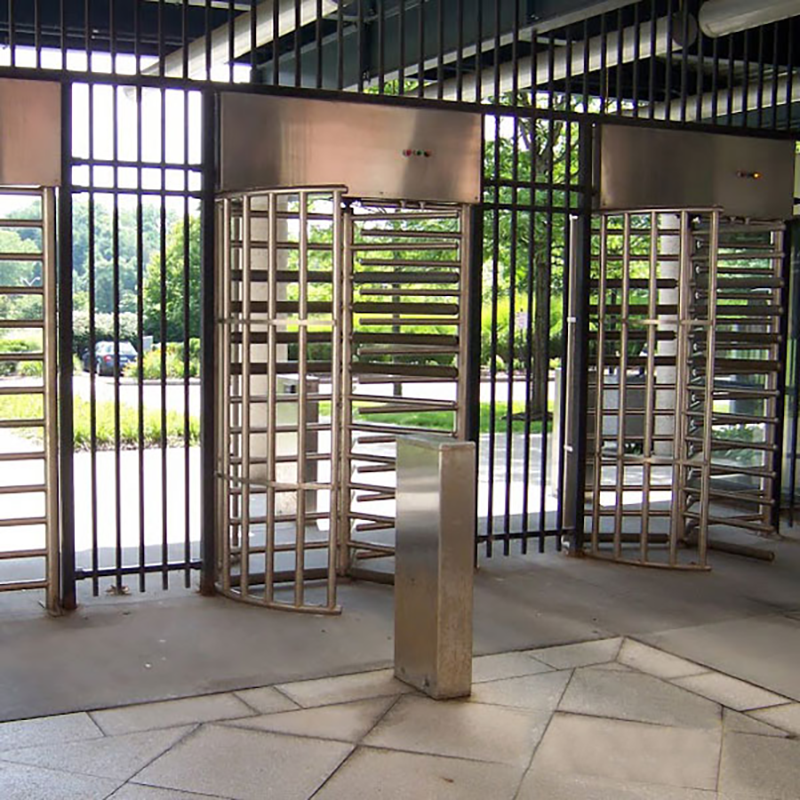

Client Gallery
