Short Description

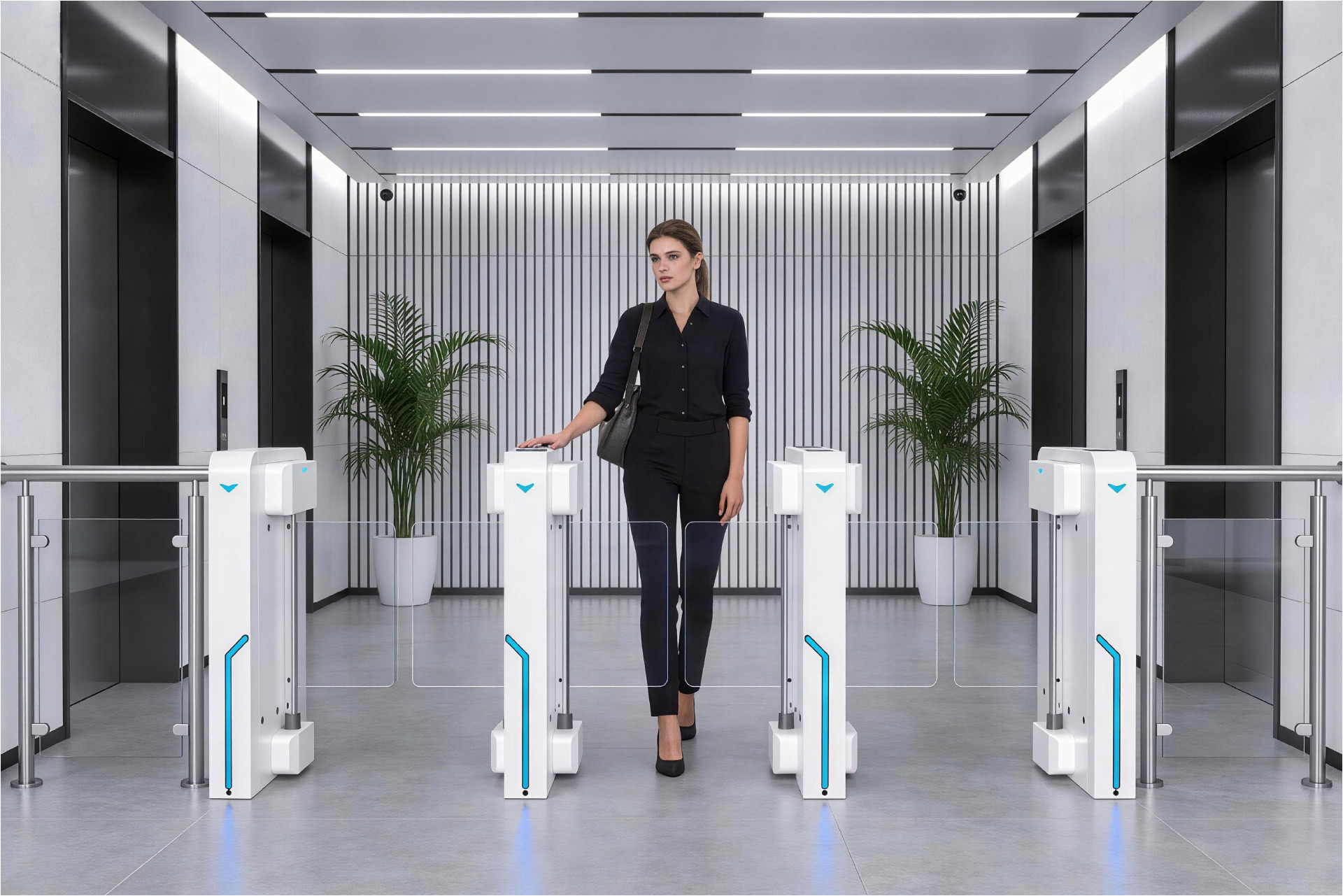

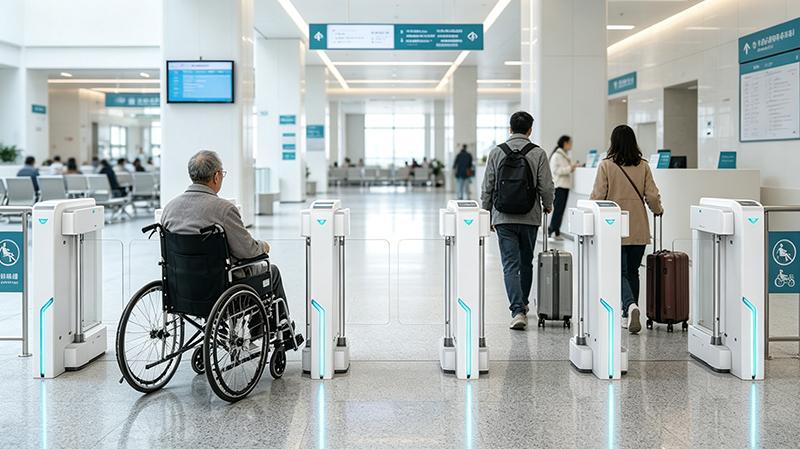

The AKT471 Swing Turnstile is a robust access control solution designed for secure and orderly pedestrian passage. It features a standard electrical interface compatible with ID cards, IC cards, magnetic cards, barcode cards, and other identification systems. The integrated access control system ensures only authorized individuals can enter or exit. With bi-directional arm operation, auto-open on power failure, anti-rush protection, and self-diagnostic capabilities, the AKT471 is ideal for offices, transport hubs, government buildings, stadiums, and other high-traffic environments requiring reliable security and smooth pedestrian flow.

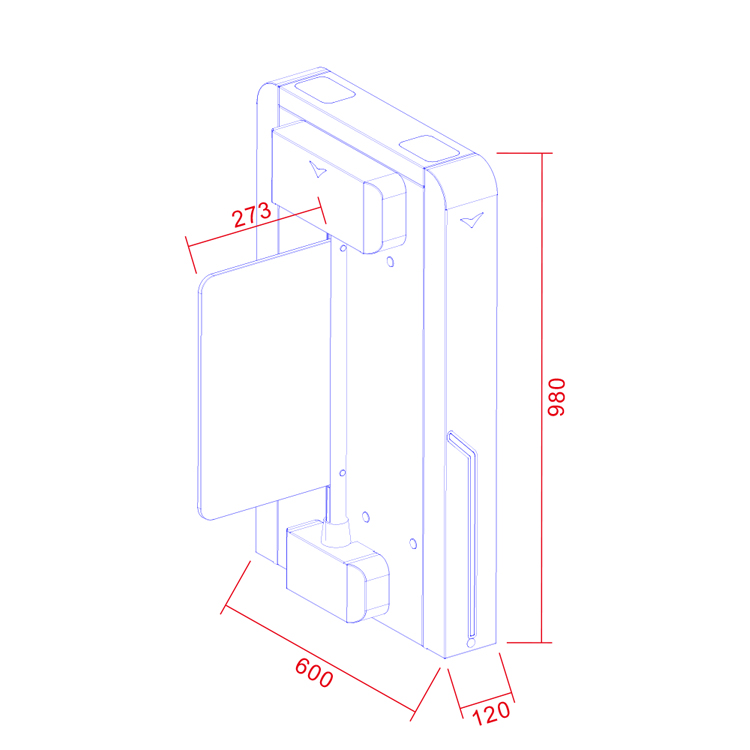

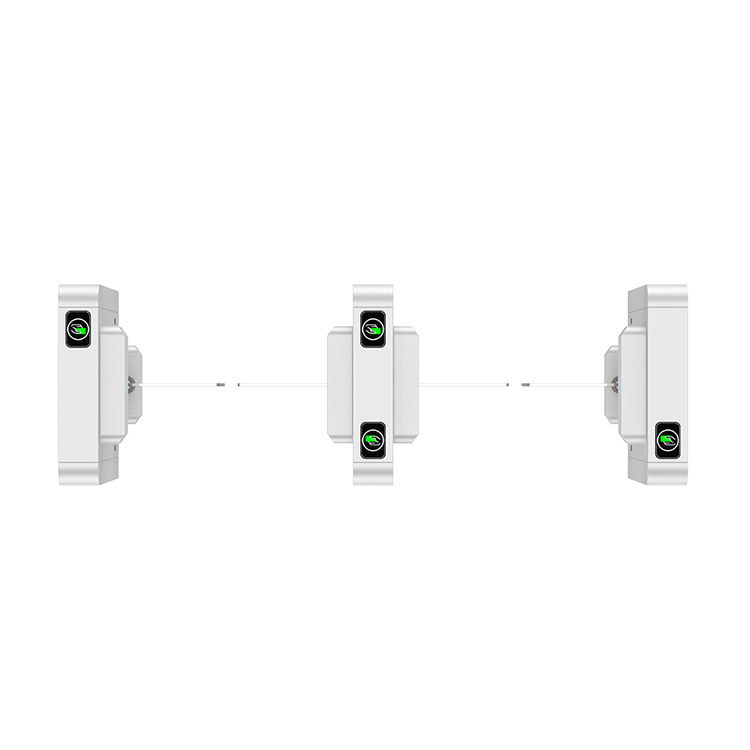

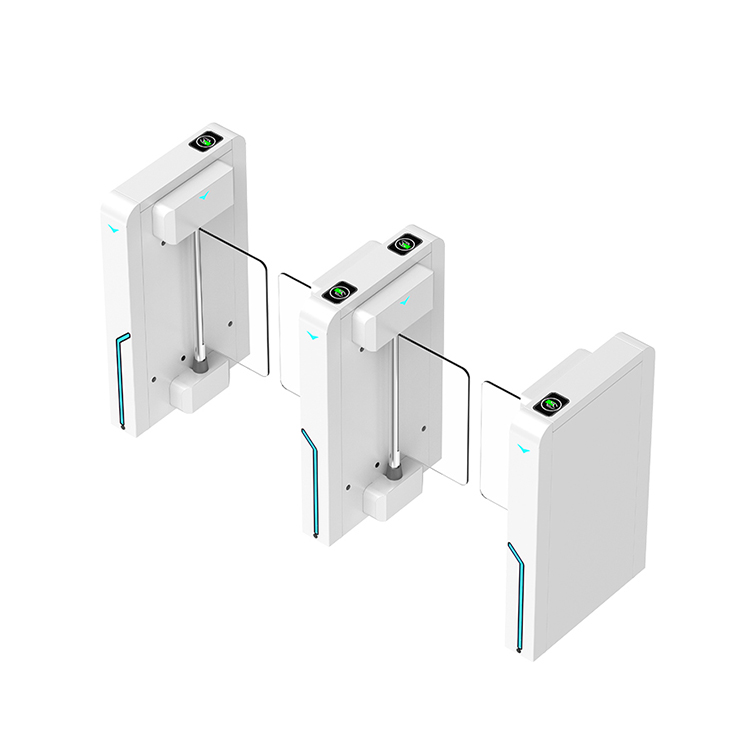

product Details And Dimensions
All the details and dimensions can be customized according to your project site

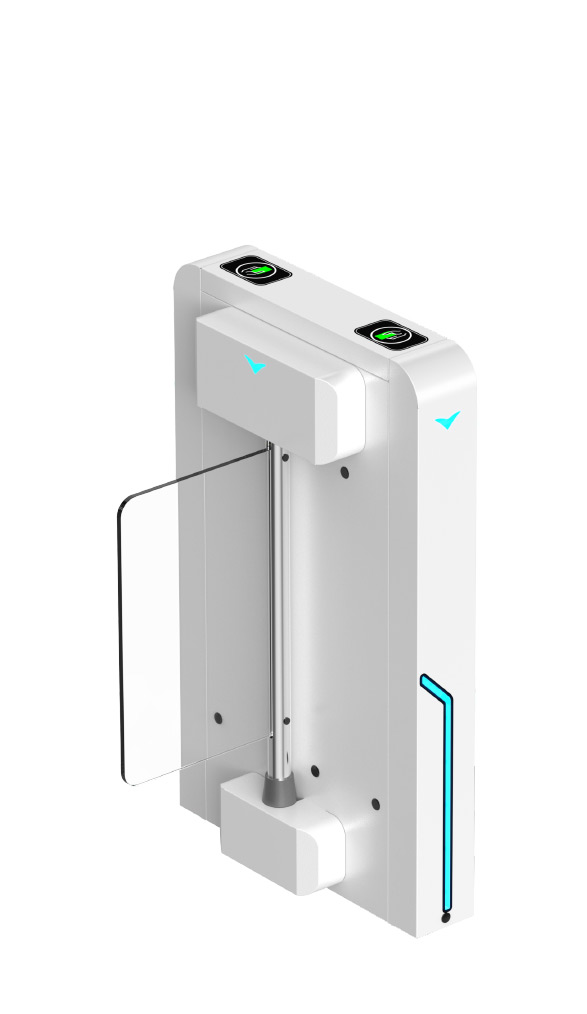

Card Solution

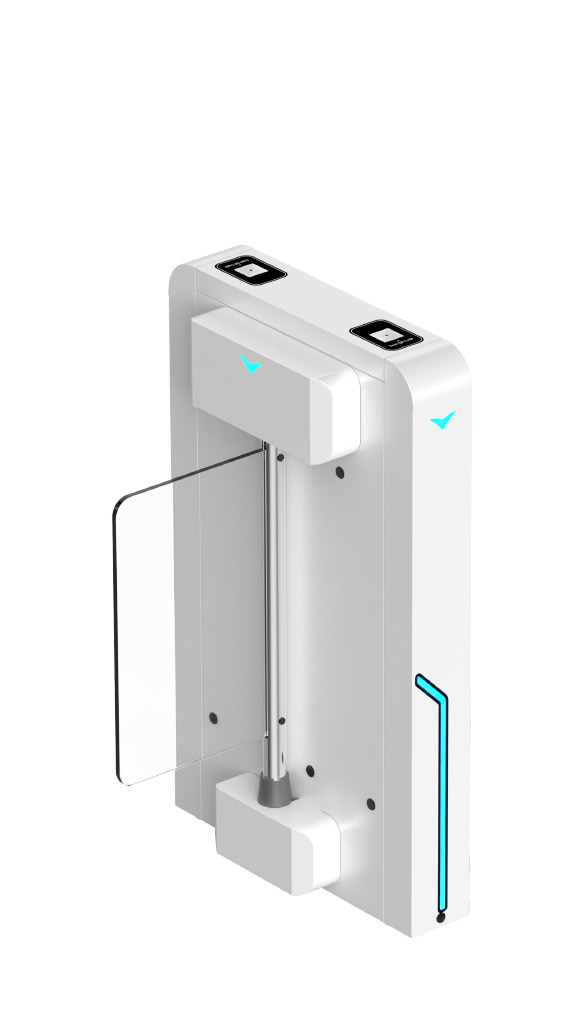

QR/Bar Code Solution

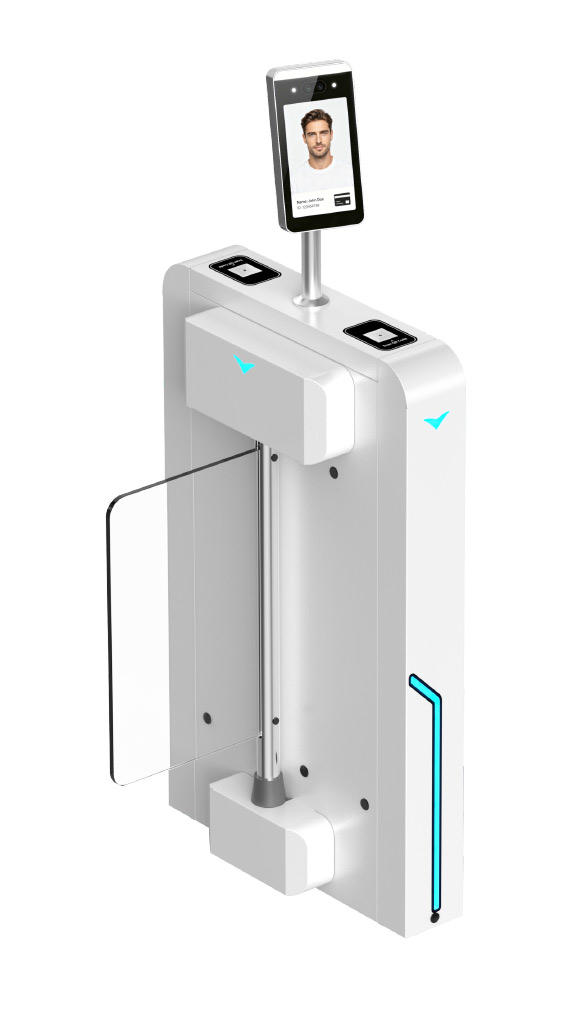

Biometric /QR Solution
Product Parameters
| Chassis Material | Cold‑rolled steel plate with baking paint |
| Power Supply Voltage | 220V ±10% / 50Hz |
| Output Voltage | DC 24V |
| Drive Motor | DC brushless motor, DC24V, 40W |
| Passage Width | 600 mm (standard)‑1200 mm |
| Passing Speed | 30‑40 persons per minute |
| Infrared Quantity | 6 pairs of infrared inputs |
| Chassis Dimensions | Dual‑core 600(L)×274(W)×980(H) mm; Single‑core 600(L)×197(W)×980(H) mm |
| Working Environment | Temperature ‑25 ~ 75 ℃ |
| Emergency Measure | Free passage upon power failure |
| Protection Rating | Indoor or outdoor with rain shelter |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
