AKD856
- DC24V operating voltage, safe even on accidental contact
- Servo motor control, independent boom speed adjustment for stable operation
- All-gear reducer for low noise, paired with precision four-bar linkage to reduce jitter and extend lifespan
- Anti-copy remote control with intelligent learning, multi-code support to avoid interference
- Built-in obstacle rebound + ground sensor, reduces accident losses
- Power-off boom lifting for quick release during outages
- Independent gate speed adjustment for diverse needs
- Obstacle rebound function minimizes accidental injury
- Counting function reduces mechanical wear from frequent movement
- Delayed boom lowering function
- Manual adjustment of gate open/close positions
- Optional relay & high-level signal input
- Adjustable lifting/lowering limit signal output
- Ground sensor angle shielding function
- Dedicated license plate recognition chip for stable performance
- 10.5-inch outdoor high-brightness LCD for intuitive ads & payment display
- Public network/LAN deployment support
- HD license plate recognition camera
- Custom video/image ad looping
- Time-period custom volume setting
- QR code access & self-service payment for plate-free vehicles
- Humanized voice & on-screen prompts

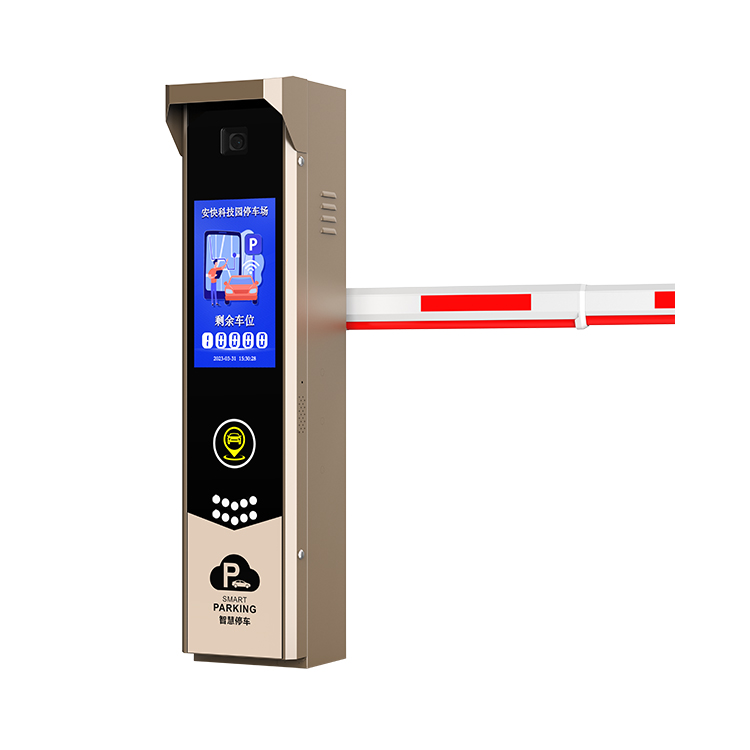

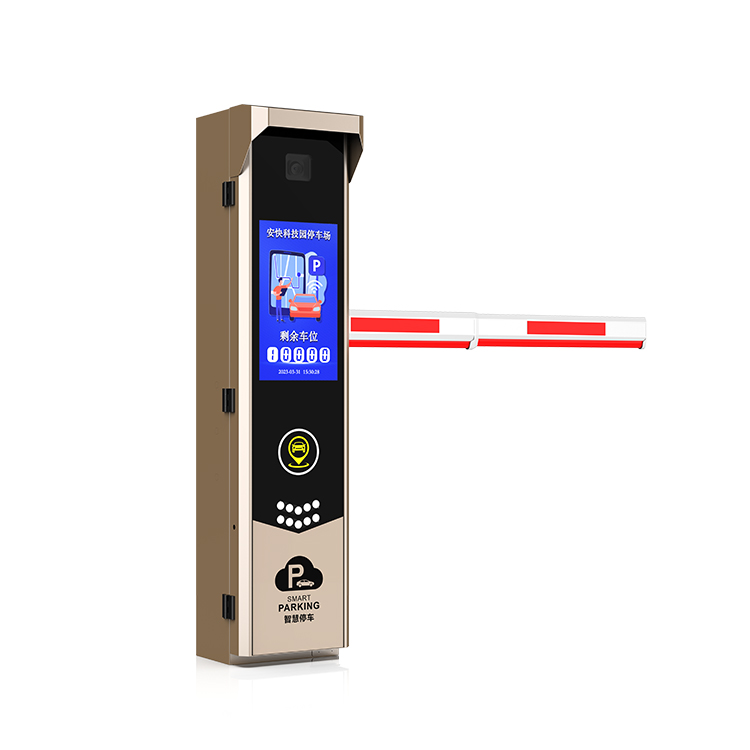

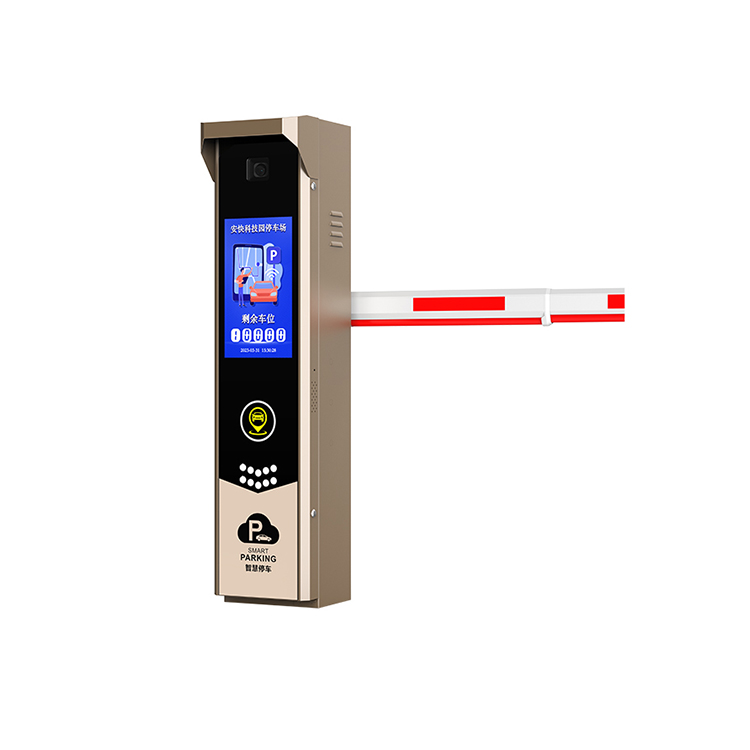

The AK-P856 license plate recognition integrated machine is a high-performance, high-reliability, and high-stability barrier gate system. With a simple and elegant design, it features a 500W high-definition recognition camera, an 18.5-inch LCD screen, an integrated reducer, a servo control board, and intelligent voice control. It boasts high recognition resolution, clear display, and high-precision reducer, supporting license plate recognition, dynamic QR code scanning for vehicles without license plates, and video and image advertising. The controller uses a servo algorithm, ensuring smooth operation. It can be paired with various barrier arm types, including straight, curved, and fence-type, providing users with more options to meet the needs of different customers. It is widely used in access control scenarios in communities, shopping malls, hotels, parking lots, and other locations.

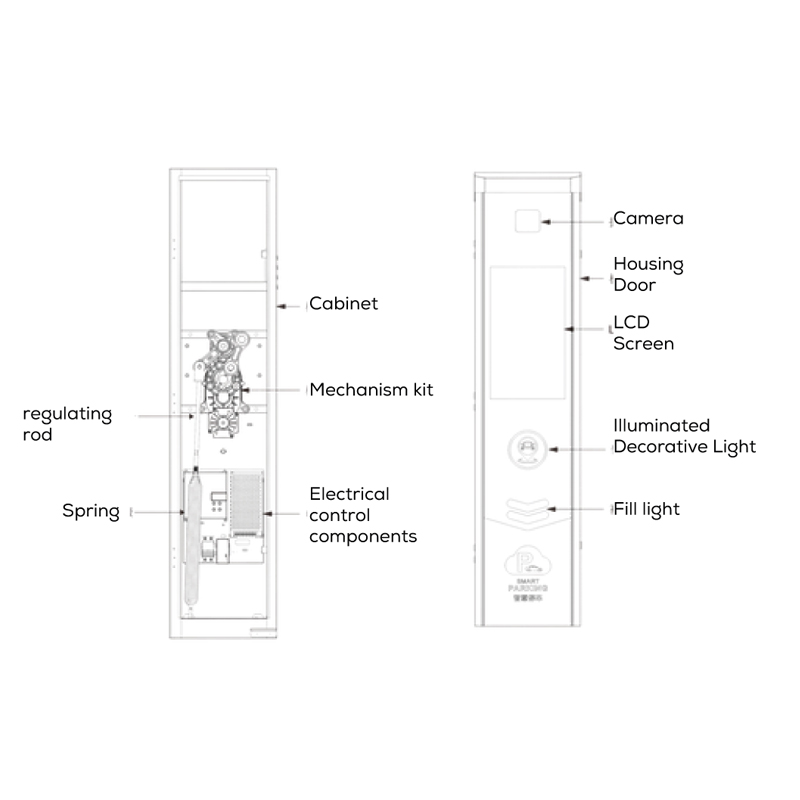

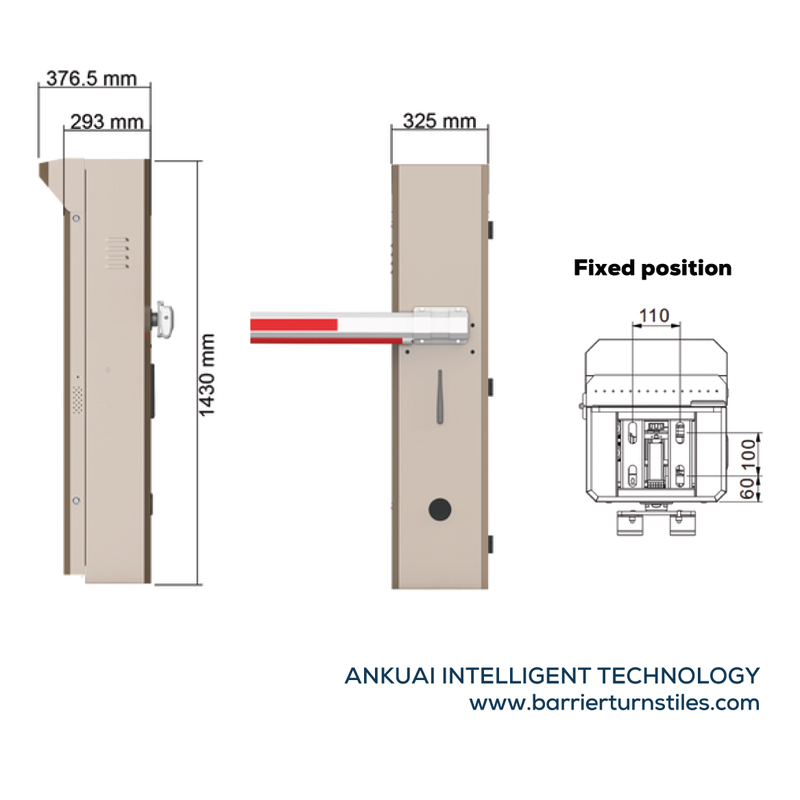

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Technical Parameter | Value |
|---|---|
| Power supply | AC110-220V±10% |
| Driver | 24V BLDC motor |
| Motor power consumption | 60W |
| Max arm length | 6M |
| Speed | 1.8-3s / 3-6s |
| Height from the ground | 890mm |

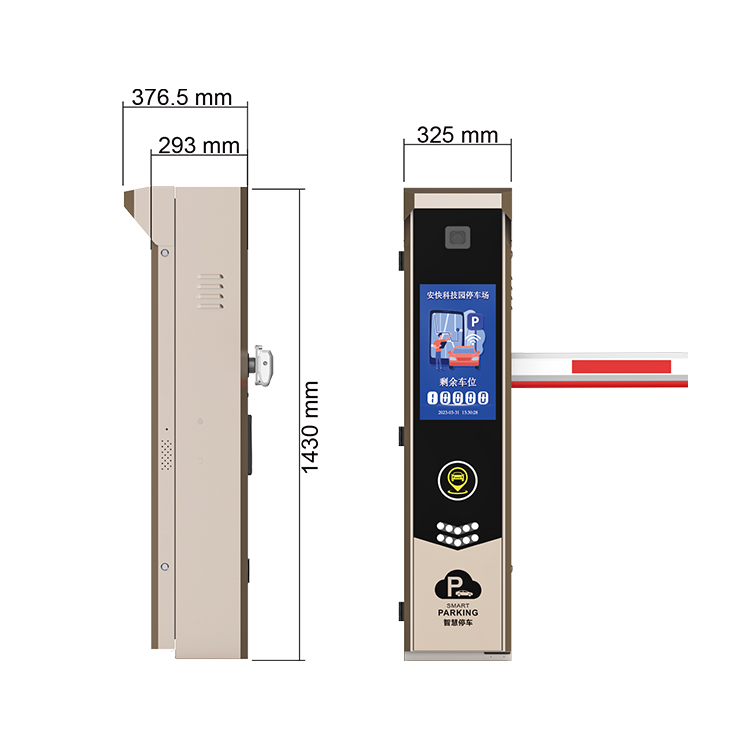

| Housing dimension | 325 x 376 x 1430mm |
| Working temperature | -30° to 80° |
| Relative humidity | ≤90% |
| Frequency | 50/60Hz |
| Remote-control distance | ≤30m |
| Protection grade | IP54 |
| MCBF | 5 million |
| Boom Type | Length | Max Open Time | Max Close Time |
|---|---|---|---|
| Straight boom / Telescopic boom | ≤3m | 1.8s | 2s |
| Straight boom / Telescopic boom | ≤4.5m | 3s | 3.5s |
| Straight boom / Telescopic boom | ≤6m | 5s | 6s |

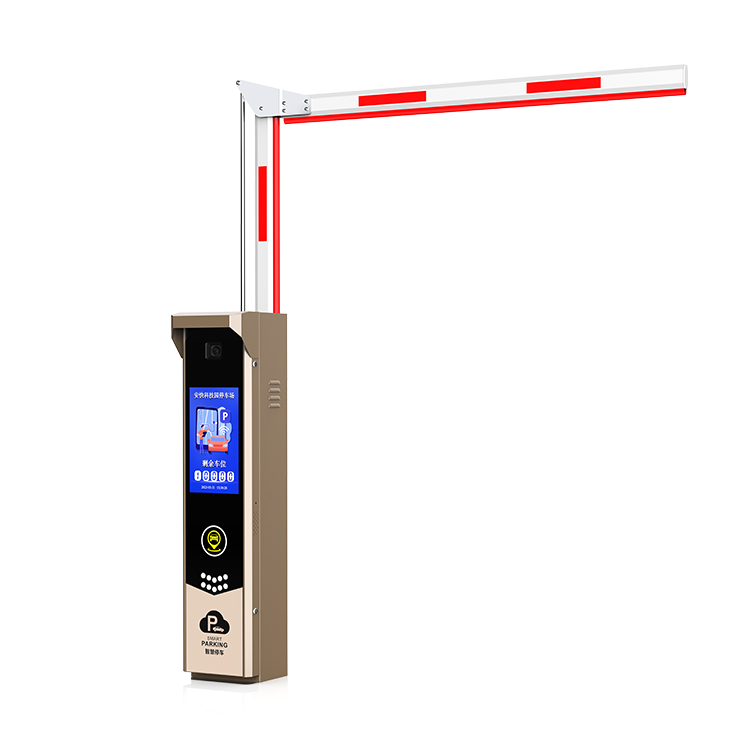

| Folding Boom | ≤4.5m | 3s | 4s |
| Folding Boom | ≤6m | 5s | 6s |

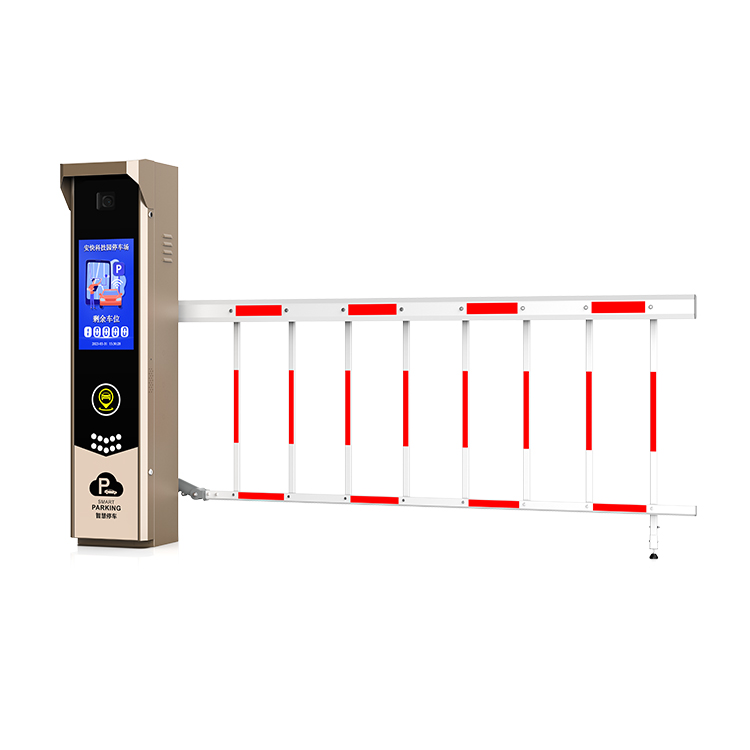

| Fence boom | ≤5m | 6s | 6.5s |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work

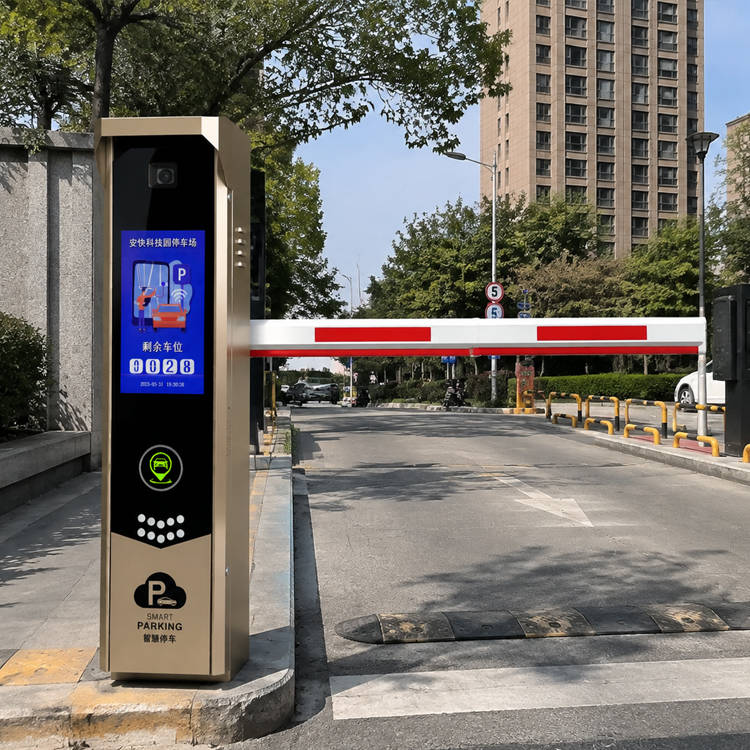

Clients Videos And Gallery

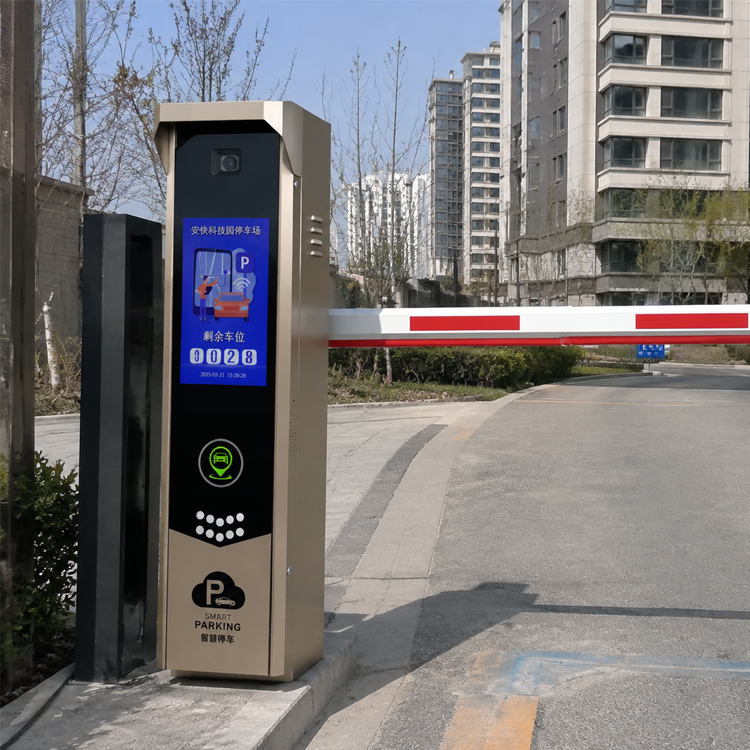

Client Gallery
