ALPR-LED 2 LINES AK-P823LED
Features
- 5MP image resolution with a new ISP version; supports scene-adaptive mode for effortless handling of backlight and frontlight conditions, and delivers superior low-light performance with sharper details.
- Custom upload and display of image and video advertisements is available.
- One-click remote intercom is supported for handling abnormal incidents (optional feature).
- Humanized voice broadcast with volume levels adjustable by time periods.
- Integrated one-piece structure for easy transportation and wiring construction.
- Only one network cable and one power cable are required; plug-and-play for simple installation and commissioning.

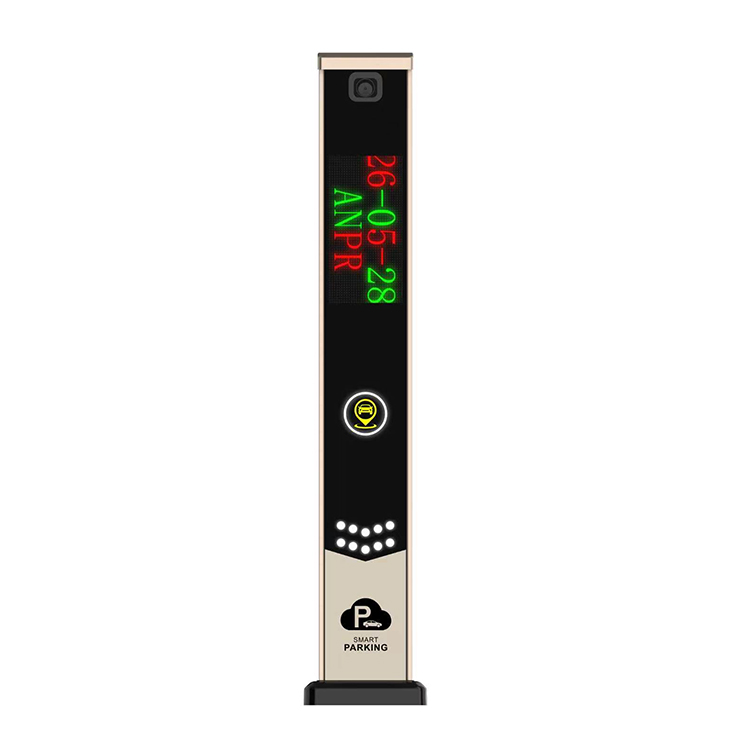

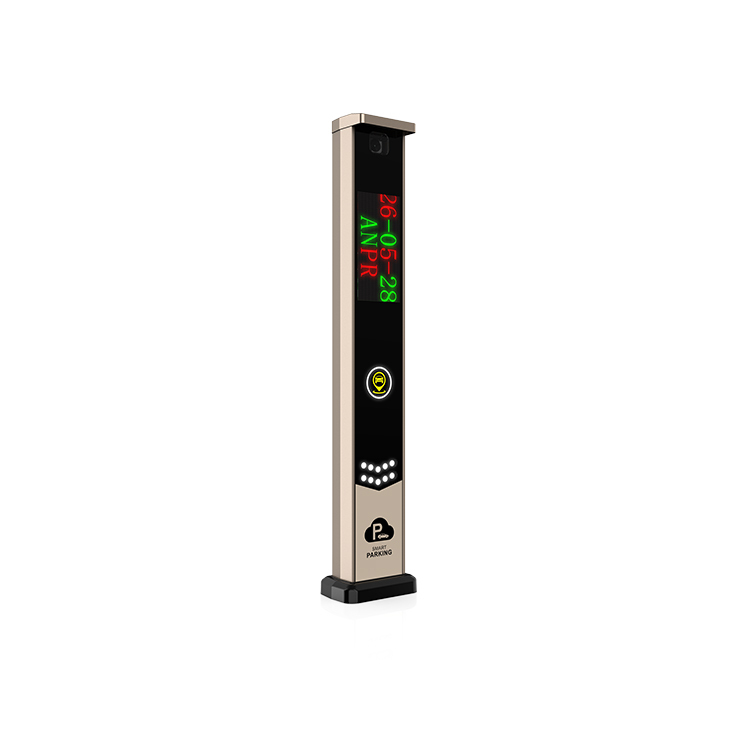

P823 (LED) – HD License Plate Recognition All-in-One Machine
- High Accuracy – License plate recognition rate ≥ 99.99%, special plates ≥ 95%
- 5MP Starlight Camera – Superior low-light performance with adaptive scene mode
- ICE V6.0 Algorithm – CNN deep learning for wider angle & all-scenario recognition
- LED 4-Row Display – Clear text output for guidance and information display
- Special Plate Support – Recognizes electric vehicles, factory, airport & agricultural plates
- Bluetooth Debugging – Mobile app debugging, no PC or cable needed
- Cloud Management – Supports local, cloud & mobile remote O&M
- Anti-Spoofing – Deep learning fake plate detection, accuracy > 99%
- Low False Rejection – Real vehicle flagged as fake rate < 0.1%
- Static QR Code – Built-in QR for access & payment support
- Wide Temperature Range – Operates from -30°C to 70°C
- All-in-One Design – Camera, LED display, voice & lighting in one compact unit

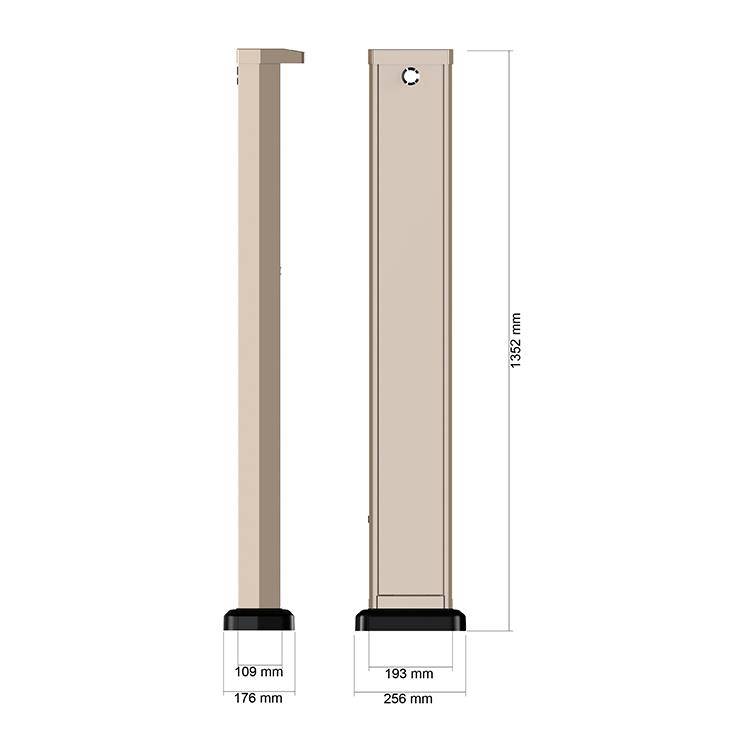

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Technical Parameter | Value |
|---|---|
| Working voltage | 220V+10% 50Hz |
| Housing dimension | 256 x 176 x 1352mm |
| Motor power consumption | ≤60W |
| Best recognition distance | 3-6m |
| Camera pixels | 500w |
| Image resolution | 1366 x 768 |
| Screen dimension | LED Screen |
| License plate recognition rate | ≥95%~99% |
| Working temperature | -25° to 70° |
| Frequency | 50/60Hz |
| Communication mode | TCP/IP |
| Protection grade | IP65 |
| Entrance and Exit voice prompt | Support |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
