AKD115

Direction is adjustable.
Auto bounce back function. Built-in sensor can detect when arm hits obstacle.
Intelligent limited sensor. Limited sensor can check open & close position automatically. No need to adjust it by hand.
Position memory function. The motor can remember limited position, so it will move back to right position even we turn motor handle to avoid motor stuck.
Lower working temperature. No thermal protection even we don't add fan to cool motor.

AnKuai AKD115 Series – Parking Barrier Gate

Automatic parking barrier gate for vehicle access control.
Operates on AC220V, 60HZ with 60W AC motor.
Boom length up to 6 meters, opens/closes in as fast as 1.8 seconds.

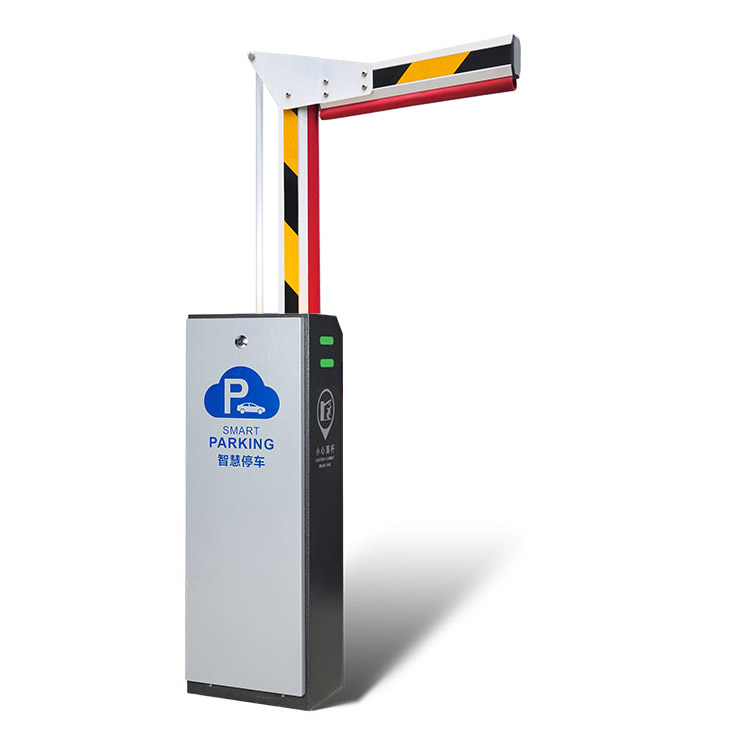

Available in 3 boom types — Straight, Folding, and Fence.
Supports both Left-hand and Right-hand installation.
Auto bounce-back function for obstacle detection.
Intelligent limited sensor for automatic open/close position detection.
Position memory function — no manual readjustment needed.
Wide working temperature range: -30°C to 80°C.
Remote control range up to 30 meters.
Housing dimension: 355×245×1035mm.
Retractable boom option available for easy transportation (6m = 4m+2m or 3m+3m).
Ideal for parking lots, offices, and gated communities.

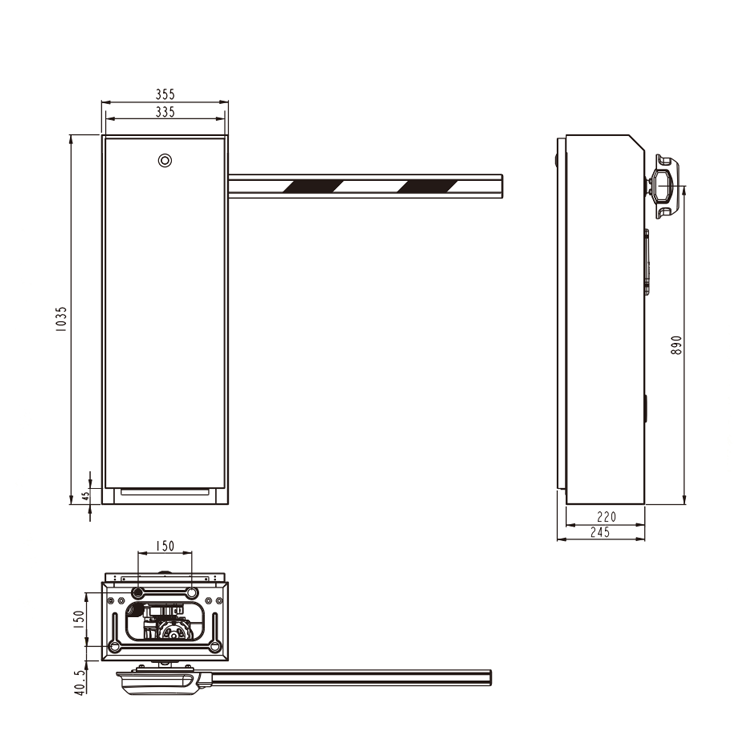

product Details And Dimensions

All the details and dimensions can be customized according to your project site

Boom Type	Length	Open Time	Close Time
Straight boom / Telescopic boom	≤4.5m	3s	3.5s
Straight boom / Telescopic boom	≤6m	5s	6s
Folding boom	≤4.5m	3s	3.5s
Folding boom	≤6m	5s	6s
Fence Boom	≤5m	6s	6.5s
