AKD156

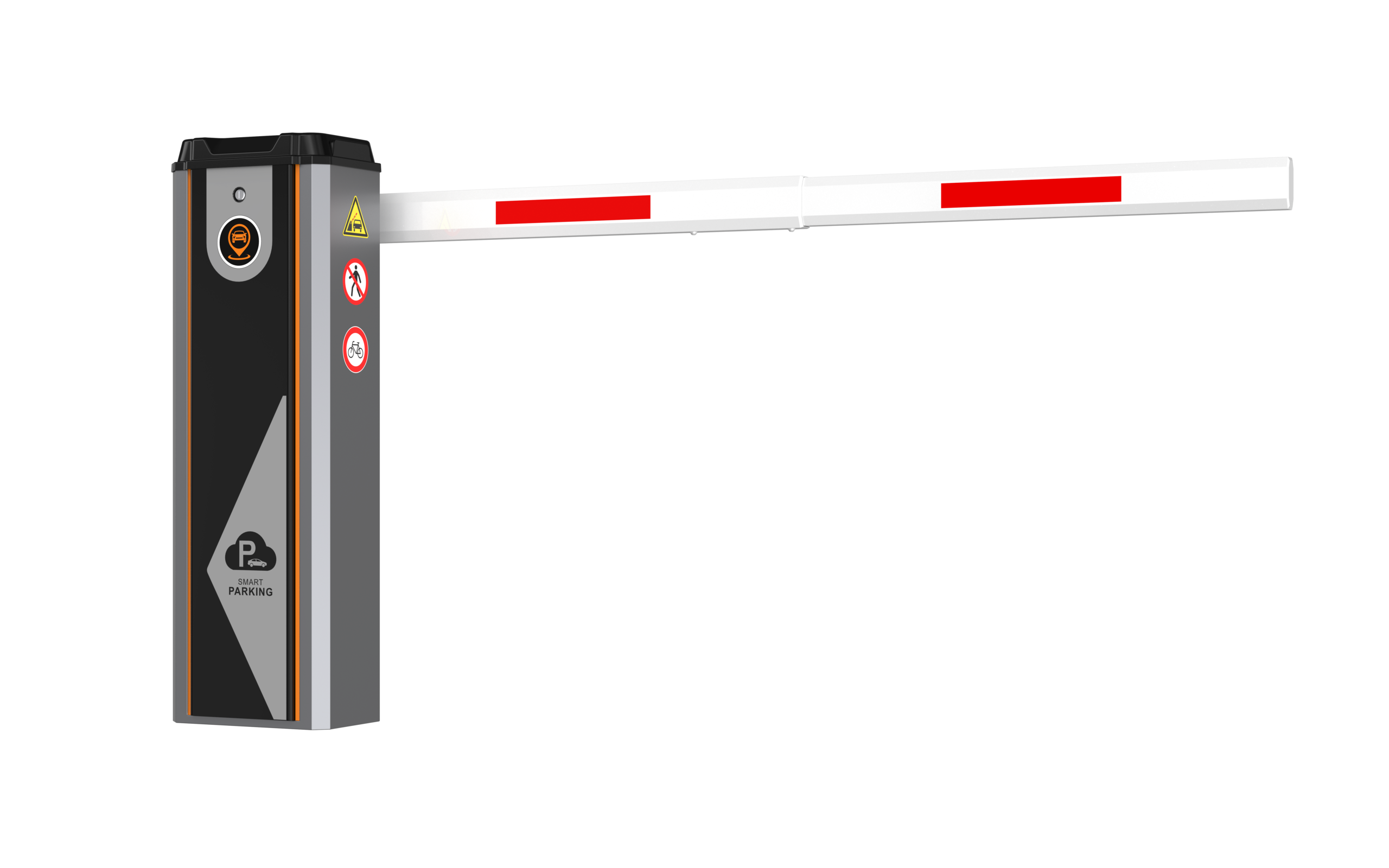

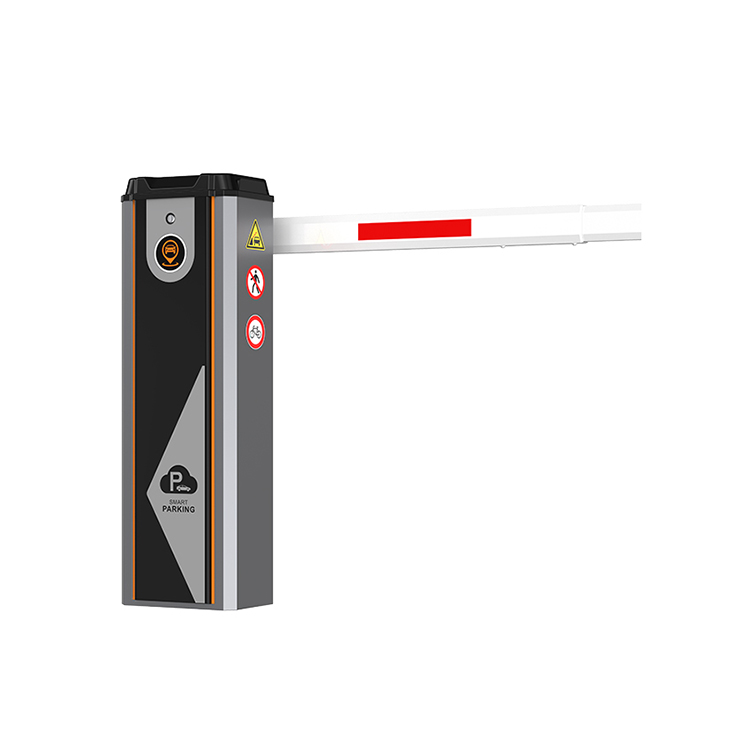

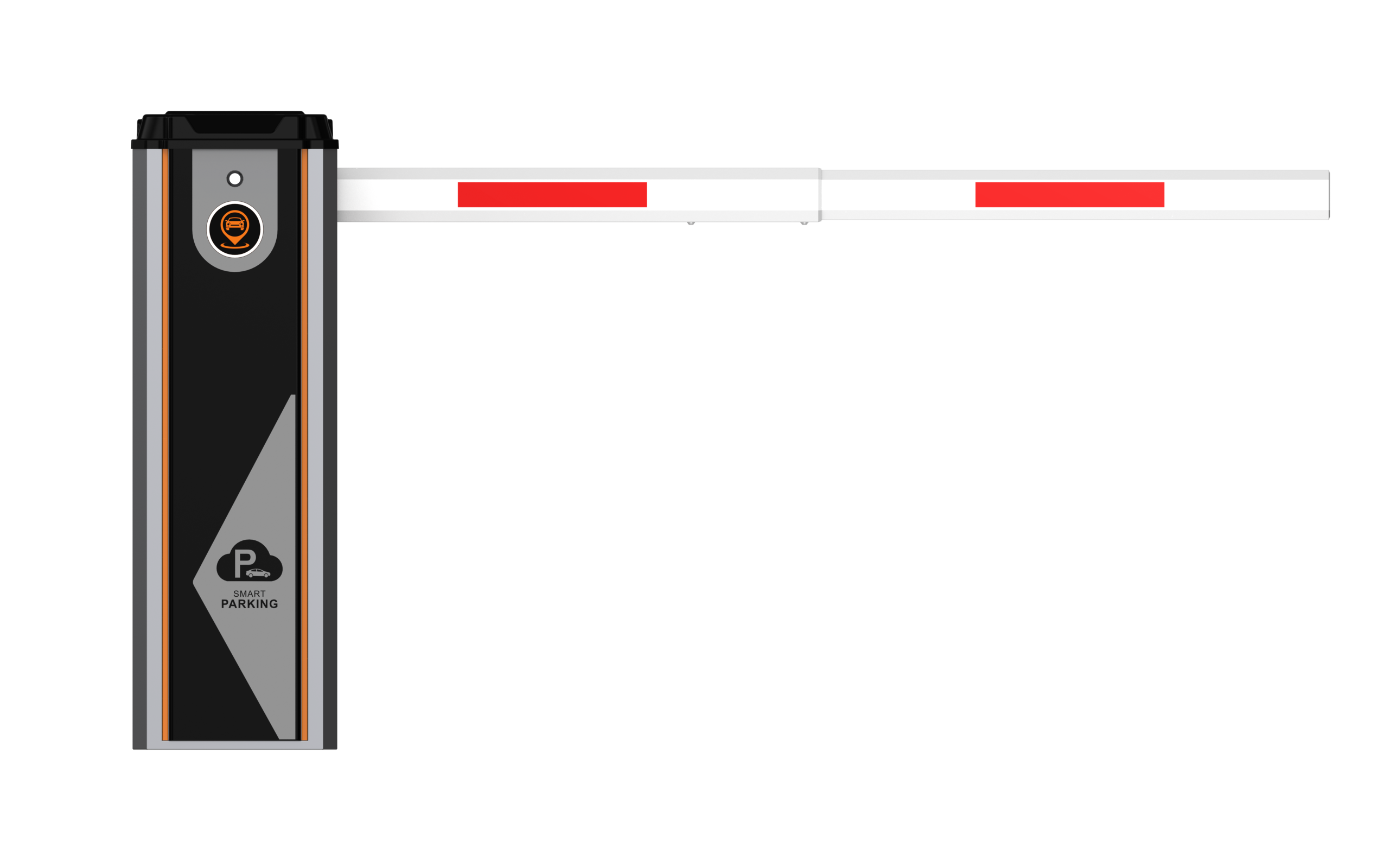

। Product Overview — AK-D156 Servo Barrier
- High Performance & Reliability — The D156 Servo Barrier is a high-performance, highly reliable, and stable barrier system designed for demanding access control environments.
- Sleek & Elegant Appearance — The unit features a modern, attractive design suitable for premium installations such as hotels, malls, and residential communities.
- Integrated Reducer — The built-in integrated reducer delivers higher mechanical precision, resulting in more accurate and consistent arm movement.
- Integrated Servo Controller — The servo controller is designed into the unit itself, simplifying the internal structure and ensuring smoother, more stable device operation.
- Multiple Barrier Arm Compatibility — Compatible with various arm types including:
- Straight arm
- Curved arm
- Fence arm
- And other custom arm types
- Flexible for Diverse Needs — The wide arm compatibility gives users more options, allowing the system to meet varied customer and site-specific requirements.
- Wide Application Scope — Suitable for access control at entrances and exits of:
- Residential communities
- Shopping malls
- Hotels
- Parking lots
- And other similar locations
- Product Features
- Operating voltage: DC24V. Even if accidentally touched, it will not harm the human body, making it safer.
- Adopts servo motor control technology. The lifting/lowering speed of the barrier arm is independently adjustable, ensuring smooth and reliable operation of the arm.
- Equipped with a full-gear reducer, which produces low noise for better environmental friendliness. Combined with a precision four-bar linkage mechanism, it enables fast and stable operation of the barrier arm, effectively reducing arm vibration and extending the service life of the barrier.
- Supports standard remote control and intelligent learning function, compatible with 250 sets of remote control codes. Uses anti-copy antennas and remote controls to effectively avoid signal interference, improve parking lot management efficiency, and ensure safe passage.
- Built-in obstacle rebound function. When used with a ground loop detector, it effectively reduces losses caused by accidents.
- The opening/closing speed of the barrier is independently adjustable to meet diverse customer needs.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameters
| Parameter | Value |
|---|---|
| Operating Voltage | DC24V |
| Motor Power | 100W |
| Operating Temperature | -30°C~80°C |
| Relative Humidity | ≤90% |
| Barrier Arm Length | ≤6m |
| Rising Time | 1.8~3S / 3~6S |
| Barrier Arm Center Height from Ground | 880mm |
| Remote Control Distance | ≤30m |
| Protection Grade | IP54 |
| Input Interface | Switch Signal |
| Remote Control Frequency | 430.5MHz |
Specification Parameters
| Barrier Boom Type | Maximum Length (m) | Fastest Rising Speed (s) | Fastest Lowering Speed (s) | Barrier Arm Center Height from Ground |
|---|---|---|---|---|
| Telescopic Boom | ≤3 | 1.8 | 2 | 880 |
| Telescopic Boom | ≤4.5 | 3 | 3.5 | 880 |
| Telescopic Boom | ≤6 | 5 | 6 | 880 |
| D152 Fence Boom | ≤3 | 3 | 4 | 880 |
| D152 Fence Boom | ≤5 | 6 | 6.5 | 880 |
Spring Configuration Table
| Barrier Boom Type | Length | Spring Quantity & Type |
|---|---|---|
| Telescopic Boom | L ≤ 4.5M | 2*φ4.0 |
| Telescopic Boom | 4.5M < L ≤ 6M | 2*φ5.5 |
| Folding Boom | L ≤ 4.5M | 2*φ4.0 |
| Folding Boom | 4.5M < L ≤ 6M | 2*φ5.5 |
| D152 Fence Boom | 3M ≤ L < 4M | 2*φ5.5 |
| D152 Fence Boom | 4M ≤ L ≤ 5M | 2*φ6.0 |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
