Short Description

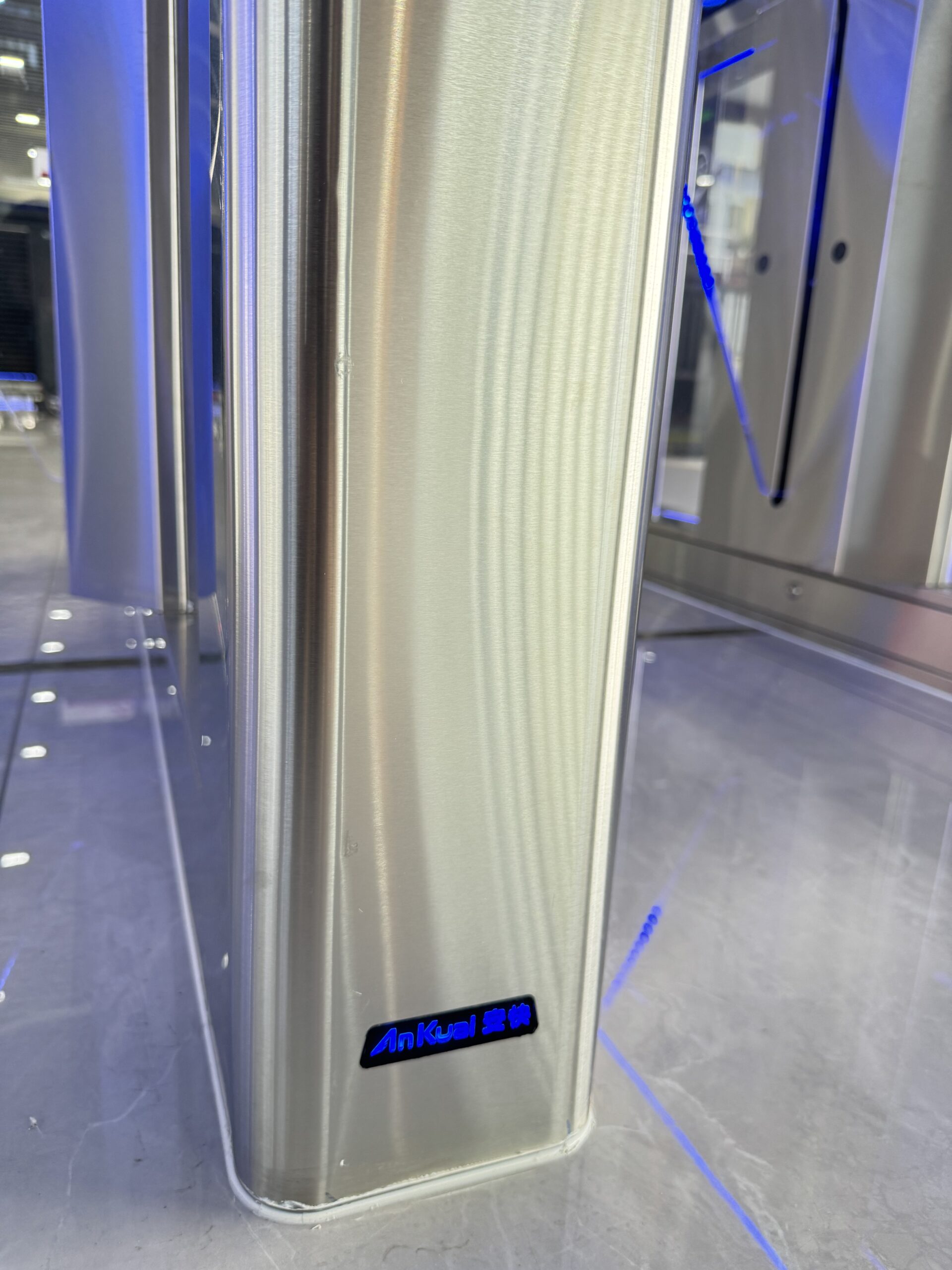

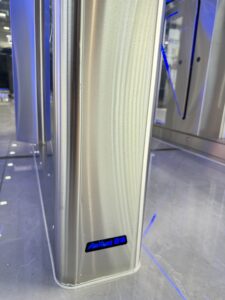

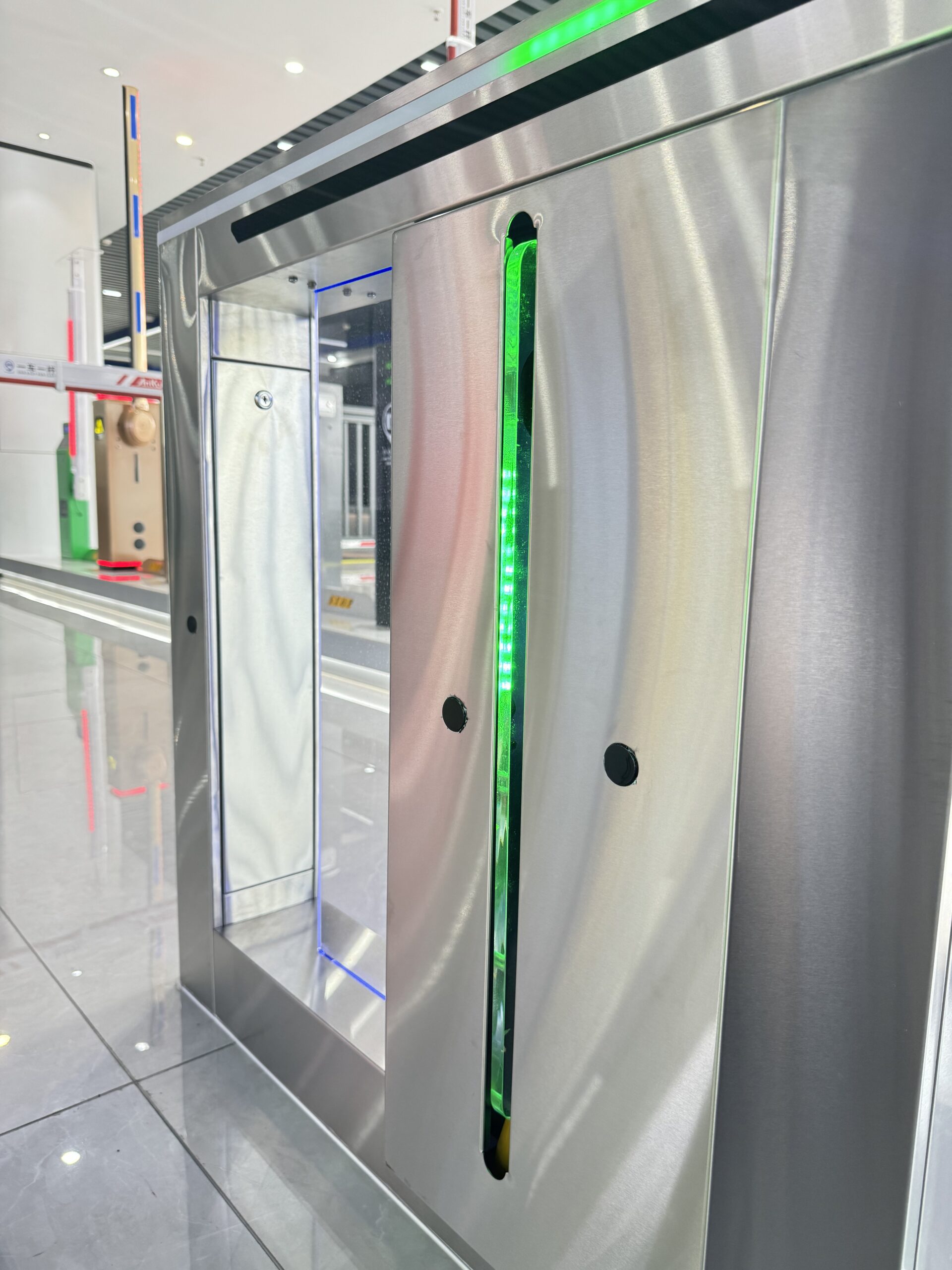

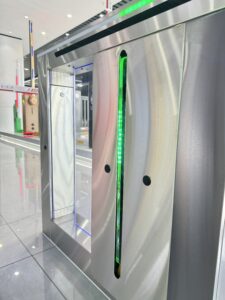

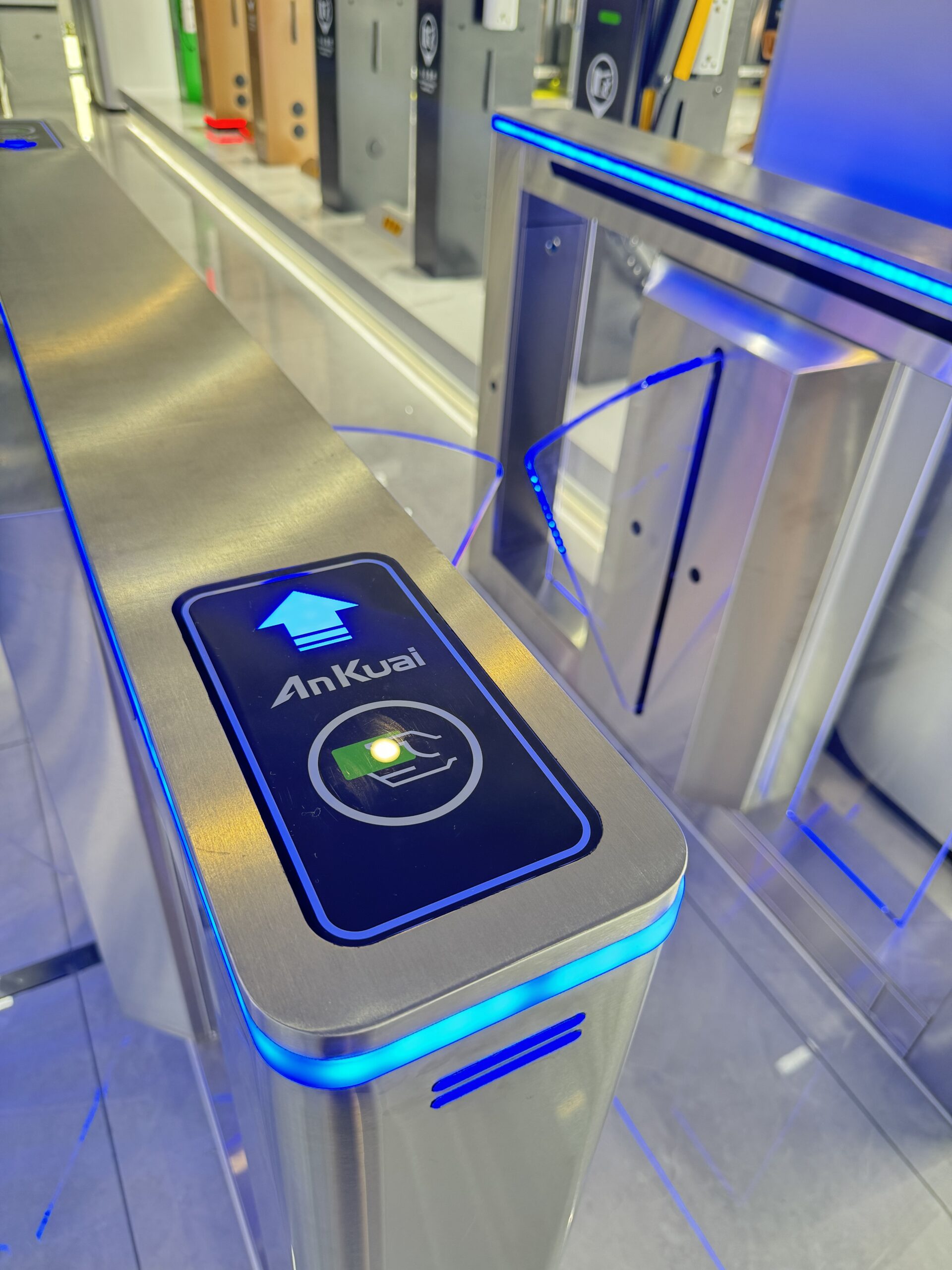

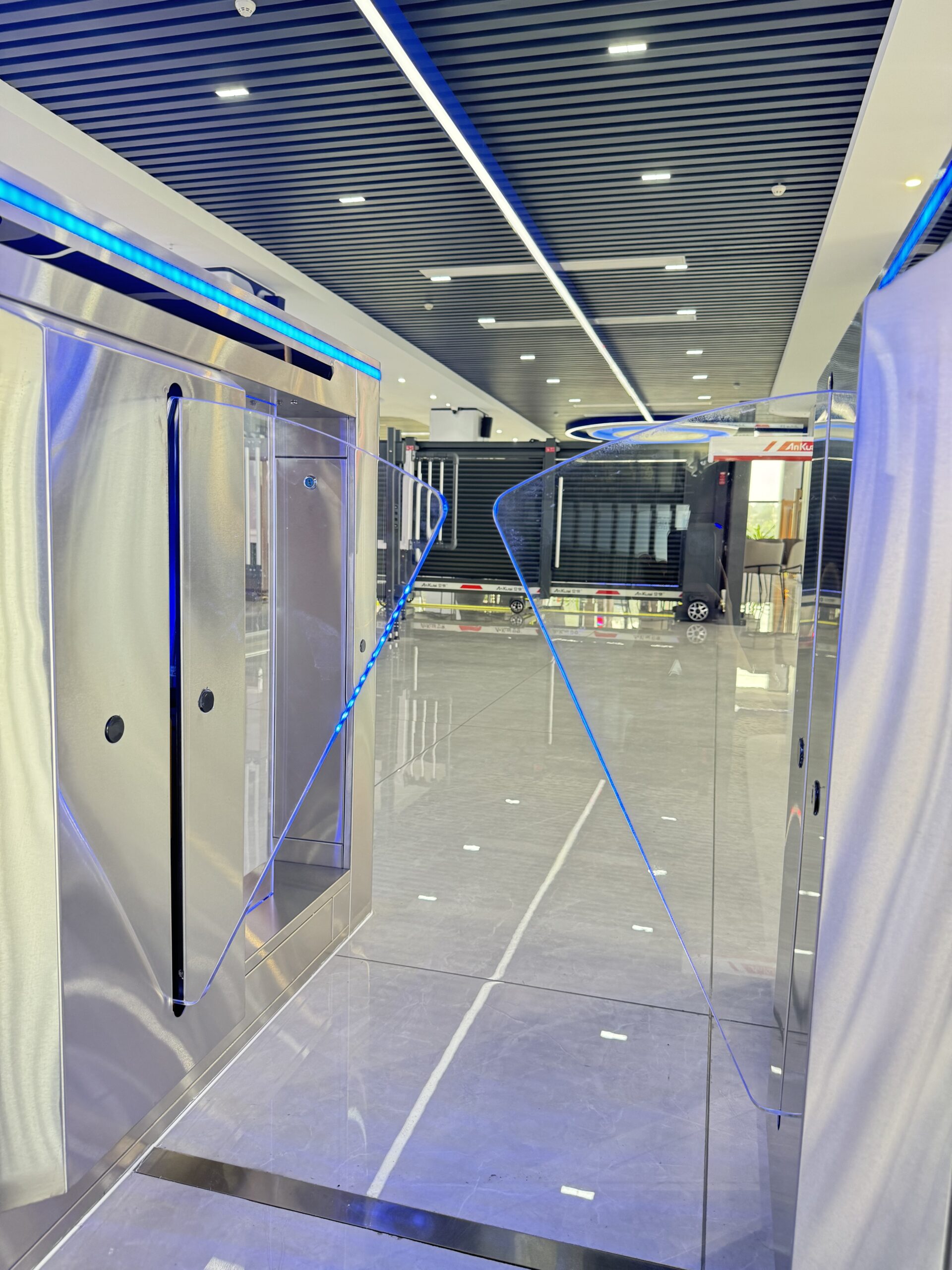

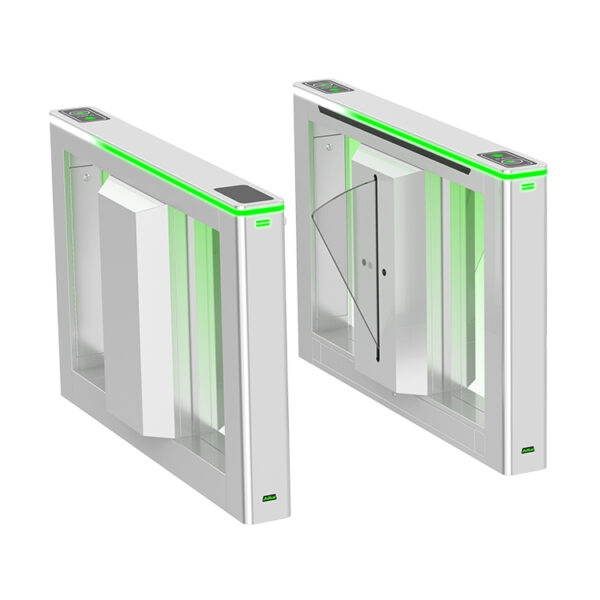

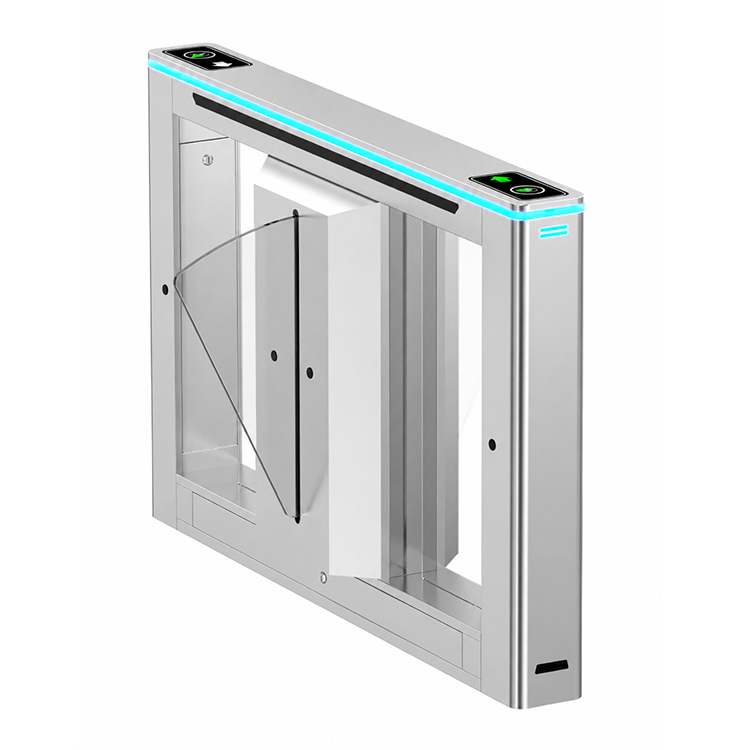

The AKT317 Intelligent Flap Barrier is a modern access control solution engineered for high-security pedestrian management. Featuring a durable 304 stainless steel body, transparent flap barriers, and advanced infrared sensing technology, it provides fast, reliable, and secure passage control. The system supports bi-directional operation, automatic locking, auto-reset functionality, LED direction indicators, and integration with various access control systems through RS485 and TTL232 communication interfaces. Its elegant design, rapid response time, and intelligent safety features make it suitable for office buildings, transportation hubs, government facilities, educational institutions, and other high-traffic environments.

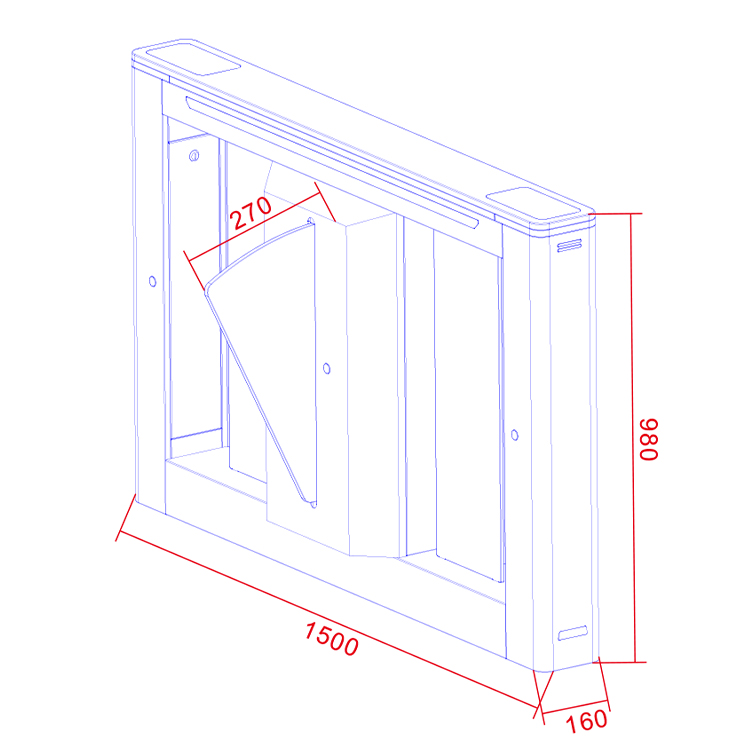

product Details And Dimensions
All the details and dimensions can be customized according to your project site

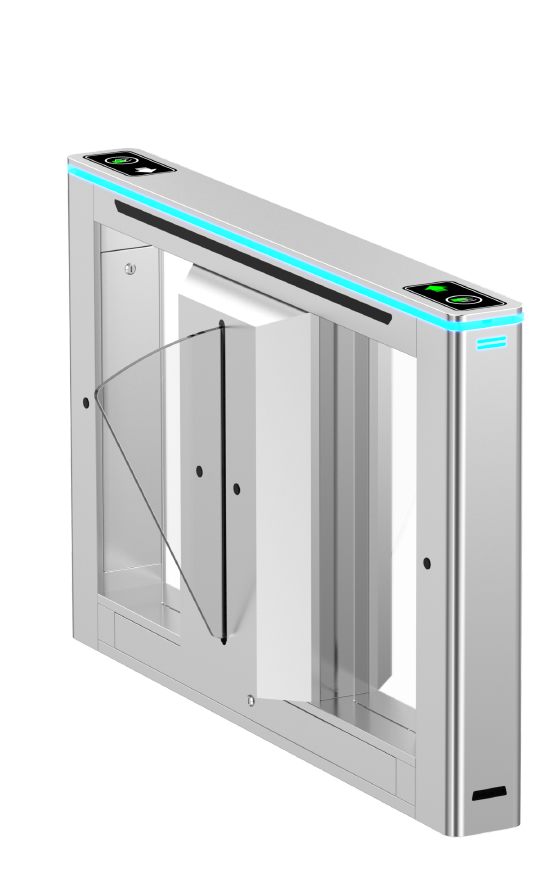

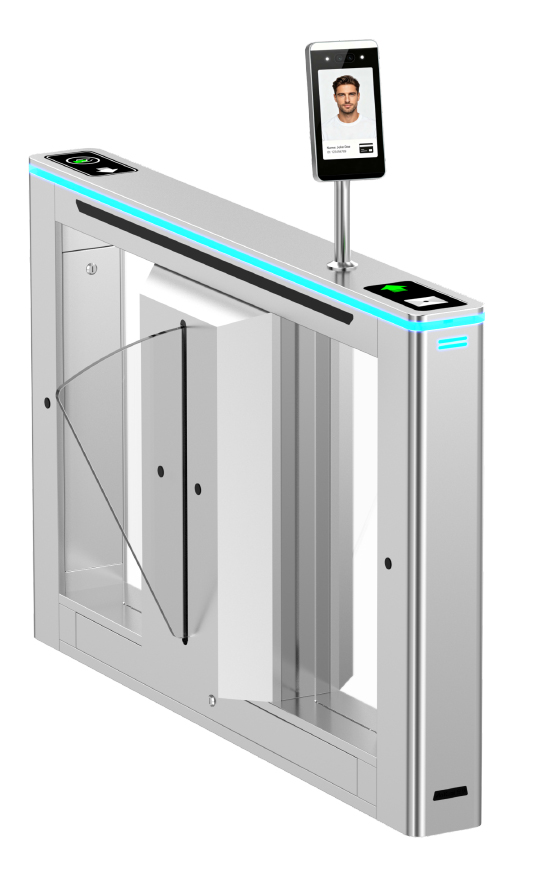

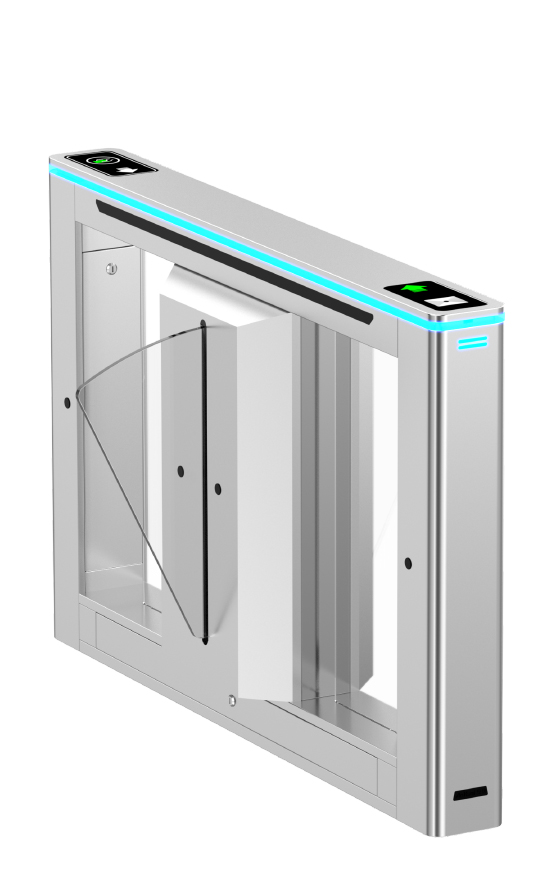

Integrate Any Access Controllers
Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.
刷IC卡
Product Parameters
Technical Parameters
| Parameter | Description |
|---|---|
| Dimension | 1500 × 300 × 980 mm (L × W × H) |
| Power Consumption | 24V BLDC 40W |
| Passage Width | ≤ 600 mm |
| Arm Length | ≤ 500 mm |
| Arm Open / Close Time | 0.8 seconds |
| Power Supply | 110V / 220V ±10%, 50/60Hz |
| Working Temperature | -25°C to 75°C |
| Passing Speed | 30–45 Persons/min |
| Arm Turning | Bi-directional |
| Infrared Sensors | 8 Pairs |
| Working Environment | Indoor or outdoor locations with shed |
| Input Interface | Relay Signal |
| Communication Interface | RS485, TTL232 |
| Material | 304 Stainless Steel |
| Arm Color | Transparent |
| Surface Finish | Brushed |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
