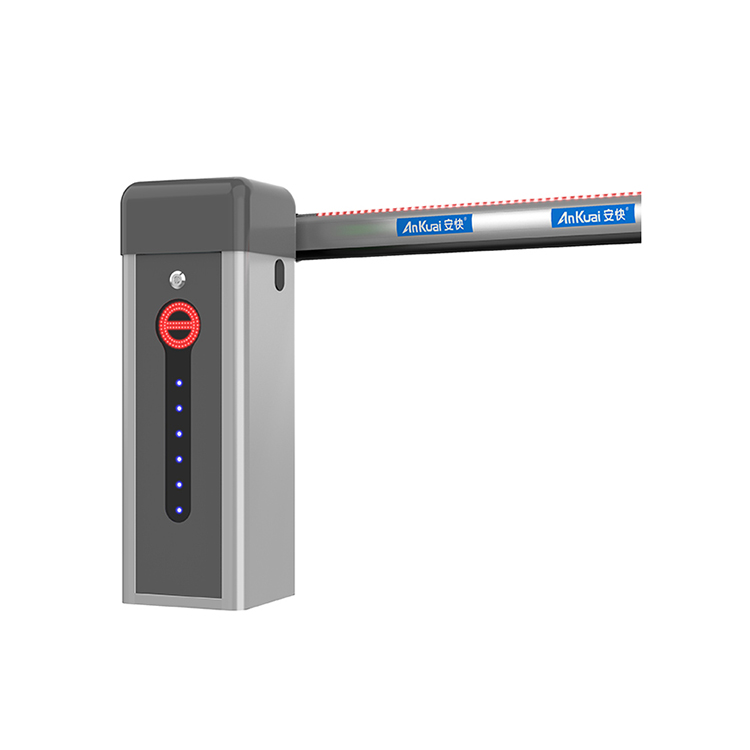

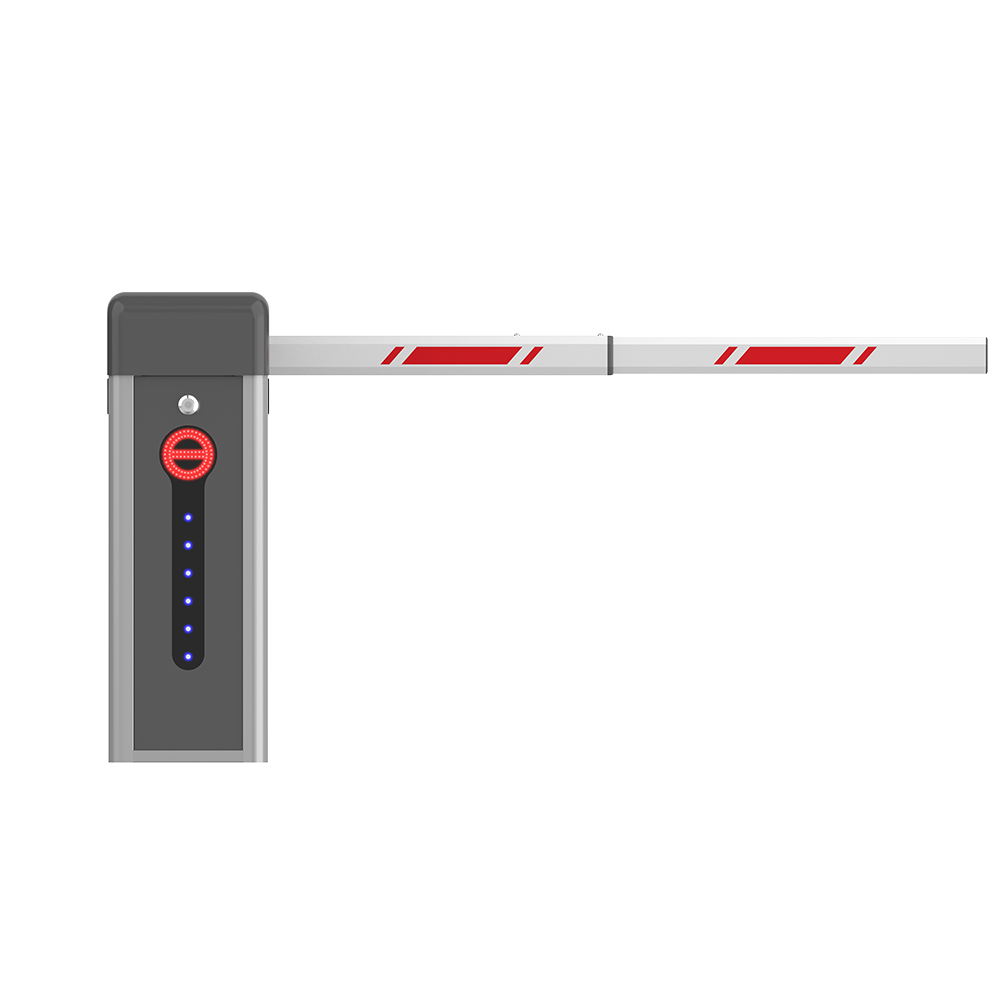

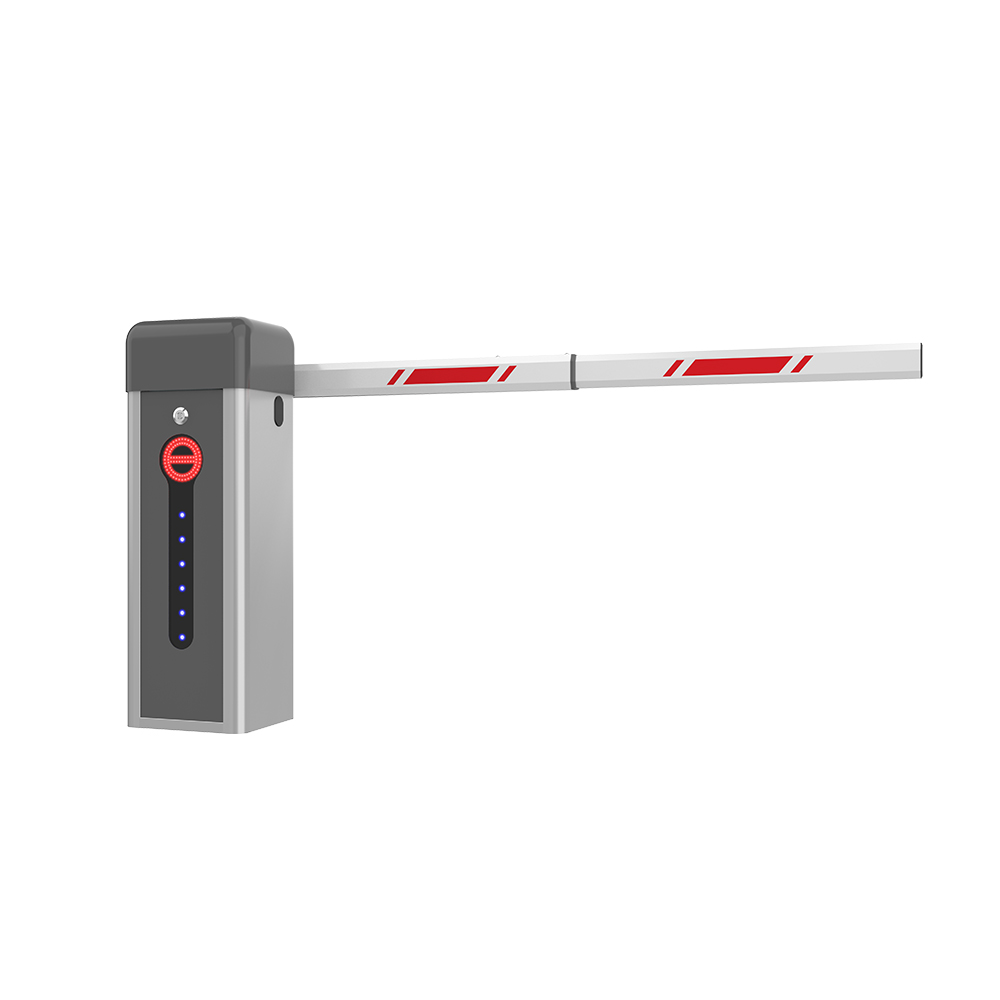

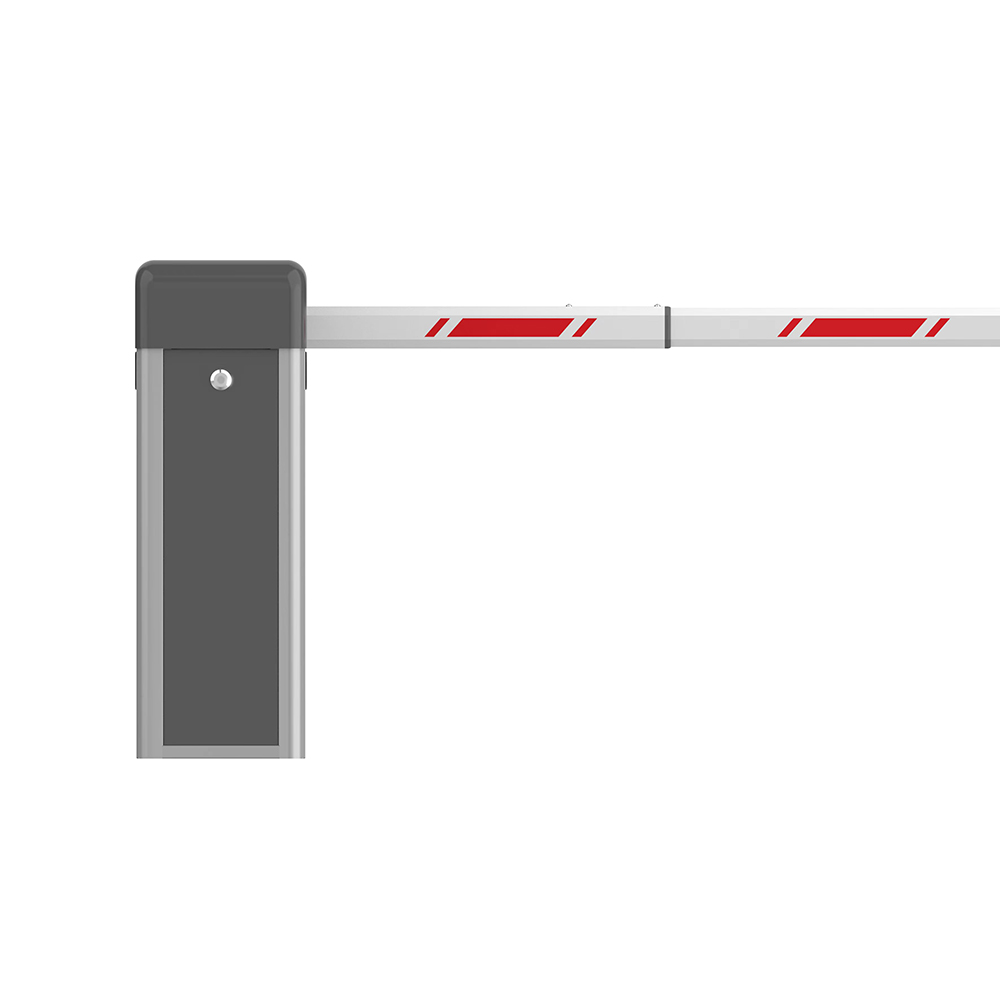

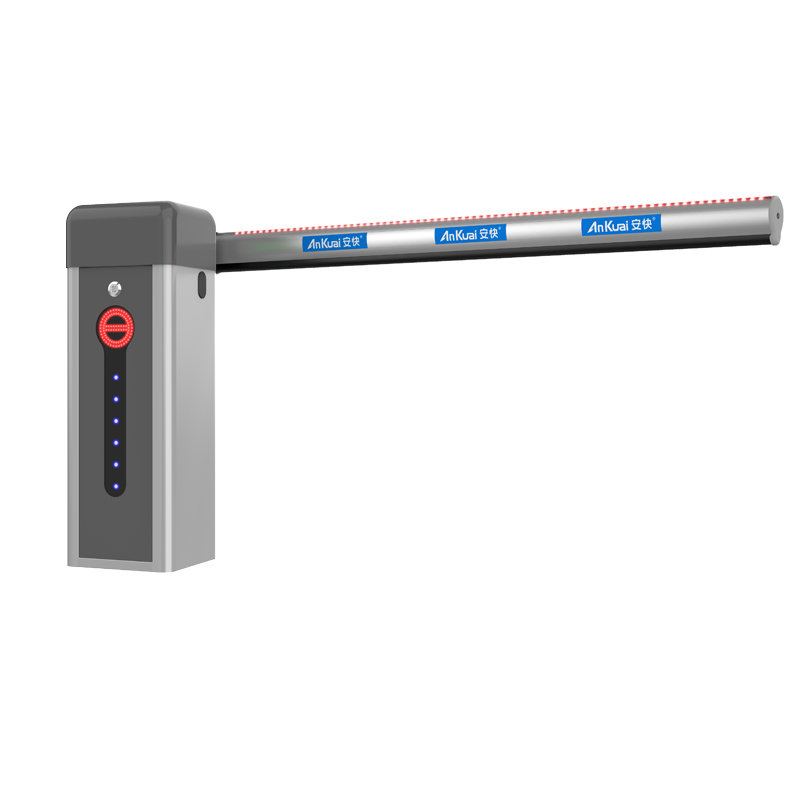

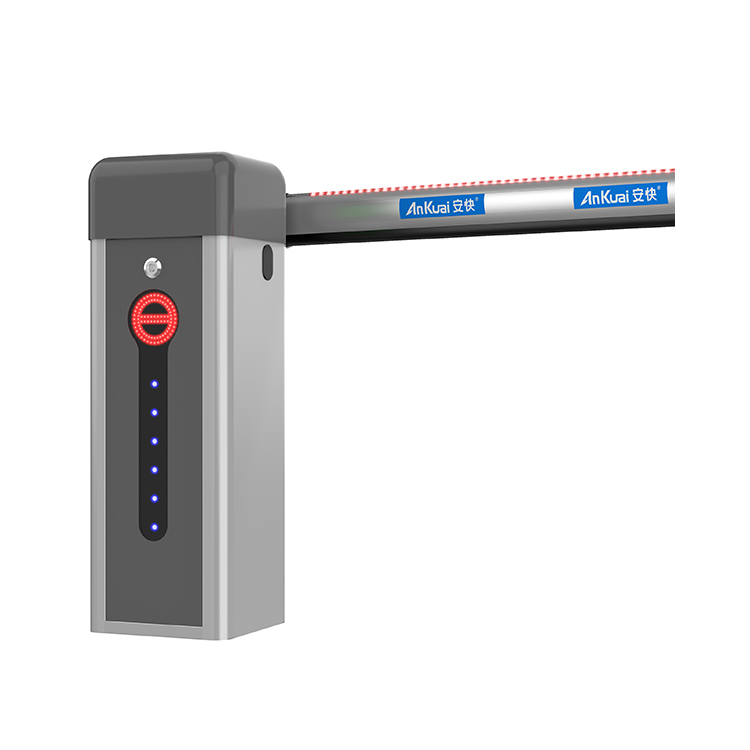

AKD102C
Main Functions (Features)
-
Direction is adjustable.
-
Auto bounce back function: Built-in sensor can detect when arm hits obstacle.
-
Intelligent limit sensor: Limit sensor can check open & close position automatically. No need to adjust it by hand.
-
Position memory function: The motor can remember limit position, so it will move back to right position even when you turn motor handle to avoid motor stuck.
-
Lower working temperature: No thermal protection even when no fan is added to cool motor.
-
Longer working life: It can open and close 5 million times.
Short Description

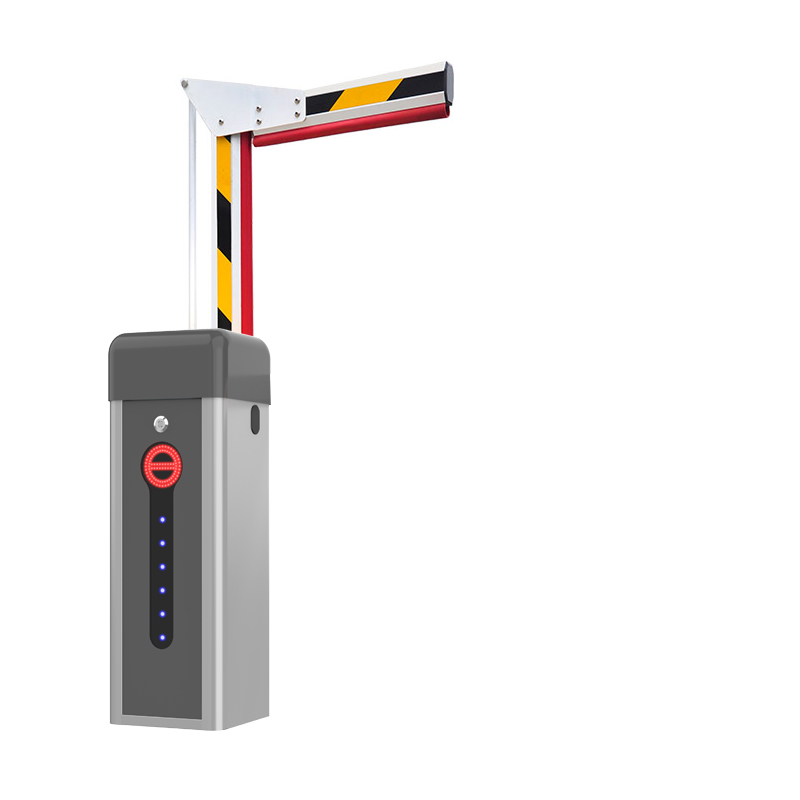

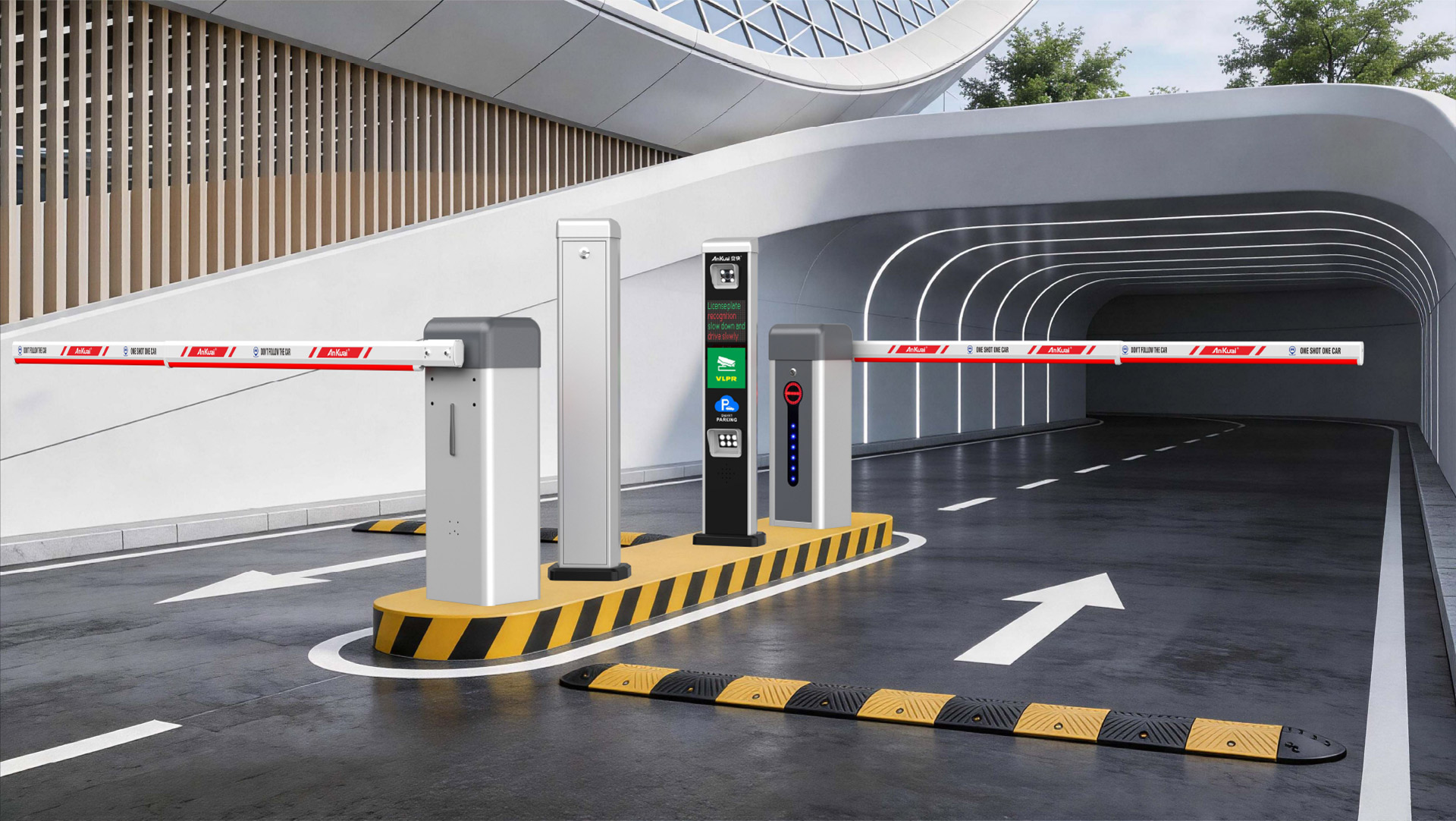

AKD102C Series DC Brushless Barrier Gate is a high-performance vehicle access control solution featuring a powerful DC brushless motor for smooth, quiet, and durable operation. It supports straight boom, folding boom, and fence boom options with boom lengths up to 6 meters. With auto bounce back on obstacle detection, intelligent limit sensor, position memory function, low-temperature operation, and remote control support, the AKD102C is ideal for parking lots, toll plazas, residential communities, factories, and other entry/exit management applications requiring reliable and long-lasting barrier gate performance.

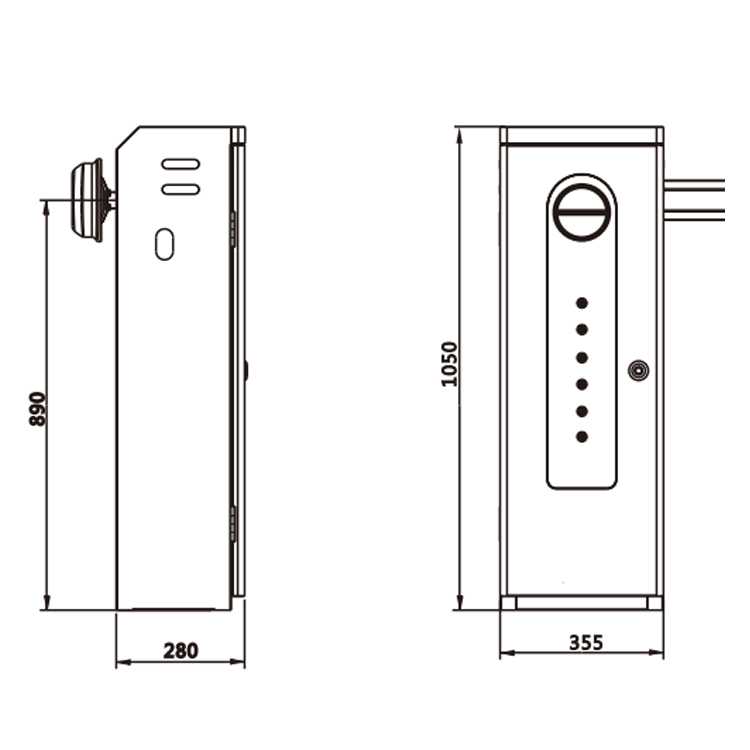

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameters
| Parameter | Specification |
|---|---|
| Maximum Straight Boom Length | 3.5m / 4.5m / 6m |
| Opening and Closing Times | 1.8~3s / 3~6s |
| Voltage | DC24V |
| Motor Power Consumption | 100W |
| Working Temperature | -30°C to 80°C |
| Housing Dimension | 344 × 283 × 1019 mm |
| Drive | DC Brushless Motor |
| Maximum Remote Control Distance | ≤30m |
Boom Types
| Boom Type | Opening and Closing Times | Maximum Boom Length |
|---|---|---|
| Straight Boom | 1.8s | 3.5m |
| Straight Boom | 3s | 4.5m |
| Straight Boom | 5s | 6m |
| Folding Boom | 3s | 4.5m |
| Folding Boom | 6s | 6m |

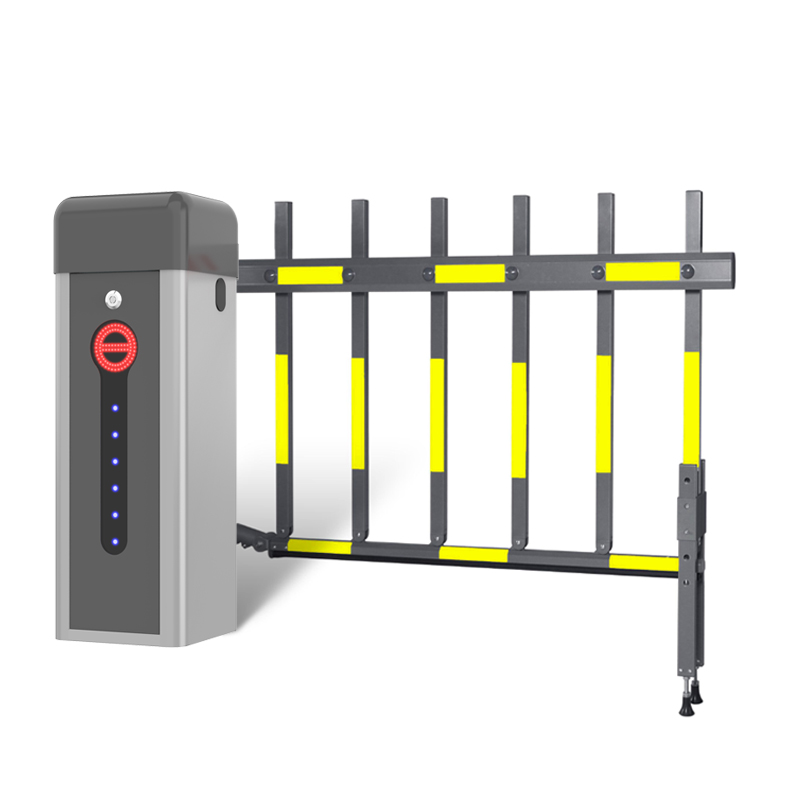

| Fence Boom | 6s | 4.5m |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Videos And Gallery

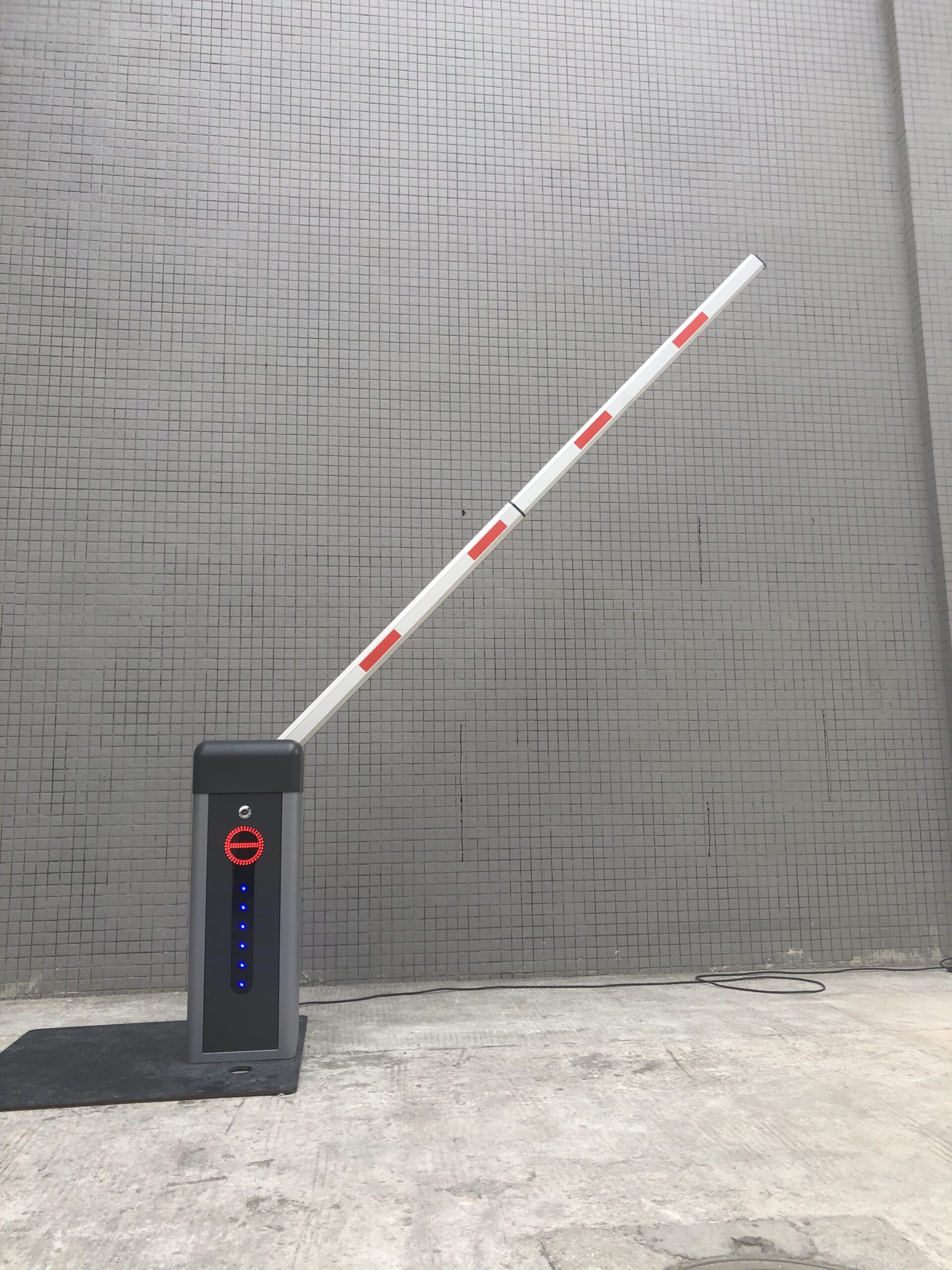

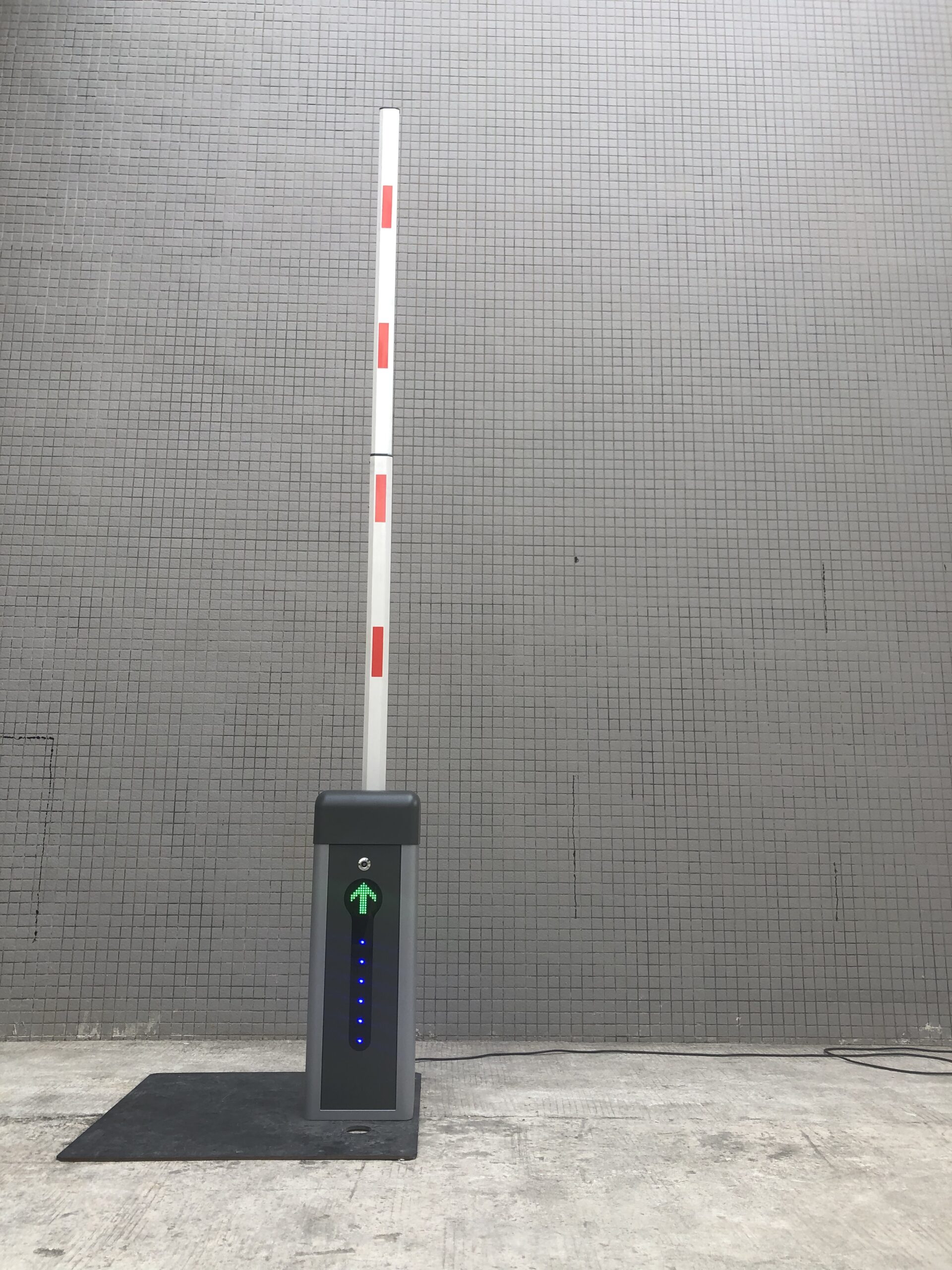

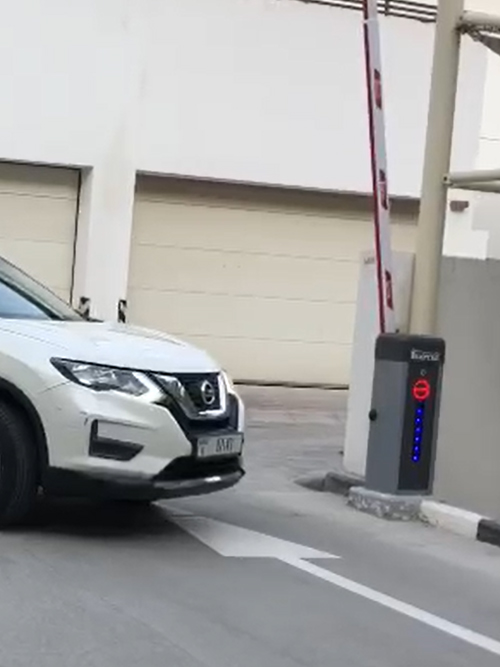

Client Gallery
