AKD116
Features:
- 140W turbine worm transmission deceleration induction motor — saves energy, motor with fan prevents overheating, can work 24 hours continuously.
- Drive is steady, noise is lower, structure is compact and self-locking.
- Uses 2 springs — not easy to fracture.
- Integrative machine core — all parts made by mold for more accuracy, making the barrier gate much more stable.
- Accurate link mechanism — releases arm shake and motor load, ensuring smoother and longer working life of the barrier gate.

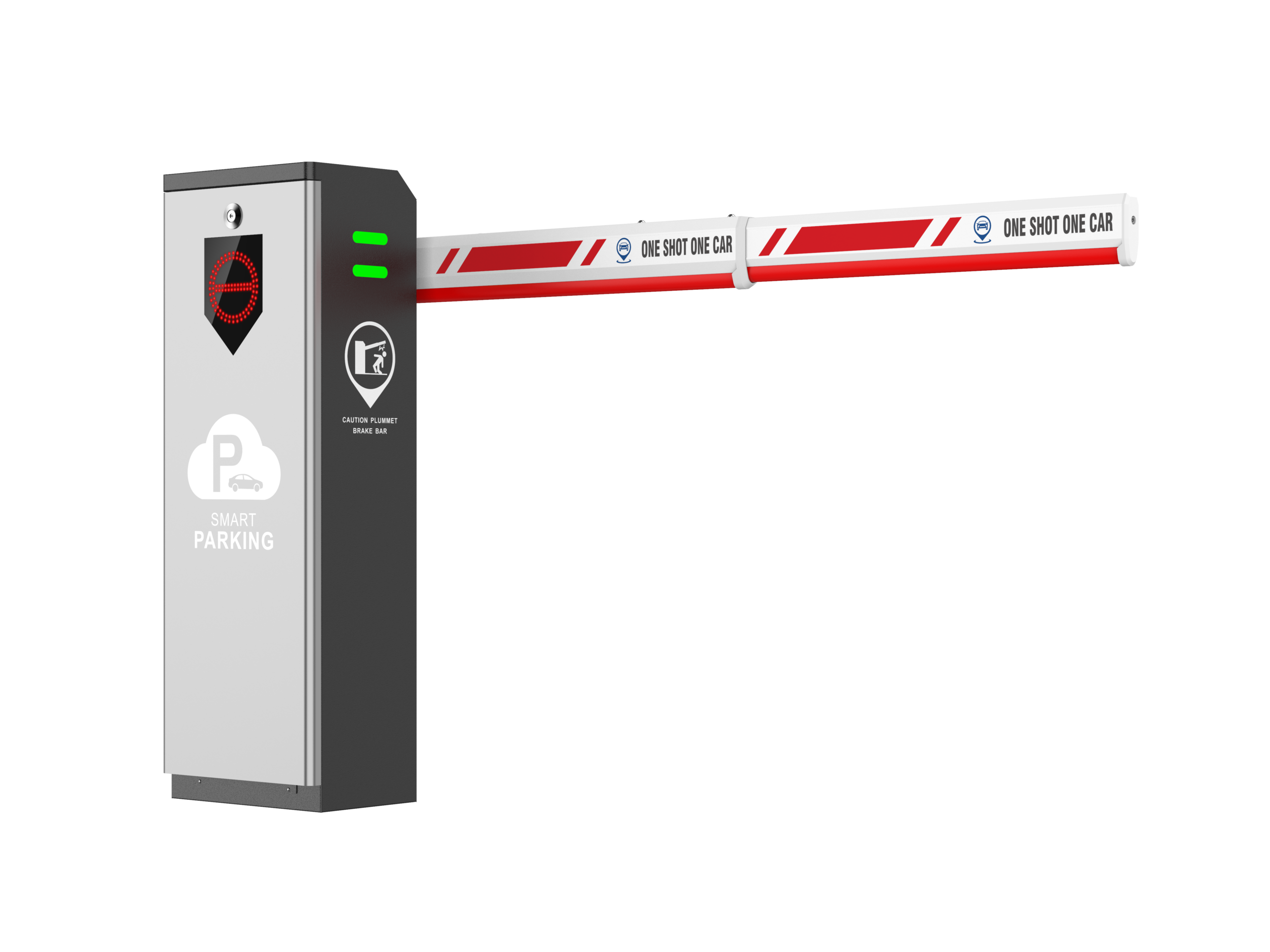

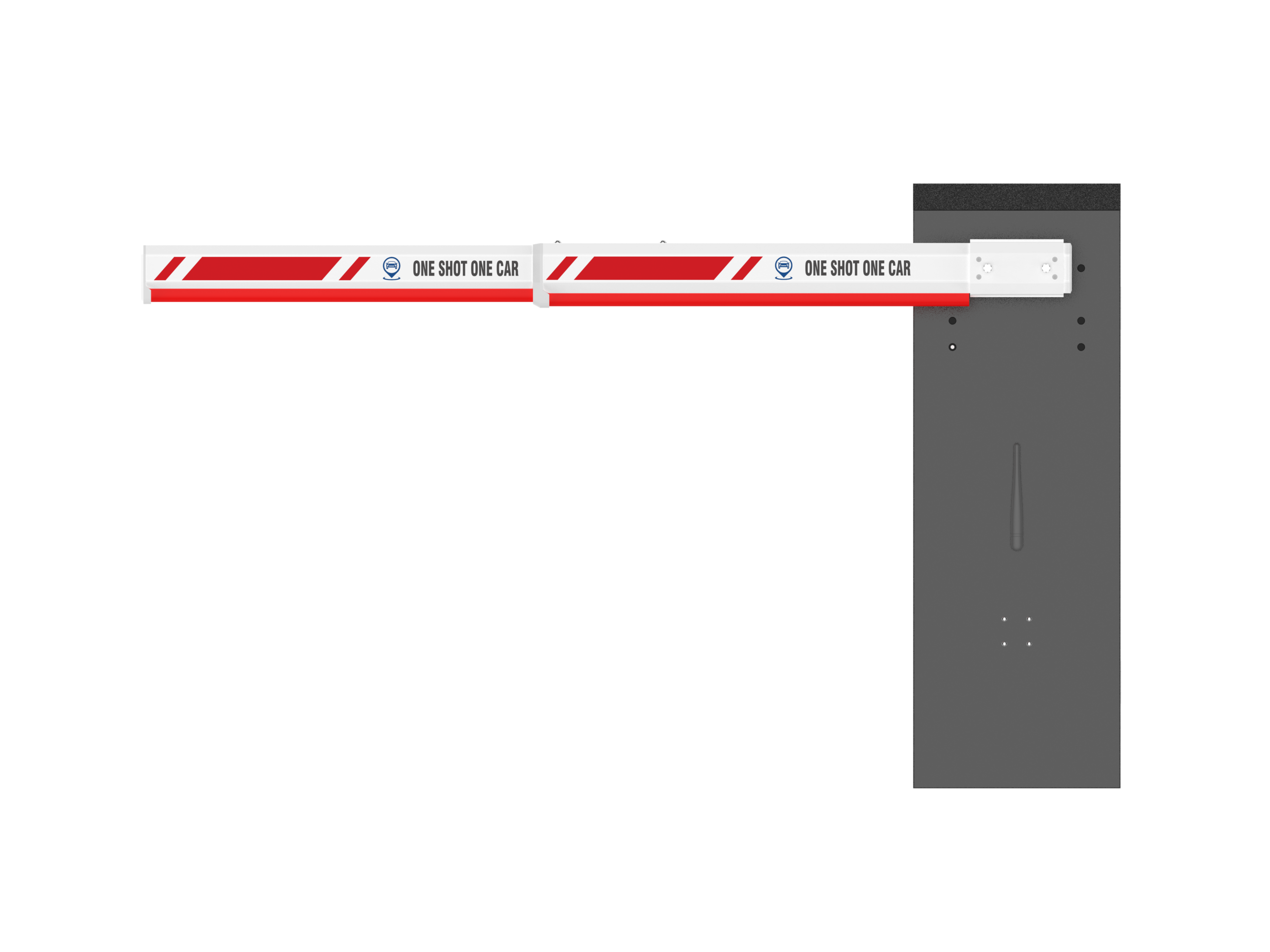

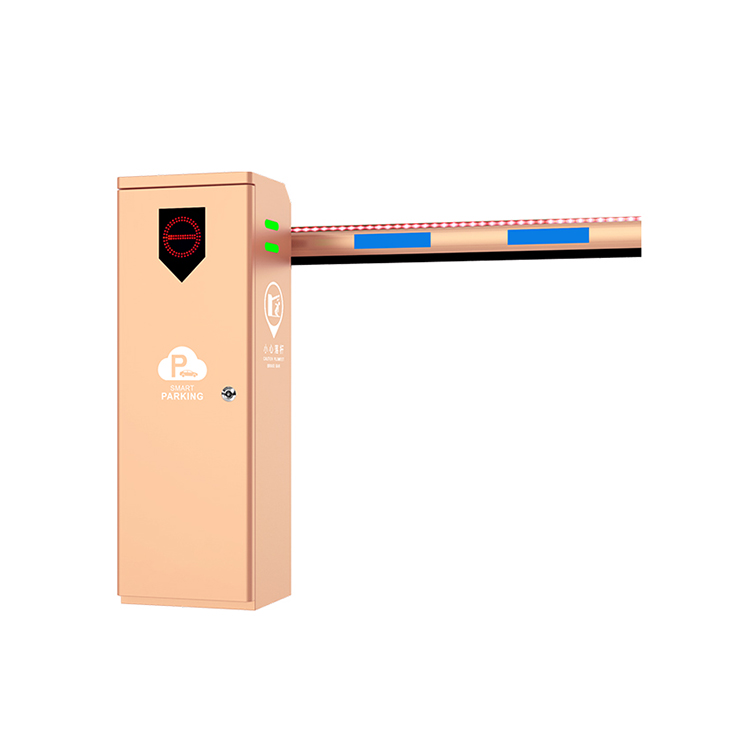

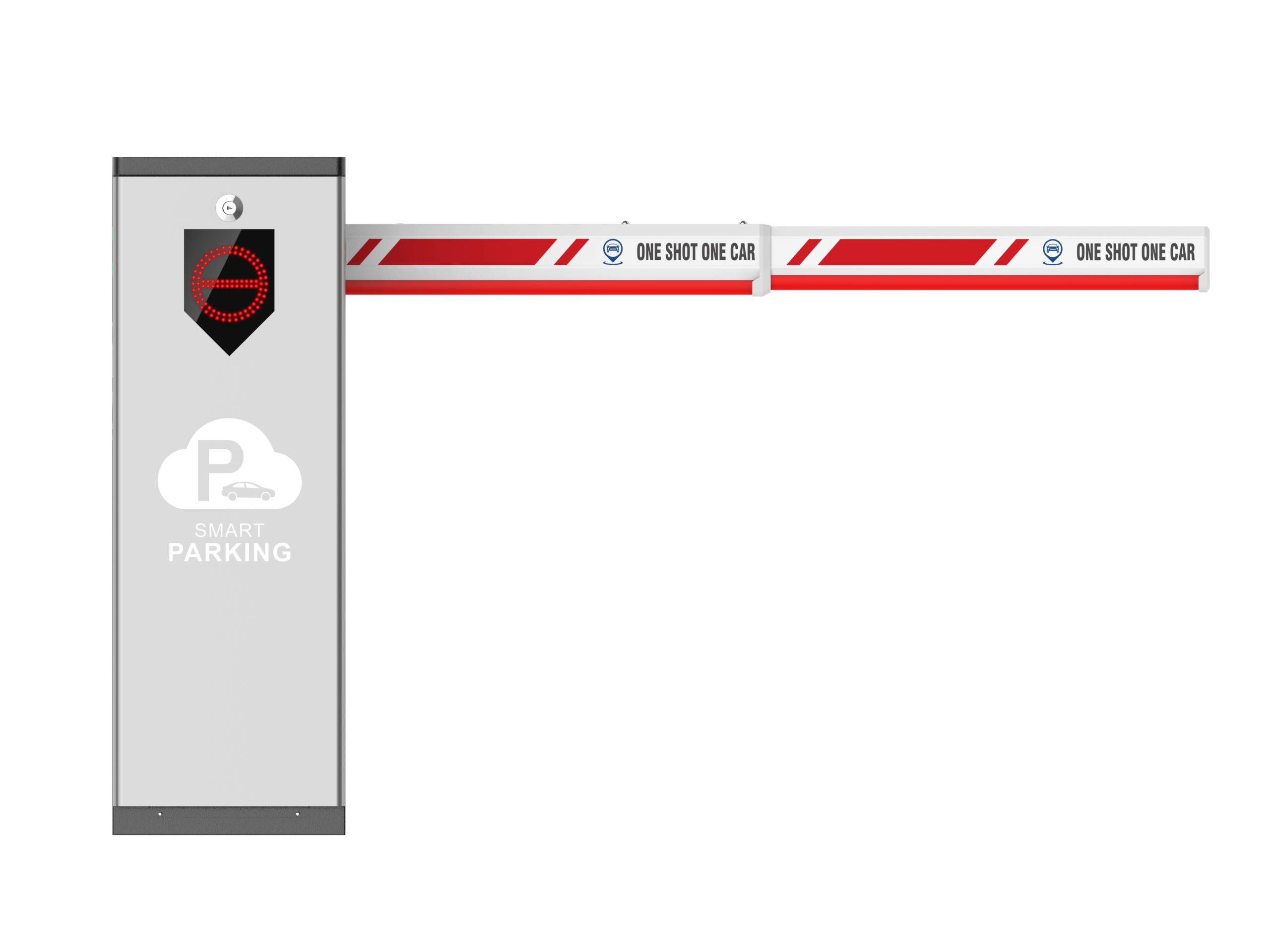

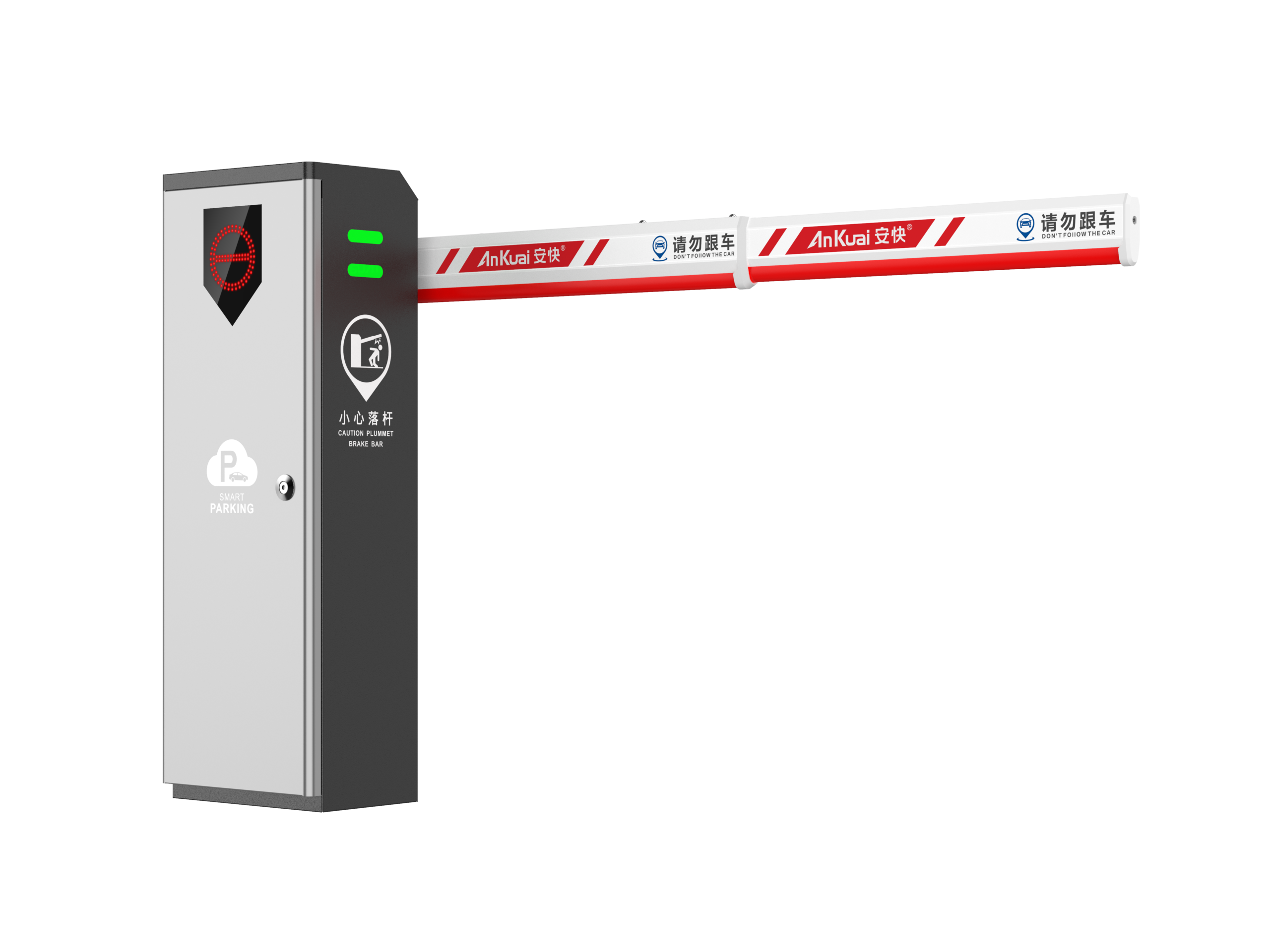

AnKuai AK-D116 Series – Parking Barrier Gate
- Heavy-duty automatic parking barrier gate for vehicle access control.
- Powered by DC24V, 140W DC brushless motor for smooth and steady operation.
- Boom length up to 6 meters, opens/closes in 1.8s / 3s / 6s.
- Can work 24 hours continuously without overheating — fan-cooled motor.
- Available in 3 boom types — Straight, Folding, and Fence.
- 2-spring design for durability and fracture resistance.
- Integrative mold-made core for high accuracy and stability.
- Accurate link mechanism for smoother movement and longer lifespan.
- Wide working temperature: -30°C to 80°C.
- Remote control range up to 30 meters.
- Housing dimension: 355×249×1035mm, weight: 50 kgs.
- Ideal for parking lots, offices, toll gates, and gated communities.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Technical Parameter |
Value |
|---|---|
| Power supply | AC110-220V±10% |
| Driver | 24V BLDC motor |
| Motor power consumption | 100W |
| Max arm length | 6M |
| Speed | 1.5-3s / 3-6s |
| Height from the ground | 890mm |
| Housing dimension | 355 x 245 x 1035mm |
| Working temperature | -30° to 80° |
| Weight | 42kg |
| Frequency | 50/60Hz |
| Remote-control distance | ≤30m |
| Protection grade | IP54 |
| MCBF | 5 million |
| Boom Type | Length | Open Time | Close Time |
|---|---|---|---|
| Straight boom / Telescopic boom | ≤3m | 1.5s | 2s |
| Straight boom / Telescopic boom | ≤4.5m | 3s | 4s |
| Straight boom / Telescopic boom | ≤6m | 5s | 6s |
| Folding Boom | ≤4.5m | 3s | 4s |
| Folding Boom | ≤6m | 5s | 6s |
| Fence boom | ≤5m | 5s | 6.5s |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
