AKS580
- Direction is adjustable.
- Auto bounce back function — built-in sensor detects when arm hits obstacle.
- Intelligent limited sensor — checks open & close position automatically, no manual adjustment needed.
- Position memory function — motor remembers limited position and returns to right position automatically, avoids motor stuck.
- Lower working temperature — no thermal protection needed, no fan required to cool motor.
- Longer working life — can open and close 5 million times.

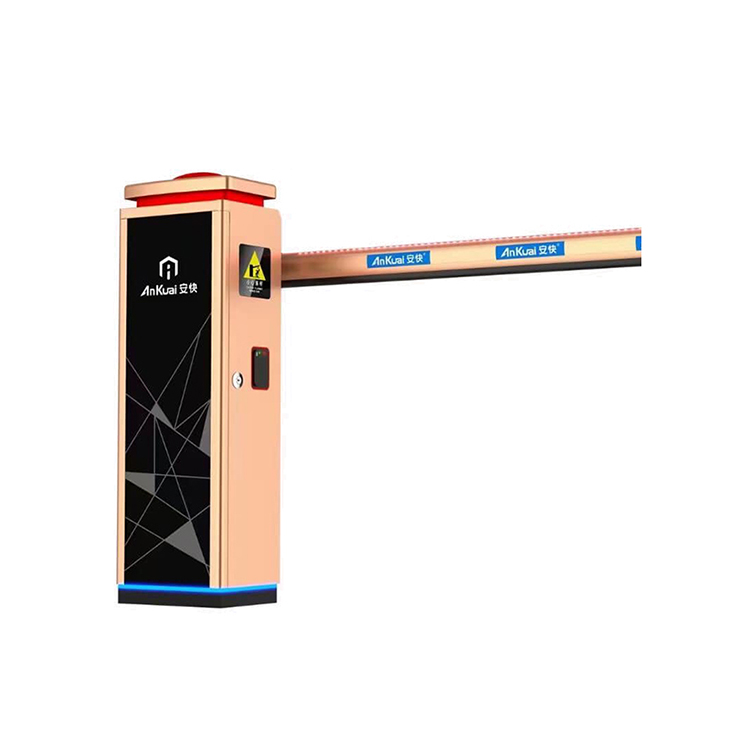

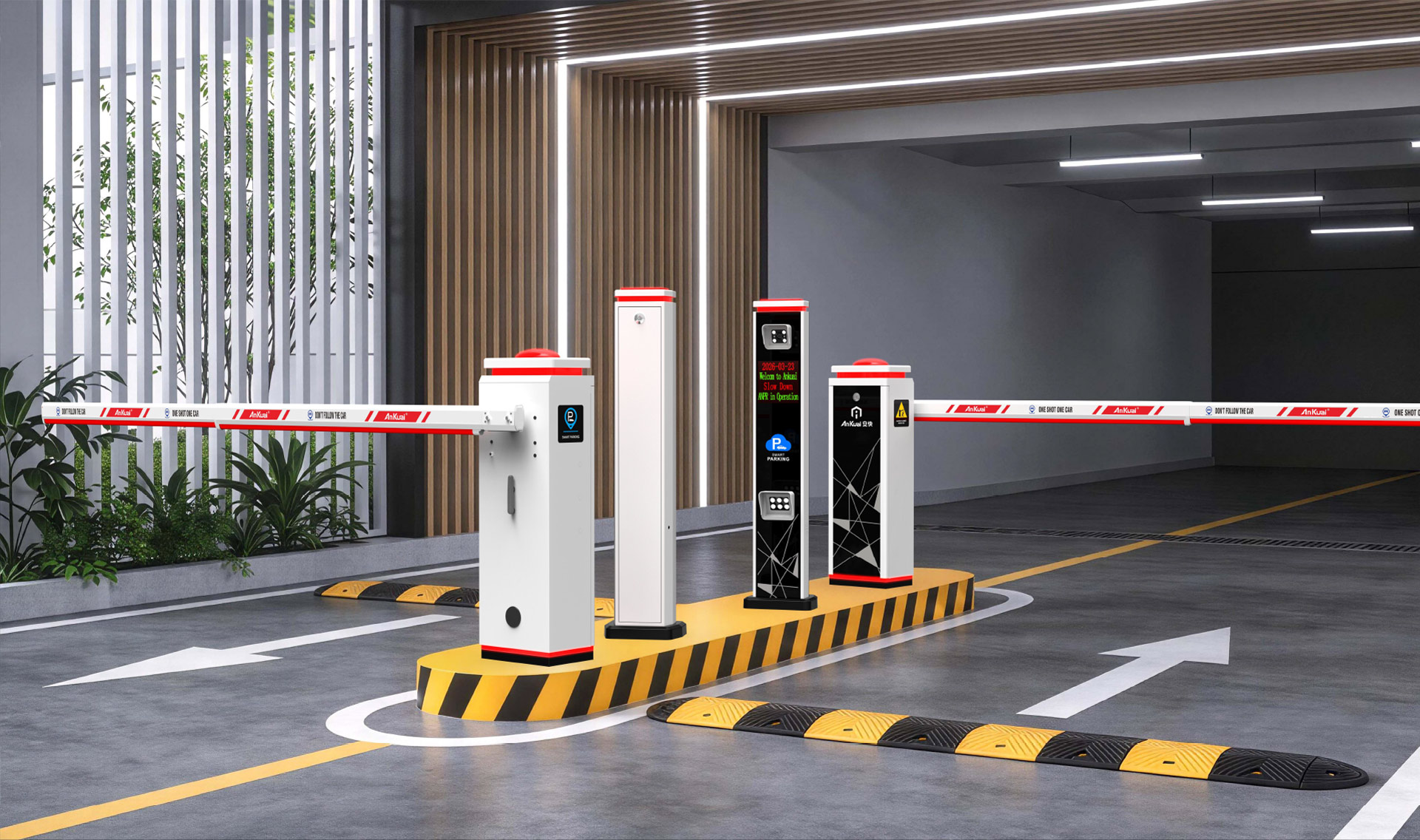

AnKuai AK-S580 Automatic boom barrier for vehicle entry & exit management. Multiple barrier arms optional, built-in safety protection. Compatible with LPR system, remote control and access controllers, ideal for outdoor parking and factory gate security.

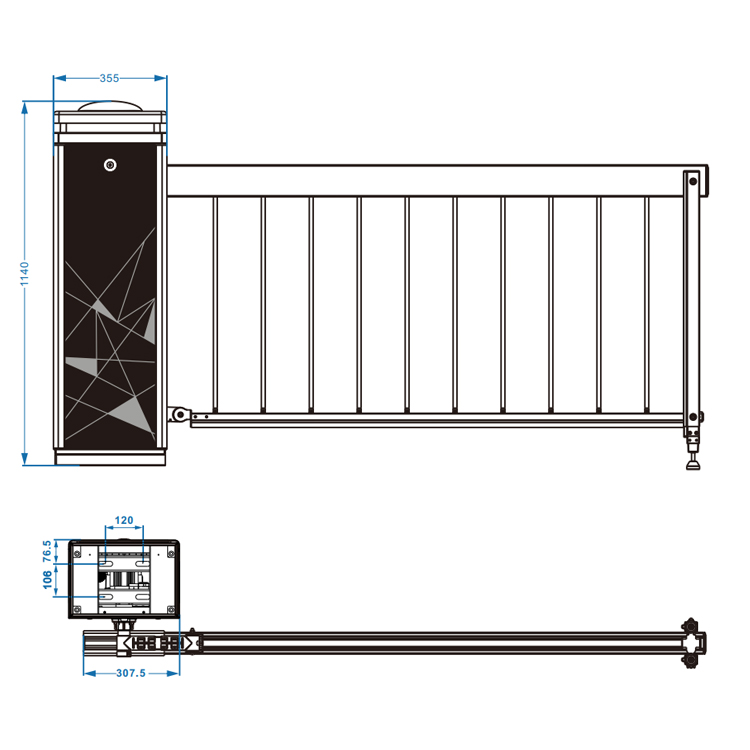

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Technical Parameter | Value |
|---|---|
| Power supply | AC110-220V±10% |
| Driver | 24V BLDC motor |
| Motor power consumption | 100W |
| Max arm length | 6M |
| Speed | 1.5-3s / 3-6s |
| Height from the ground | 890mm |
| Housing dimension | 355 x 250 x 1140mm |
| Working temperature | -30° to 80° |
| Weight | 43kg |
| Frequency | 50/60Hz |
| Remote-control distance | ≤30m |
| Protection grade | IP54 |
| MCBF | 5 million |
| Boom Type | Length | Open Time | Close Time |
|---|---|---|---|

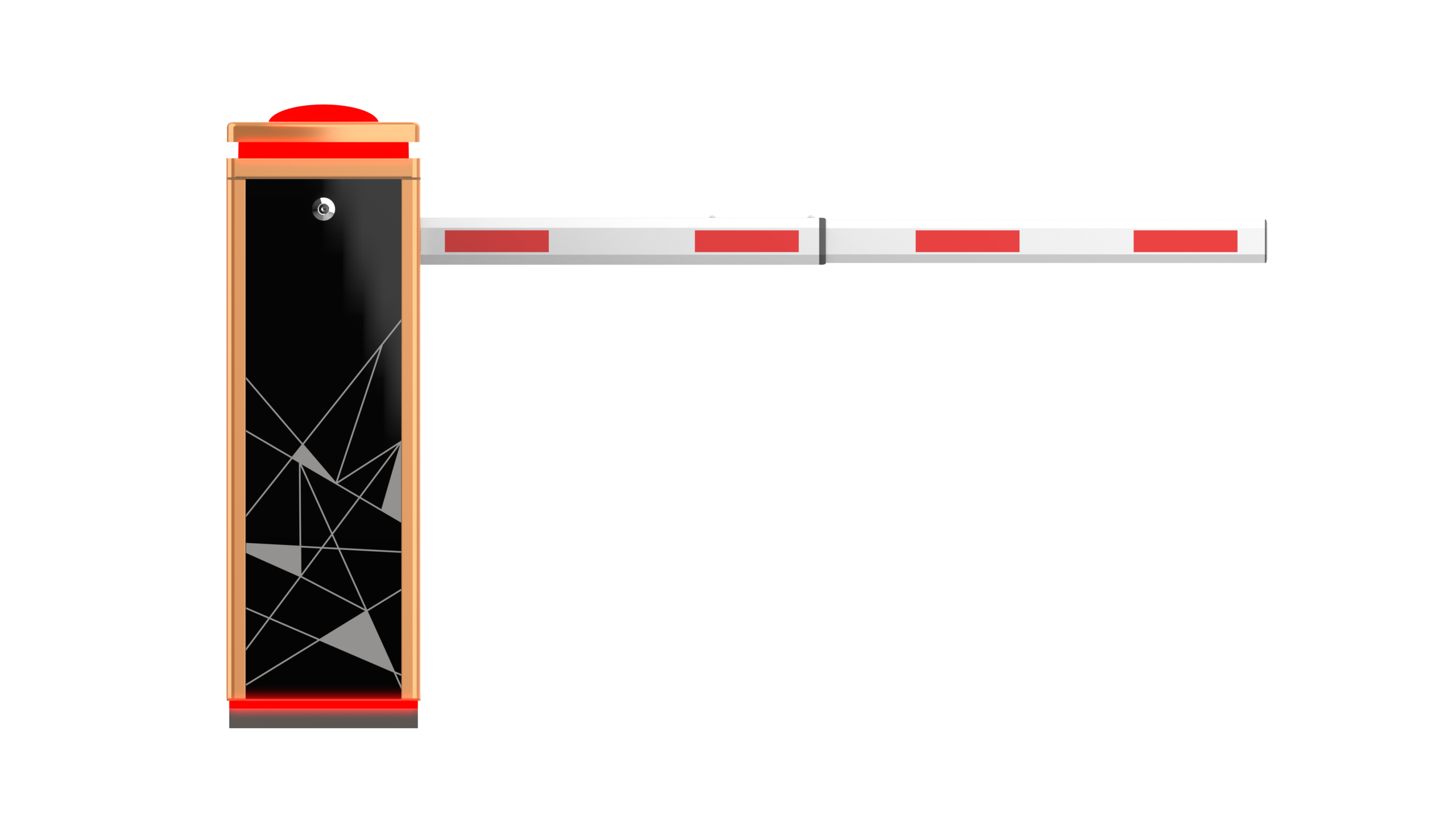

| Straight boom / Telescopic boom | ≤3m | 1.5s | 2s |
| Straight boom / Telescopic boom | ≤4.5m | 3s | 3.5s |
| Straight boom / Telescopic boom | ≤6m | 4s | 4.5s |

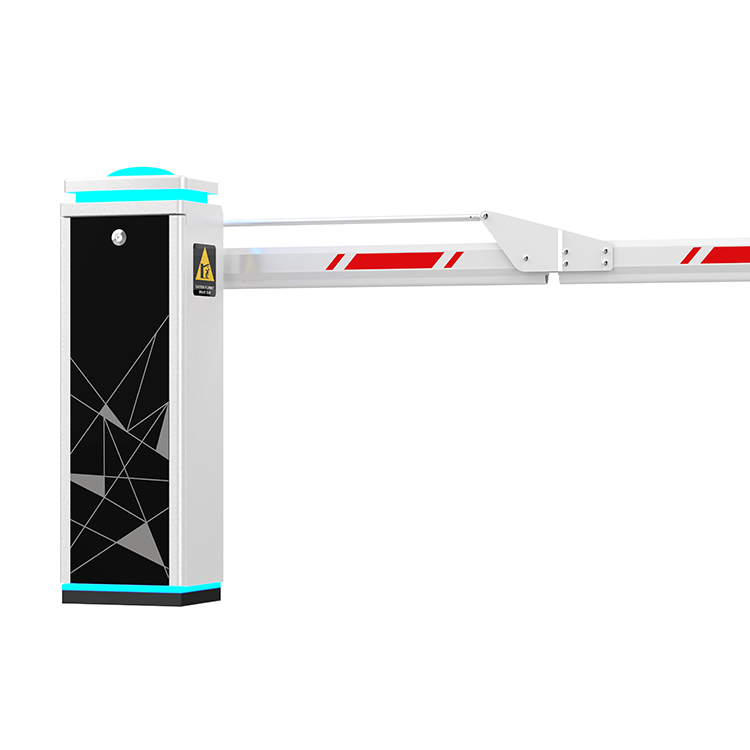

| Folding Boom | ≤4.5m | 3s | 3s |
| Folding Boom | ≤6m | 5s | 6s |

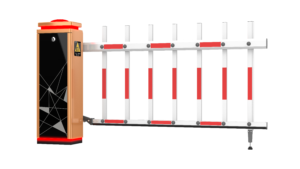

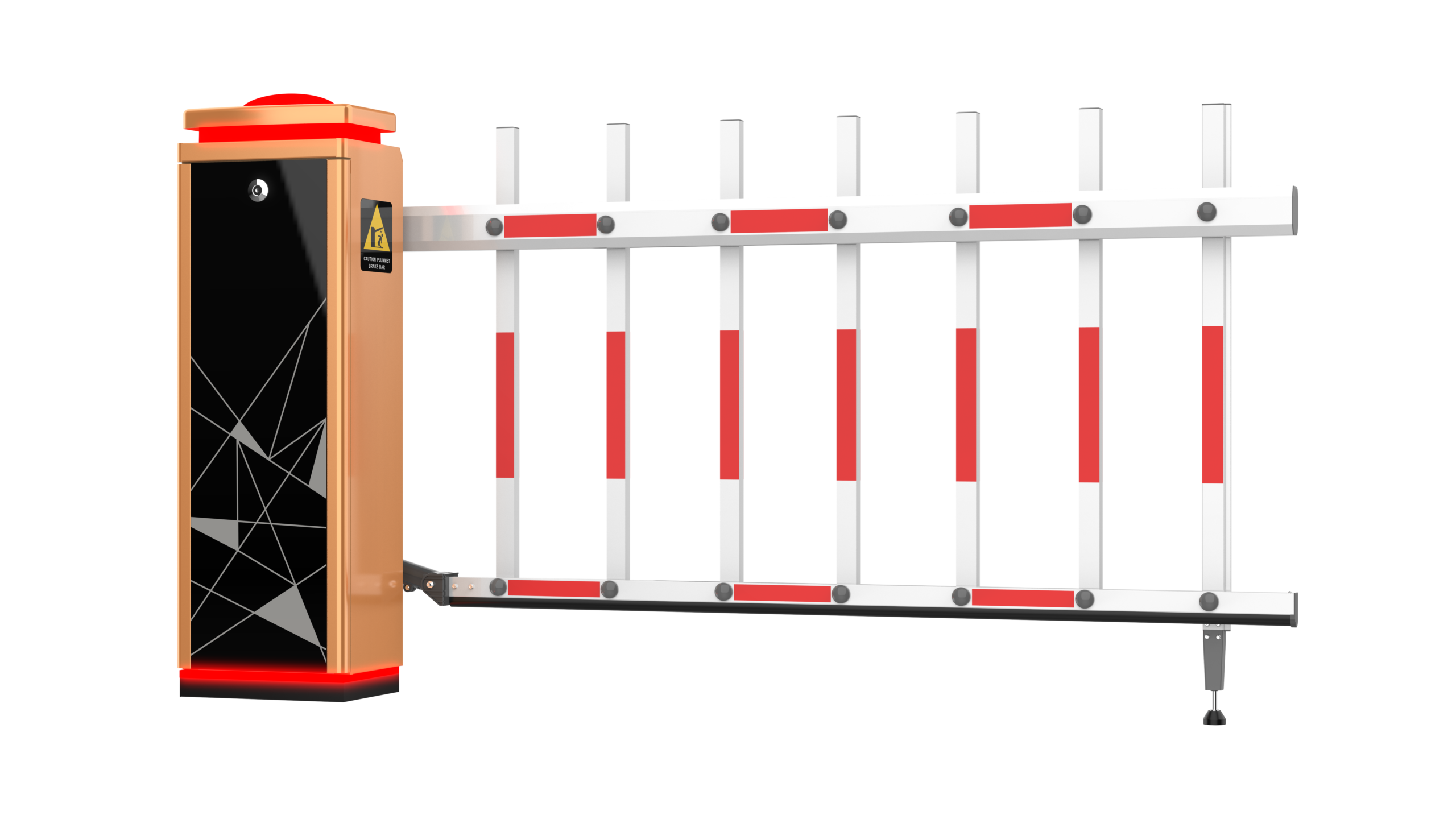

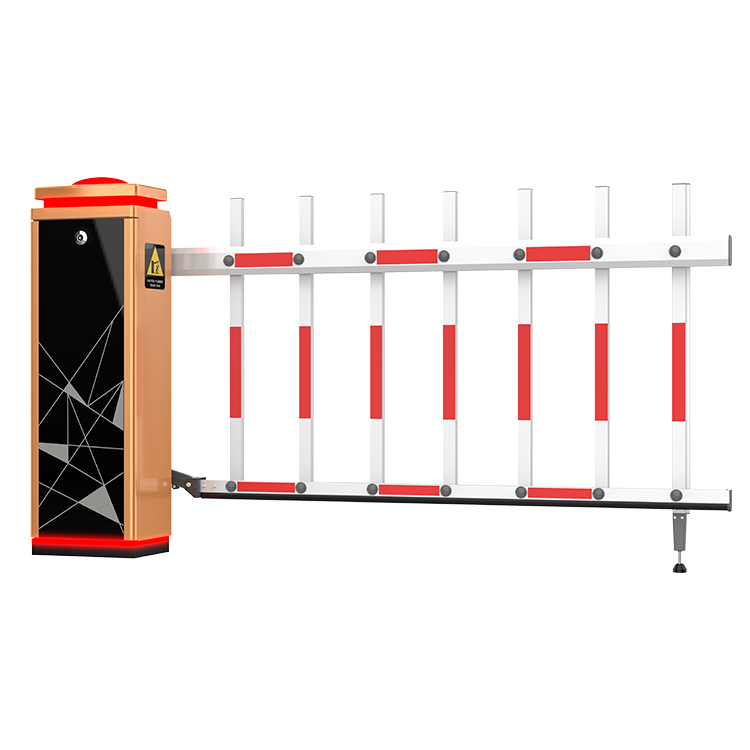

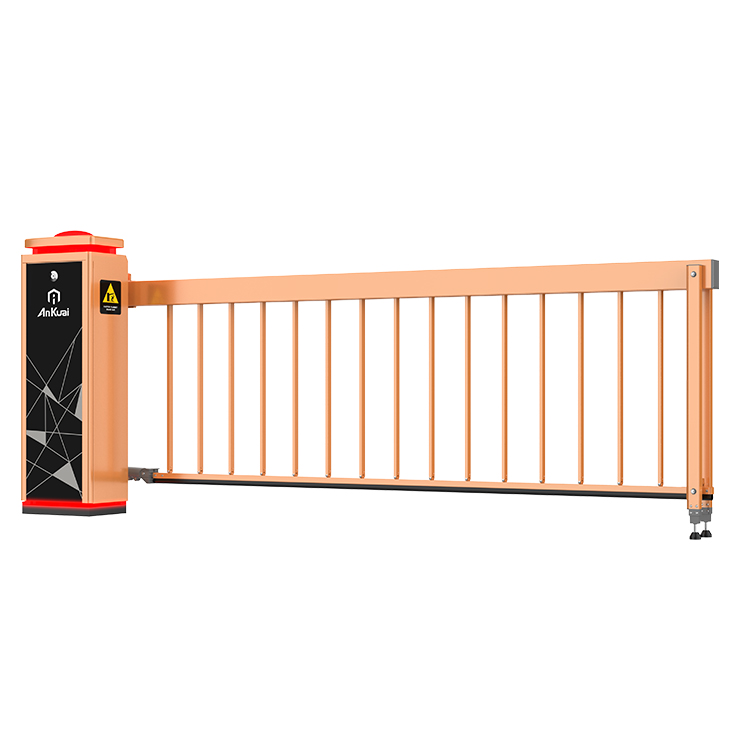

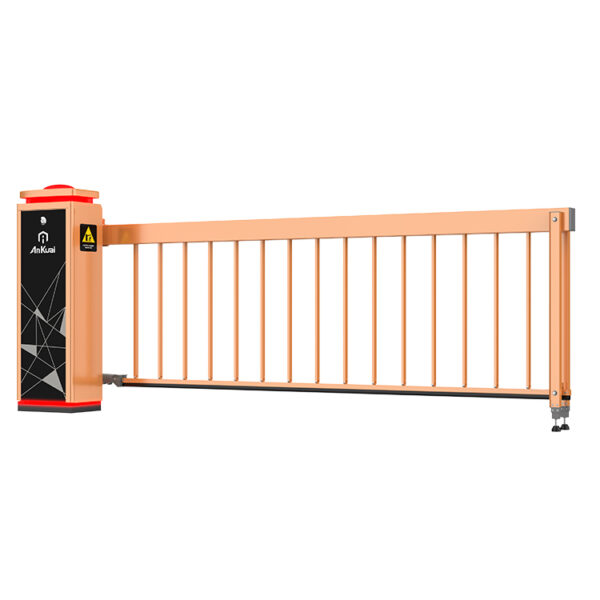

| Fence boom | ≤5m | 6s | 6.5s |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
Clients Videos And Gallery

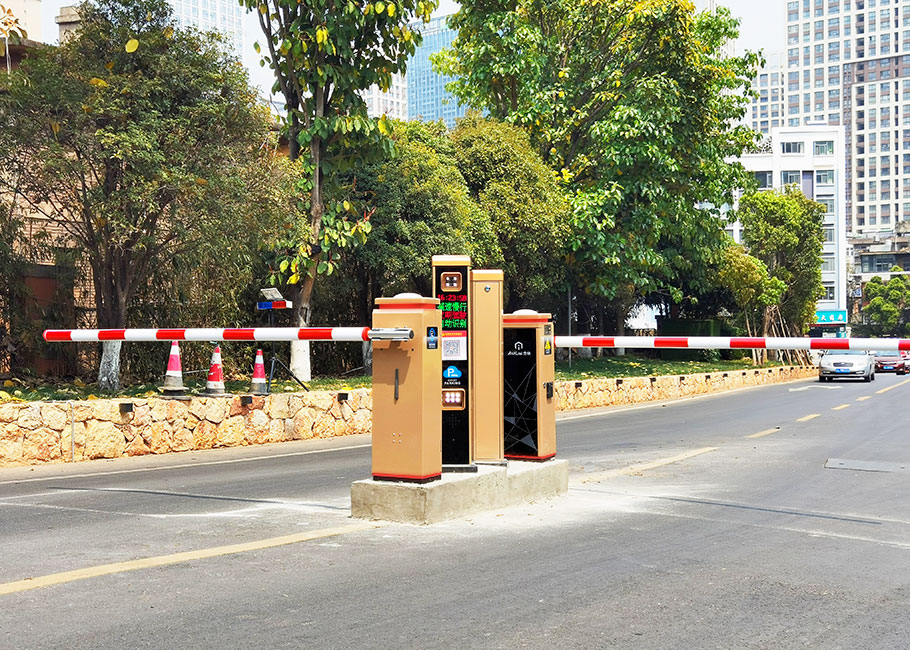

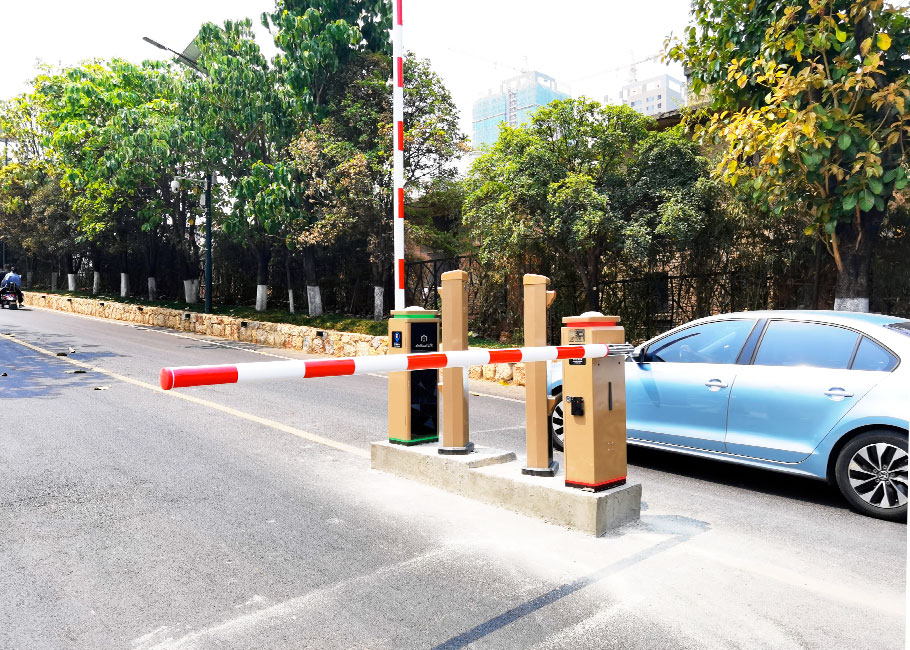

Client Gallery
