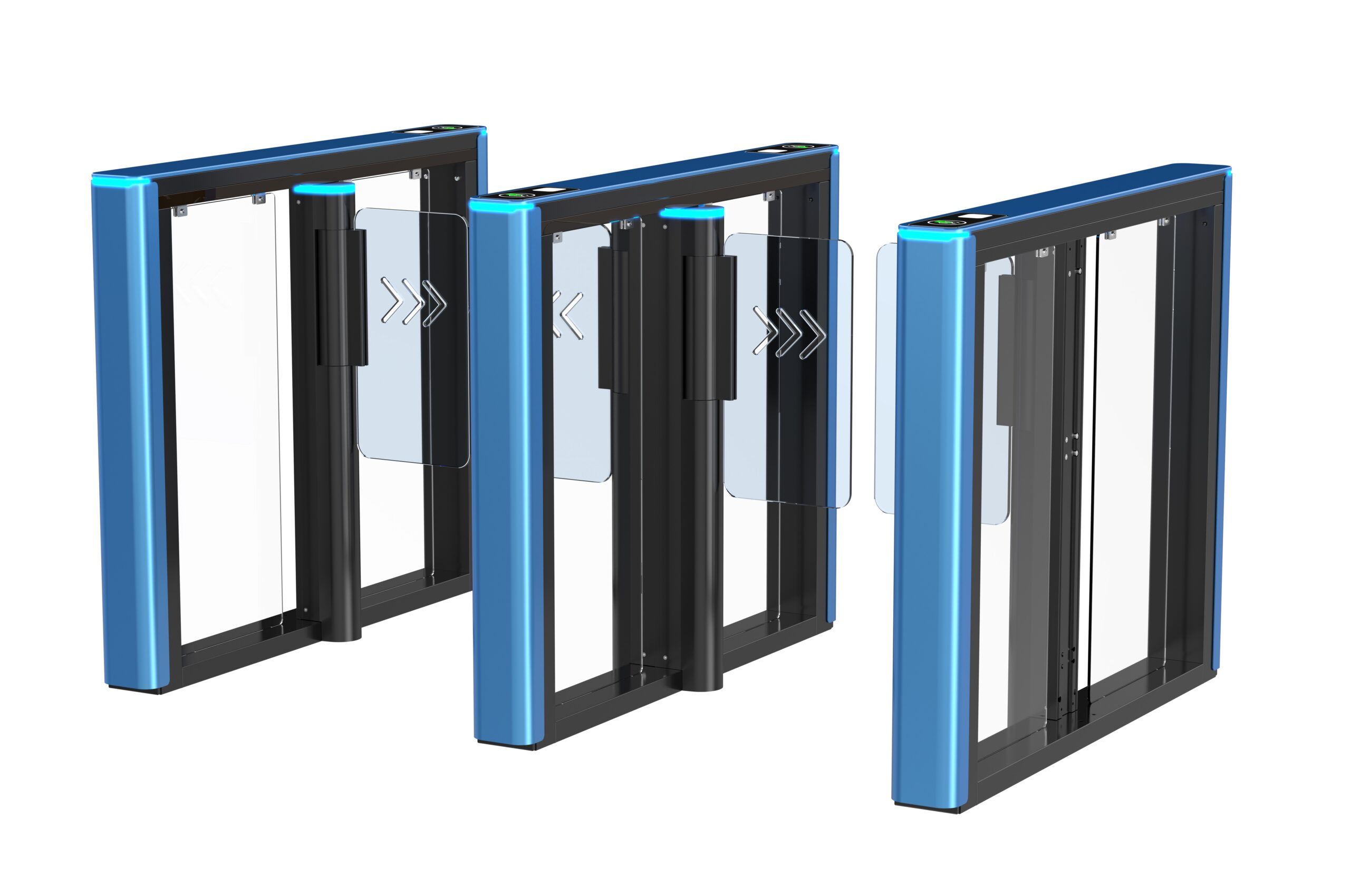

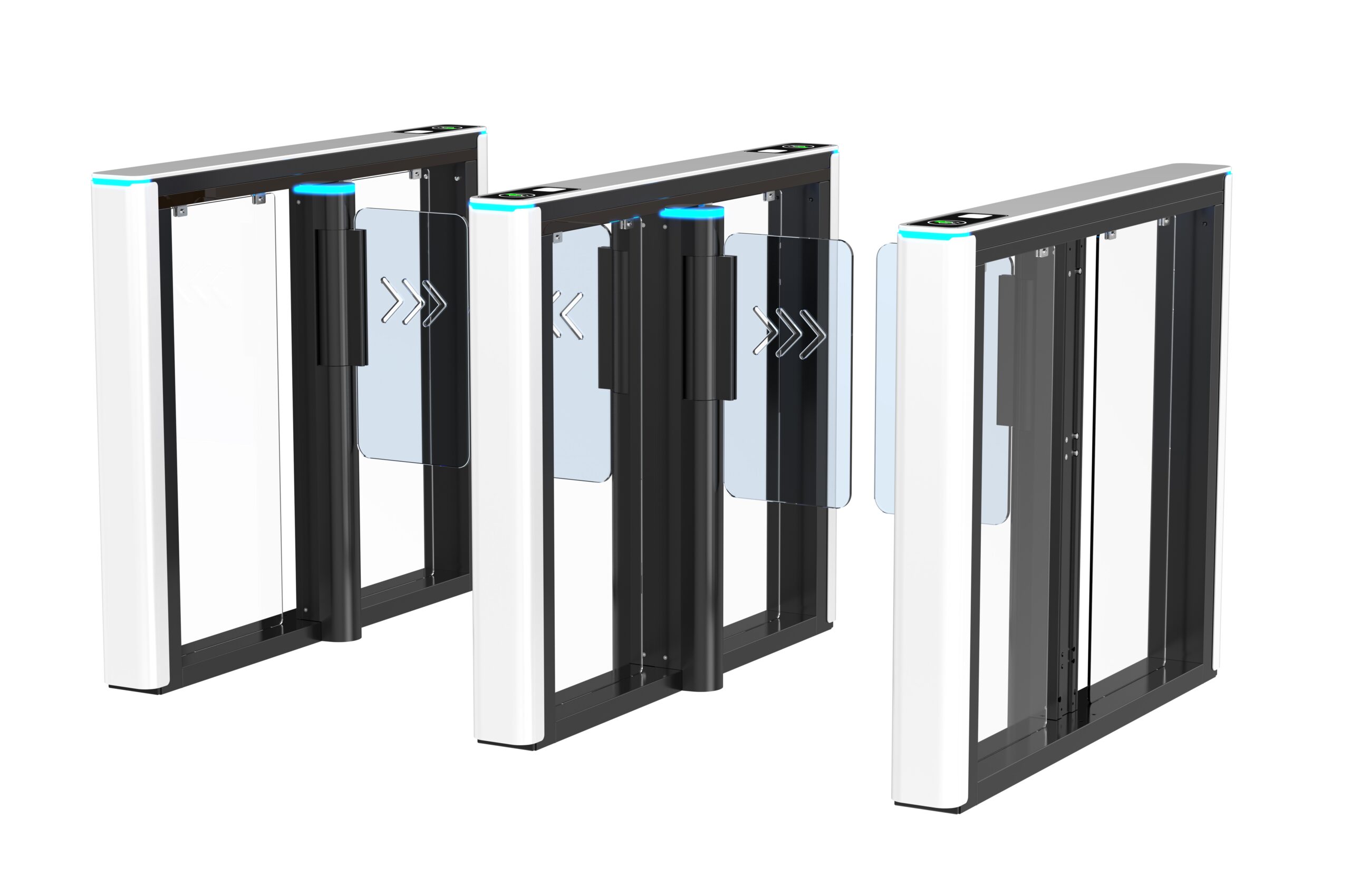

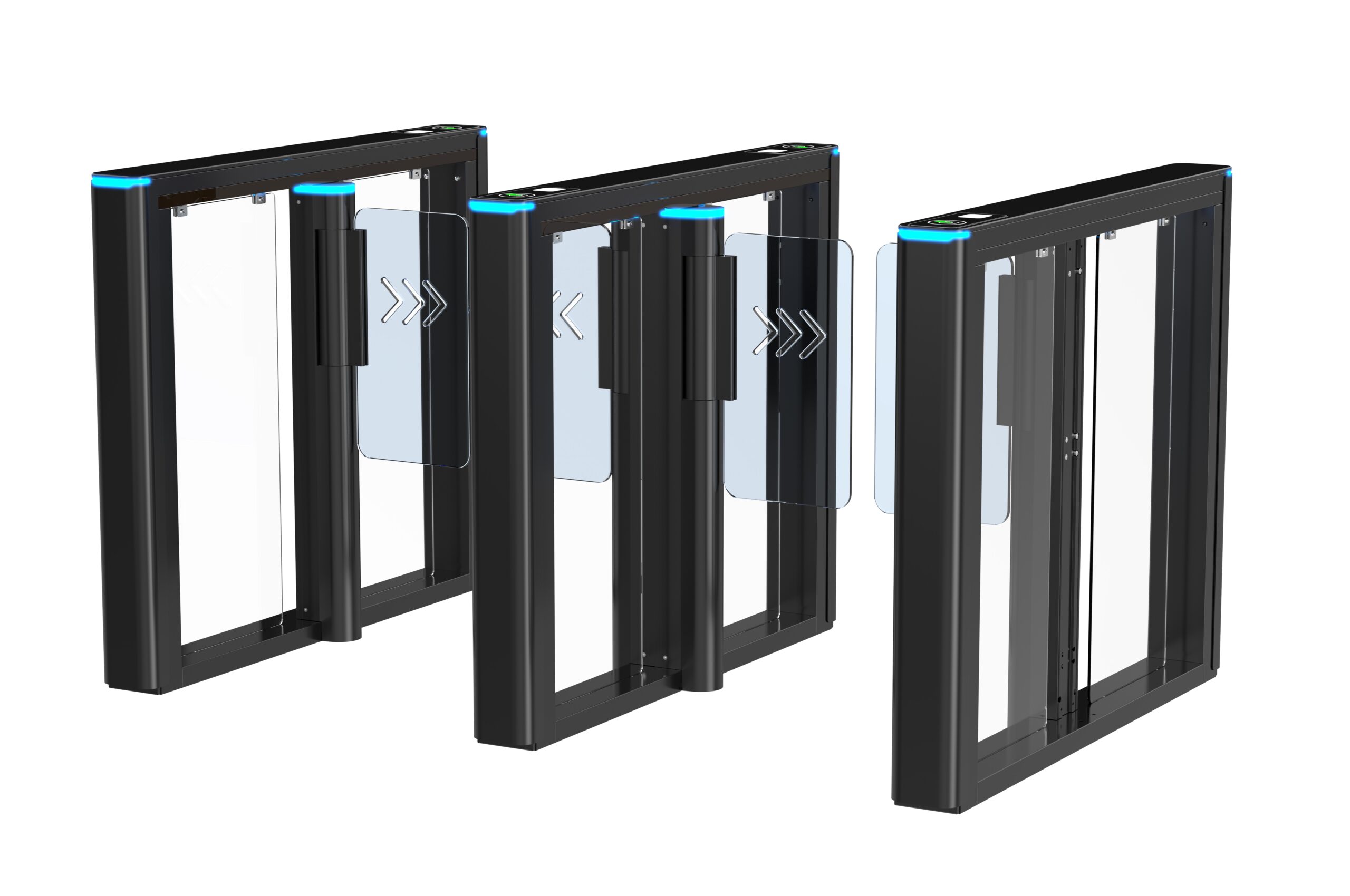

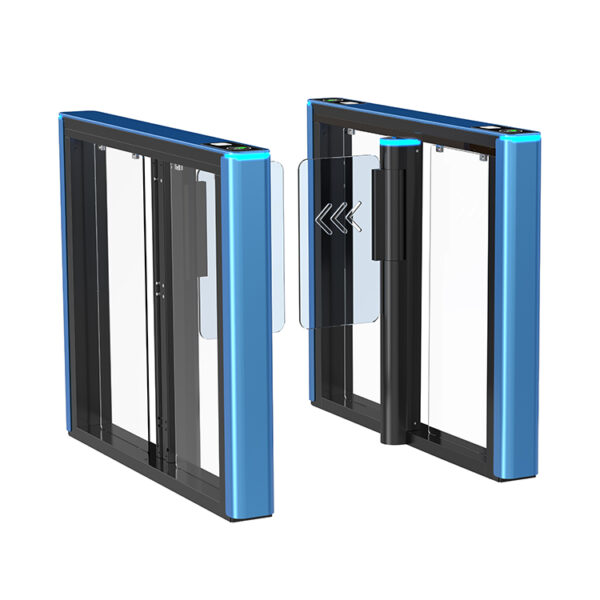

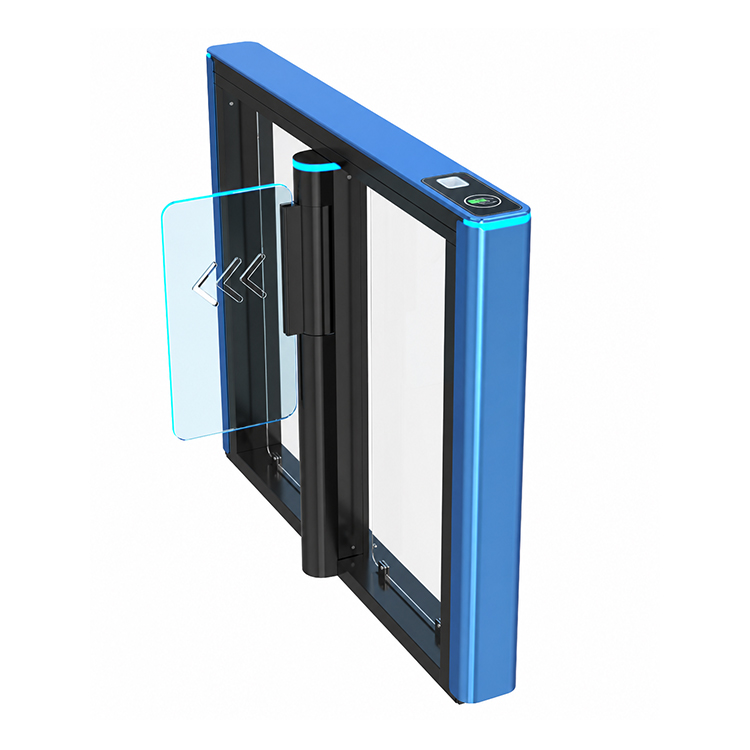

AKT329
Main Functions
-
Self-diagnosis function.
-
Bi-directional arm turning.
-
In case of power failure, the arm opens automatically; upon power restoration, the arm automatically locks.
-
After a valid card is read and the passenger passes through, the arm can delay closing for 1–60 seconds, adjustable via the control panel.
-
Auto-restart function: If a passenger does not pass within the set time after card reading, the turnstile automatically cancels the order. Managers can adjust this time.
-
Anti-tagging function: If no valid entry signal is received, the arm remains locked.
-
Stable operation with minimal noise.

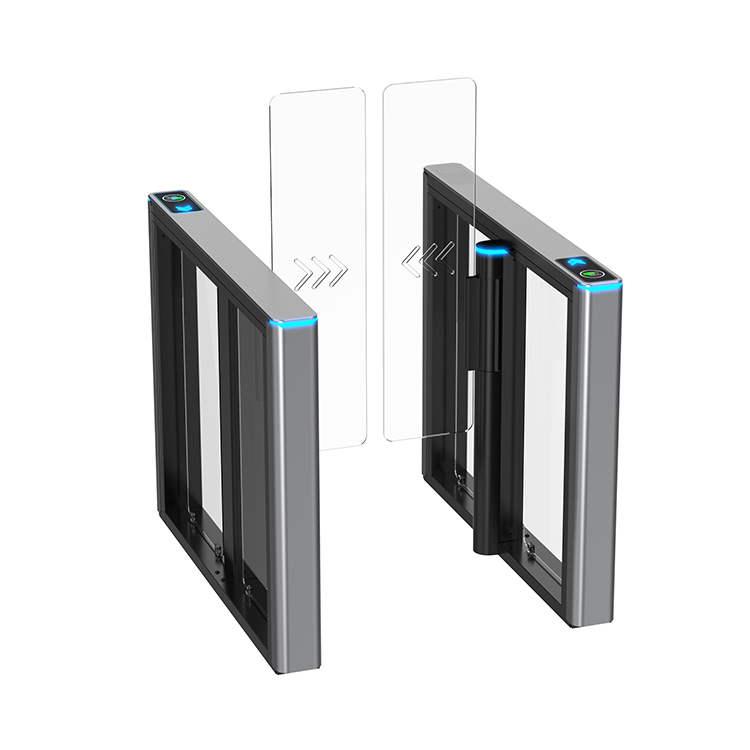

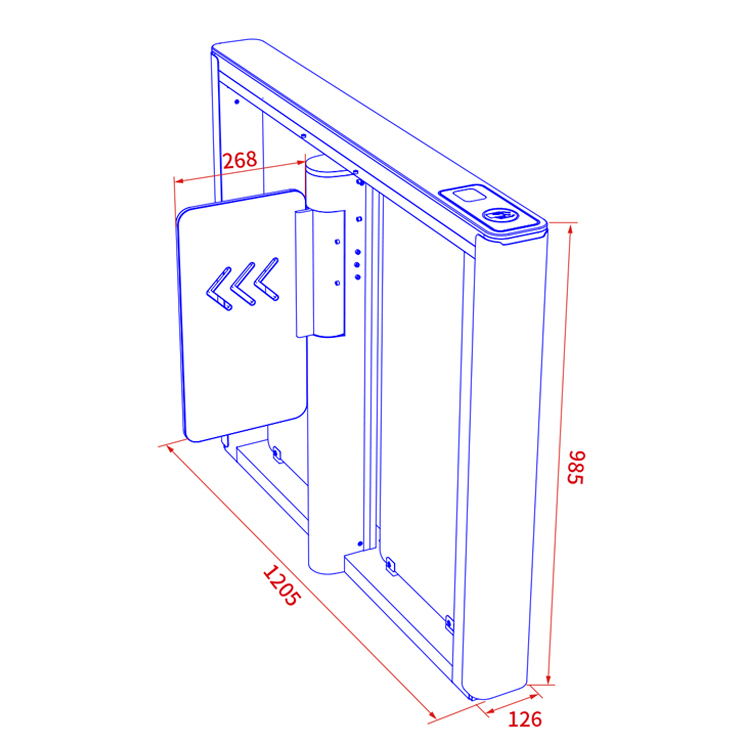

product Details And Dimensions
All the details and dimensions can be customized according to your project site

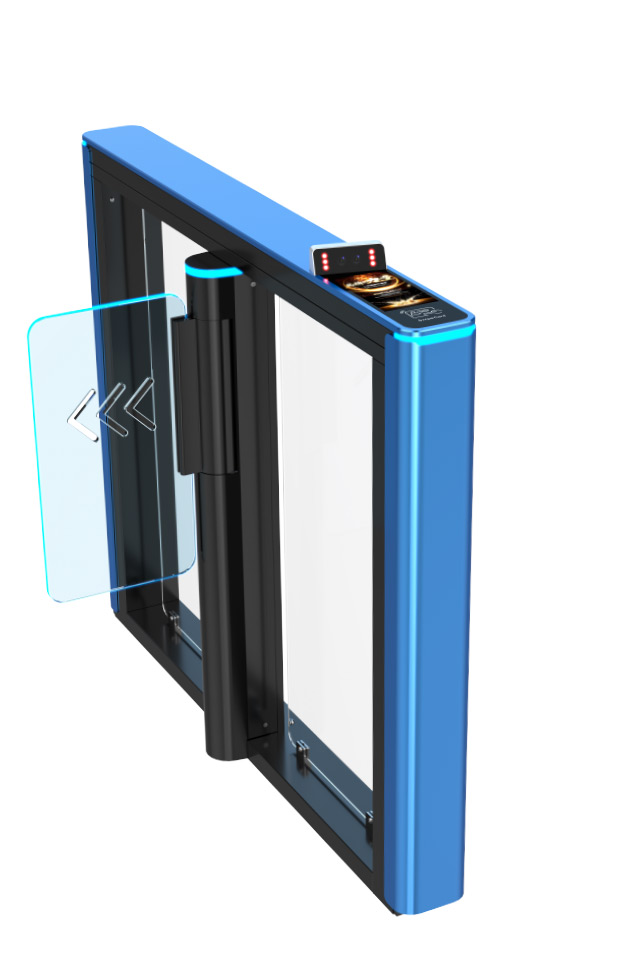

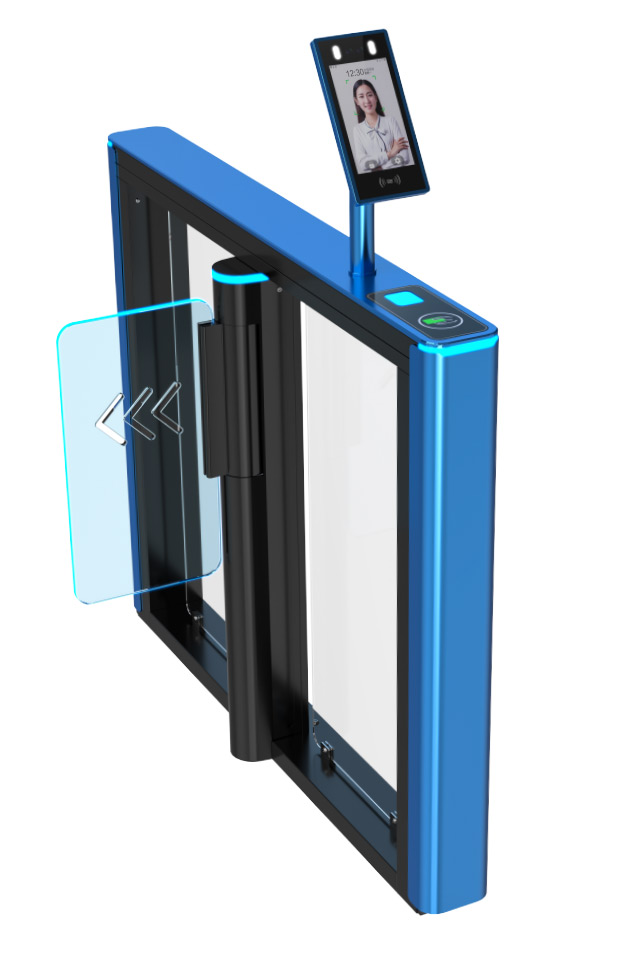

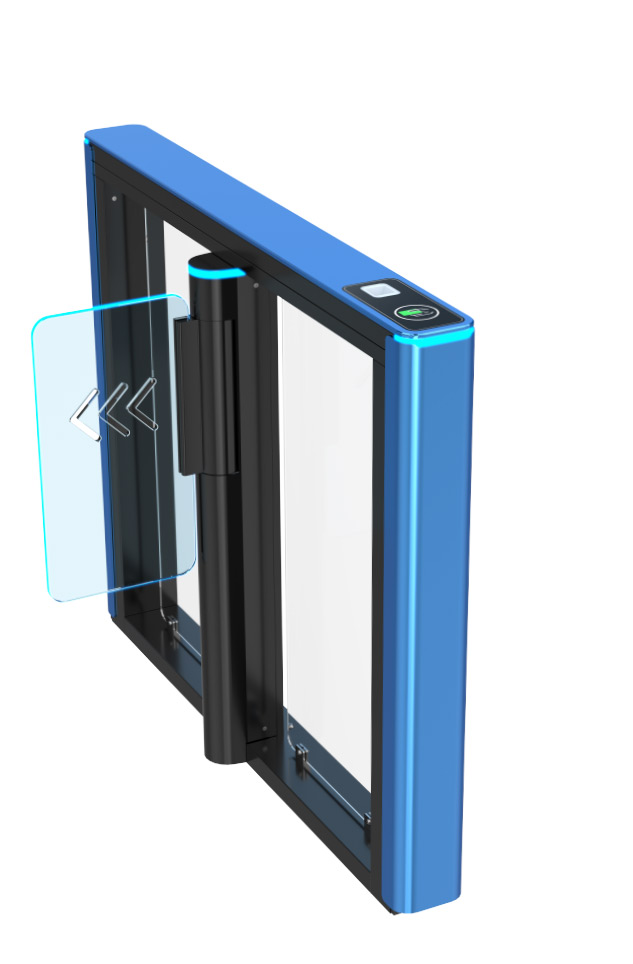

Integrate Any Access Controllers
Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.
Product Parameters
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | AC110~220V / 50~60Hz |
| Motor Power Consumption | 24V BLDC 50W |
| Passage Width | 1200mm |
| Arm Length | 600mm |
| Open/Close Time | 1s |
| Passing Speed | 40~60 Persons/min |
| Infrared | 4 Pairs |
| Dimension | 1200 × 120 × 990 mm |
| Housing Material | SUS304 Stainless steel |
| Working Temperature | -25° to 75°C |
| Arm Turning | Bi-Direction |
| Working Environment | Indoors or Outdoors |
| Communication Interface | RS485, TTL232 |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
