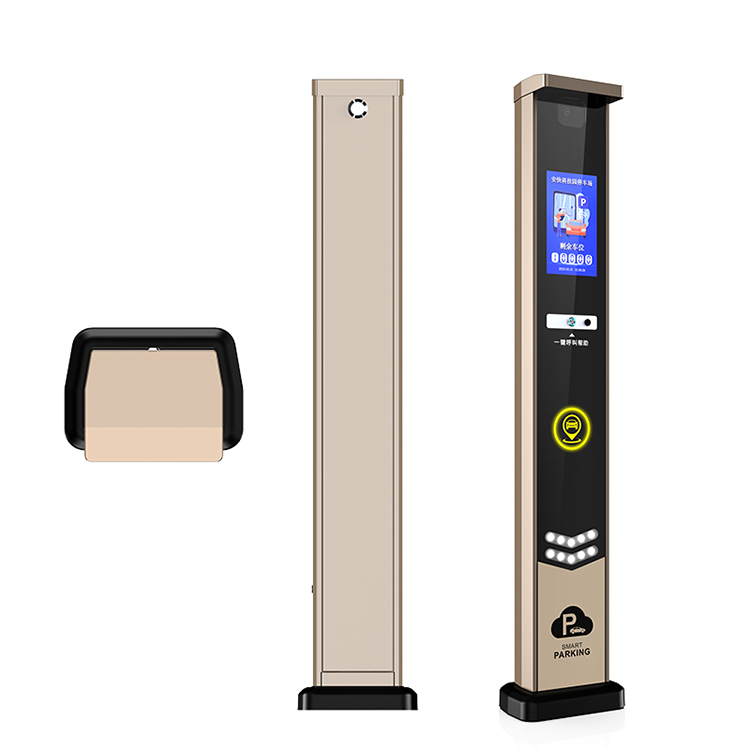

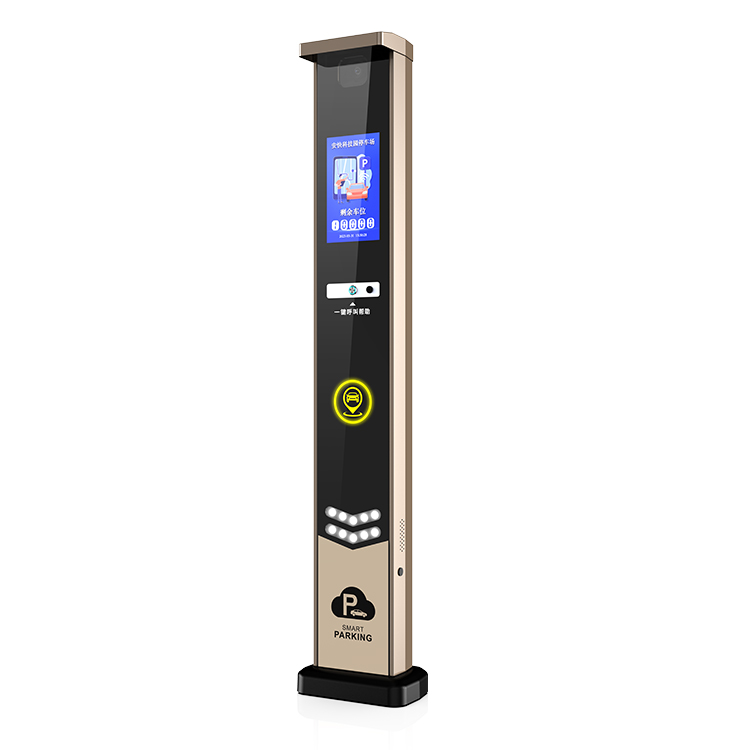

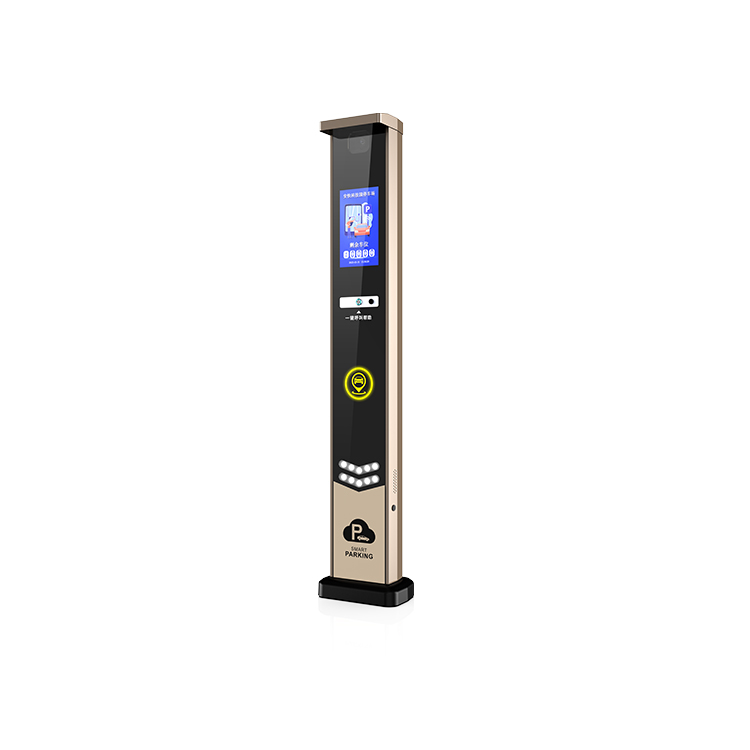

P823 (LCD) HD License Plate Recognition All-in-One Terminal

P823 (LCD) HD License Plate Recognition All-in-One Terminal is a key device designed to enable unattended parking management and diversified revenue generation. By integrating four major functions — license plate recognition, interactive display, traffic guidance, and advertising — it redefines the efficiency and user experience of parking entrance management.

All-in-One Integration:
Equipped with an HD license plate recognition camera, LCD display, voice module, LED illuminator, and dynamic QR code scanning, the terminal combines multiple functions in one device, simplifying on-site installation and deployment.

Unified Design:
Featuring a standardized product appearance, it matches seamlessly with other parking system equipment, creating a professional and modern visual environment.

Versatile Management:
Supports multiple management modes including local, cloud-based, and mobile management, meeting the operational requirements of different application scenarios while helping parking facilities reduce costs, improve efficiency, and increase revenue.

Inquire Now

product Details And Dimensions

All the details and dimensions can be customized according to your project site

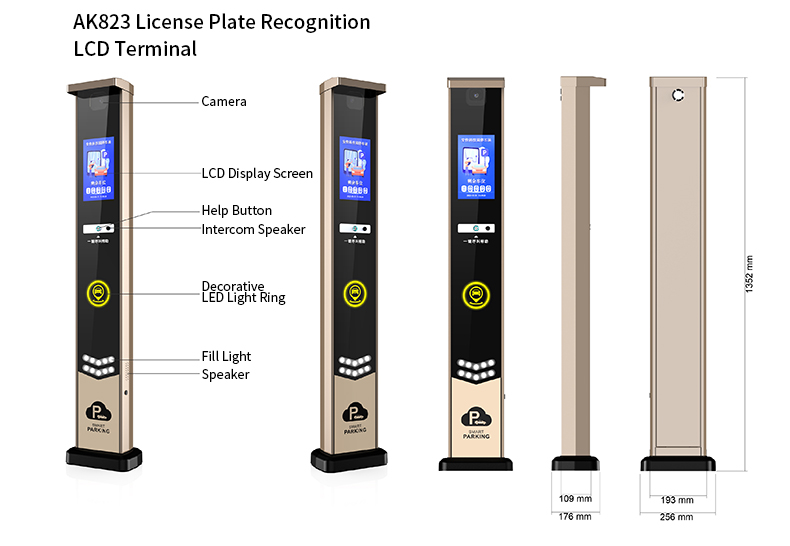

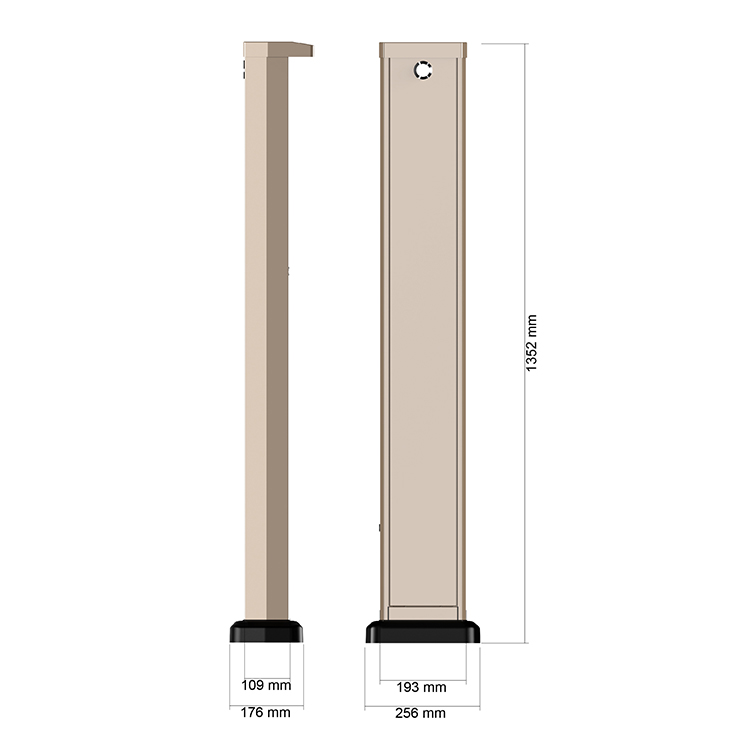

Product Dimension Image

Product Parameters

Basic Parameters

Item Specification
Working Voltage AC220V ±10%
Working Temperature -20℃ to +60℃
Relative Humidity ≤95%, non-condensing (at normal temperature)
Rated Power ≤60W
Memory 1GB RAM, 4GB ROM
Communication Interface TCP/IP, RS485
Display Type 10.1-inch HD Outdoor LCD Display
Resolution 1366 × 768
Protection Rating IP54
Housing Material & Process High-strength Carbon Steel, Sheet Metal Spray Coating
Dimensions 364.6 × 140.0 × 1460.0mm (L × W × H)

Camera Parameters

Item Specification
Power Supply 12V/2A
License Plate Recognition Accuracy ≥99% (Typical Plates in All Weather Conditions)
Vehicle Speed Range 0-40 km/h
Recognition Angle ≤45°
Optimal Recognition Distance 3-6m
Trigger Method Vehicle Loop Detector or Video Stream
Supported Plate Types Standard Blue Plates, Yellow Plates, Double-layer Yellow Plates, Police Plates, New Armed Police Plates, New Military Plates, Embassy Plates, Civil Aviation Plates, Driving School Plates, New Energy Vehicle Plates, Hong Kong & Macau Plates, Emergency Vehicle Plates
Recognition Features Plate Number, Plate Color, Plate Type, Plate Width
Output Information Vehicle Feature Image, License Plate Image, Plate Number, Plate Color, Plate Type, Passing Time
License Plate Anti-counterfeiting Supported
Storage Supports SD2.0 Standard MicroSD (TF) Card, Maximum 32GB

LED Illuminator Parameters

Item Specification
LED Quantity 10 LEDs
Maximum Power ≤10W
Illumination Control Automatic Light Sensor Control
Illumination Distance >50 LUX at 5m Distance
Adjustment Angle Supported


Easy Installing, NO Need Any Special Electrician Skills

Fix on ground, connect to power supply, it will work
