AK-P833
- Full-process Self-Service: Adopts electronic payment and dynamic QR code technology for unlicensed vehicles to realize rapid vehicle passage.
- Remote Emergency Handling: When abnormal situations occur, vehicle owners can connect to the management center directly through the HD video intercom system for remote problem solving and gate opening.
- Diversified Revenue Streams: Built-in high-definition advertising screen supports video and picture ad playback during idle periods, converting visitor traffic into additional profits.
- Optimized Cost Control: Intelligent automation replaces manual attendance, effectively lowering long-term operating expenses and easing management burdens.

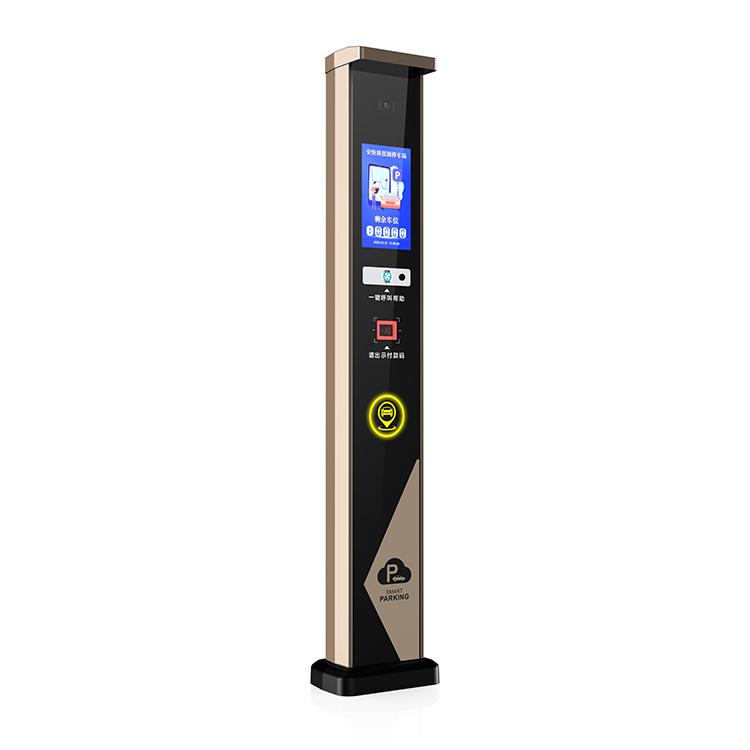

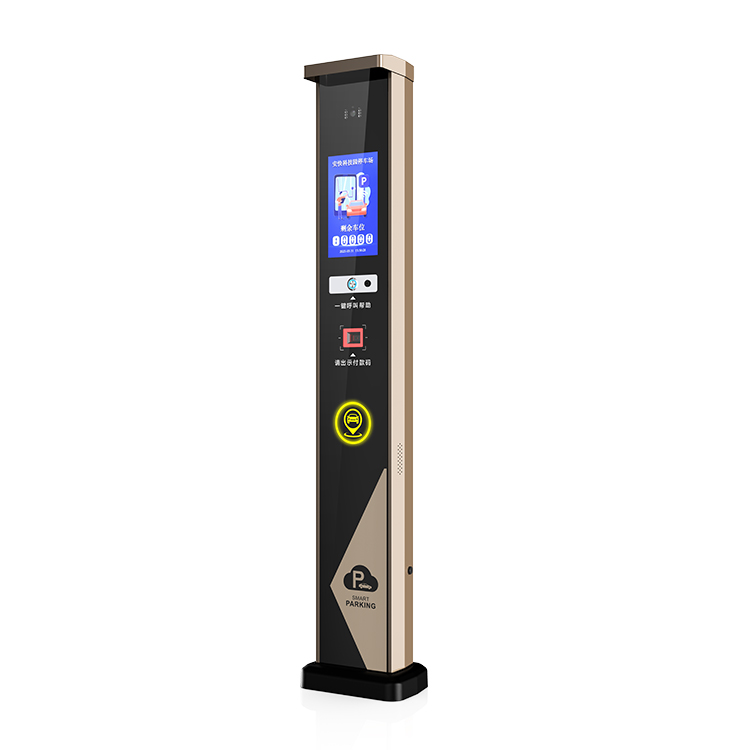

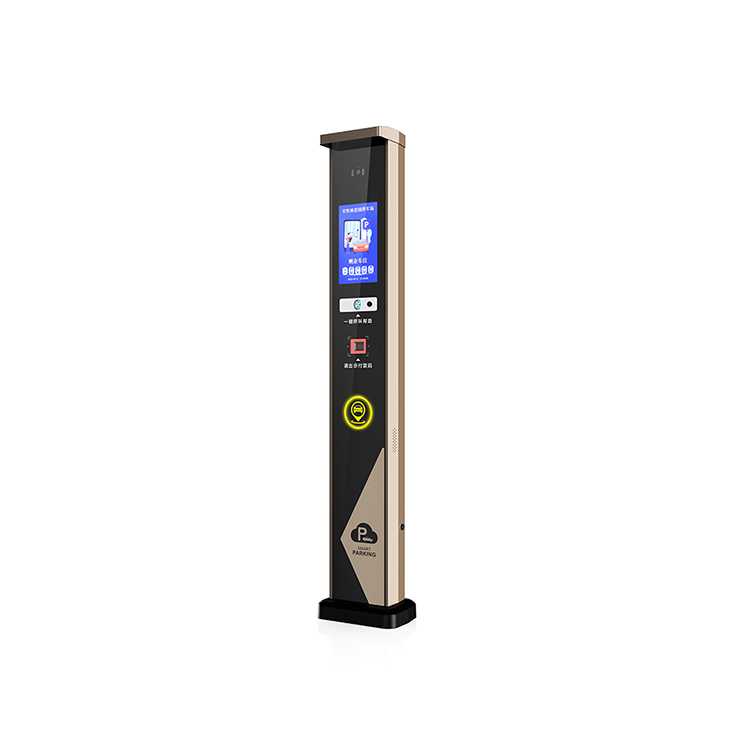

The P833 self-service parking lane terminal is the core terminal equipment enabling parking lots to achieve fully unattended management. It covers the complete self-service workflow from payment to vehicle access, and integrates efficient remote emergency services to create new value for parking managers.

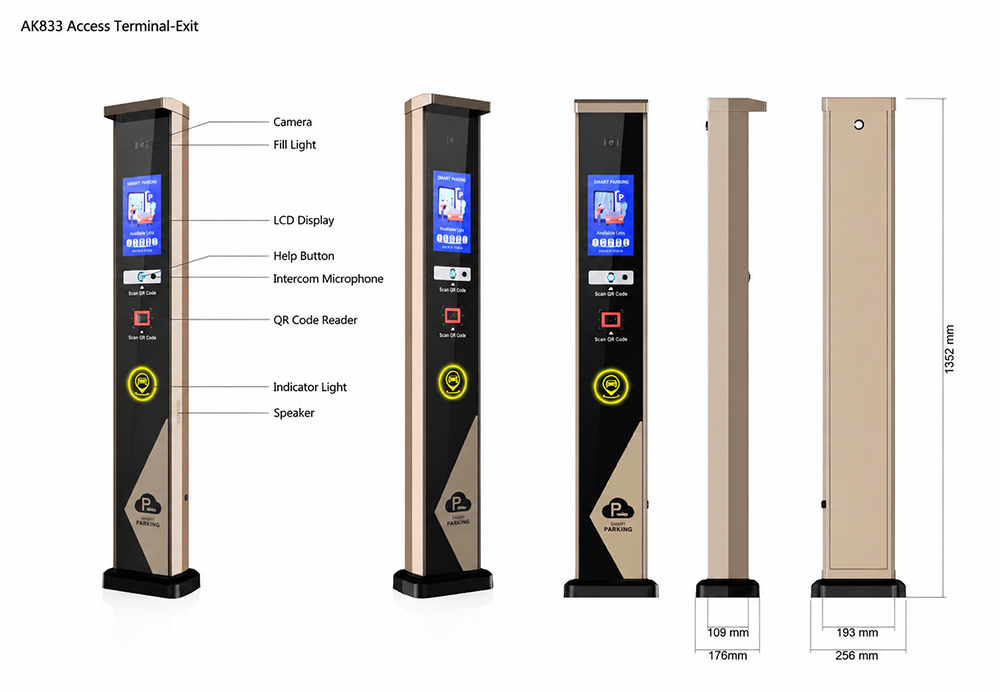

product Details And Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Operating Voltage | 220V±10%, 50Hz |
| Operating Ambient Temperature | -20℃ ~ +85℃ |
| Relative Humidity | ≤90% (Non-condensing) |
| Operating System | Embedded Linux OS |
| Display Screen | 10.1-inch Outdoor High-Brightness LCD Panel |
| Processor | High-performance Quad-Core Processor |
| Intercom Type | Video Intercom, supports manual button trigger and automatic timeout trigger |
| Advertisement Playback | Supports loading and displaying video & image advertisements |

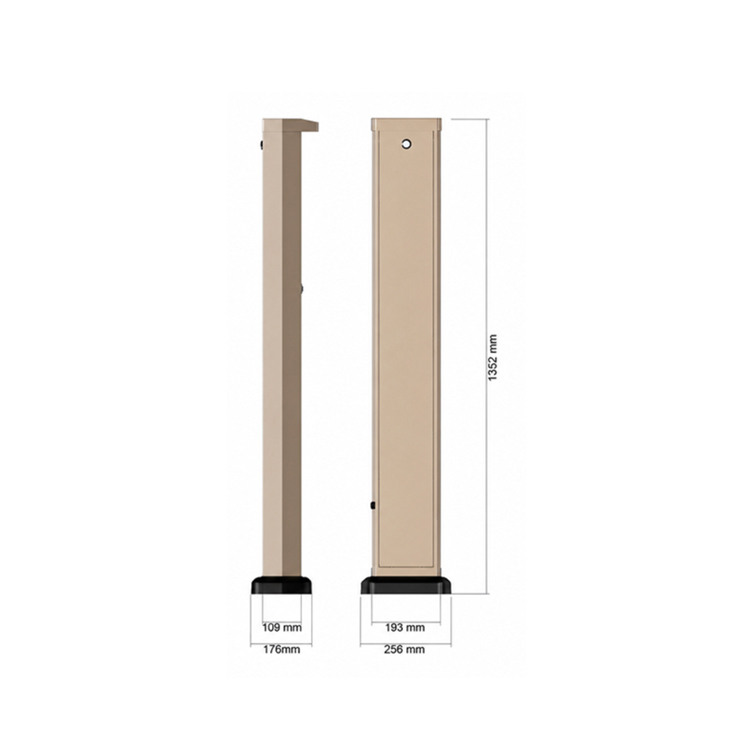

| Overall Dimensions | 256 * 109 * 1352 mm |
| Peripheral Interfaces | 2 × USB 2.0 ports, 1 call button interface, 1 LVDS display interface, 1 microphone port, 1 speaker port, 1 power supply port, 2-channel relay outputs |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
