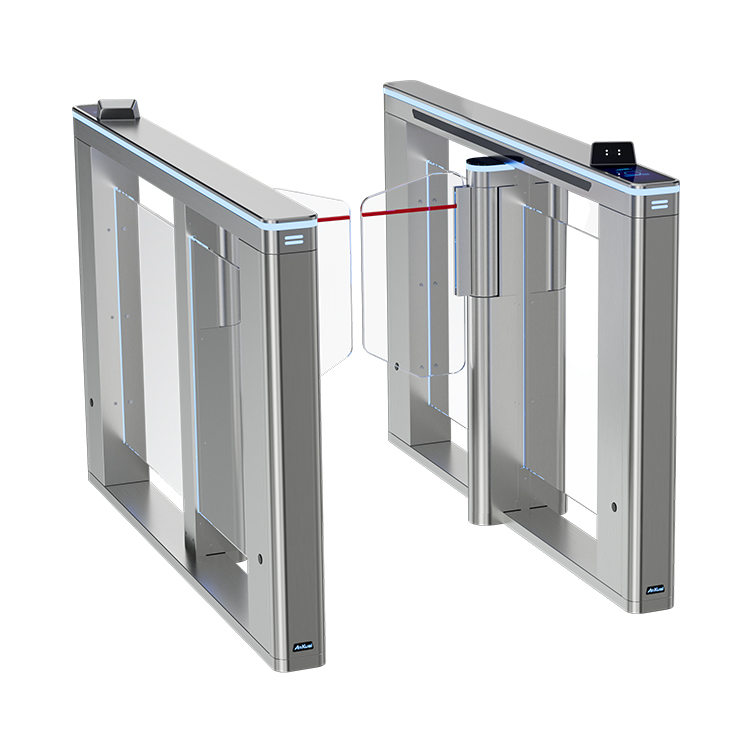

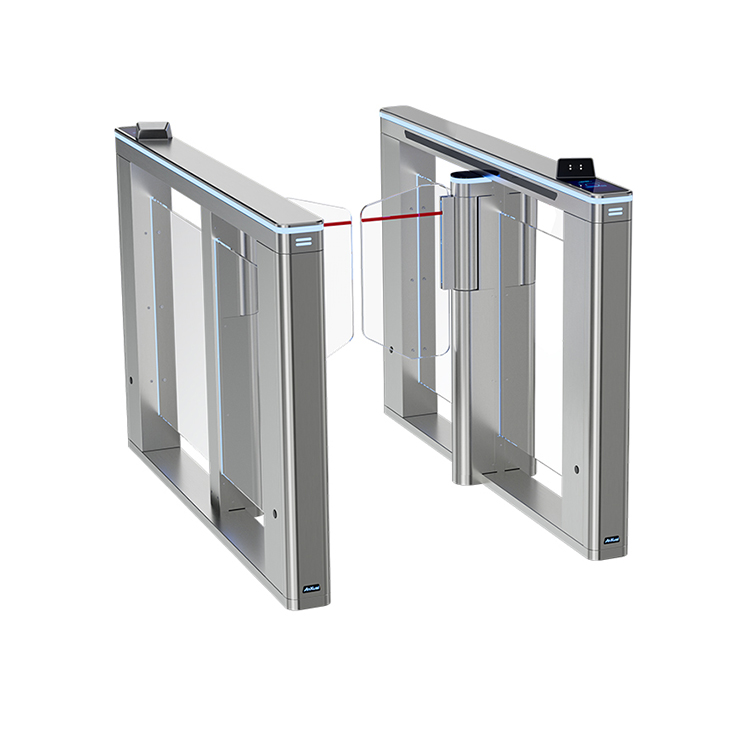

AKT327
Main Functions
-
Problem-self-checking function.
-
Arm turning: Bi-directional.
-
When power off, arm opens automatically; when power on again, arm will be held automatically.
-
When valid card is read and passenger passed, arm can be delayed to close from 1–60s, which can be set in the control panel.
-
Auto-reposition function: After card read, if passenger doesn't pass within regulated time, turnstile will cancel order automatically. The regulated time can be set by managers.
-
Anti-rush function: If there is no open signal, arm will be held tightly.
-
Stable running with little noise.
Short Description
AKT327 Speed Gate is a high-speed access control solution with a standard electrical interface that can be connected with ID cards, IC cards, magnetic cards, barcode cards, etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out. With bi-directional arm operation, fast 1-second open/close time, 8 pairs of photocells for enhanced safety, auto-open on power failure, anti-rush protection, and self-diagnostic capabilities, the AKT327 is ideal for offices, transport hubs, government buildings, stadiums, and other high-traffic environments requiring fast and reliable security.

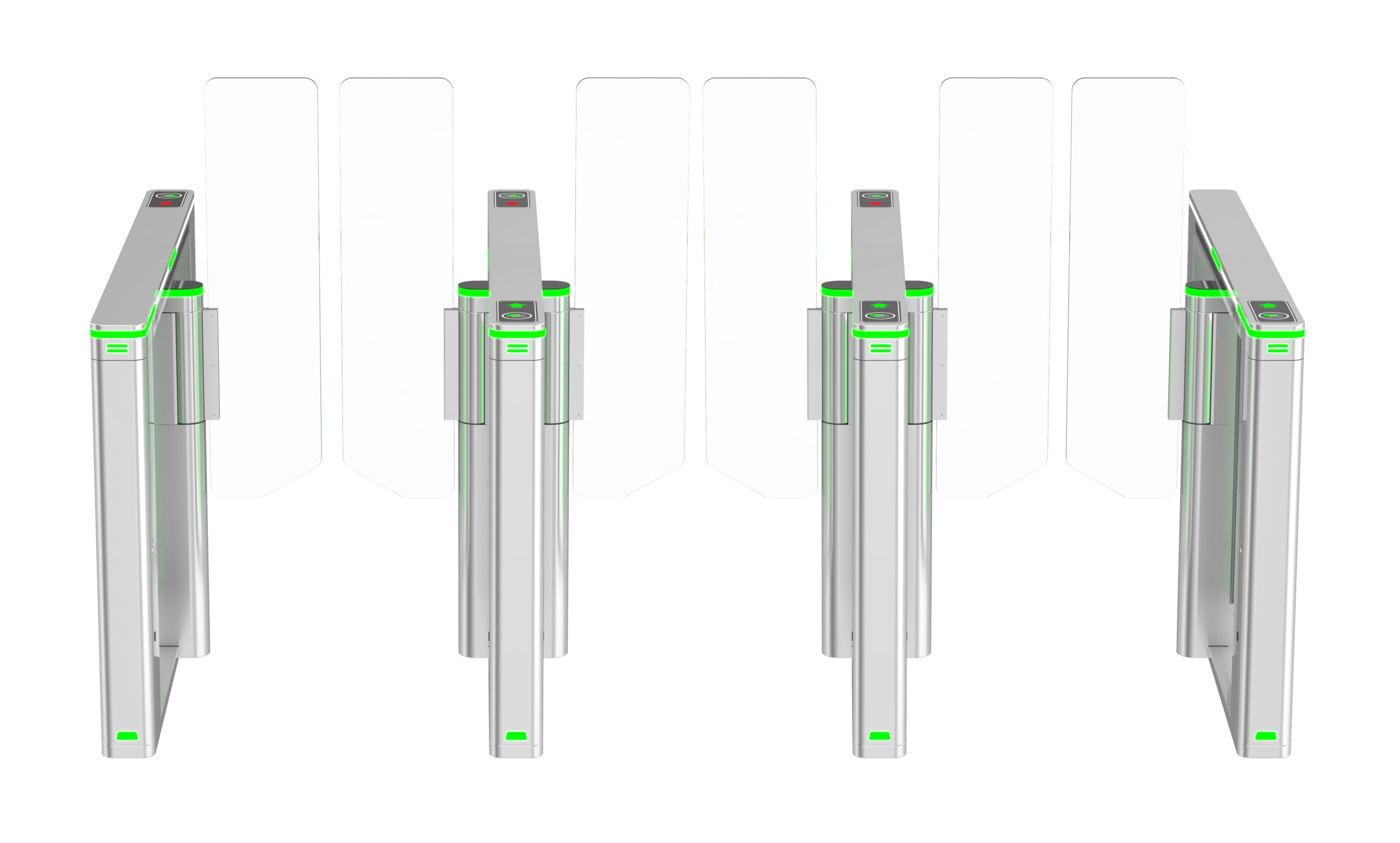

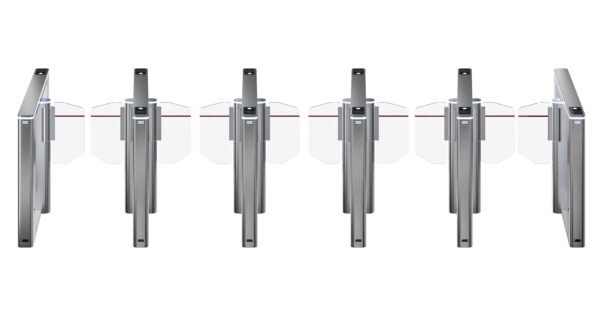

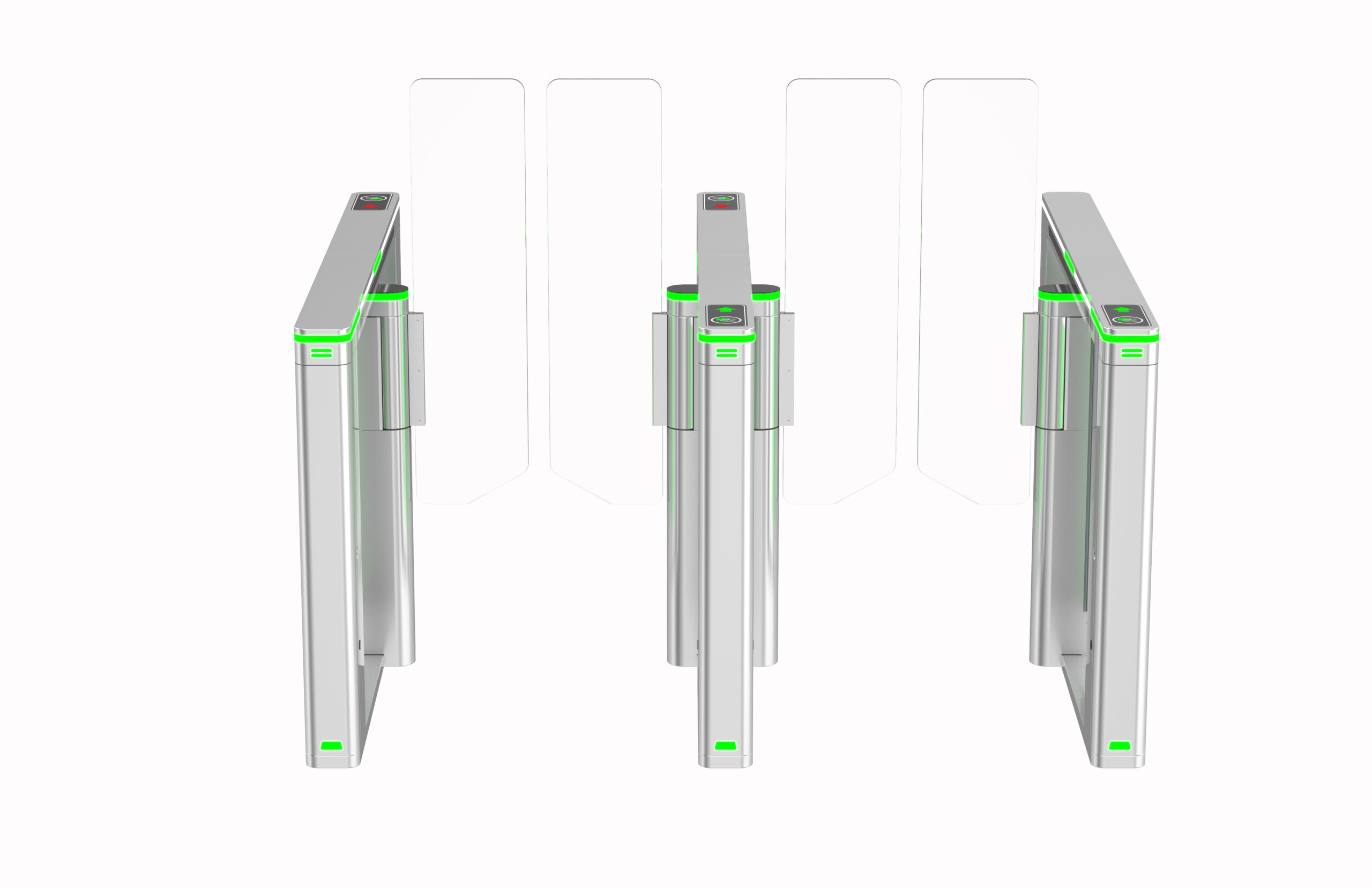

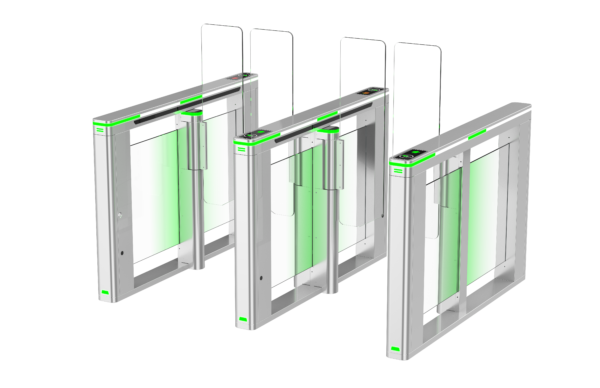

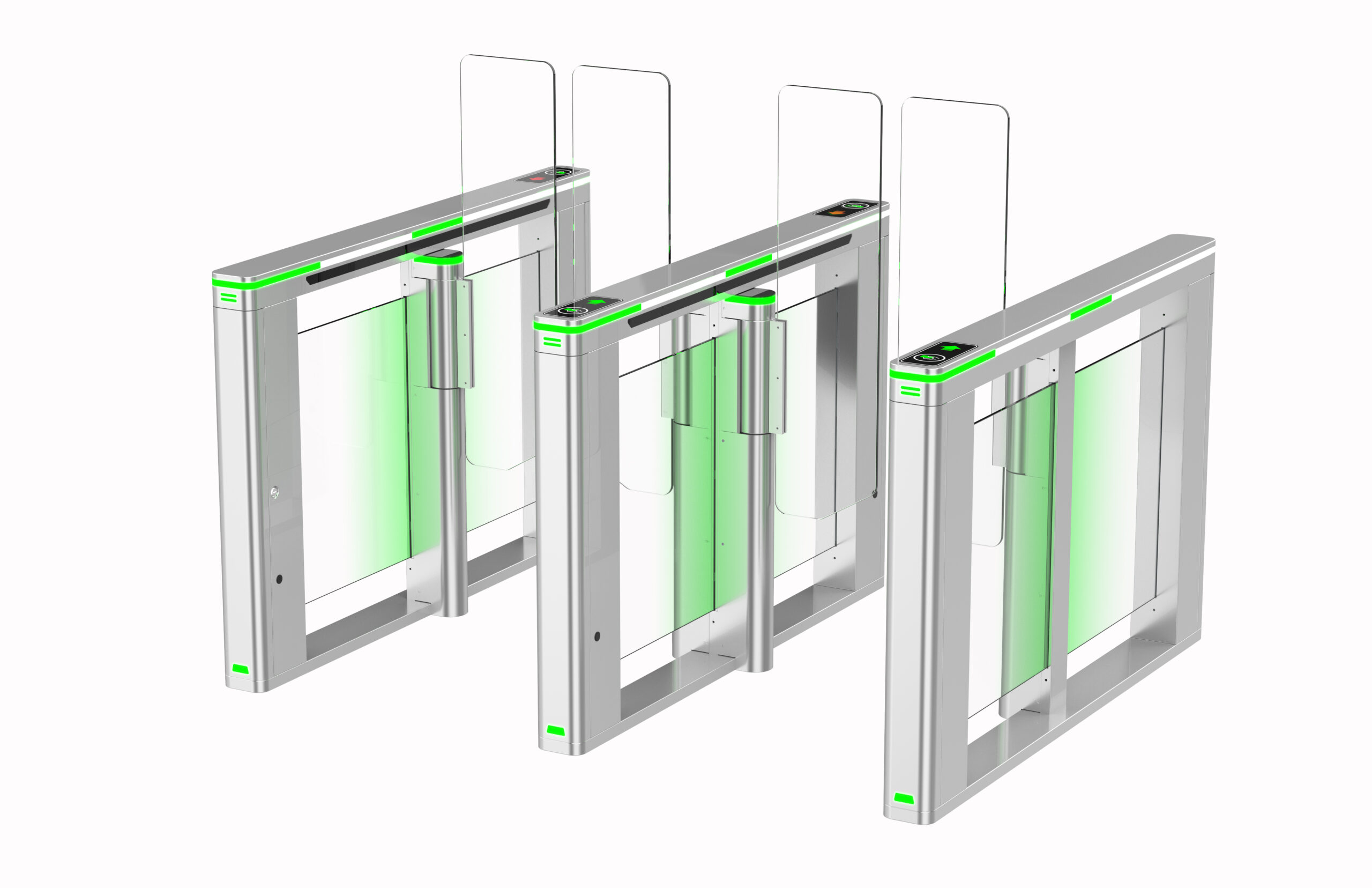

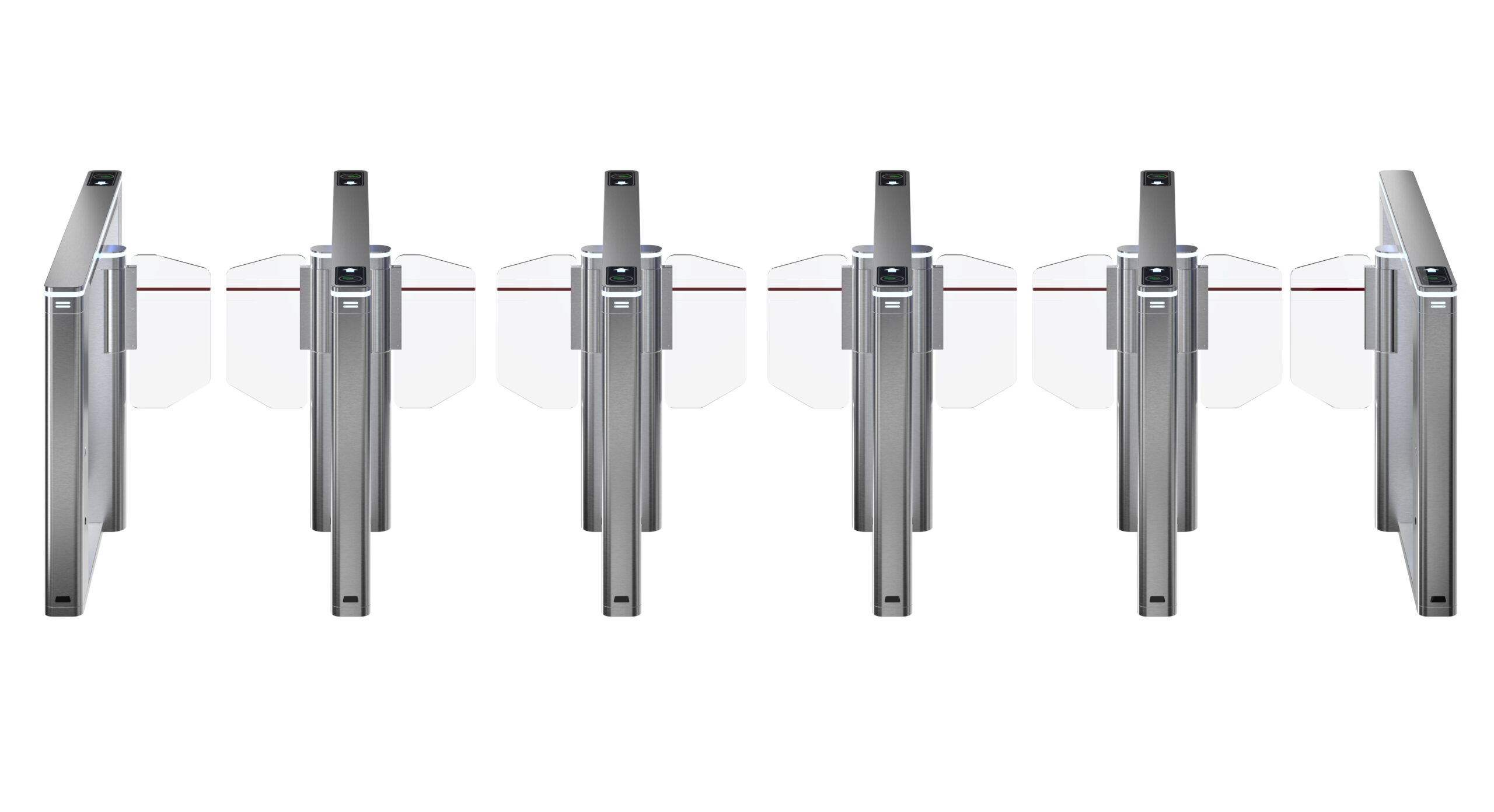

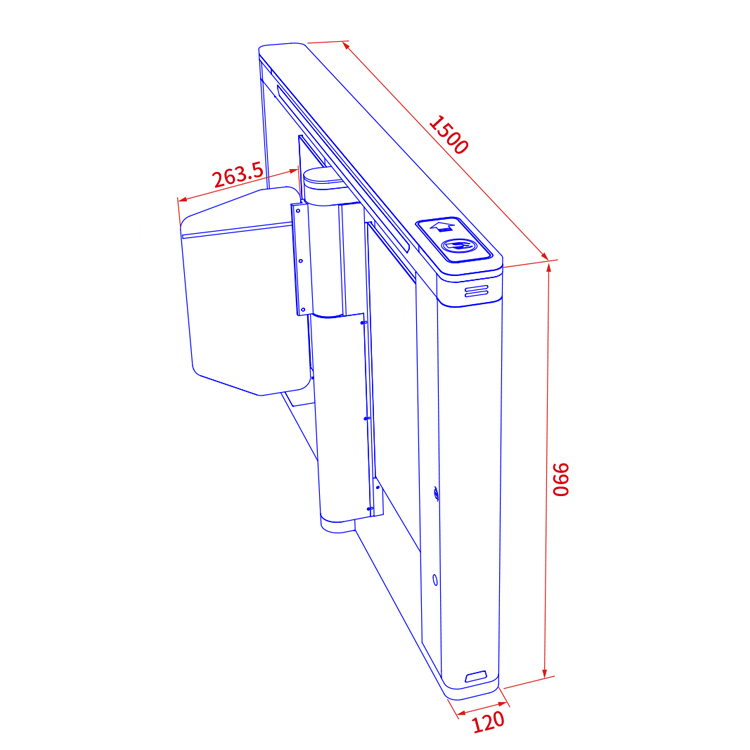

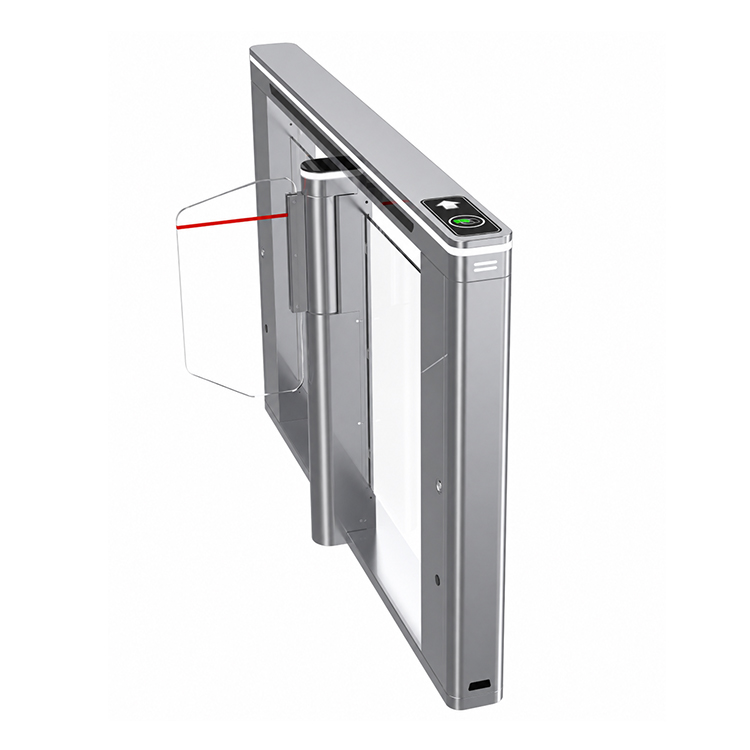

product Details And Dimensions
All the details and dimensions can be customized according to your project site

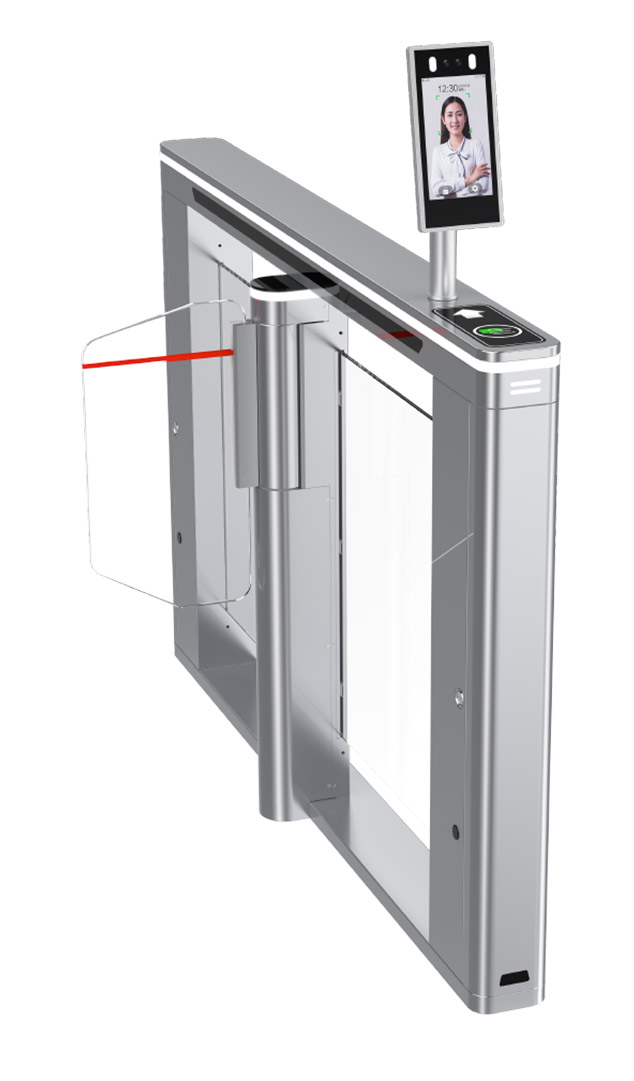

Integrate Any Access Controllers

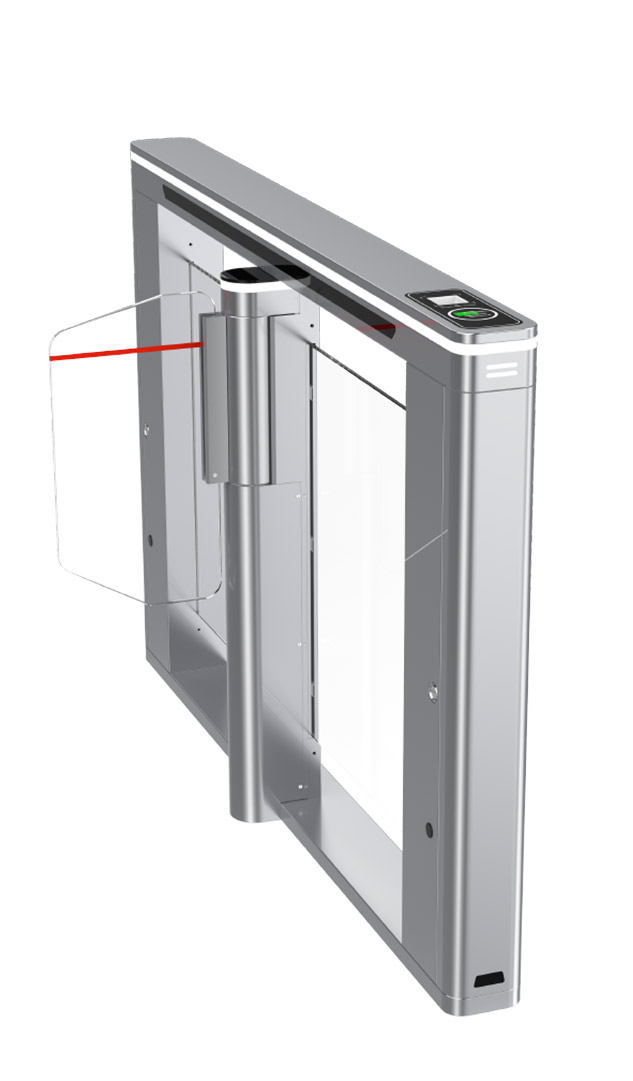

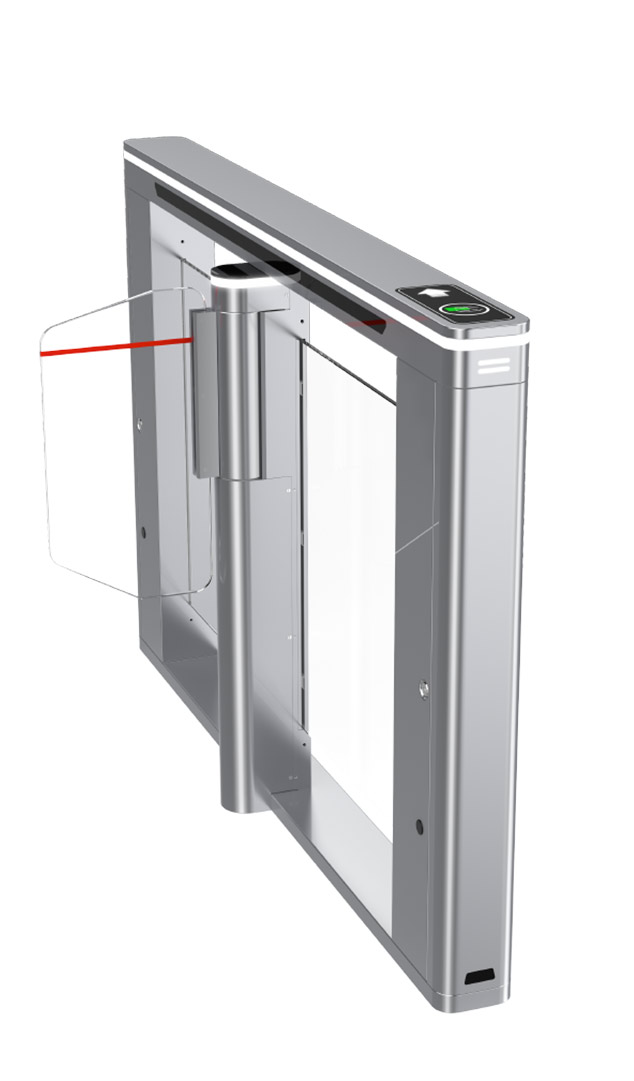

Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.
Product Parameters
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz |
| Power Consumption | DC24V 50W |
| Temperature | -25 to 75°C |
| Humidity | <95%, without condensation |
| Passage Width | <1000mm |
| Passing Speed | 30 persons/min (normal open), 20 persons/min (normal close) |
| Arm Open/Close Time | 1s |
| Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA |
| Communication Interface | RS485 (Distance: <1200m), TTL232 |
| Dimension | 1500 × 120 × 990 mm (Single core) |
| Photocell | 8 pairs |
| Arm Length | <500mm |
| Working Environment | Indoor or outdoors with shed |
| Arm Turning | Bi-directional |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work

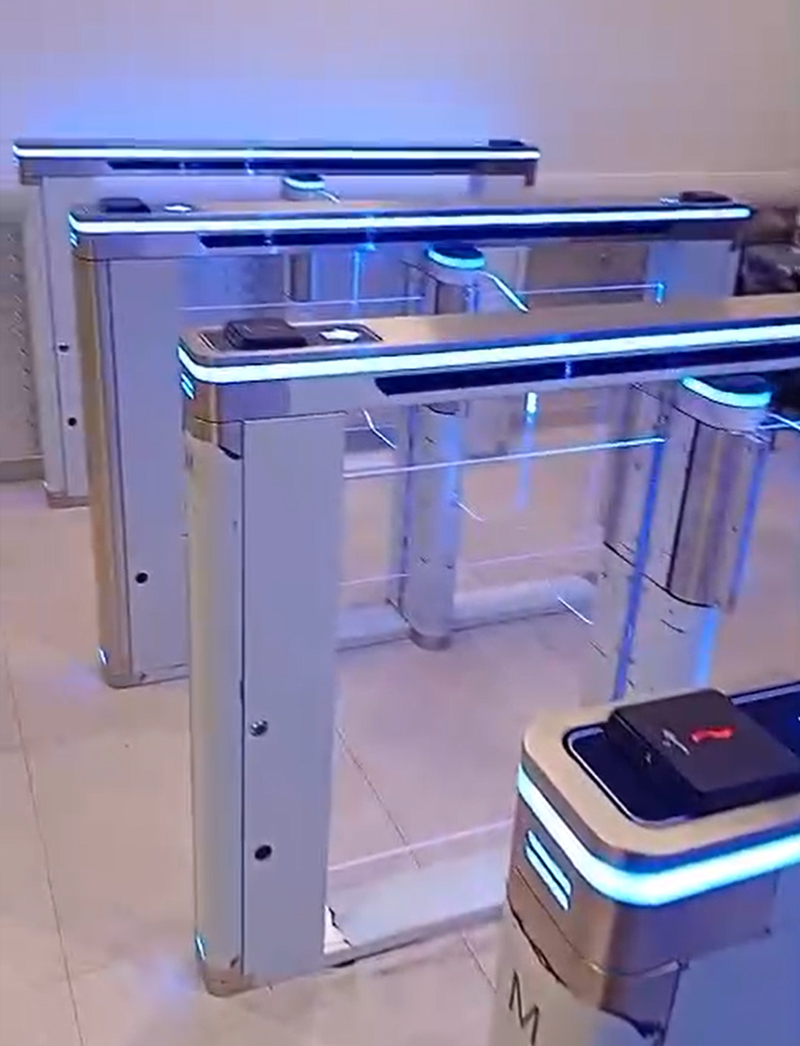

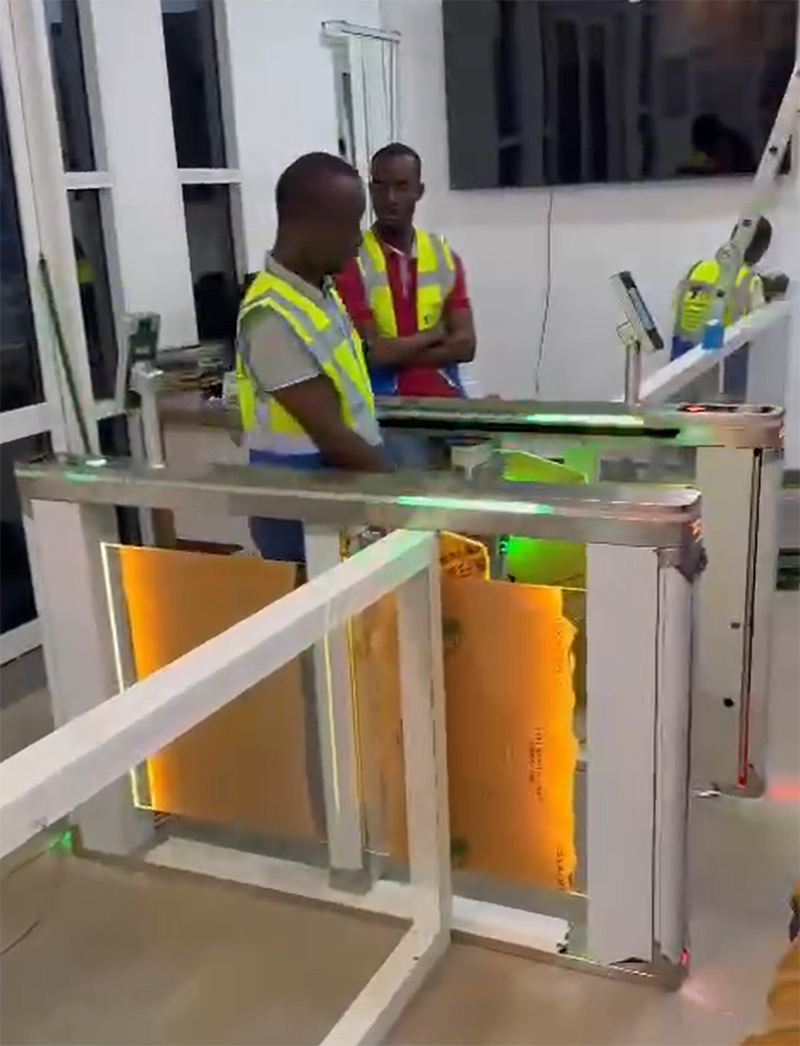

Clients Videos And Gallery
