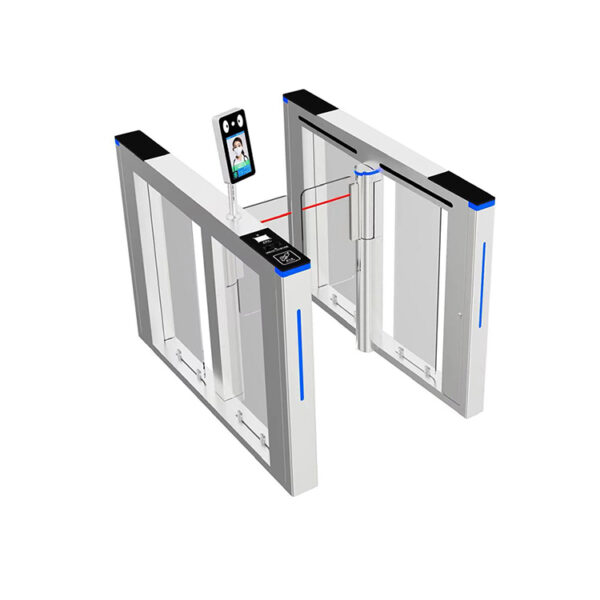

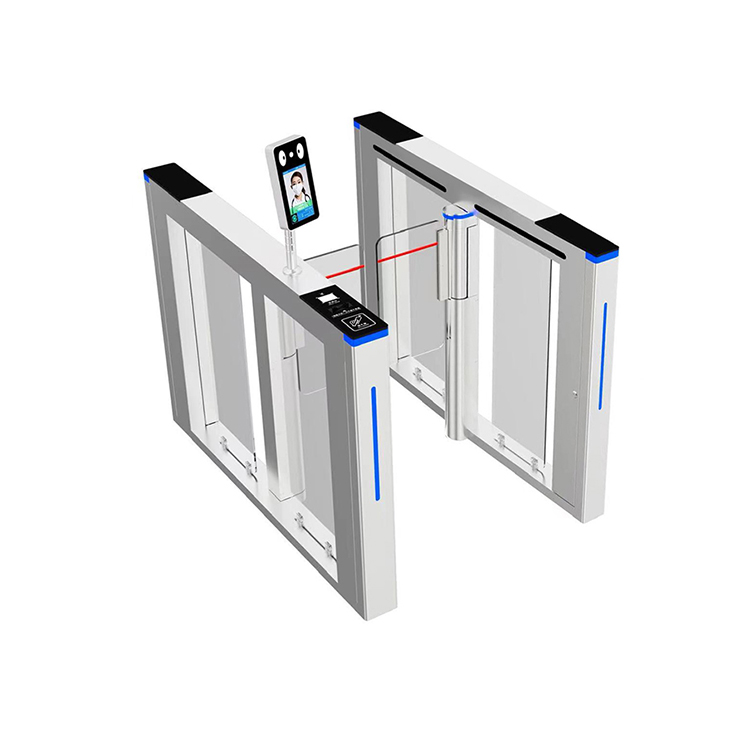

AKT328

Main Functions

Problem-self-checking function.
Arm turning: Bi-direction.
When power off, arm opens automatically; when power on again, arm will be held automatically.
When valid card is read and passenger passed, arm can be delayed to close from 1–60s, which can be set in the control panel.
Auto-reposition function: After card read, if passenger doesn't pass within regulated time, turnstile will cancel order automatically. The regulated time can be set by managers.
Anti-rush function: If there is no open signal, arm will be held tightly.
Stable running with little noise.

Short Description

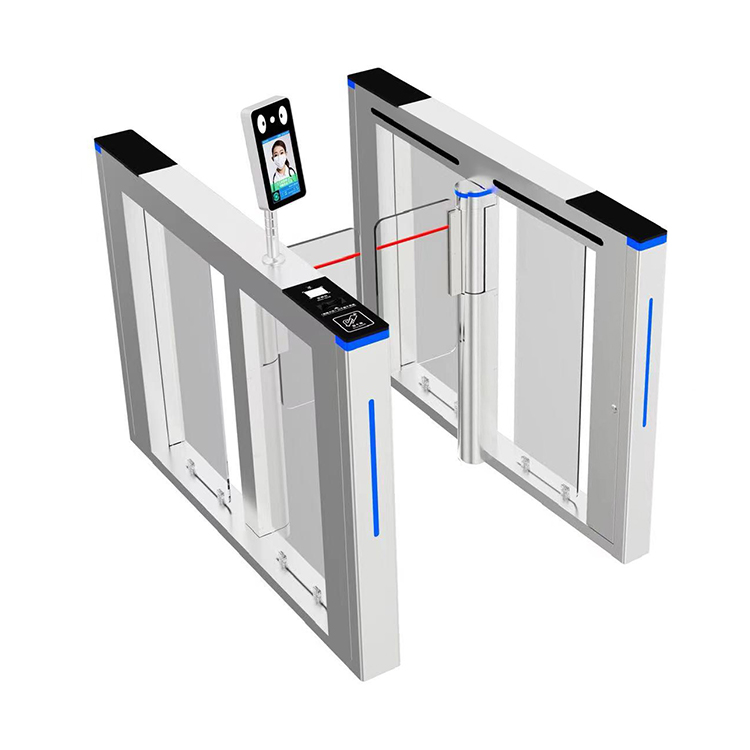

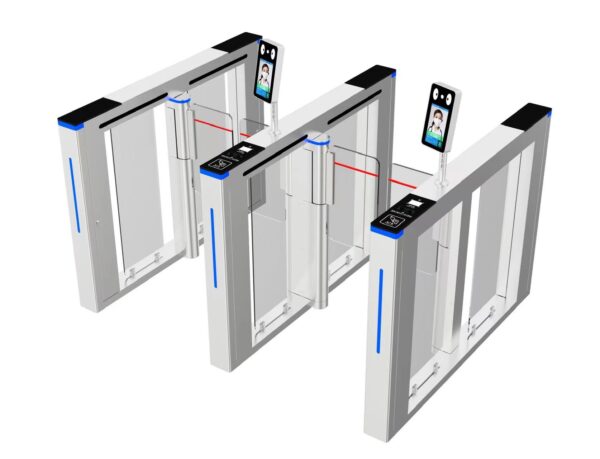

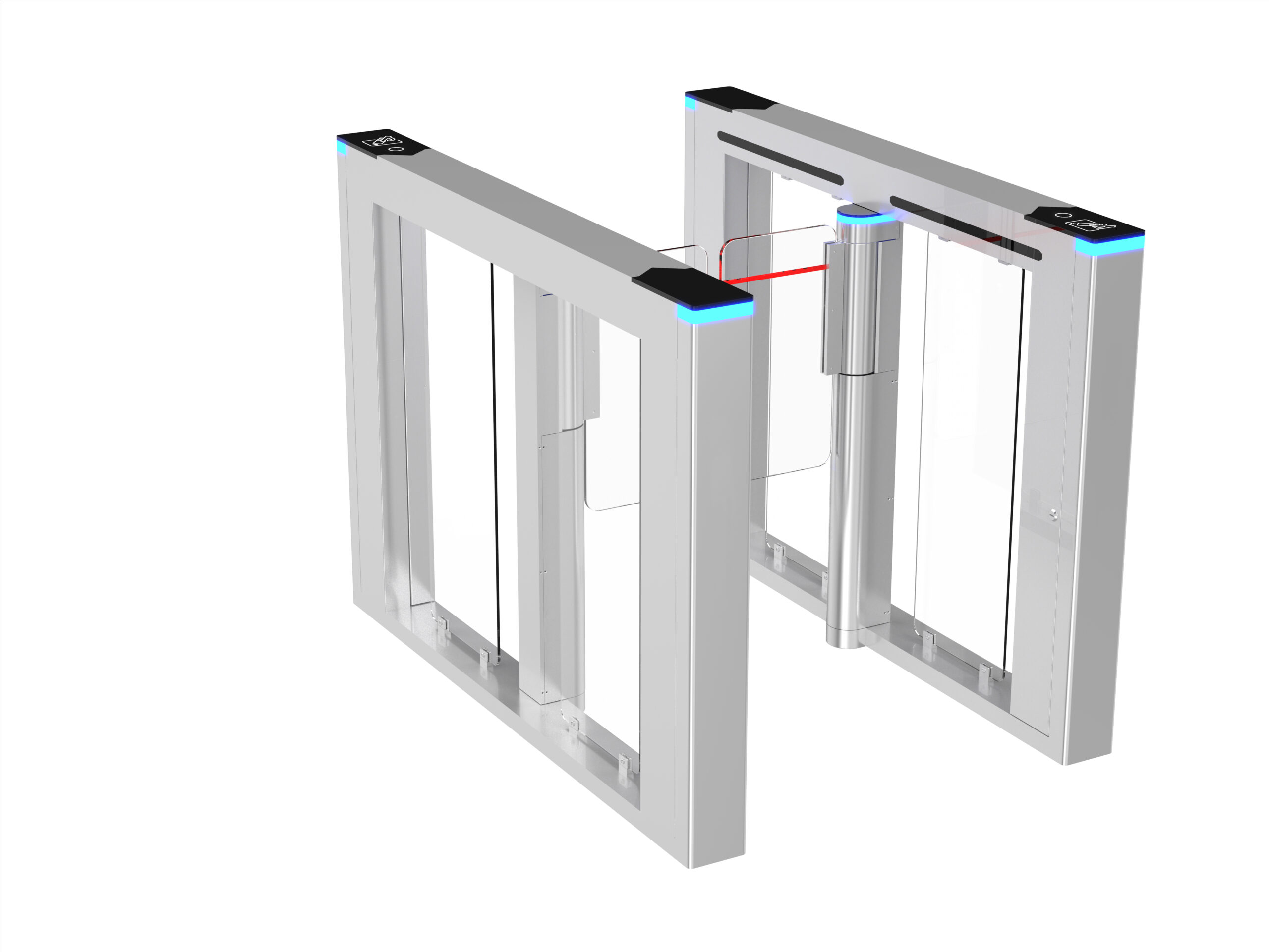

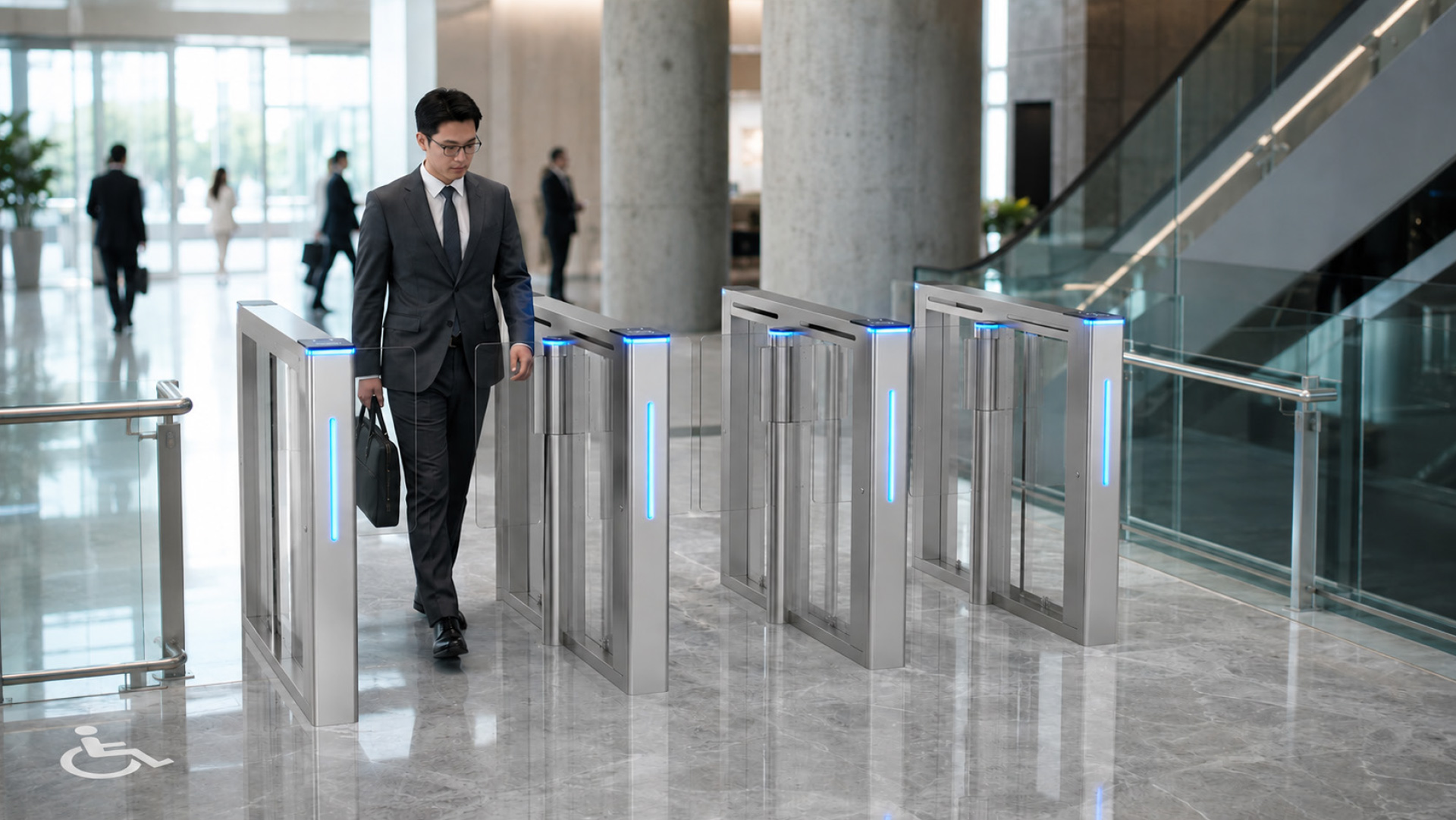

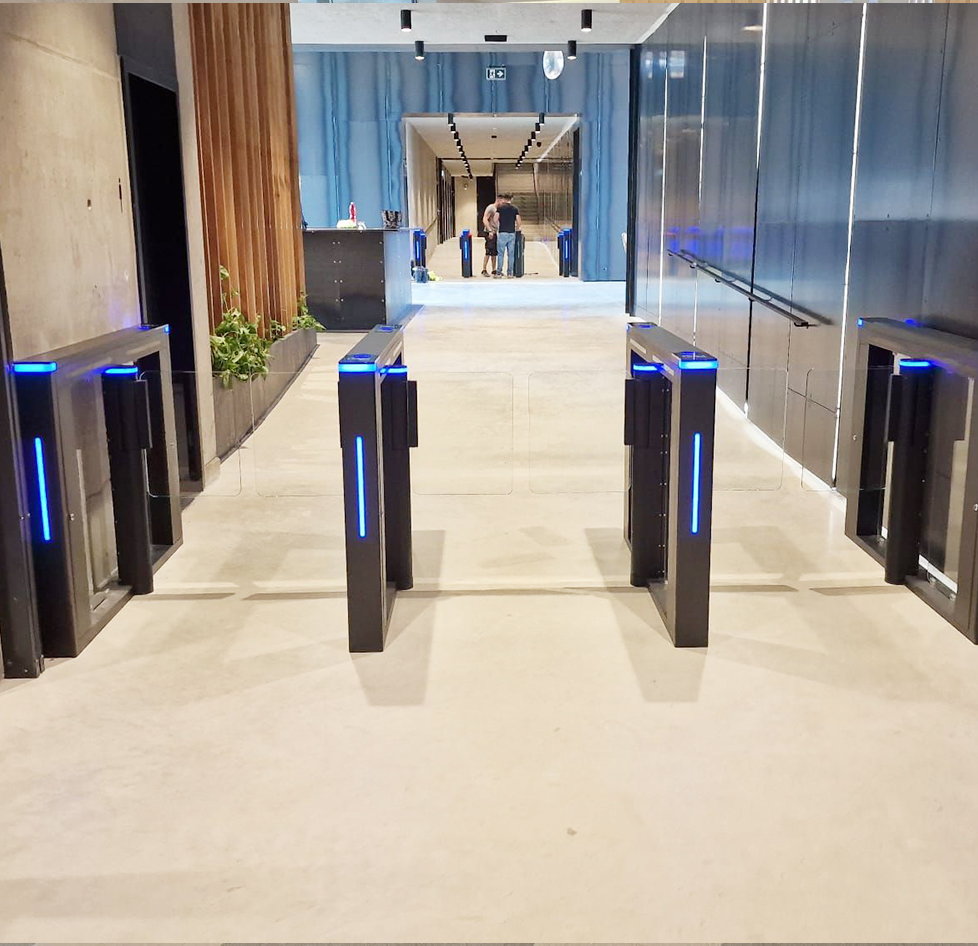

AKT328 Speed Gate is a high-speed access control solution with a standard electrical interface that can be connected with ID cards, IC cards, magnetic cards, barcode cards, etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out. With bi-directional arm operation, fast 1-second open/close time, auto-open on power failure, anti-rush protection, and self-diagnostic capabilities, the AKT328 is ideal for offices, transport hubs, government buildings, stadiums, and other high-traffic environments requiring fast and reliable security.

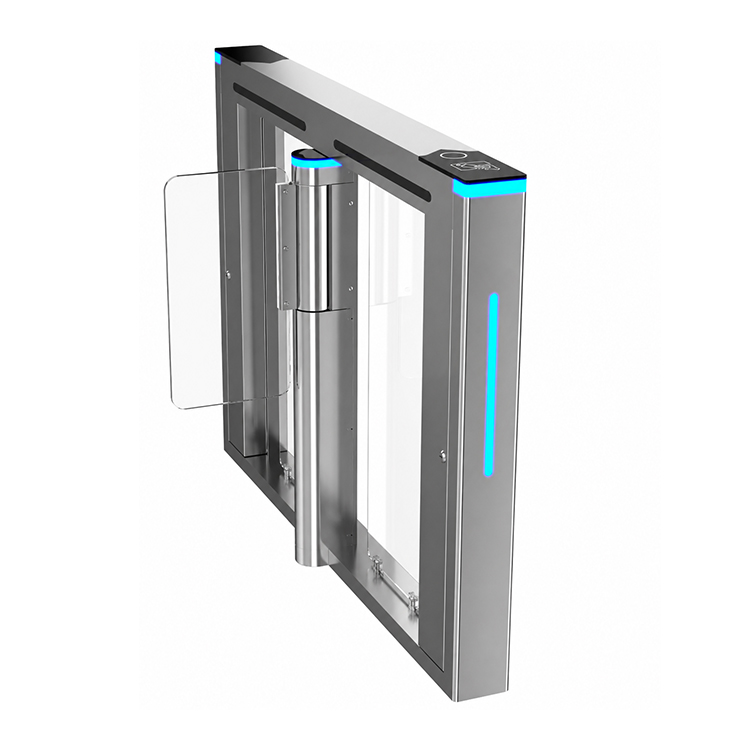

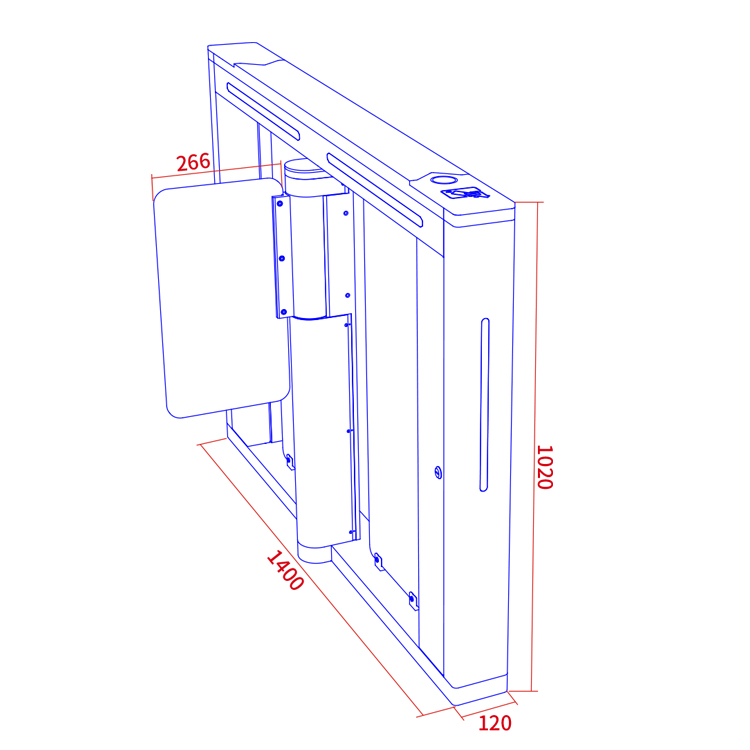

product Details And Dimensions

All the details and dimensions can be customized according to your project site

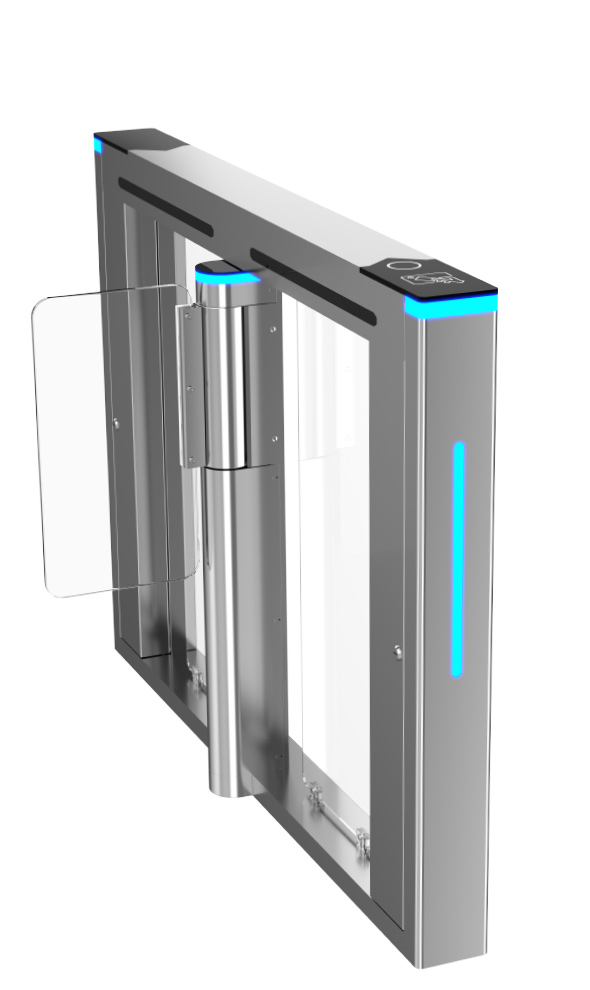

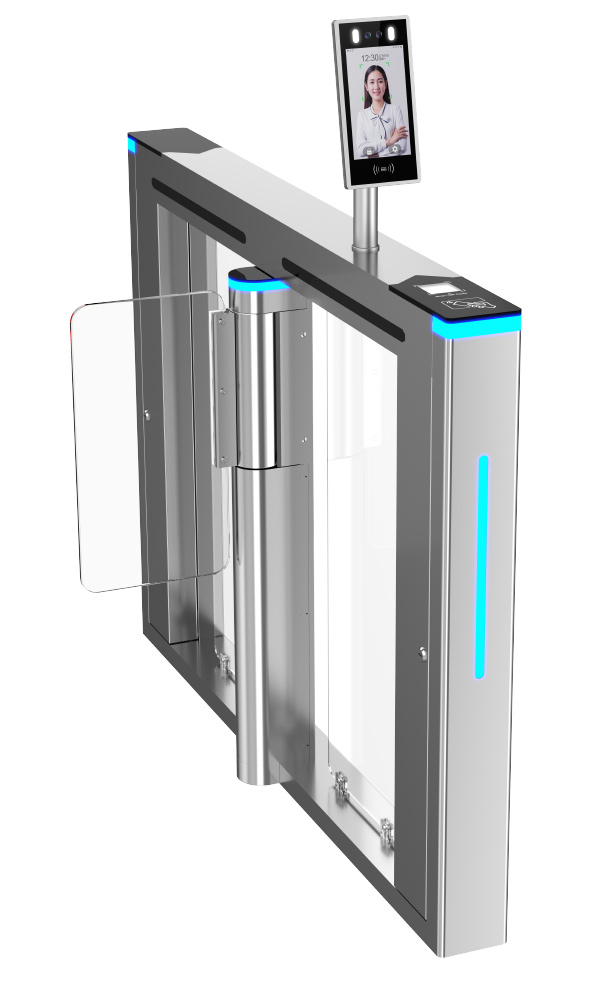

Integrate Any Access Controllers

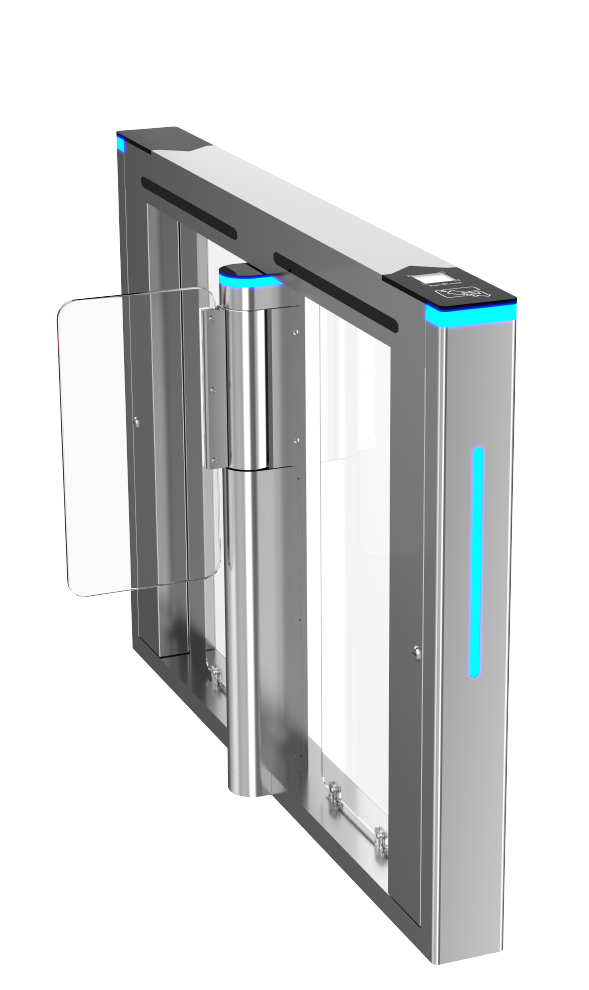

Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.

Product Parameters

Technical Parameters

Parameter	Specification
Power Supply	AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz
Power Consumption	DC24V 50W
Temperature	-25 to 75°C
Humidity	<95%, without condensation
Passage Width	<1000mm
Passing Speed	30 persons/min (normal open), 20 persons/min (normal close)
Arm Open/Close Time	1s
Input Interface	+12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
Communication Interface	RS485 (Distance: <1200m), TTL232
Dimension	1400 × 120 × 1020 mm (Single core)
Arm Length	<500mm
Working Environment	Indoors or outdoors with shed
Arm Turning	Bi-direction
