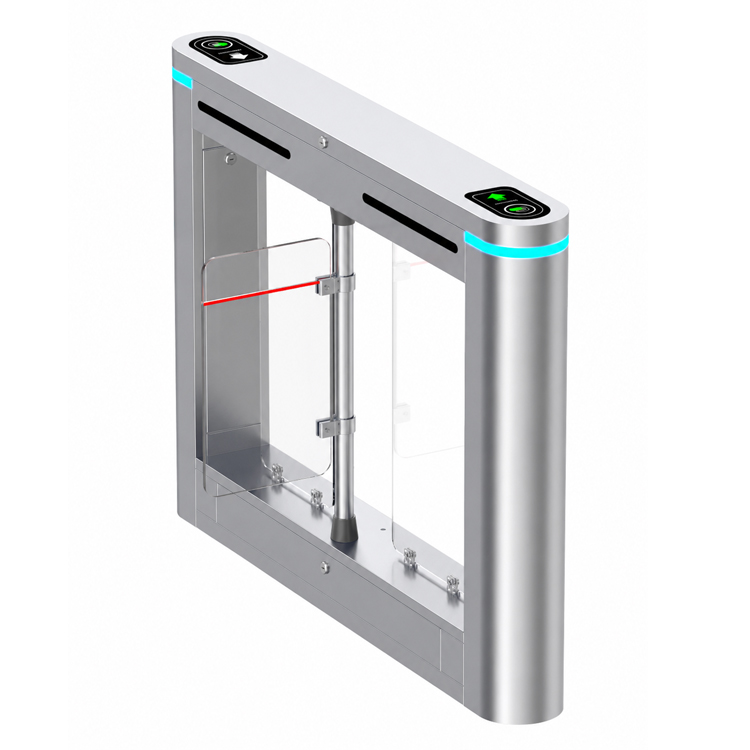

AKT 321

Main Functions

Problem self-checking function.
Arm turning: Bi-directional.
When power is off, the arm opens automatically and remains held automatically when power is restored.
After a valid card read and passenger passage, the arm can be set to close automatically after 1–60 seconds through the control panel.
Auto-reposition function: After card reading, if the passenger does not pass within the specified time, the turnstile automatically cancels access. The delay time can be configured by administrators.
Anti-rush function: If no open signal is received, the arm remains locked securely.
Stable operation with low noise output.

Short Description

The AKT320 Sliding Gate is a high-security pedestrian access control system designed for intelligent and efficient passage management. Equipped with a powerful servo motor, bi-directional operation, and advanced access control integration, it provides smooth, reliable, and secure pedestrian flow. The gate supports RFID cards, IC cards, magnetic cards, barcode readers, and other identification systems. With automatic opening during power failure, anti-intrusion protection, self-diagnostic capabilities, and robust stainless-steel construction, the AKT320 is ideal for corporate offices, transportation hubs, government facilities, stadiums, and other high-traffic environments requiring controlled access.

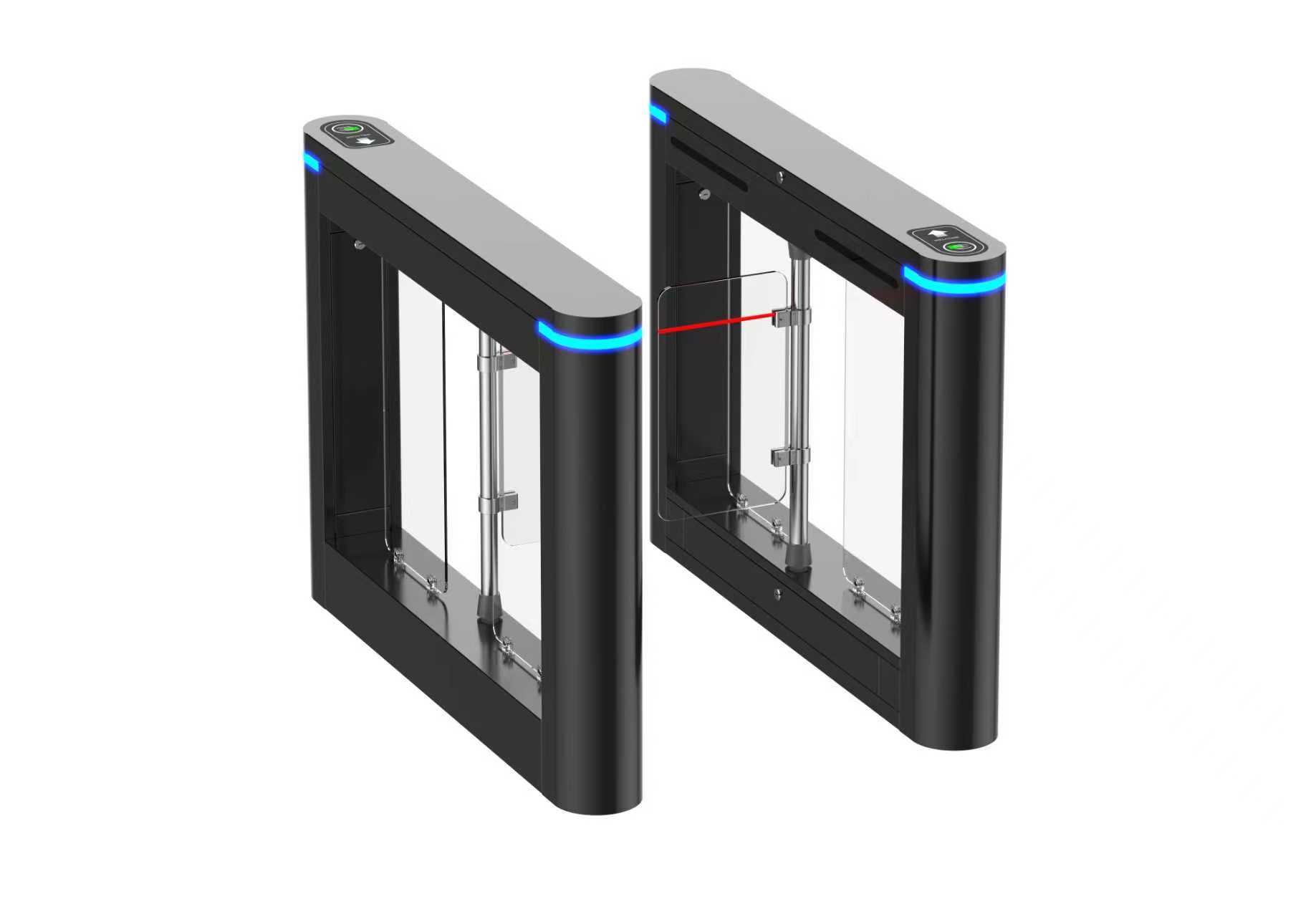

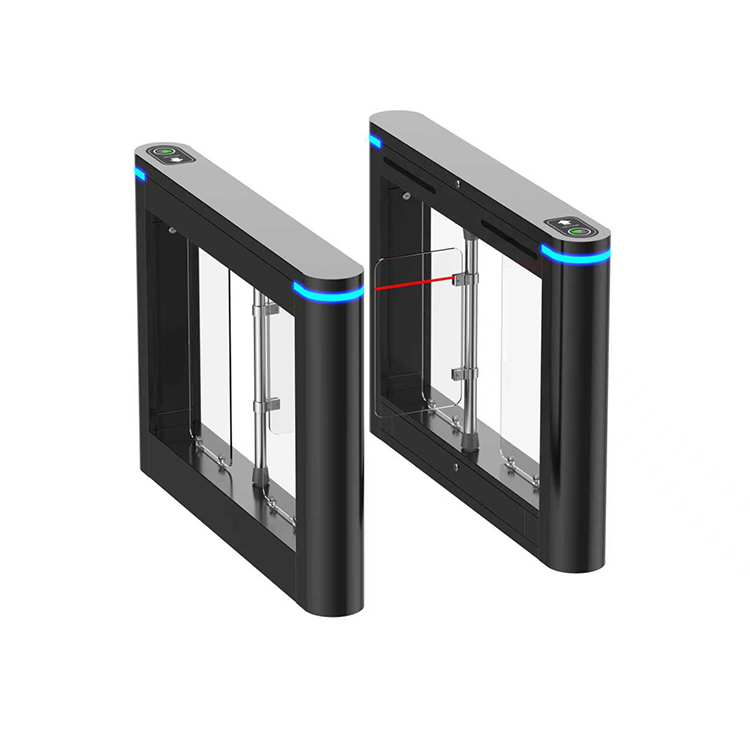

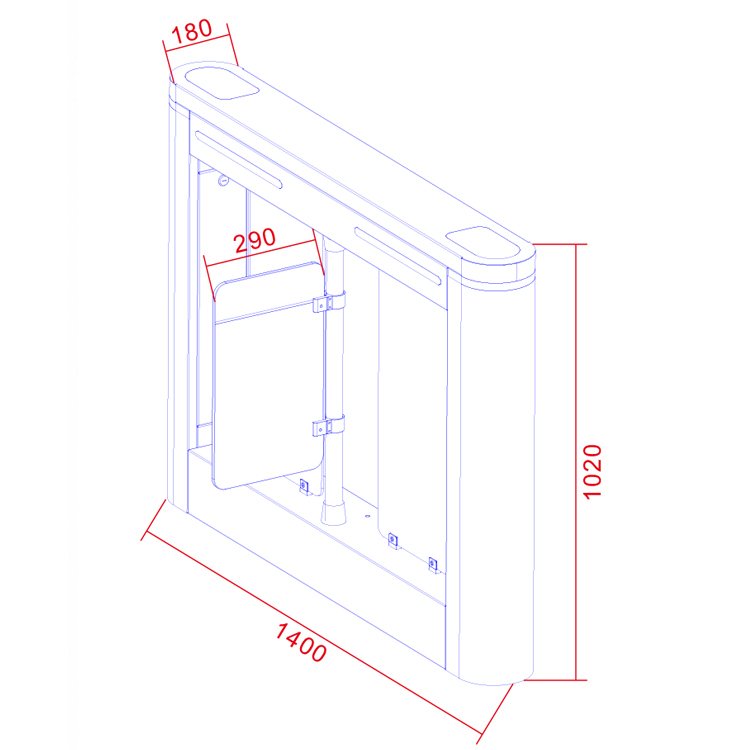

product Details And Dimensions

All the details and dimensions can be customized according to your project site

Integrate Any Access Controllers

Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.

Product Parameters

Parameter	Description
Power Supply	AC220V ±10V, 50Hz / AC110V ±10V, 60Hz
Power Consumption	Servo Motor 98W / 24V
Temperature	-15°C to 60°C
Humidity	<95%, without condensation
Passage Width	≤ 550 mm
Passing Speed	30 persons/min (normal open), 20 persons/min (normal close)
Arm Open / Close Time	1 second
Input Interface	+12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
Communication Interface	RS485 (Distance ≤1200m)
Dimension	1780 × 300 × 1027 mm
Arm Length	≤ 285 mm
Working Environment	Indoor or outdoor locations with shed
Arm Turning	Bi-directional
