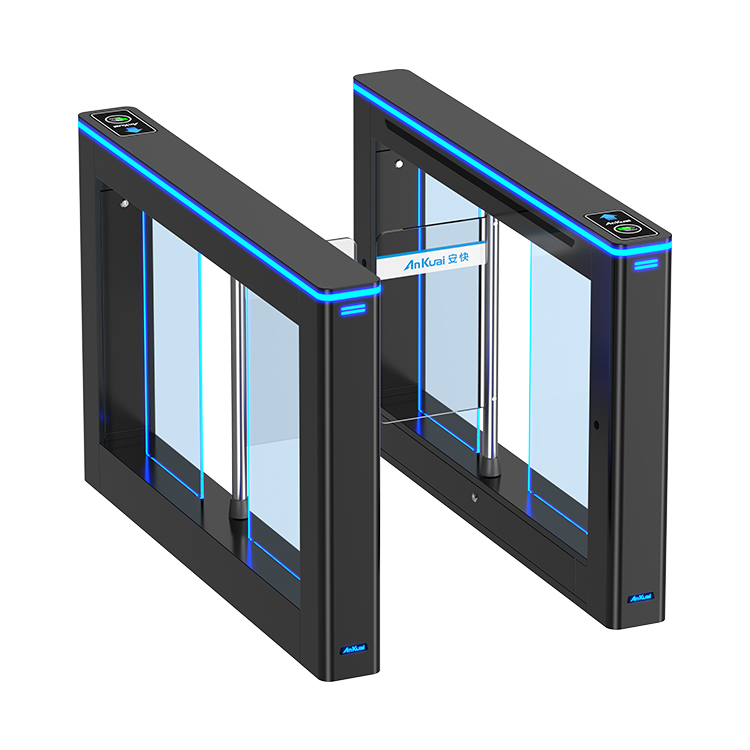

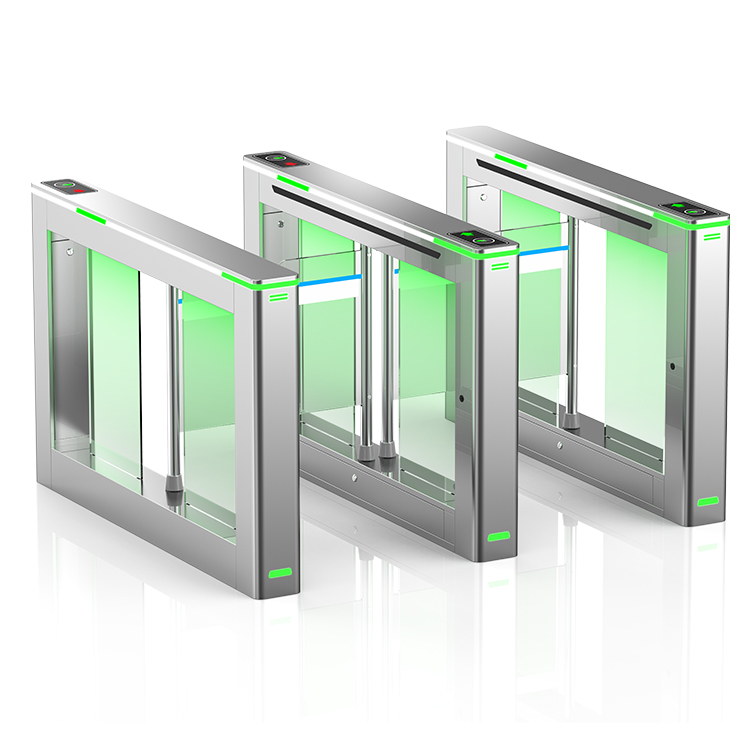

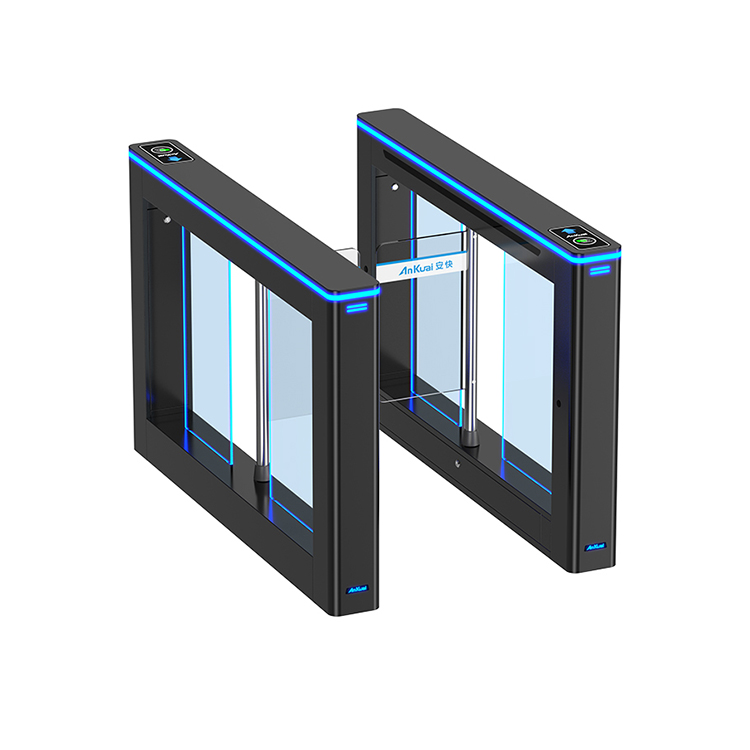

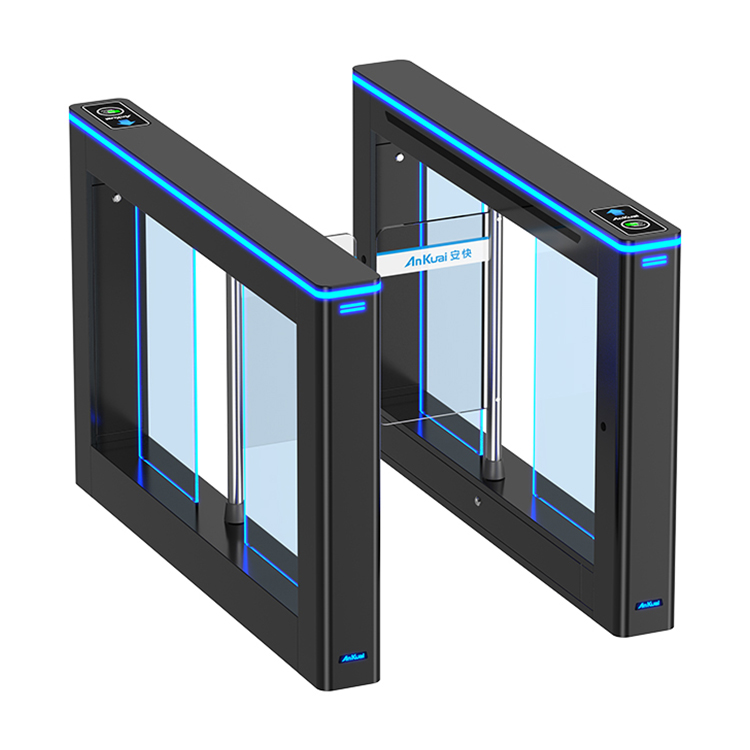

AKT322
Main Functions
-
Problem-self-checking function.
-
Arm turning: Bi-direction.
-
When power off, arm opens automatically; when power on again, arm will be held automatically.
-
When valid card is read and passenger passed, arm can be delayed to close from 1–60s, which can be set in the control panel.
-
Auto-reposition function: After card read, if passenger doesn't pass within regulated time, turnstile will cancel order automatically. The regulated time can be set by managers.
-
Anti-rush function: If there is no open signal, arm will be held tightly.
-
Stable running with little noise.
Short Description
The AKT322 Swing Turnstile is a sleek, cylindrical pedestal-style access control solution designed for secure and orderly pedestrian passage. It features a standard electrical interface compatible with ID cards, IC cards, magnetic cards, barcode cards, and other identification systems. The integrated access control system ensures only authorized individuals can enter or exit. With bi-directional arm operation, auto-open on power failure, anti-rush protection, and self-diagnostic capabilities, the AKT322 is ideal for offices, transport hubs, government buildings, stadiums, and other high-traffic environments requiring reliable security and smooth pedestrian flow.
product Details And Dimensions
All the details and dimensions can be customized according to your project site
Integrate Any Access Controllers
Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.
Product Parameters
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | AC220V ± 10V, 50Hz / AC110V ± 10V, 60Hz |
| Power Consumption | 100W / 24V |
| Temperature | -15 to 60°C |
| Humidity | <95%, without condensation |
| Passage Width | <1200mm |
| Passing Speed | 30 persons/min (normal open), 20 persons/min (normal close) |
| Arm Open/Close Time | 2.5s |
| Input Interface | +12V electrical signal or impulse signal with width >100ms, drive current >10mA |
| Communication Interface | RS485 (Distance: <1200m) |
| Dimension | Ø 168 × 1050 mm |
| Arm Length | <700mm |
| Working Environment | Indoors or outdoors with shed |
| Arm Turning | Bi-direction |
Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
