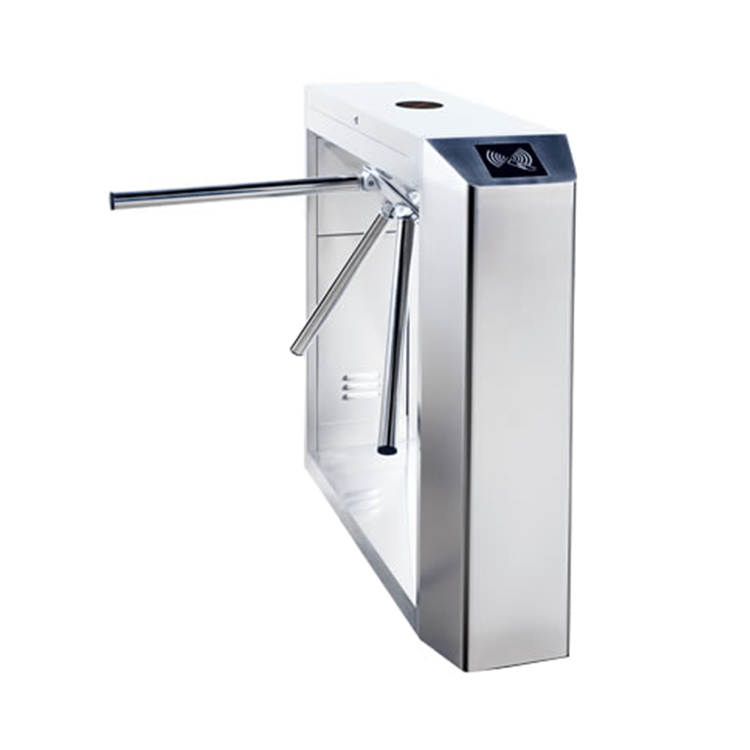

AKT305

Main functions:

Auto-reposition function: after card read, passengers don't pass within regulated time period, turnstile will be locked automatically
Bi-direction passing or uni-direction
When power off, arm will be dropped automatically
Self-lock function: arm will be locked automatically after passenger passing
LED passing arrow can show direction to indicate passenger to pass
Standard interfaces are convenient for connection with different readers which can send relay signal
RS485 interfaces can connect turnstile with computer directly
Stable running with little noise

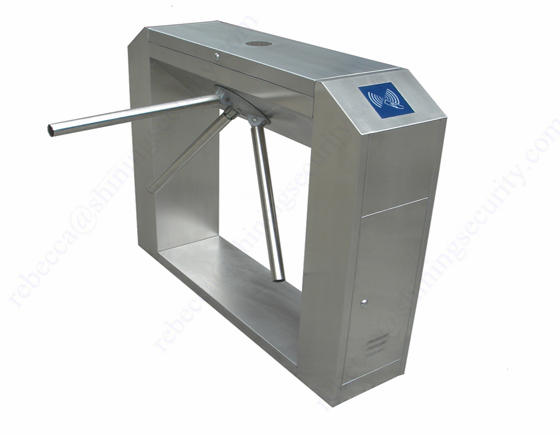

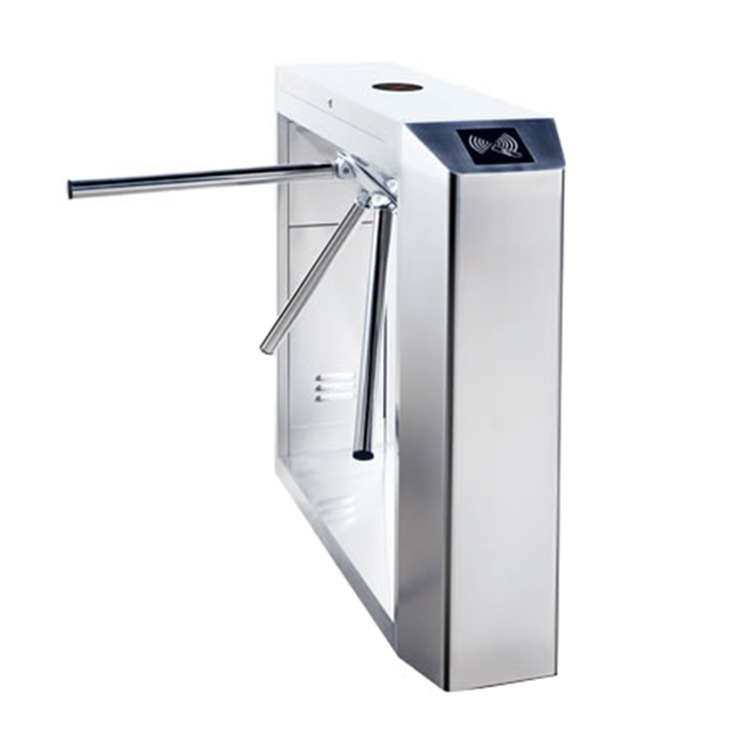

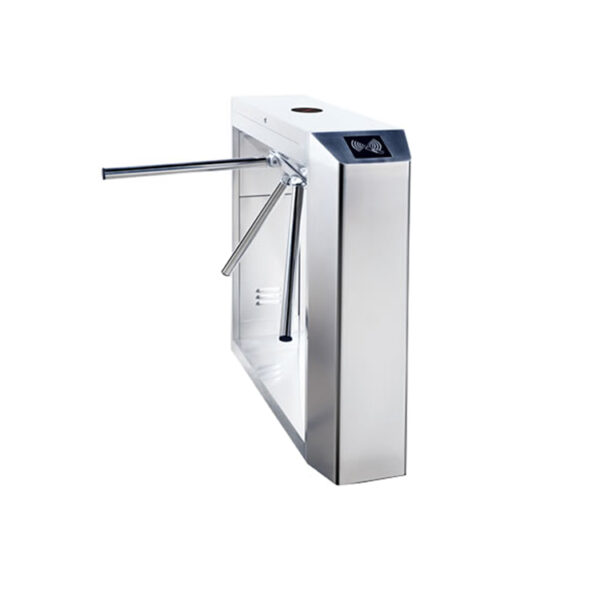

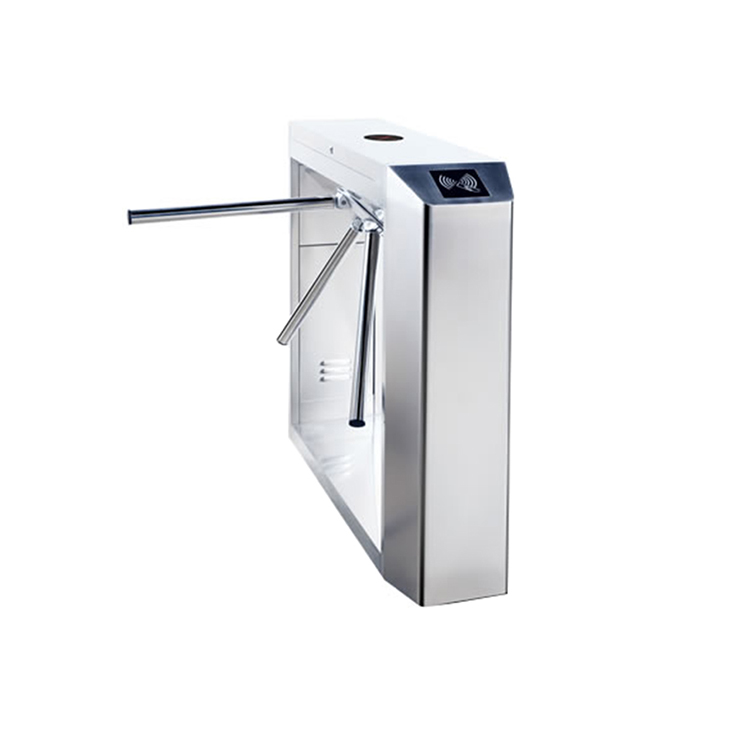

AnKuai AKT305 box turnstile – a robust tripod turnstile with bi-directional access control, RS485 connectivity, and auto-reposition function, available in 304 stainless steel for indoor and outdoor use.

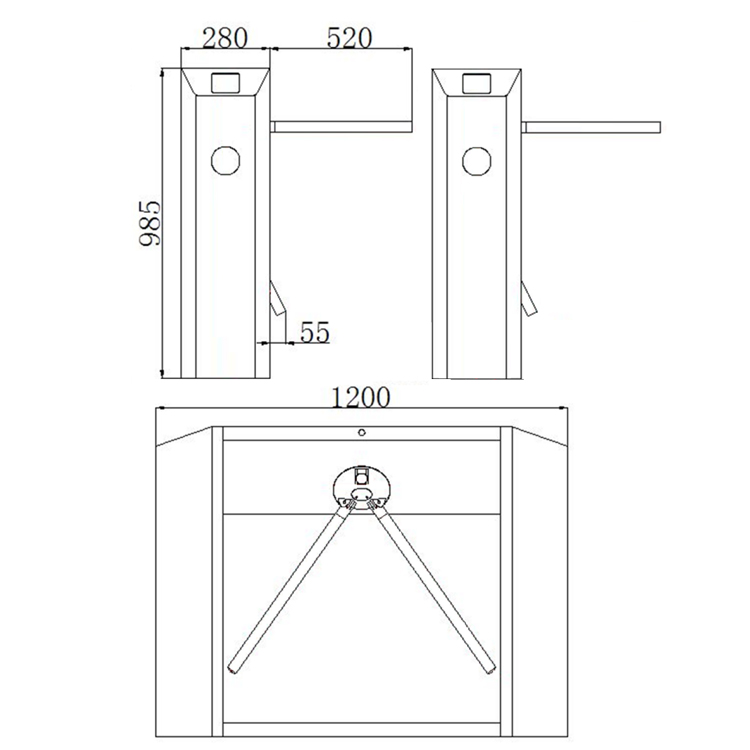

product Details And Dimensions

All the details and dimensions can be customized according to your project site

AKT305

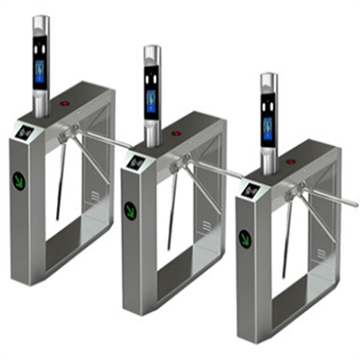

Integrate Any Access Controllers

Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.

Product Parameters

Technical parameters:

Parameter	Value
Power supply	AC220V±10V, 50Hz / AC110V±10V, 60Hz
Temperature	-15 to 60°C
Humidity	<95%, without concretion
Passage width	600mm
Passing speed	30 persons/min (normal open), 20 persons/min (normal close)
Arm open/close time	2s
Input interface	+12V electrical signal or impulse signal, width >100ms, drive current >10mA
Communication interface	RS485 (distance: ≤1200m)
Working environment	Indoors or outdoors with shed
Arm turning	Uni-direction or bi-direction
Material	304 stainless steel (standard)
