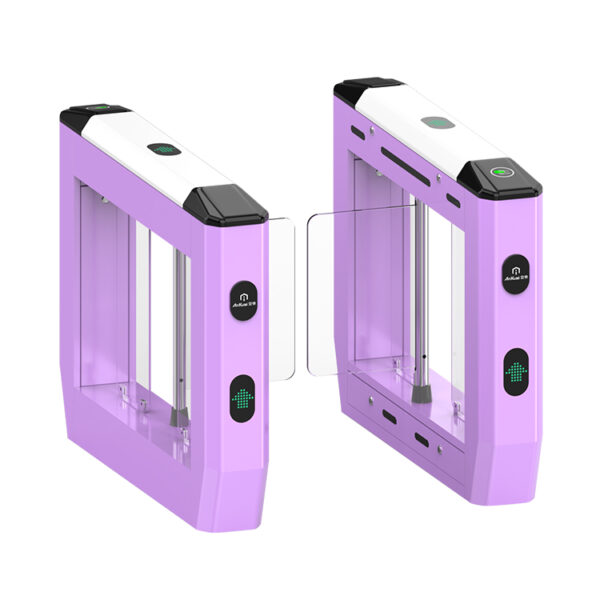

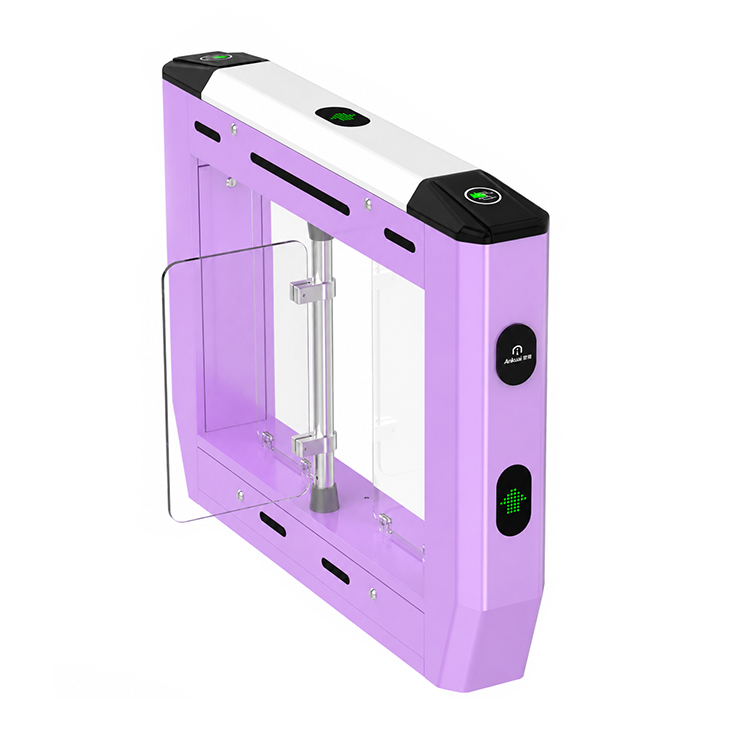

AKT324

Main Function

Self-diagnosis function.
Bi-directional arm turning.
In case of power failure, the arm opens automatically; upon power restoration, the arm automatically locks.
After a valid card is read and the passenger passes through, the arm can delay closing for 1-60 seconds, adjustable via the control panel.
Auto-reset function: If a passenger does not pass within the set time after card reading, the turnstile automatically cancels the order. Managers can adjust this time.
Anti-tailgating function: If no valid entry signal is received, the arm remains locked.
Stable operation with minimal noise.

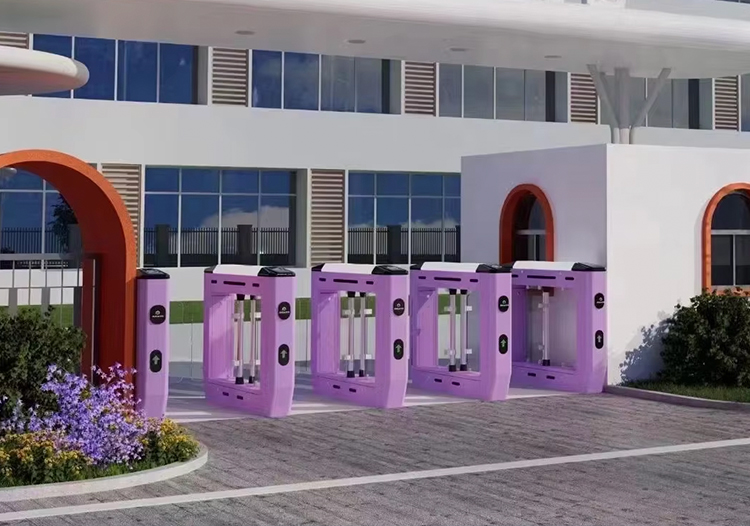

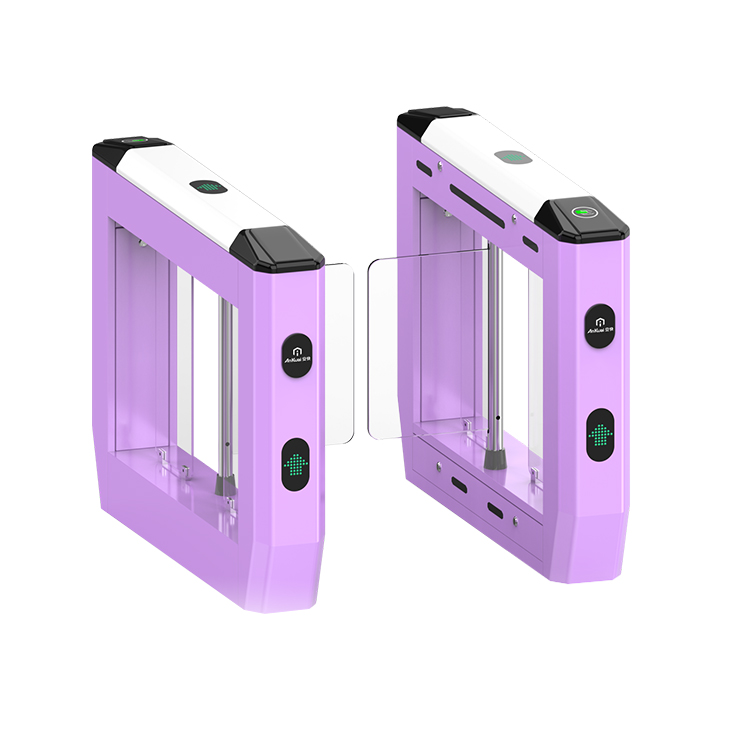

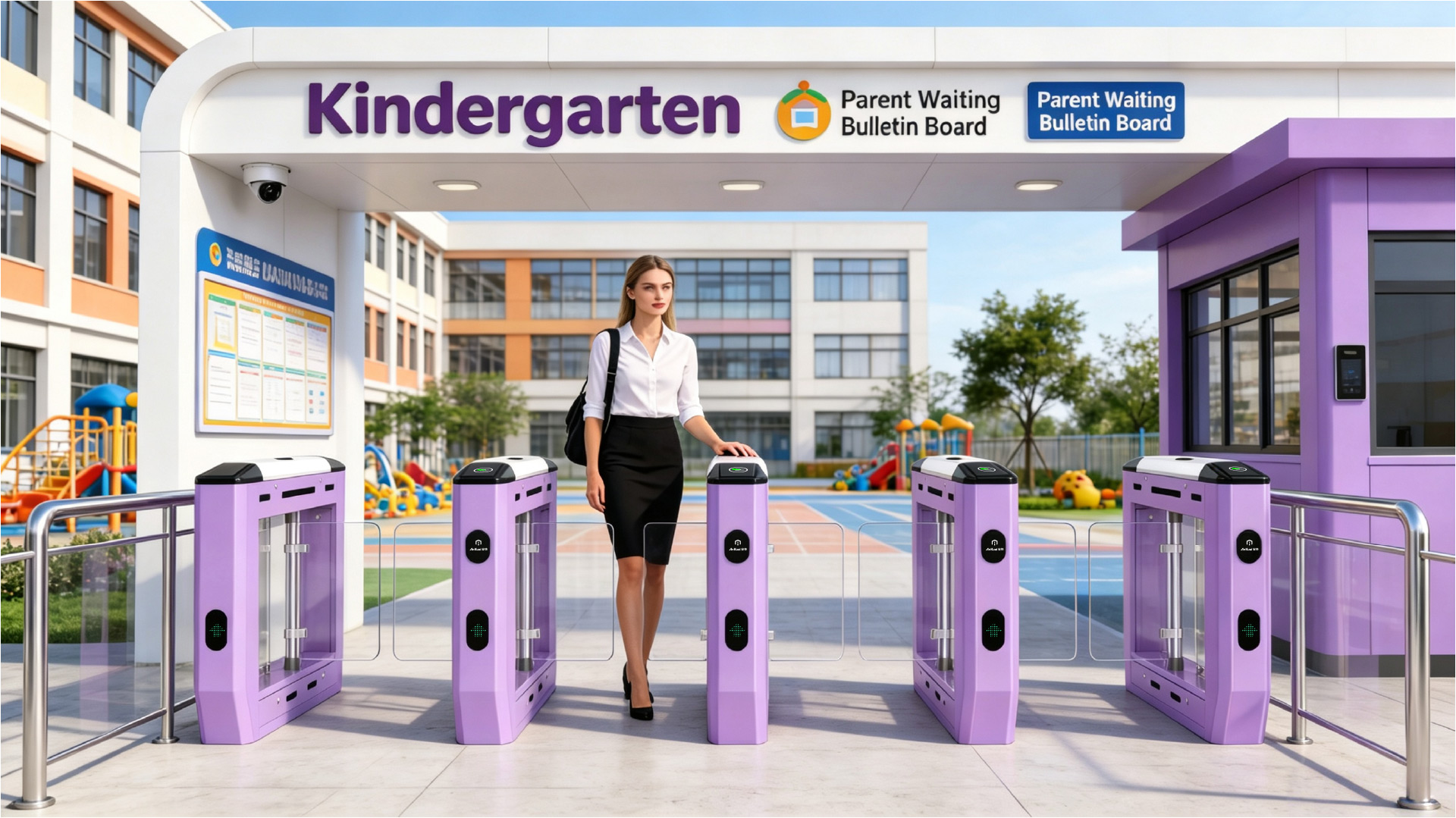

This Intelligent Swing Gate Turnstile is an advanced access control solution designed to provide secure, efficient, and user-friendly pedestrian management. Equipped with dual anti-pinch protection, a servo brushless motor drive, anti-tailgating detection, intrusion and reverse passage alarms, and automatic reset functionality, it ensures maximum safety and reliable operation. The system supports face recognition devices, IC/ID card readers, and other access control technologies, while multi-color LED indicators and voice prompts enhance the user experience. With its smooth, quiet performance and intelligent security features, it is ideal for offices, airports, metro stations, educational institutions, and other high-traffic environments requiring controlled access.

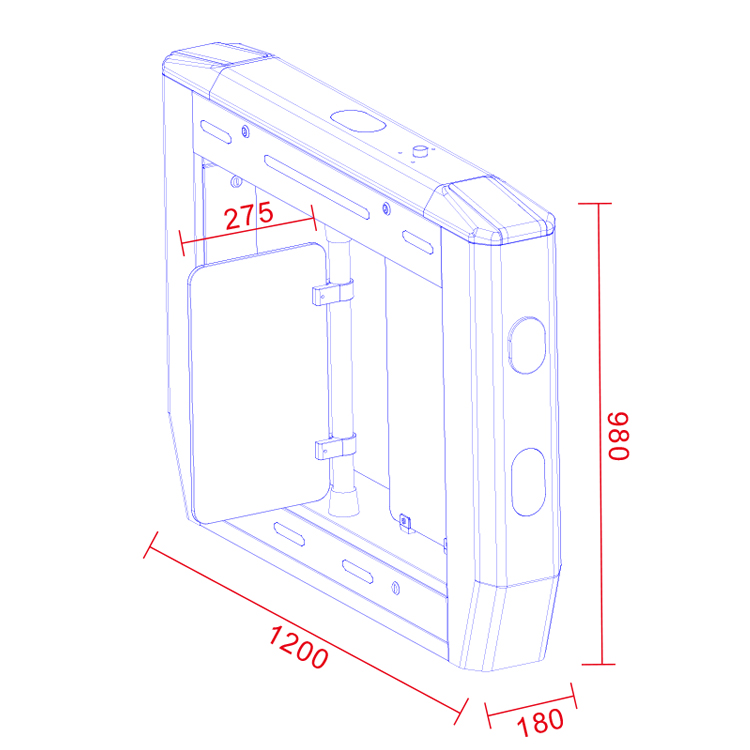

product Details And Dimensions

All the details and dimensions can be customized according to your project site

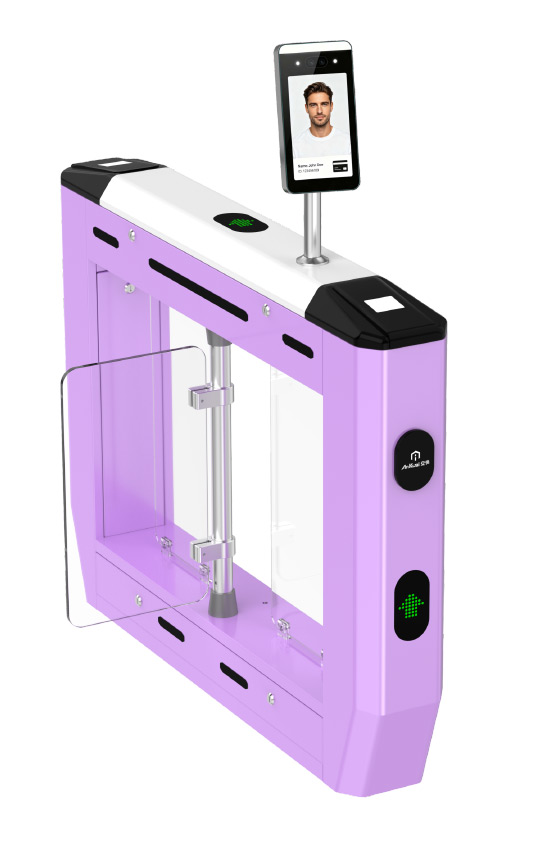

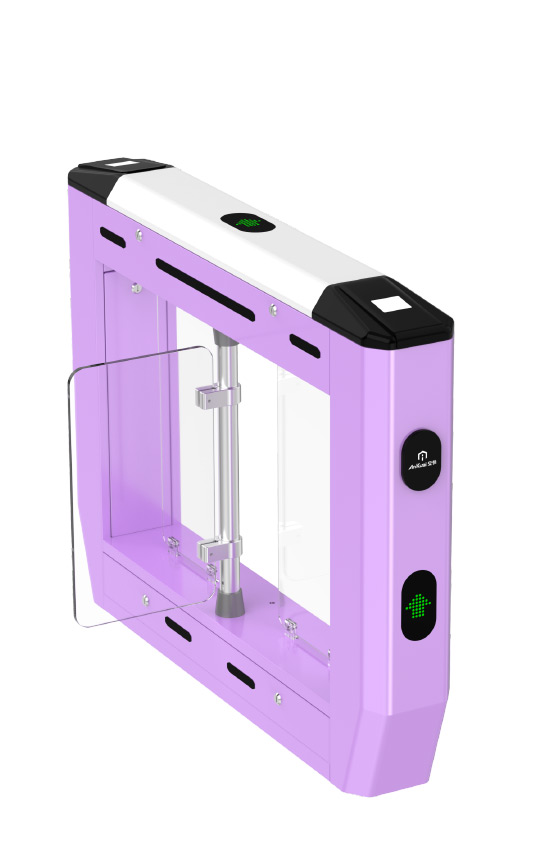

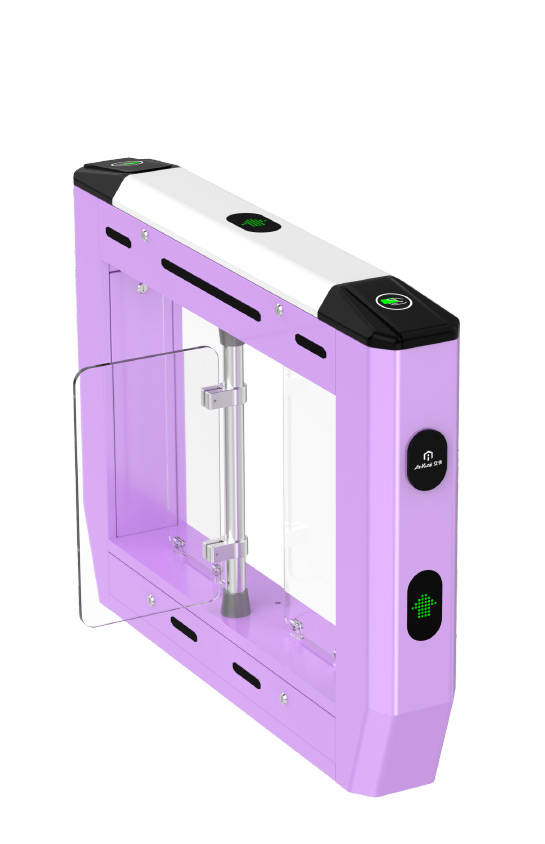

Integrate Any Access Controllers

Model DS-Q50 can be integrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.

Product Parameters

Technical Parameter	Value
Power supply	AC110-220V / 50-60Hz
Motor power consumption	24V BLDC 40W
Passage width	≤600mm
Arm Length	270mm
Open/Close time	1s
Passing speed	40-60 Persons/min
Infrared	6 Pairs
Dimension	1200 x 180 x 900mm
Housing material	SUS304 Stainless steel
Working temperature	-25° to 75°
Arm Turning	Bi-Direction
Working environment	Indoors or Outdoors
Communication interface	RS485, TTL232
